HAZARD SWITCH
LT-177
C
D
E
F
G
H
I
J
L
MA
B
LT
HAZARD SWITCHPFP:25290
Removal and InstallationBKS001Q6
REMOVAL
1. Remove cluster lid D. Refer to IP-10, "INSTRUMENT PANEL
ASSEMBLY" .
2. Disconnect connector.
3. Remove screw and remove hazard switch integral with center
ventilator grille from cluster lid D.
4. Pawl on rearward and remove hazard switch.
INSTALLATION
Installation is the reverse order of removal.
PKIB7984E
Page 2866 of 3502
LT-178
COMBINATION SWITCH
COMBINATION SWITCHPFP:25567

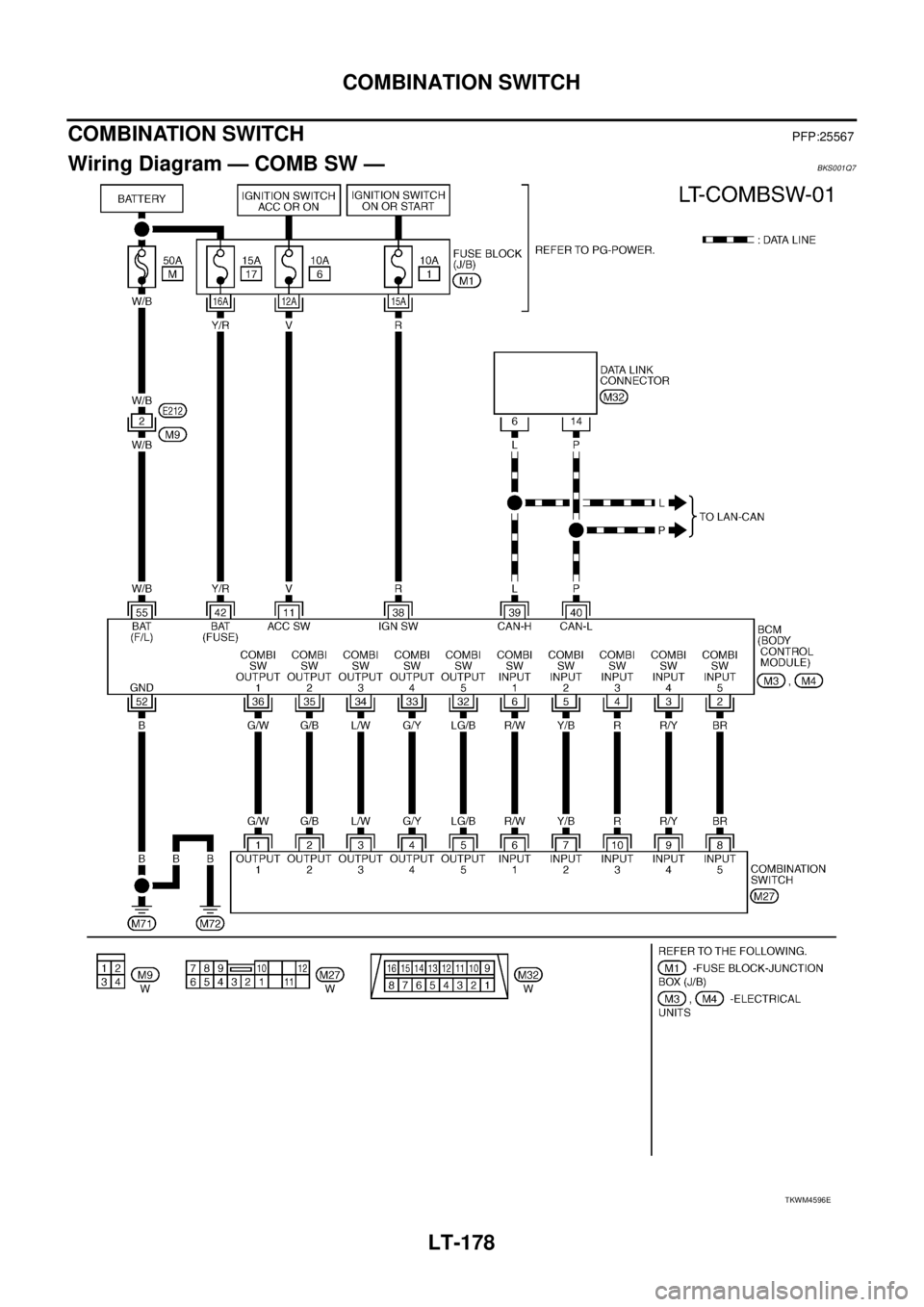

Wiring Diagram — COMB SW —BKS001Q7
TKWM4596E
Page 2867 of 3502

COMBINATION SWITCH
LT-179
C
D
E
F
G
H
I
J
L
MA
B
LT
Terminals and Reference Values for BCMBKS002FP
CAUTION:
Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.
Turn wiper intermittent dial position to 4 except when checking waveform or voltage of wiper inter-
mittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-II. Refer to LT-
184, "DATA MONITOR" .
Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
2BRCombination
switch input 5ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF Approx. 0 V
Any of the conditions below
Lighting switch 1ST position
Turn signal switch RH position
Lighting switch HI BEAM position
(Operates only HI BEAM switch)
Approx. 1.0 V
Lighting switch 2ND position
Approx. 2.0 V
3R/YCombination
switch input 4ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF Approx. 0 V
Front fog lamp switch ON position
Approx. 1.0 V
Any of the conditions below
Lighting switch 2ND position
Lighting switch PASSING position
(Operates only PASSING switch)
Turn signal switch LH position
Approx. 1.0 V
PKIB4959J
PKIC4459J
PKIB4955J
PKIB4959J
Page 2868 of 3502
LT-180
COMBINATION SWITCH
4RCombination
switch input 3ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF Approx. 0 V
Rear fog switch ON position
Approx. 1.0 V
Any of the conditions below
Lighting switch AUTO position
Front wiper switch MIST position
Front wiper switch INT position
Front wiper switch LO position
Approx. 1.0 V
5Y/BCombination
switch input 2ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)Approx. 0 V
Any of the conditions below
Front washer switch ON position
(Wiper intermittent dial position 4)
Wiper intermittent dial position 1
Wiper intermittent dial position 5
Wiper intermittent dial position 6
Approx. 1.0 V Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4955J
PKIB4959J
PKIB4959J
Page 2869 of 3502

COMBINATION SWITCH
LT-181
C
D
E
F
G
H
I
J
L
MA
B
LT

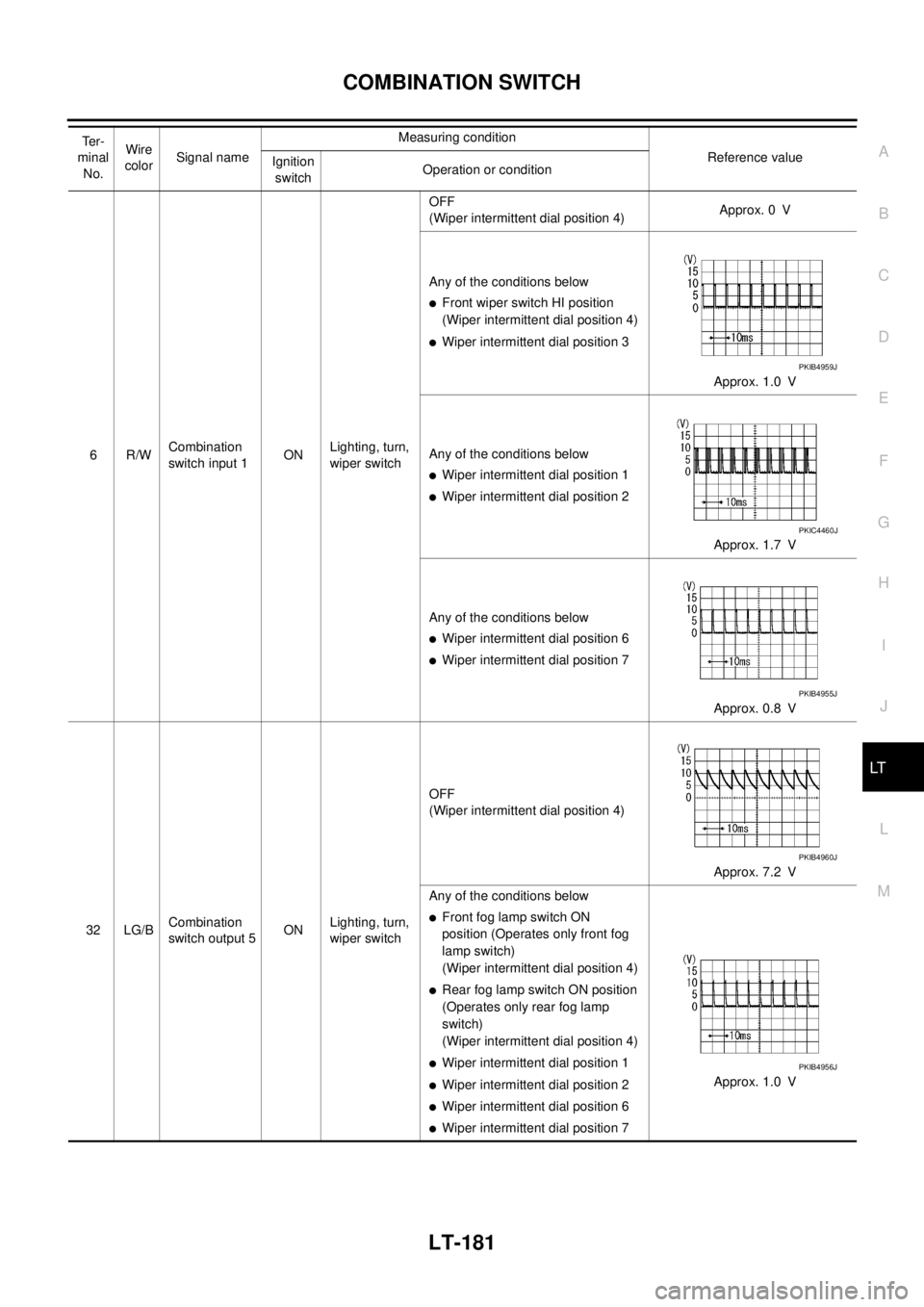

6R/WCombination
switch input 1ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)Approx. 0 V
Any of the conditions below
Front wiper switch HI position
(Wiper intermittent dial position 4)
Wiper intermittent dial position 3
Approx. 1.0 V
Any of the conditions below
Wiper intermittent dial position 1
Wiper intermittent dial position 2
Approx. 1.7 V
Any of the conditions below
Wiper intermittent dial position 6
Wiper intermittent dial position 7
Approx. 0.8 V
32 LG/BCombination
switch output 5ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below
Front fog lamp switch ON
position (Operates only front fog
lamp switch)
(Wiper intermittent dial position 4)
Rear fog lamp switch ON position
(Operates only rear fog lamp
switch)
(Wiper intermittent dial position 4)
Wiper intermittent dial position 1
Wiper intermittent dial position 2
Wiper intermittent dial position 6
Wiper intermittent dial position 7Approx. 1.0 V Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4959J
PKIC4460J
PKIB4955J
PKIB4960J
PKIB4956J
Page 2870 of 3502

LT-182
COMBINATION SWITCH
33 G/YCombination
switch output 4ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions belowLighting switch AUTO position
(Wiper intermittent dial position 4)
Lighting switch 1ST position
(The same result with lighting
switch 2ND position)
(Wiper intermittent dial position 4)
Wiper intermittent dial position 1
Wiper intermittent dial position 5
Wiper intermittent dial position 6Approx. 1.2 V
34 L/WCombination
switch output 3ONLighting, turn,
wiper switchOFF
(Wiper intermittent dial position 4)
Approx. 7.2 V
Any of the conditions below
Lighting switch 2ND position
(Wiper intermittent dial position 4)
Lighting switch HI BEAM
position (Operates only HI beam
switch)
(Wiper intermittent dial position 4)
Wiper intermittent dial position 1
Wiper intermittent dial position 2
Wiper intermittent dial position 3Approx. 1.2 V Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
Page 2871 of 3502

COMBINATION SWITCH
LT-183
C
D
E
F
G
H
I
J
L
MA
B
LT
Combination Switch Reading FunctionBKS001Q8
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
CONSULT-II Functions (BCM)BKS001Q9
CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.

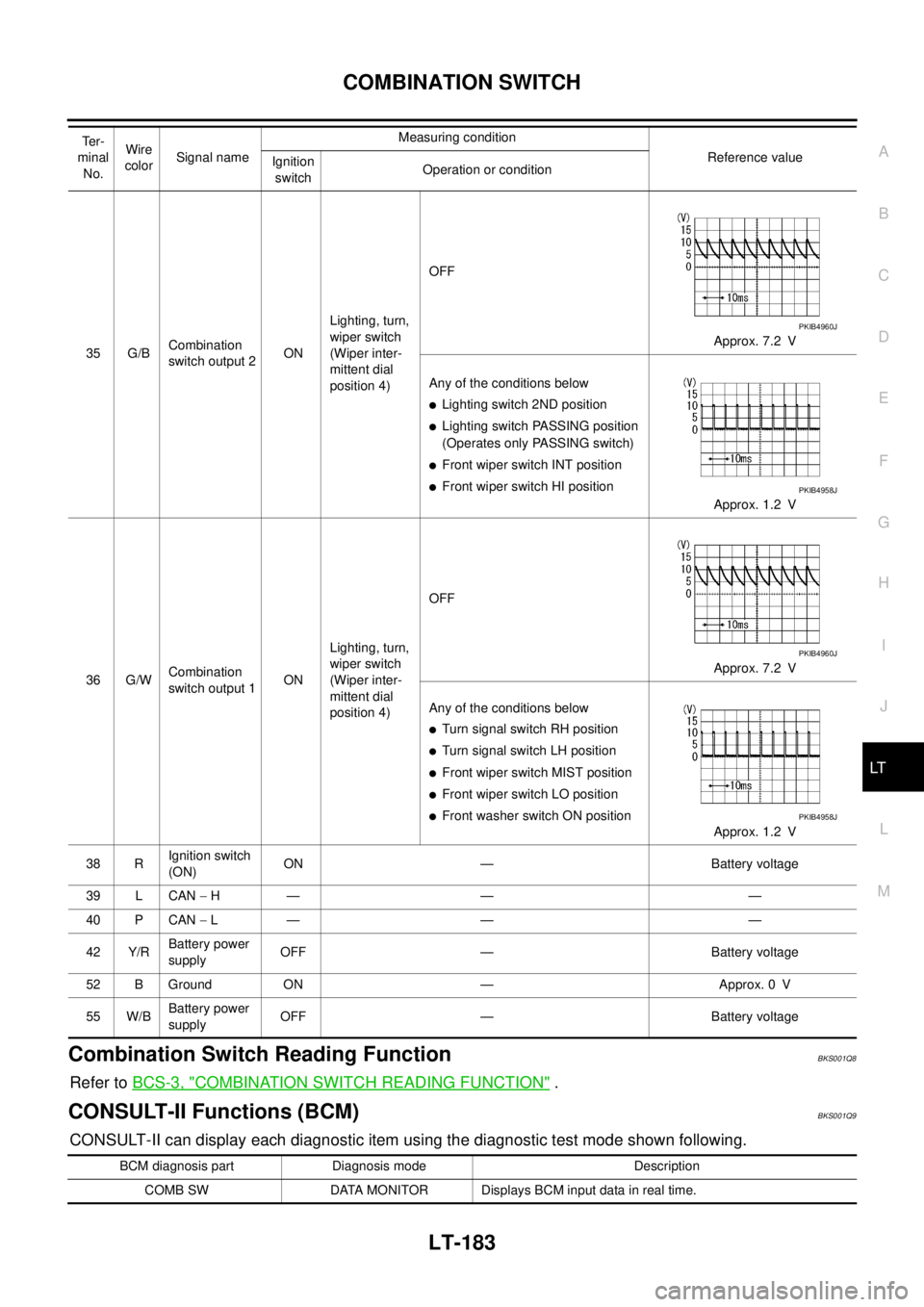

35 G/BCombination
switch output 2ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below
Lighting switch 2ND position
Lighting switch PASSING position
(Operates only PASSING switch)
Front wiper switch INT position
Front wiper switch HI position
Approx. 1.2 V
36 G/WCombination
switch output 1ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below
Turn signal switch RH position
Turn signal switch LH position
Front wiper switch MIST position
Front wiper switch LO position
Front washer switch ON position
Approx. 1.2 V
38 RIgnition switch
(ON) ON — Battery voltage
39 L CAN − H— — —
40 P CAN − L— — —
42 Y/RBattery power
supplyOFF — Battery voltage
52 B Ground ON — Approx. 0 V
55 W/BBattery power
supplyOFF — Battery voltage Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
BCM diagnosis part Diagnosis mode Description
COMB SW DATA MONITOR Displays BCM input data in real time.
Page 2872 of 3502

LT-184
COMBINATION SWITCH
CONSULT-II BASIC OPERATION
Refer to GI-34, "CONSULT-II Start Procedure" .
DATA MONITOR
Operation Procedure
1. Touch “COMB SW” on “SELECT TEST ITEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.
4. When “ALL SIGNALS” is selected, all the items will be monitored. When “SELECTION FROM MENU” is
selected, touch individual items to be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the monitored item can be recorded. To stop
recording, touch “STOP”.
Display Item List
NOTE:
This item is displayed, but cannot be monitored.ALL SIGNALS Monitors all the items.
SELECTION FROM MENU Selects items and monitor them.
Monitor item name Contents
TURN SIGNAL R “ON/OFF” Displays “Turn Right (ON)/other (OFF)” status, determined from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays “Turn Left (ON)/other (OFF)” status, determined from lighting switch signal.
HI BEAM SW “ON/OFF”Displays status (high beam switch: ON/others: OFF) of high beam switch judged from lighting
switch signal.
HEAD LAMP SW 1 “ON/OFF”Displays status (headlamp switch 1: ON/others: OFF) of headlamp switch 1 judged from light-
ing switch signal.
HEAD LAMP SW 2 “ON/OFF”Displays status (headlamp switch 2: ON/others: OFF) of headlamp switch 2 judged from light-
ing switch signal.
LIGHT SW 1ST “ON/OFF”Displays status (lighting switch 1ST or 2ND position: ON/others: OFF) of lighting switch
judged from lighting switch signal.
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/others: OFF) of flash-to-pass switch judged from
lighting switch signal.
AUTO LIGHT SW “ON/OFF” Displays “Auto light switch (ON)/other (OFF)” status, determined from lighting switch signal.
FR FOG SW “ON/OFF”Displays “front fog lamp switch (ON)/other (OFF)” status, determined from lighting switch sig-
nal.
RR FOG SW “ON/OFF”Displays “rear fog lamp switch (ON)/other (OFF)” status, determined from lighting switch sig-
nal.
FR WIPER HI “ON/OFF” Displays “Front Wiper HI (ON)/other (OFF)” status, determined from wiper switch signal.
FR WIPER LOW “ON/OFF” Displays “Front Wiper LOW (ON)/other (OFF)” status, determined from wiper switch signal.
FR WIPER INT “ON/OFF” Displays “Front Wiper INT (ON)/other (OFF)” status, determined from wiper switch signal.
FR WASHER SW “ON/OFF” Displays “Front Washer Switch (ON)/other (OFF)” status, determined from wiper switch signal.
INT VOLUME “1 - 7” Displays intermittent operation knob setting (1 - 7), determined from wiper switch signal.
RR WIPER ON
NOTE“OFF” —
RR WIPER INT
NOTE“OFF” —
RR WASHER SW
NOTE“OFF” —
