Page 2065 of 3502

NISSAN TEANA 2003 Service Manual REAR BUMPER EI-17 C D E F G H J K L MA B EI REAR BUMPERPFP:H5022 Removal and InstallationBIS0011F CAUTION: Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent

Page 2066 of 3502

NISSAN TEANA 2003 Service Manual EI-18 REAR BUMPER REMOVAL 1. Fully open trunk lid assembly. 2. Remove trunk floor carpet, trunk box assembly, trunk floor spacer (LH/RH), trunk rear garnish, trunk rear finisher, and trunk wheelhous

Page 2067 of 3502

NISSAN TEANA 2003 Service Manual REAR BUMPER EI-19 C D E F G H J K L MA B EI REMOVAL AND INSTALLATION OF REAR BUMPER MOLDING Removal 1. Remove rear bumper fascia. 2. Disengage the joint between rear bumper fascia and rear bumper mo

Page 2068 of 3502

NISSAN TEANA 2003 Service Manual EI-20 FRONT GRILLE FRONT GRILLEPFP:62310 Removal and InstallationBIS0011G REMOVAL 1. Fully open hood assembly. 2. Remove mounting nut from back of grille. 3. Pull out front grille toward front of ve

Page 2069 of 3502

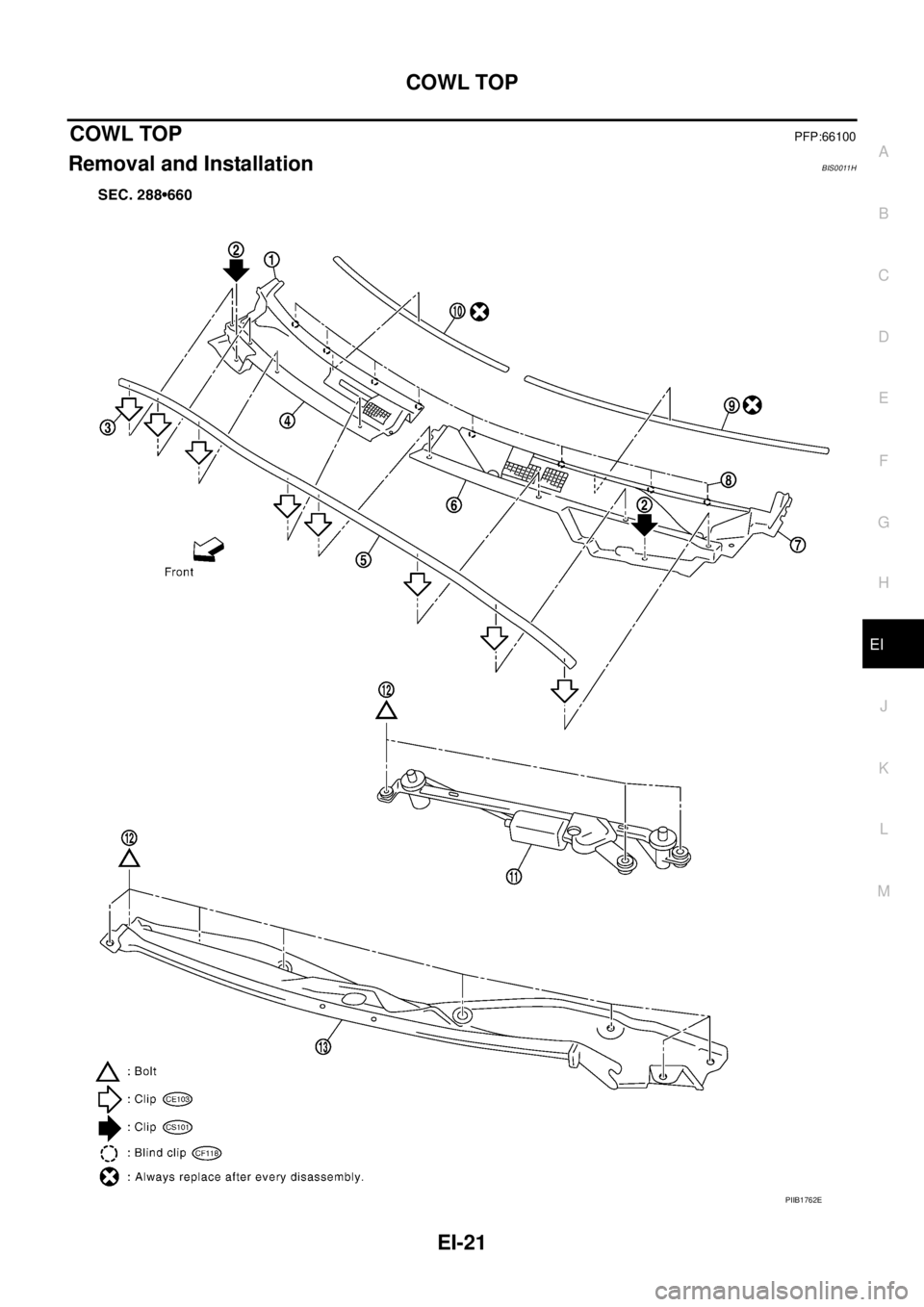

NISSAN TEANA 2003 Service Manual COWL TOP EI-21 C D E F G H J K L MA B EI COWL TOPPFP:66100 Removal and InstallationBIS0011H PIIB1762E

Page 2070 of 3502

NISSAN TEANA 2003 Service Manual EI-22 COWL TOP REMOVAL 1. Remove front wiper arm (LH/RH) from vehicle. Refer to WW-34, "Removal and Installation of Front Wiper Arms, Adjustment of Wiper Arms Stop Location" . 2. Remove cowl top sea

Page 2071 of 3502

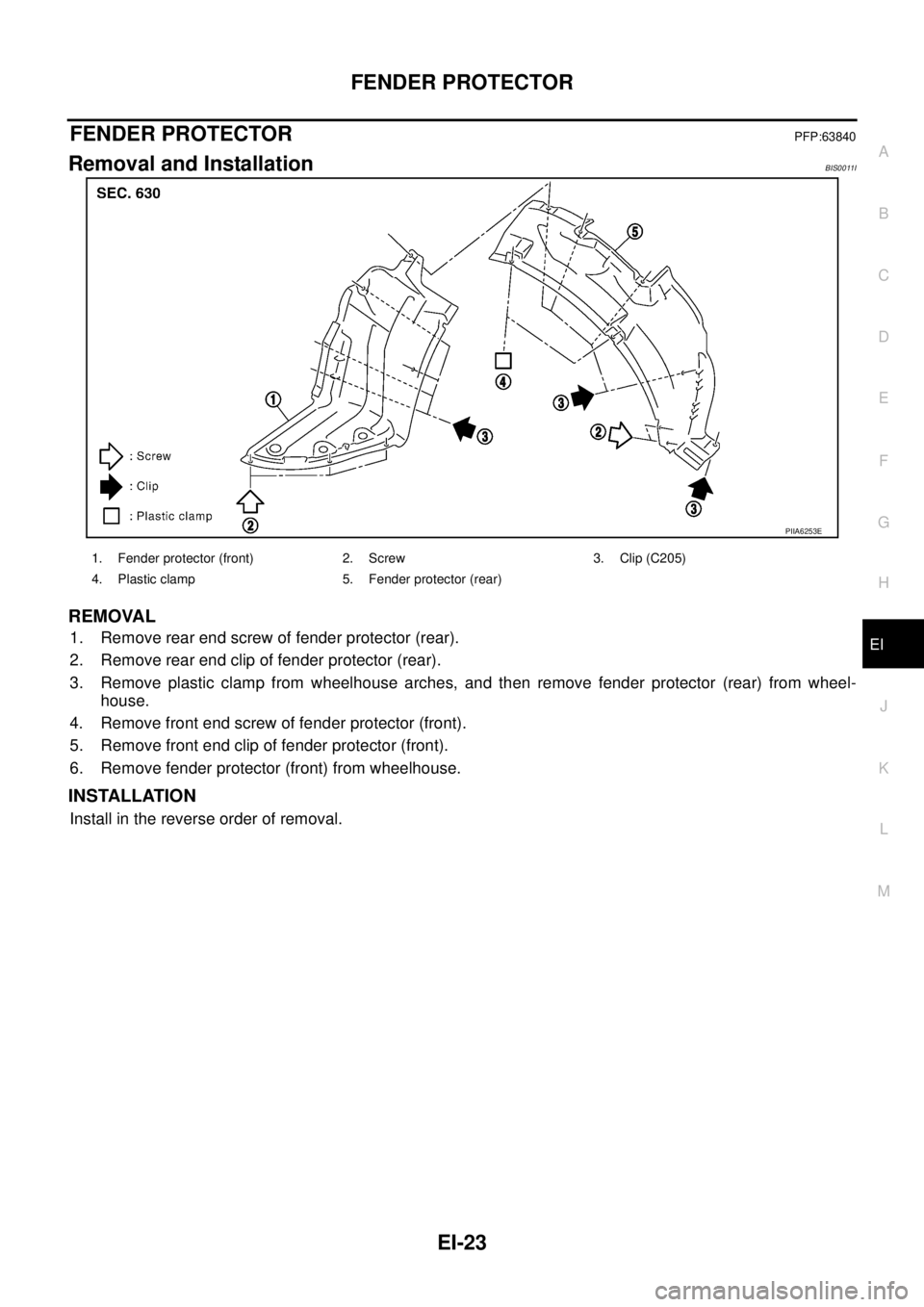

NISSAN TEANA 2003 Service Manual FENDER PROTECTOR EI-23 C D E F G H J K L MA B EI FENDER PROTECTORPFP:63840 Removal and InstallationBIS0011I REMOVAL 1. Remove rear end screw of fender protector (rear). 2. Remove rear end clip of fe

Page 2072 of 3502

NISSAN TEANA 2003 Service Manual EI-24 CENTER MUD GUARD CENTER MUD GUARDPFP:76850 Removal and InstallationBIS0011J REMOVAL 1. Remove screws of mudguard front/rear side. 2. Remove bolts of mudguad lower side. 3. Fully open front doo
