INSTALLATION
NOTE:

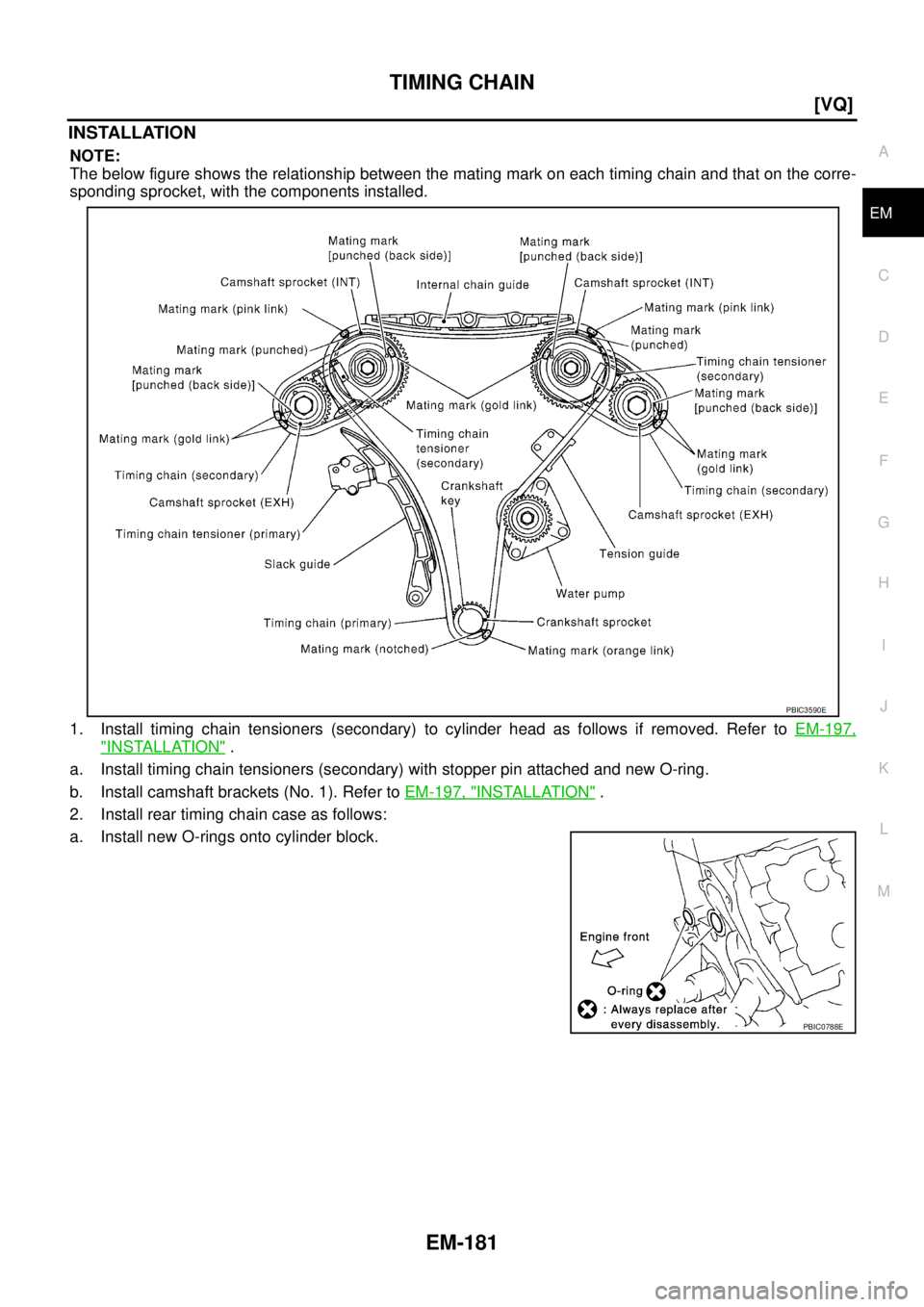

The below figure shows the relationship between the mating mark on each timing chain and that on the corre-
sponding sprocket, with the components installed.
1. Install timing chain tensioners (secondary) to cylinder head as follows if removed. Refer to EM-197,
"INSTALLATION" .
a. Install timing chain tensioners (secondary) with stopper pin attached and new O-ring.
b. Install camshaft brackets (No. 1). Refer to EM-197, "
INSTALLATION" .
2. Install rear timing chain case as follows:
a. Install new O-rings onto cylinder block.
PBIC3590E
PBIC0788E
Page 2290 of 3502
EM-182
[VQ]
TIMING CHAIN
b. Install new O-rings to cylinder head.

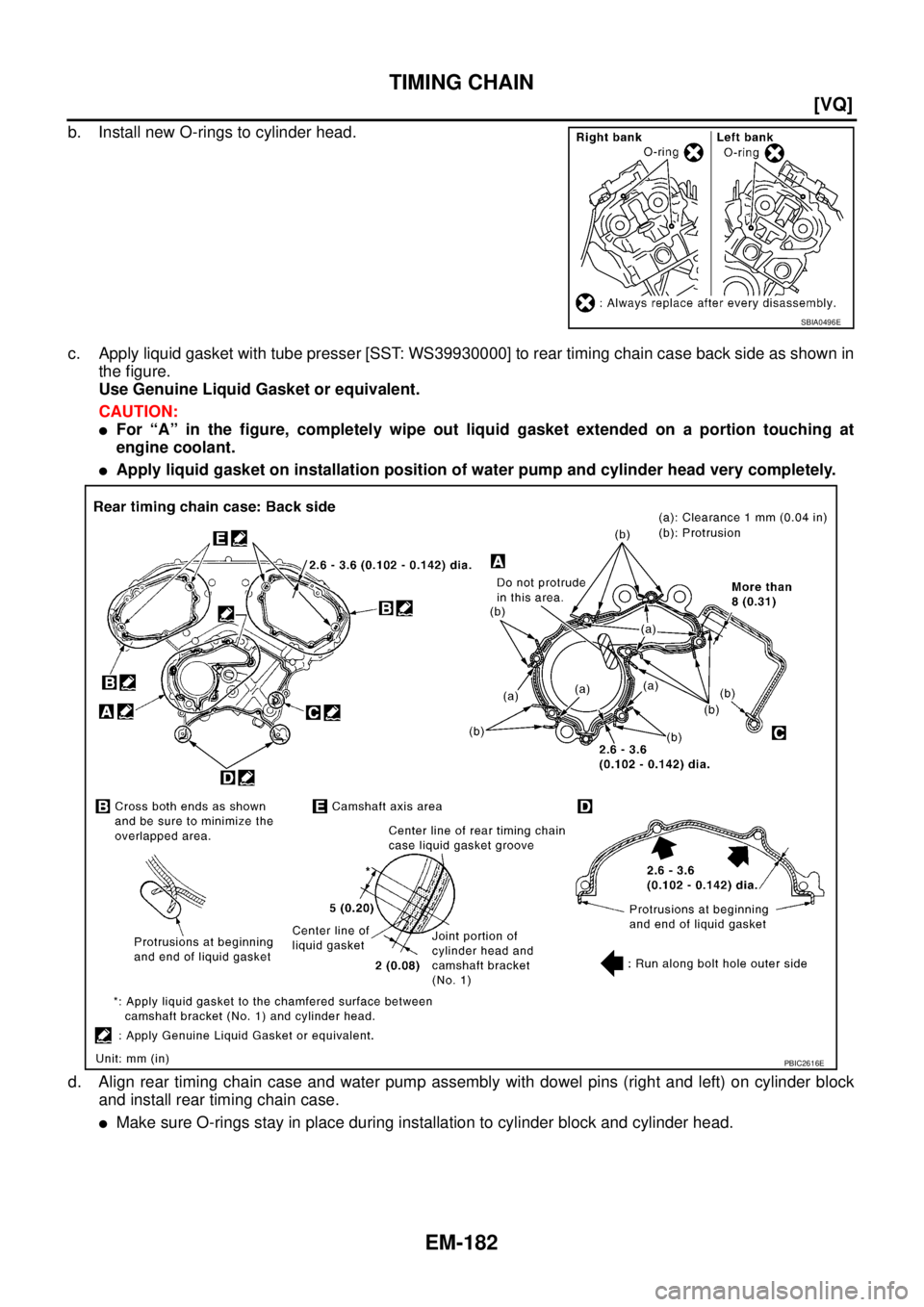

c. Apply liquid gasket with tube presser [SST: WS39930000] to rear timing chain case back side as shown in
the figure.
Use Genuine Liquid Gasket or equivalent.
CAUTION:
For “A” in the figure, completely wipe out liquid gasket extended on a portion touching at
engine coolant.
Apply liquid gasket on installation position of water pump and cylinder head very completely.
d. Align rear timing chain case and water pump assembly with dowel pins (right and left) on cylinder block
and install rear timing chain case.
Make sure O-rings stay in place during installation to cylinder block and cylinder head.
SBIA0496E
PBIC2616E
Page 2291 of 3502
![NISSAN TEANA 2003 Service Manual TIMING CHAIN
EM-183
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

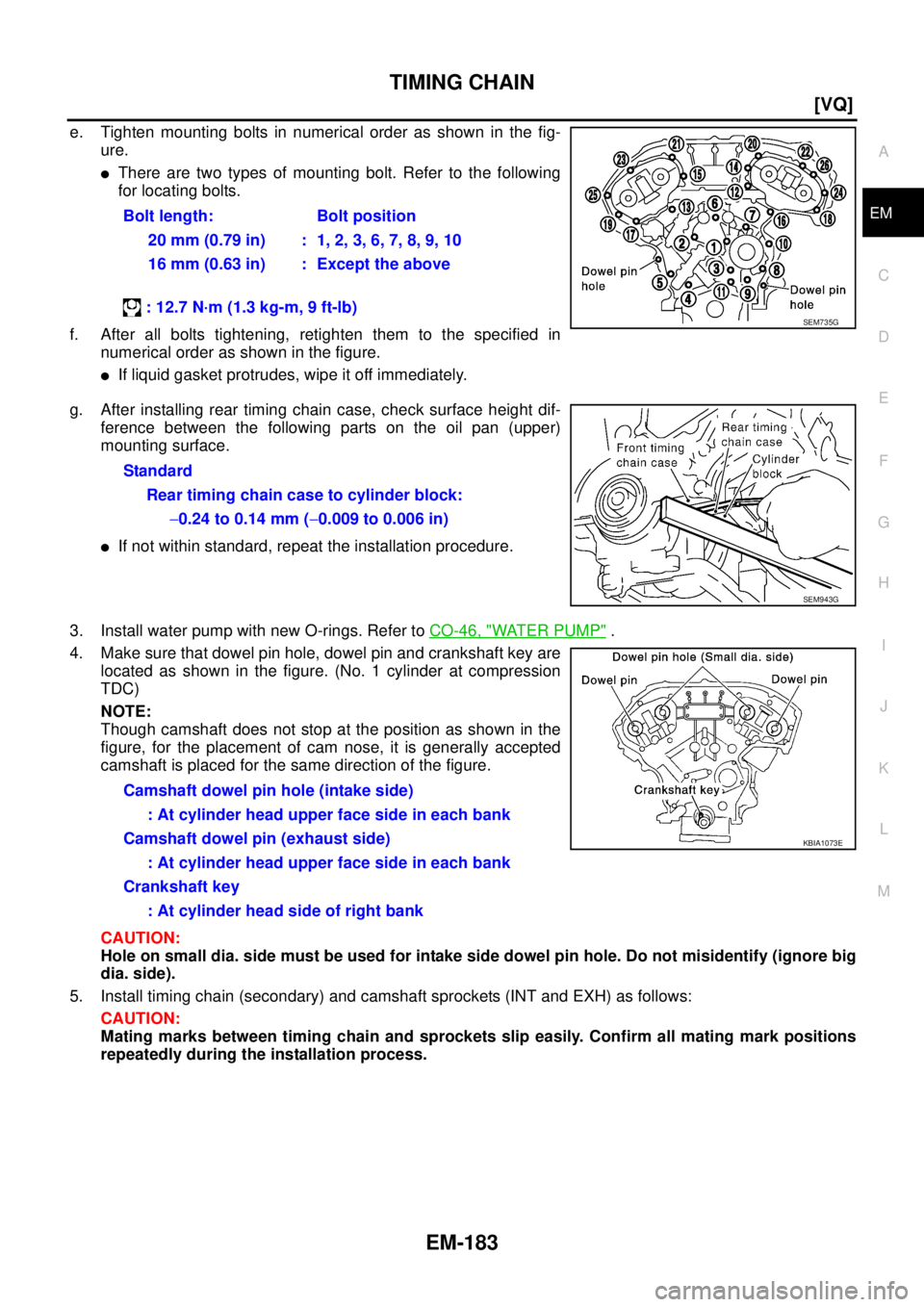

e. Tighten mounting bolts in numerical order as shown in the fig-
ure.
There are two types of mounting bolt. Refer to the following
for locating b NISSAN TEANA 2003 Service Manual TIMING CHAIN
EM-183
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM
e. Tighten mounting bolts in numerical order as shown in the fig-
ure.
There are two types of mounting bolt. Refer to the following
for locating b](/manual-img/5/57392/w960_57392-2290.png)
TIMING CHAIN
EM-183
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM
e. Tighten mounting bolts in numerical order as shown in the fig-
ure.
There are two types of mounting bolt. Refer to the following
for locating bolts.
f. After all bolts tightening, retighten them to the specified in
numerical order as shown in the figure.
If liquid gasket protrudes, wipe it off immediately.
g. After installing rear timing chain case, check surface height dif-
ference between the following parts on the oil pan (upper)
mounting surface.
If not within standard, repeat the installation procedure.
3. Install water pump with new O-rings. Refer to CO-46, "
WATER PUMP" .
4. Make sure that dowel pin hole, dowel pin and crankshaft key are
located as shown in the figure. (No. 1 cylinder at compression
TDC)
NOTE:
Though camshaft does not stop at the position as shown in the
figure, for the placement of cam nose, it is generally accepted
camshaft is placed for the same direction of the figure.
CAUTION:
Hole on small dia. side must be used for intake side dowel pin hole. Do not misidentify (ignore big
dia. side).
5. Install timing chain (secondary) and camshaft sprockets (INT and EXH) as follows:
CAUTION:
Mating marks between timing chain and sprockets slip easily. Confirm all mating mark positions
repeatedly during the installation process.Bolt length: Bolt position
20 mm (0.79 in) : 1, 2, 3, 6, 7, 8, 9, 10
16 mm (0.63 in) : Except the above
: 12.7 N·m (1.3 kg-m, 9 ft-lb)
SEM735G
Standard
Rear timing chain case to cylinder block:
−0.24 to 0.14 mm (−0.009 to 0.006 in)
SEM943G
Camshaft dowel pin hole (intake side)
: At cylinder head upper face side in each bank
Camshaft dowel pin (exhaust side)
: At cylinder head upper face side in each bank
Crankshaft key
: At cylinder head side of right bank
KBIA1073E
Page 2292 of 3502
![NISSAN TEANA 2003 Service Manual EM-184
[VQ]
TIMING CHAIN

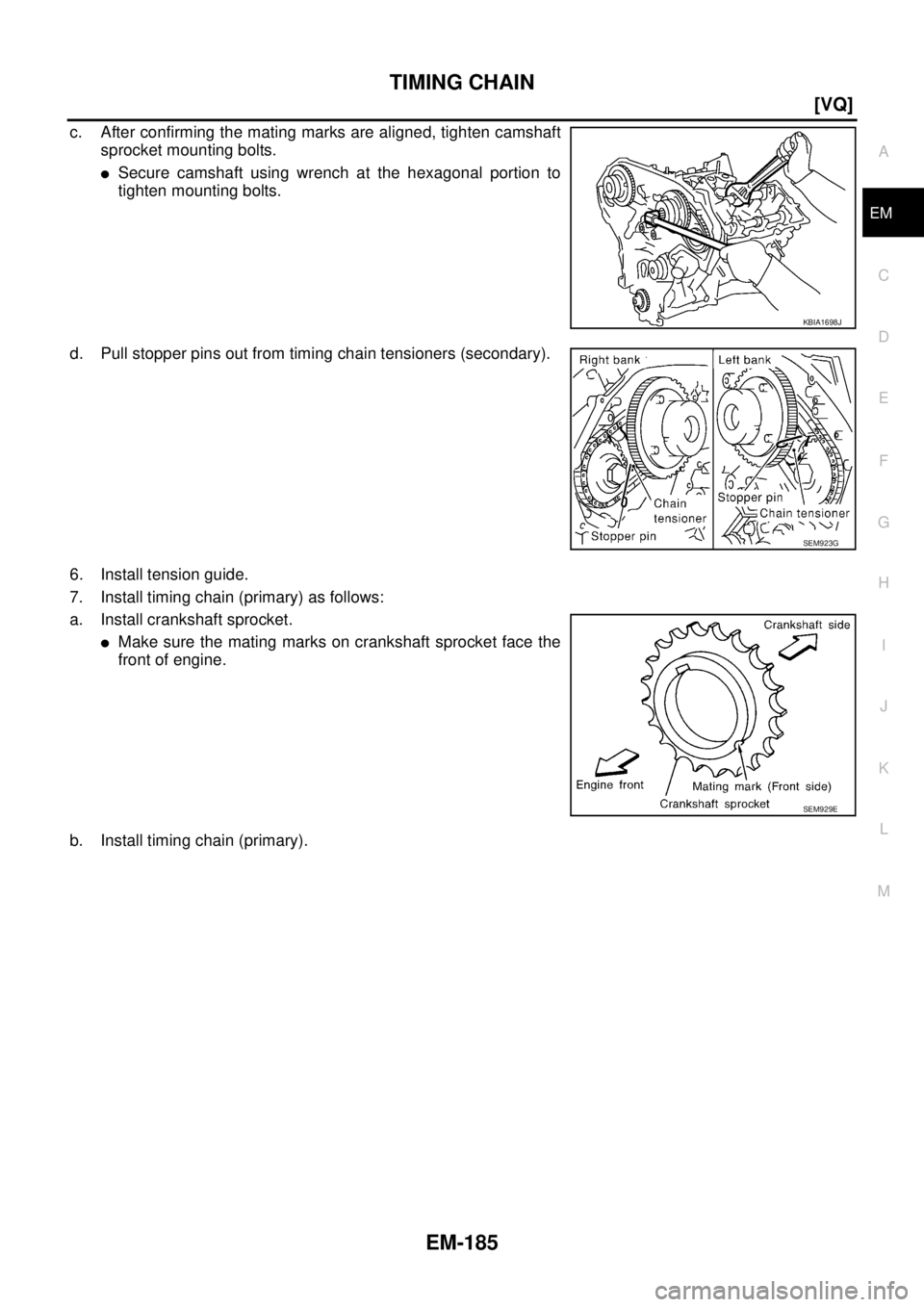

a. Push plunger of chain tensioner (secondary) and keep it
pressed in with stopper pin.
b. Install timing chain (secondary) and camshaft sprockets (INT
and EXH).
Align the NISSAN TEANA 2003 Service Manual EM-184
[VQ]
TIMING CHAIN
a. Push plunger of chain tensioner (secondary) and keep it
pressed in with stopper pin.
b. Install timing chain (secondary) and camshaft sprockets (INT
and EXH).
Align the](/manual-img/5/57392/w960_57392-2291.png)
EM-184
[VQ]
TIMING CHAIN
a. Push plunger of chain tensioner (secondary) and keep it
pressed in with stopper pin.
b. Install timing chain (secondary) and camshaft sprockets (INT
and EXH).

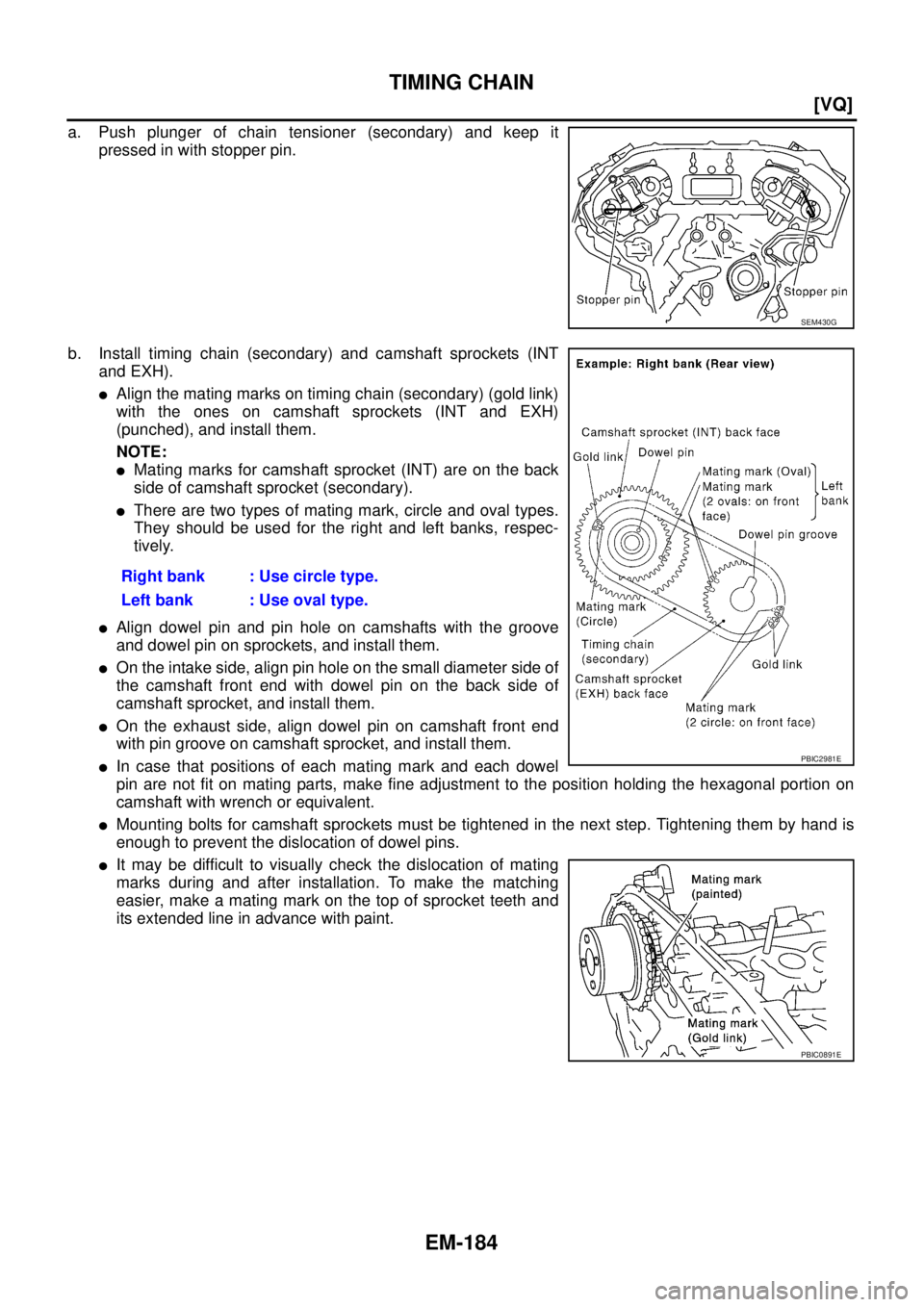

Align the mating marks on timing chain (secondary) (gold link)
with the ones on camshaft sprockets (INT and EXH)
(punched), and install them.
NOTE:
Mating marks for camshaft sprocket (INT) are on the back
side of camshaft sprocket (secondary).
There are two types of mating mark, circle and oval types.
They should be used for the right and left banks, respec-
tively.
Align dowel pin and pin hole on camshafts with the groove
and dowel pin on sprockets, and install them.
On the intake side, align pin hole on the small diameter side of
the camshaft front end with dowel pin on the back side of
camshaft sprocket, and install them.
On the exhaust side, align dowel pin on camshaft front end
with pin groove on camshaft sprocket, and install them.
In case that positions of each mating mark and each dowel
pin are not fit on mating parts, make fine adjustment to the position holding the hexagonal portion on
camshaft with wrench or equivalent.
Mounting bolts for camshaft sprockets must be tightened in the next step. Tightening them by hand is
enough to prevent the dislocation of dowel pins.
It may be difficult to visually check the dislocation of mating
marks during and after installation. To make the matching
easier, make a mating mark on the top of sprocket teeth and
its extended line in advance with paint.
SEM430G
Right bank : Use circle type.
Left bank : Use oval type.
PBIC2981E
PBIC0891E
Page 2293 of 3502
TIMING CHAIN
EM-185
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM
c. After confirming the mating marks are aligned, tighten camshaft
sprocket mounting bolts.
Secure camshaft using wrench at the hexagonal portion to
tighten mounting bolts.
d. Pull stopper pins out from timing chain tensioners (secondary).
6. Install tension guide.
7. Install timing chain (primary) as follows:
a. Install crankshaft sprocket.
Make sure the mating marks on crankshaft sprocket face the
front of engine.
b. Install timing chain (primary).
KBIA1698J
SEM923G
SEM929E
Page 2294 of 3502
EM-186
[VQ]
TIMING CHAIN

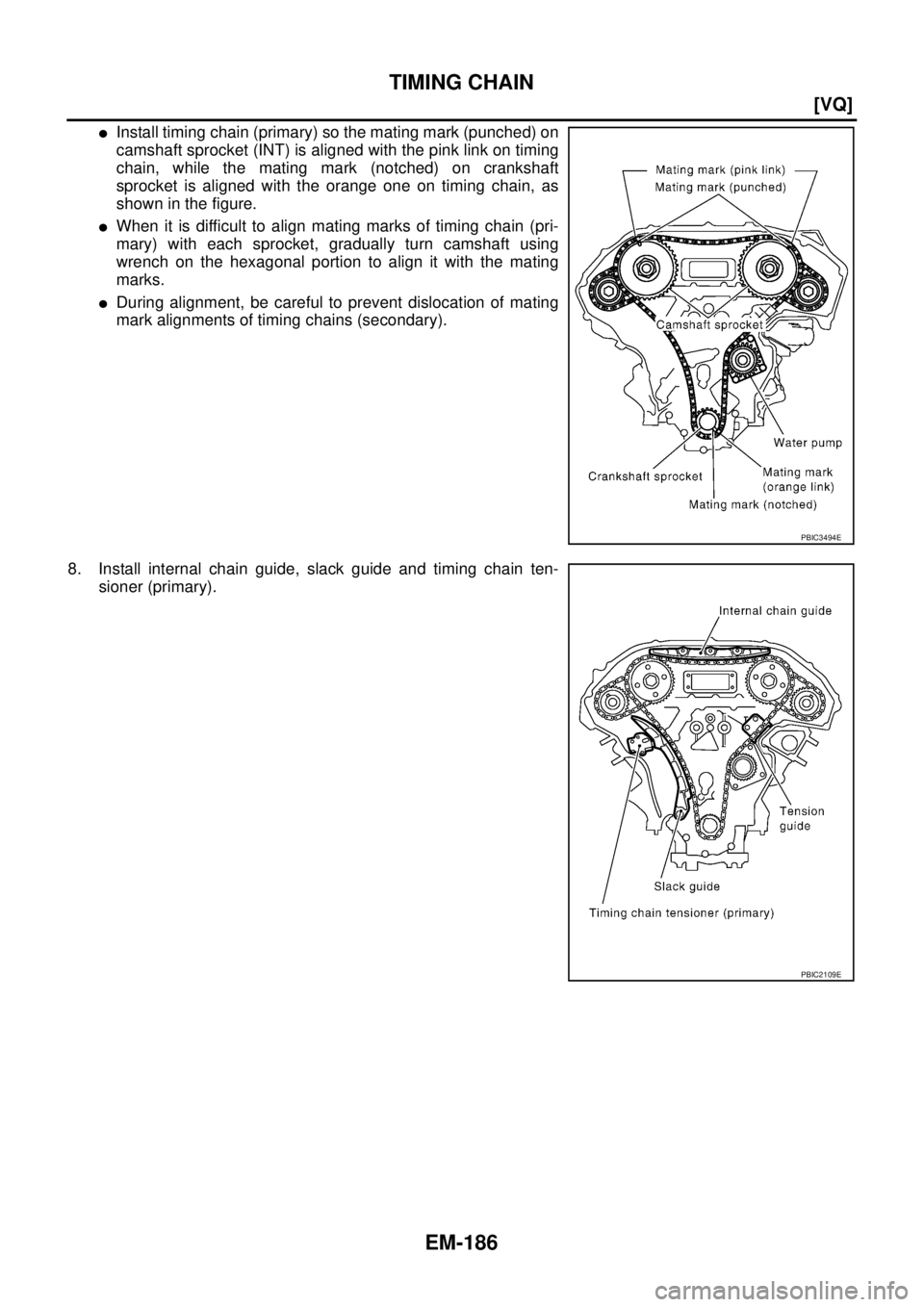

Install timing chain (primary) so the mating mark (punched) on
camshaft sprocket (INT) is aligned with the pink link on timing
chain, while the mating mark (notched) on crankshaft
sprocket is aligned with the orange one on timing chain, as
shown in the figure.
When it is difficult to align mating marks of timing chain (pri-
mary) with each sprocket, gradually turn camshaft using
wrench on the hexagonal portion to align it with the mating
marks.
During alignment, be careful to prevent dislocation of mating
mark alignments of timing chains (secondary).
8. Install internal chain guide, slack guide and timing chain ten-
sioner (primary).
PBIC3494E
PBIC2109E
Page 2295 of 3502
![NISSAN TEANA 2003 Service Manual TIMING CHAIN
EM-187
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM
CAUTION:
Do not overtighten slack guide mounting bolt. It is normal
for a gap to exist under the bolt seat when mounting bolt is
tightened to speci NISSAN TEANA 2003 Service Manual TIMING CHAIN
EM-187
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM
CAUTION:
Do not overtighten slack guide mounting bolt. It is normal
for a gap to exist under the bolt seat when mounting bolt is
tightened to speci](/manual-img/5/57392/w960_57392-2294.png)
TIMING CHAIN
EM-187
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

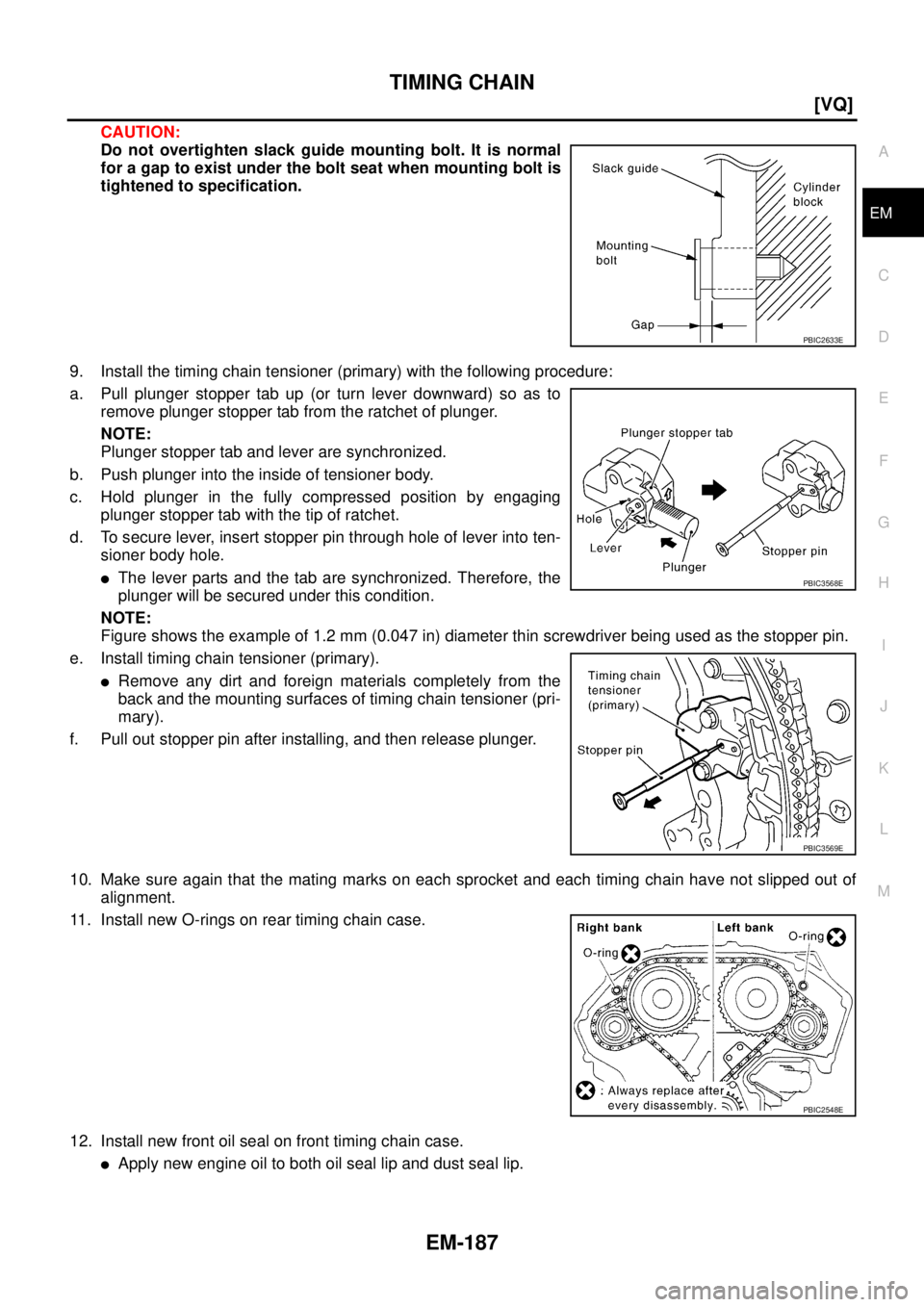

CAUTION:
Do not overtighten slack guide mounting bolt. It is normal
for a gap to exist under the bolt seat when mounting bolt is
tightened to specification.
9. Install the timing chain tensioner (primary) with the following procedure:
a. Pull plunger stopper tab up (or turn lever downward) so as to
remove plunger stopper tab from the ratchet of plunger.
NOTE:
Plunger stopper tab and lever are synchronized.
b. Push plunger into the inside of tensioner body.
c. Hold plunger in the fully compressed position by engaging
plunger stopper tab with the tip of ratchet.
d. To secure lever, insert stopper pin through hole of lever into ten-
sioner body hole.
The lever parts and the tab are synchronized. Therefore, the
plunger will be secured under this condition.
NOTE:
Figure shows the example of 1.2 mm (0.047 in) diameter thin screwdriver being used as the stopper pin.
e. Install timing chain tensioner (primary).
Remove any dirt and foreign materials completely from the
back and the mounting surfaces of timing chain tensioner (pri-
mary).
f. Pull out stopper pin after installing, and then release plunger.
10. Make sure again that the mating marks on each sprocket and each timing chain have not slipped out of
alignment.
11. Install new O-rings on rear timing chain case.
12. Install new front oil seal on front timing chain case.
Apply new engine oil to both oil seal lip and dust seal lip.
PBIC2633E
PBIC3568E
PBIC3569E
PBIC2548E
Page 2296 of 3502
EM-188
[VQ]
TIMING CHAIN
Install it so that each seal lip is oriented as shown in the fig-
ure.
Using suitable drift [outer diameter: 60 mm (2.36 in)], press-fit
oil seal until it becomes flush with front timing chain case end
face.
Make sure the garter spring is in position and seal lip is not
inverted.
13. Install water pump cover and chain tensioner cover to front timing chain case.
Apply a continuous bead of liquid gasket with tube presser
[SST: WS39930000] to front timing chain case as shown in
the figure.
Use Genuine Liquid Gasket or equivalent.
14. Install front timing chain case as follows:
SEM715A
PBIC0790E
SEM744GA
