NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
EC-87
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

*:Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.PURG VOL
CONT/V
Engine: After warming up,

Page 1370 of 3502

NISSAN TEANA 2003 Service Manual EC-88
[QR]
TROUBLE DIAGNOSIS

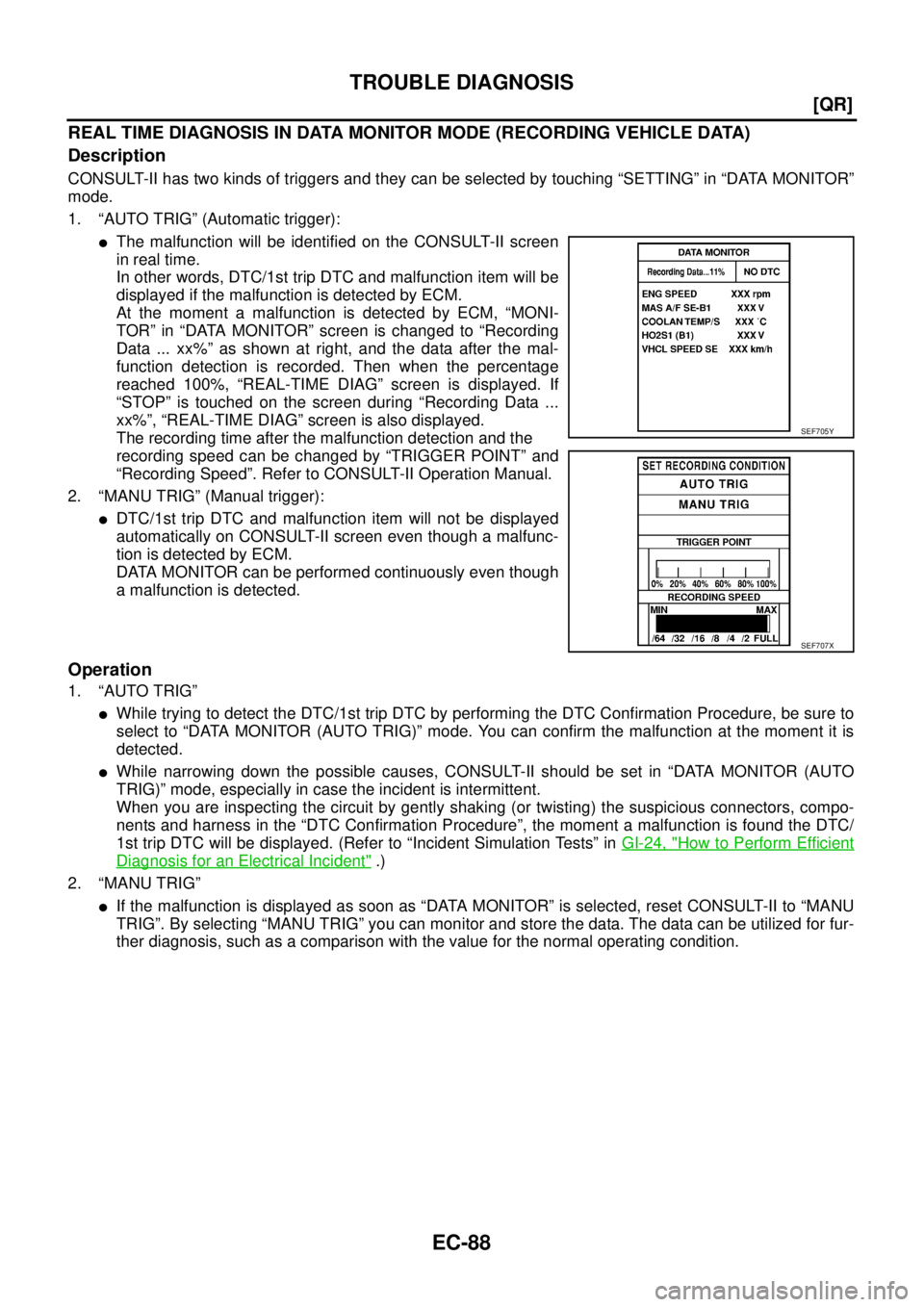

REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description
CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in

EC-88
[QR]
TROUBLE DIAGNOSIS

REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description
CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONITOR”
mode.
1. “AUTO TRIG” (Automatic trigger):
The malfunction will be identified on the CONSULT-II screen
in real time.
In other words, DTC/1st trip DTC and malfunction item will be
displayed if the malfunction is detected by ECM.
At the moment a malfunction is detected by ECM, “MONI-
TOR” in “DATA MONITOR” screen is changed to “Recording
Data ... xx%” as shown at right, and the data after the mal-
function detection is recorded. Then when the percentage
reached 100%, “REAL-TIME DIAG” screen is displayed. If
“STOP” is touched on the screen during “Recording Data ...
xx%”, “REAL-TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the
recording speed can be changed by “TRIGGER POINT” and
“Recording Speed”. Refer to CONSULT-II Operation Manual.
2. “MANU TRIG” (Manual trigger):
DTC/1st trip DTC and malfunction item will not be displayed
automatically on CONSULT-II screen even though a malfunc-
tion is detected by ECM.
DATA MONITOR can be performed continuously even though
a malfunction is detected.
Operation
1. “AUTO TRIG”
While trying to detect the DTC/1st trip DTC by performing the DTC Confirmation Procedure, be sure to
select to “DATA MONITOR (AUTO TRIG)” mode. You can confirm the malfunction at the moment it is
detected.
While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, compo-
nents and harness in the “DTC Confirmation Procedure”, the moment a malfunction is found the DTC/
1st trip DTC will be displayed. (Refer to “Incident Simulation Tests” in GI-24, "
How to Perform Efficient
Diagnosis for an Electrical Incident" .)
2. “MANU TRIG”
If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting “MANU TRIG” you can monitor and store the data. The data can be utilized for fur-
ther diagnosis, such as a comparison with the value for the normal operating condition.
SEF705Y
SEF707X

Page 1371 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
EC-89
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

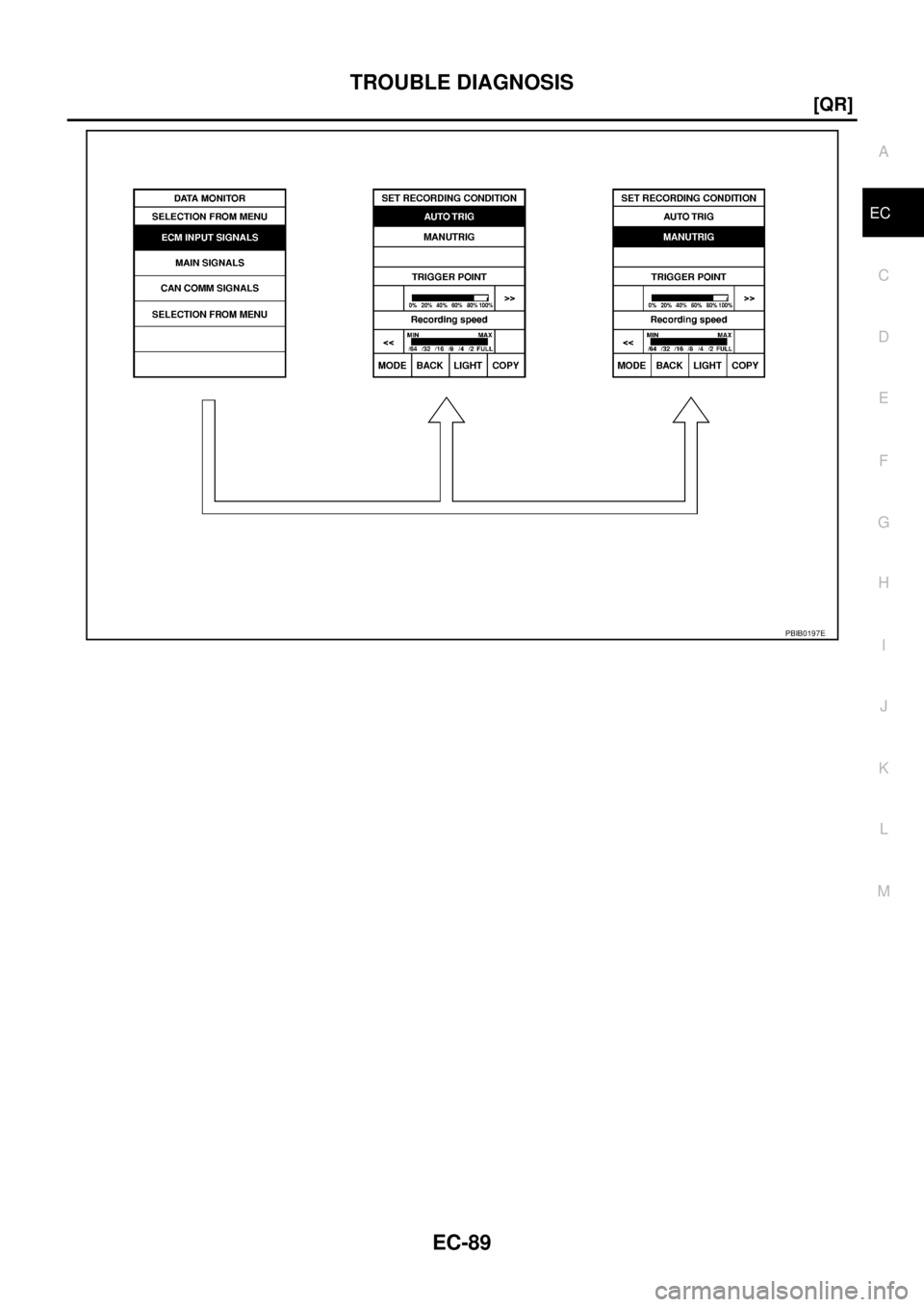

PBIB0197E

Page 1372 of 3502

NISSAN TEANA 2003 Service Manual EC-90
[QR]
TROUBLE DIAGNOSIS

CONSULT-II Reference Value in Data Monitor ModeBBS005C9
Remarks:
Specification data are reference values.
Specification data are output/input values which are detect

EC-90
[QR]
TROUBLE DIAGNOSIS

CONSULT-II Reference Value in Data Monitor ModeBBS005C9
Remarks:
Specification data are reference values.
Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in
spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the tachometer indica-
tion.Almost the same speed as the
tachometer indication.
MAS A/F SE-B1 See EC-95, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
B/FUEL SCHDL See EC-95, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
A/F ALPHA-B1 See EC-95, "
TROUBLE DIAGNOSIS - SPECIFICATION VALUE" .
COOLAN TEMP/S
Engine: After warming up More than 70°C (158°F)
HO2S1 (B1)
Engine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S2 (B1)
Revving engine from idle to 3,000 rpm quickly after the following condi-
tions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute
and at idle for 1 minute under no load0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S1 MNTR (B1)
Engine: After warming upMaintaining engine speed at 2,000
rpmLEAN ←→ RICH
Changes more than 5 times dur-
ing 10 seconds.
HO2S2 MNTR (B1)
Revving engine from idle to 3,000 rpm quickly after the following condi-
tions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute
and at idle for 1 minute under no loadLEAN ←→ RICH
VHCL SPEED SE
Turn drive wheels and compare CONSULT-II value with the speedome-
ter indication.Almost the same speed as the
speedometer indication.
BATTERY VOLT
Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.65 - 0.87V
Accelerator pedal: Fully depressed More than 4.3V
ACCEL SEN 2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.56 - 0.96V
Accelerator pedal: Fully depressed More than 4.0V
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released More than 0.36V
Shift lever: D Accelerator pedal: Fully depressed Less than 4.75V
START SIGNAL
Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS
Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly
depressedOFF
AIR COND SIG
Engine: After warming up, idle the
engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW
Ignition switch: ONShift lever: P or N ON
Shift lever: Except above OFF
PW/ST SIGNAL
Engine: After warming up, idle the
engineSteering wheel: Not being turned OFF
Steering wheel: Being turned ON

Page 1373 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
EC-91
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

LOAD SIGNALIgnition switch: ONRear window defogger switch: ON
and/or
Lighting switch: 2ndON
Rear window defogger switch and
lighting switch:

Page 1374 of 3502

NISSAN TEANA 2003 Service Manual EC-92
[QR]
TROUBLE DIAGNOSIS

*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ from
ECM terminal voltage signal.C

Page 1375 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
EC-93
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

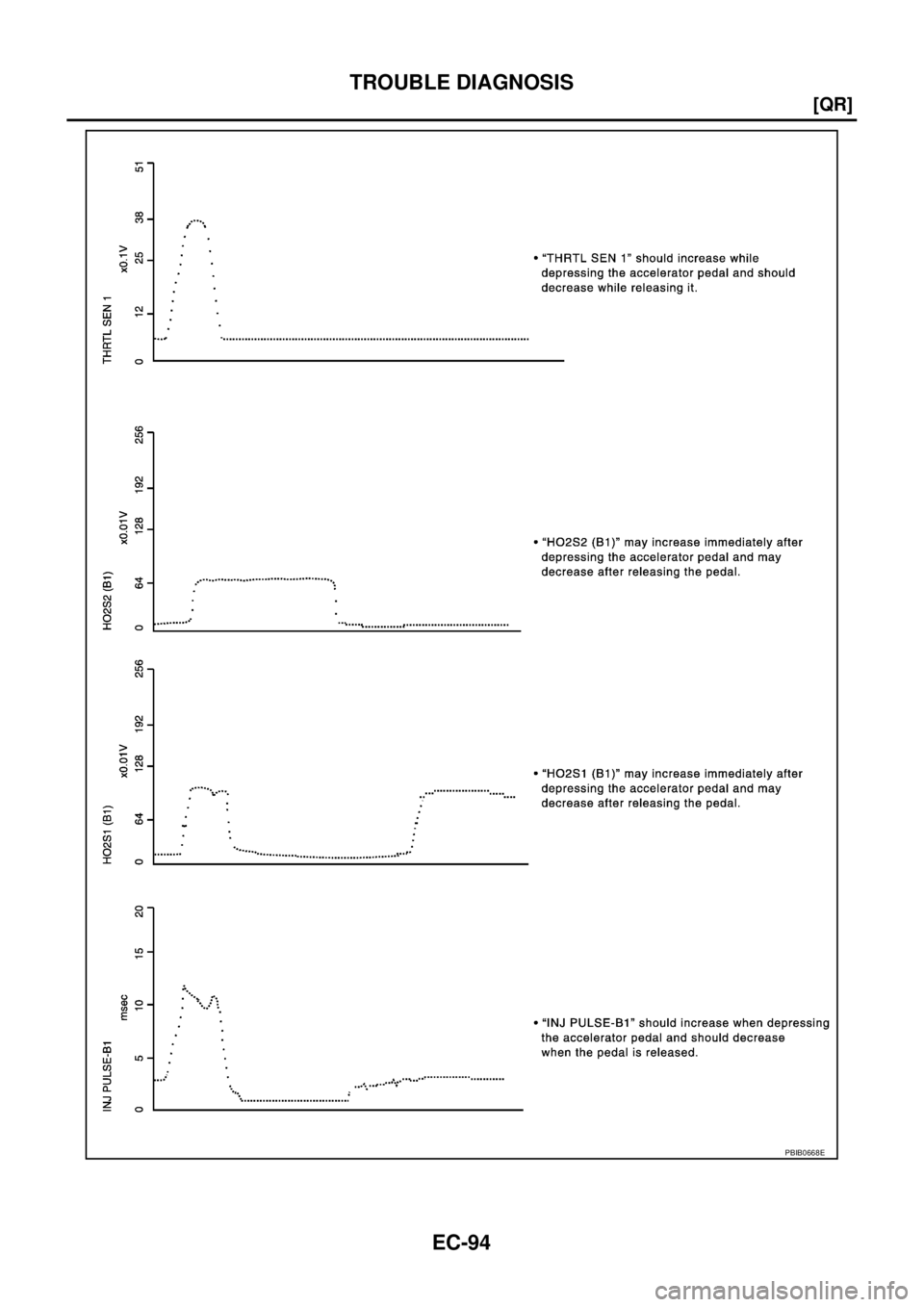

Major Sensor Reference Graph in Data Monitor ModeBBS005CA
The following are the major sensor reference graphs in “DATA MONITOR” mode.
CLSD

Page 1376 of 3502

NISSAN TEANA 2003 Service Manual EC-94
[QR]
TROUBLE DIAGNOSIS

PBIB0668E
