Page 793 of 3502

NISSAN TEANA 2003 Service Manual TRUNK LID
BL-135
C
D
E
F
G
H
J
K
L
MA
B
BL

Removal and Installation of Trunk Lid WeatherstripBIS000Y5
REMOVAL
Pull up and remove engagement with body from weatherstrip joint.
CAUTION:
After removal,

Page 794 of 3502

NISSAN TEANA 2003 Service Manual BL-136
TRUNK LID OPENER

TRUNK LID OPENERPFP:84640
Component Parts and Harness Connector LocationBIS000Y6
System DescriptionBIS000Y7
Power is supplied at all times
through 50A fusible link (letter M

Page 795 of 3502

NISSAN TEANA 2003 Service Manual TRUNK LID OPENER
BL-137
C
D
E
F
G
H
J
K
L
MA
B
BL

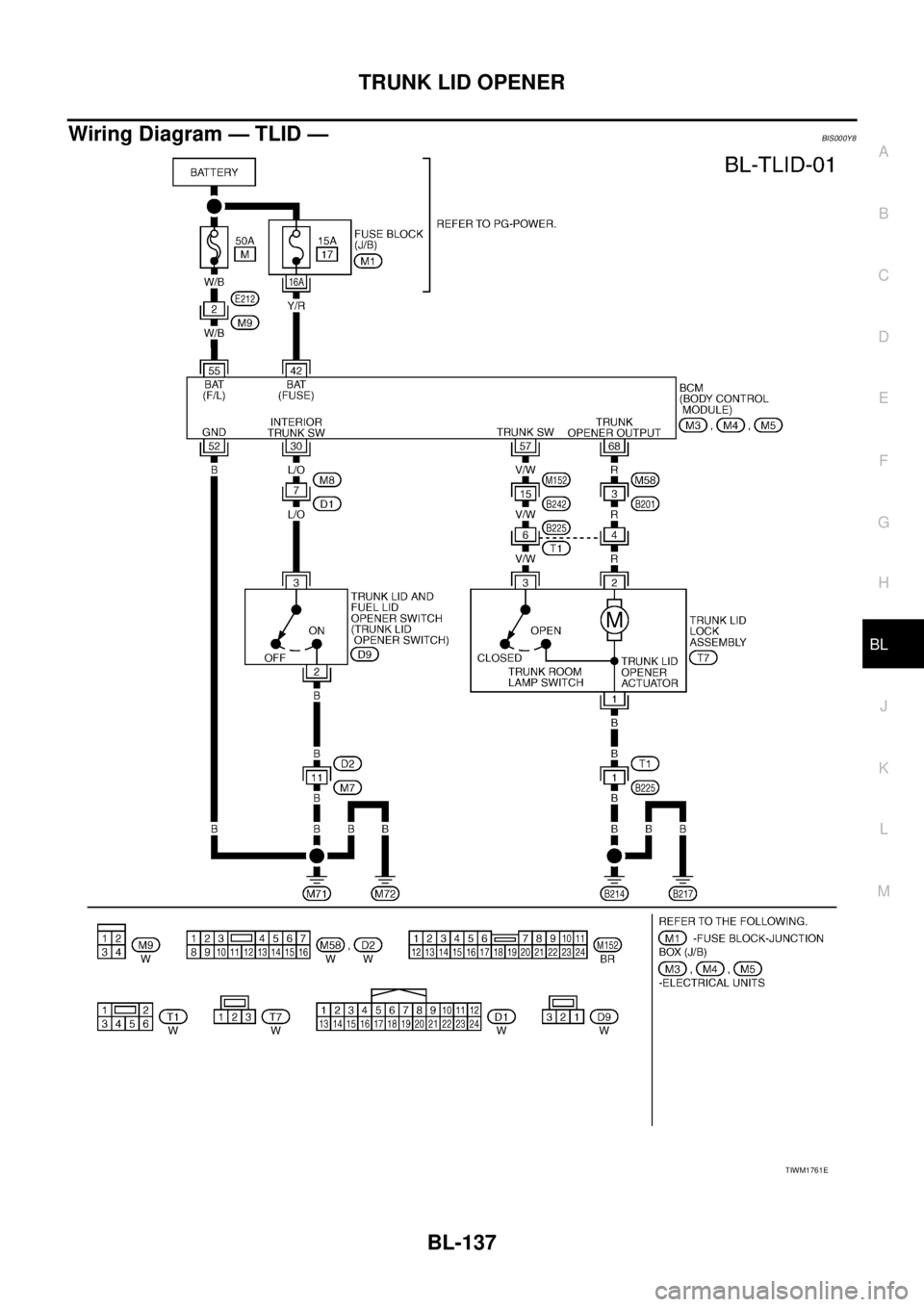

Wiring Diagram — TLID —BIS000Y8
TIWM1761E

Page 796 of 3502

NISSAN TEANA 2003 Service Manual BL-138
TRUNK LID OPENER

Terminal and Reference Value for BCMBIS000Y9
CONSULT-II Function (BCM)BIS000YA
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CO

Page 797 of 3502

NISSAN TEANA 2003 Service Manual NATS(NISSAN ANTI-THEFT SYSTEM)
BL-139
C
D
E
F
G
H
J
K
L
MA
B
BL

NATS(NISSAN ANTI-THEFT SYSTEM)PFP:28591

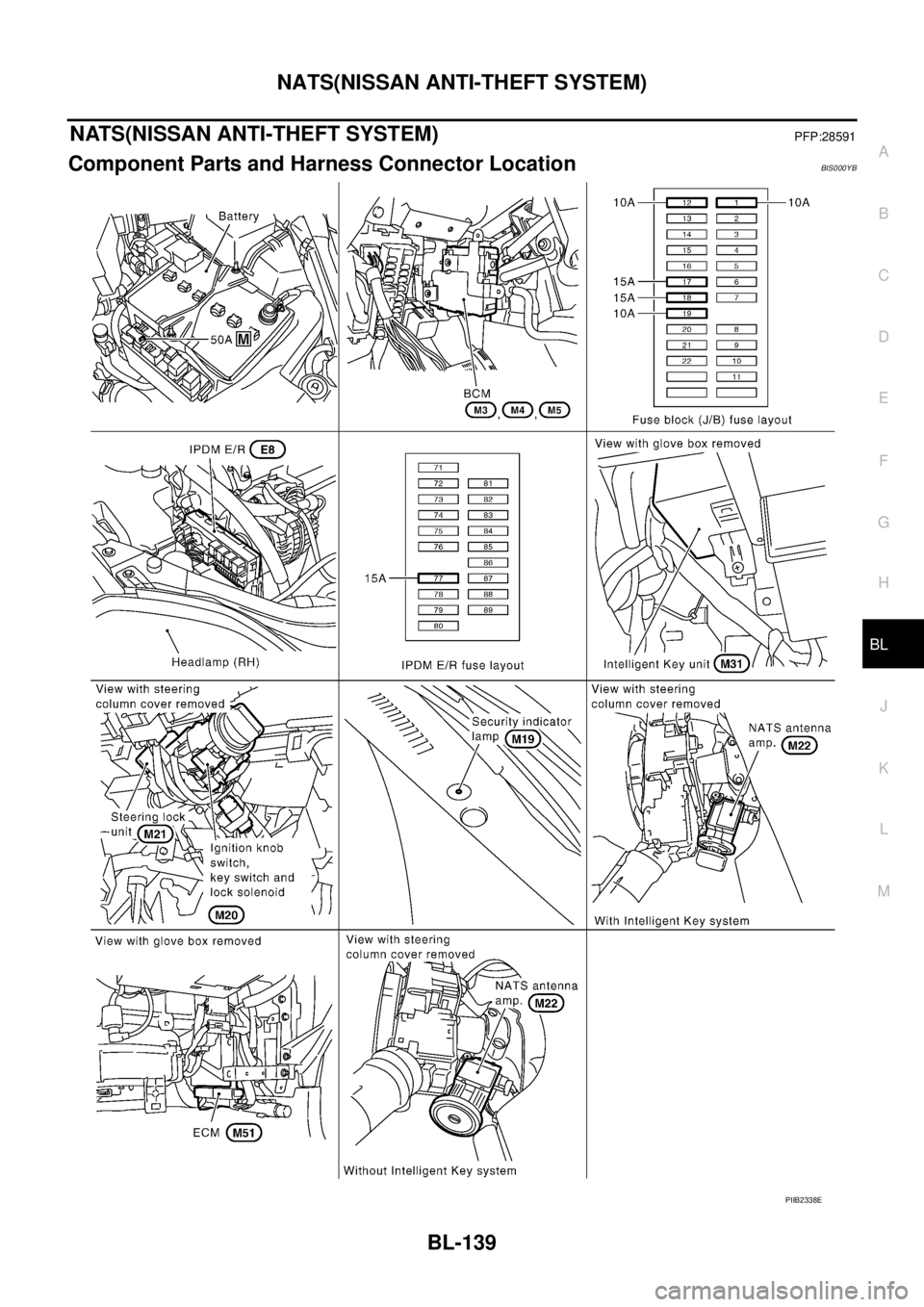

Component Parts and Harness Connector LocationBIS000YB
PIIB2338E

Page 798 of 3502

NISSAN TEANA 2003 Service Manual BL-140
NATS(NISSAN ANTI-THEFT SYSTEM)

NOTE:
If customer reports a “NO START” condition, request ALL ignition key (without intelligent key system) or
mechanical key (with intelligent key system)

BL-140
NATS(NISSAN ANTI-THEFT SYSTEM)

NOTE:
If customer reports a “NO START” condition, request ALL ignition key (without intelligent key system) or
mechanical key (with intelligent key system) to be brought to the dealer to check for a NATS malfunction.
System DescriptionBIS000YC
DESCRIPTION
NATS (Nissan Anti-Theft System) has the following immobilizer functions:
Engine immobilizer shows high anti-theft performance to prevent engine start by other than the owner
(registered key: ignition key, mechanical key and Intelligent Key).
Only a key with key ID registered in BCM and ECM can start engine, and shows high anti-theft perfor-
mance to prevent key from being copied or stolen.
In the vehicle without Intelligent Key system, security indicator always flashes with other than ignition
switch ON or START position.
In the vehicle with Intelligent Key system, security indicator always flashes with mechanical key removed
condition (key switch OFF) and ignition knob released condition on LOCK position (ignition knob switch
OFF).
Therefore, NATS warns outsiders that the vehicle is equipped with the anti-theft system.
If system detects malfunction, it turns on security indicator in ignition switch ON position.
If the owner requires, mechanical key ID can be registered for up to 5 keys.
During trouble diagnosis or when the following parts have been replaced, and if ignition key or mechanical
key is added, registration* is required.
*: All keys kept by the owner of the vehicle should be registered with ignition key or mechanical key.
–ECM
–BCM
–Ignition key (models without Intelligent Key system)
–Mechanical key (models with Intelligent Key system)
NATS trouble diagnoses, system initialization and additional registration of other NATS ignition key or
mechanical key IDs must be performed using CONSULT-II hardware and CONSULT-II NATS software.
When NATS initialization has been completed, the ID of the inserted ignition key or mechanical key IDs
can be performed.
Regarding the procedures of NATS initialization and ignition key or mechanical key ID registration, refer to
CONSULT-II Operation Manual, NATS.

Page 799 of 3502

NISSAN TEANA 2003 Service Manual NATS(NISSAN ANTI-THEFT SYSTEM)
BL-141
C
D
E
F
G
H
J
K
L
MA
B
BL

SECURITY INDICATOR
Warns that the vehicle has NATS.
In the vehicle without Intelligent Key system, security indicator always flashes

Page 800 of 3502

NISSAN TEANA 2003 Service Manual BL-142
NATS(NISSAN ANTI-THEFT SYSTEM)

NOTE:
The communication between ECM, BCM and/or Intelligent Key unit uses the CAN communication sys-
tem.
ECM Re-Communicating FunctionBIS000YE
Performing follo
