Page 1585 of 3502

NISSAN TEANA 2003 Service Manual HO2S1 EC-303 [QR] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II. CAUTION: Do not use ECM

Page 1586 of 3502

NISSAN TEANA 2003 Service Manual EC-304 [QR] HO2S1 Diagnostic ProcedureBBS005IV 1. CHECK OVERALL FUNCTION With CONSULT-II 1. Start engine and warm it up to normal operating temperature. 2. Select “HO2S1 MNTR (B1)” in “DATA M

Page 1587 of 3502

NISSAN TEANA 2003 Service Manual HO2S1 EC-305 [QR] C D E F G H I J K L MA EC 3. CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT 1. Disconnect heated oxygen sensor 1 harness connector. 2. Disconnect ECM harness connector. 3. Check har

Page 1588 of 3502

NISSAN TEANA 2003 Service Manual EC-306 [QR] HO2S1 3. Select “HO2S1 (B1)” and “HO2S1 MNTR (B1)”. 4. Hold engine speed at 2,000 rpm under no load during the follow- ing steps. 5. Touch “RECORD” on CONSULT-II screen. 6. C

Page 1589 of 3502

NISSAN TEANA 2003 Service Manual HO2S1 EC-307 [QR] C D E F G H I J K L MA EC Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner and approved anti-seize lubricant. Removal and Insta

Page 1590 of 3502

NISSAN TEANA 2003 Service Manual EC-308 [QR] HO2S1 HEATER HO2S1 HEATERPFP:22690 DescriptionBBS005IY SYSTEM DESCRIPTION The ECM performs ON/OFF duty control of the heated oxygen sensor 1 heater corresponding to the engine speed and

Page 1591 of 3502

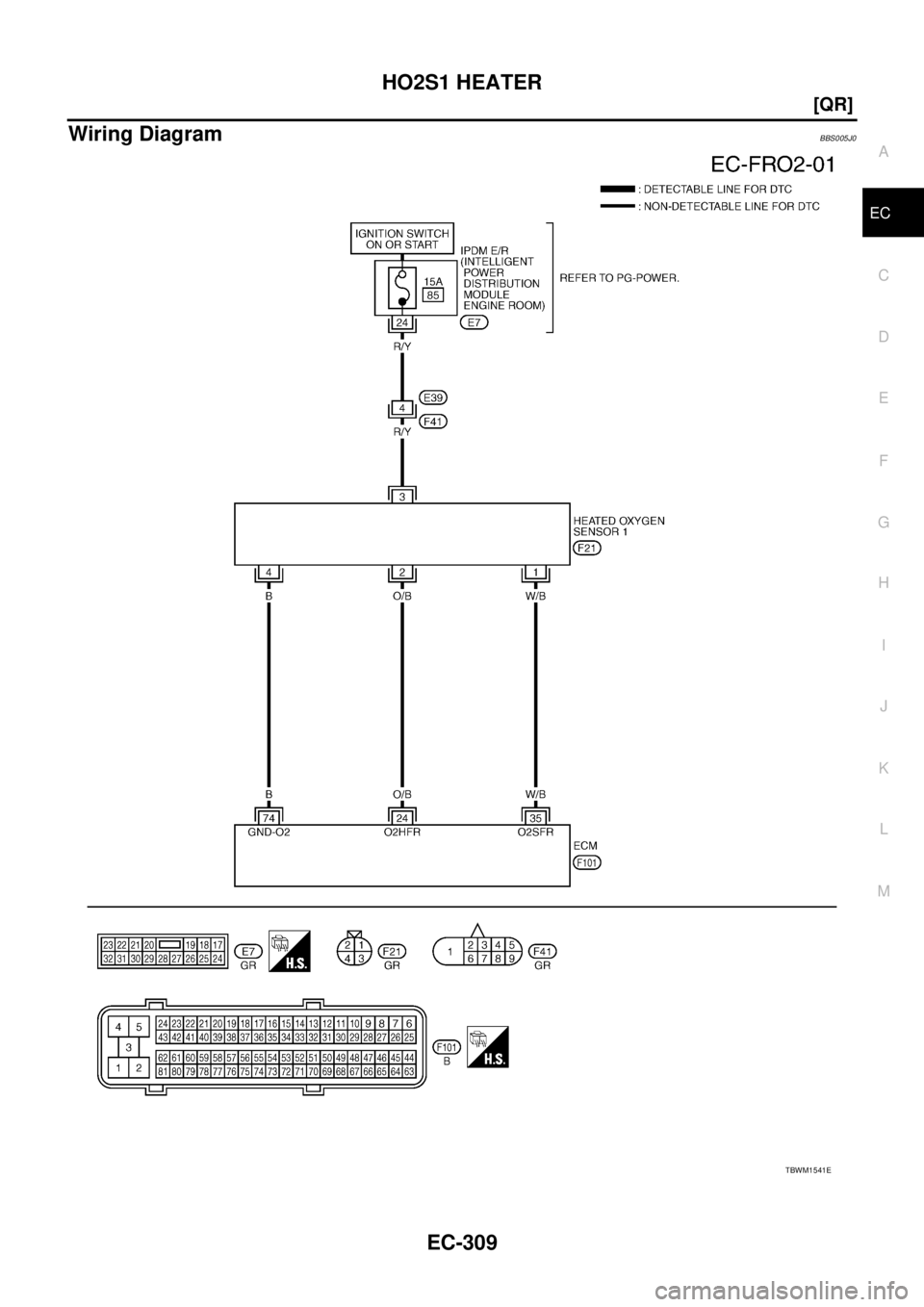

NISSAN TEANA 2003 Service Manual HO2S1 HEATER EC-309 [QR] C D E F G H I J K L MA EC Wiring DiagramBBS005J0 TBWM1541E

Page 1592 of 3502

NISSAN TEANA 2003 Service Manual EC-310 [QR] HO2S1 HEATER Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II. CAUTION: Do not use ECM ground terminals w
