NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS ATC-63 C D E F G H I K L MA B AT C Mode Door Motor CircuitBJS000G1 SYMPTOM Air outlet does not change. Mode door motor does not operate normally. INSPECTION FLOW *1ATC-31, "Disch

Page 442 of 3502

NISSAN TEANA 2003 Service Manual ATC-64 TROUBLE DIAGNOSIS SYSTEM DESCRIPTION Component Parts Mode door control system components are: Unified meter and A/C amp. Mode door motor (LCU) A/C LAN system (PBR built-in mode door motor,

Page 443 of 3502

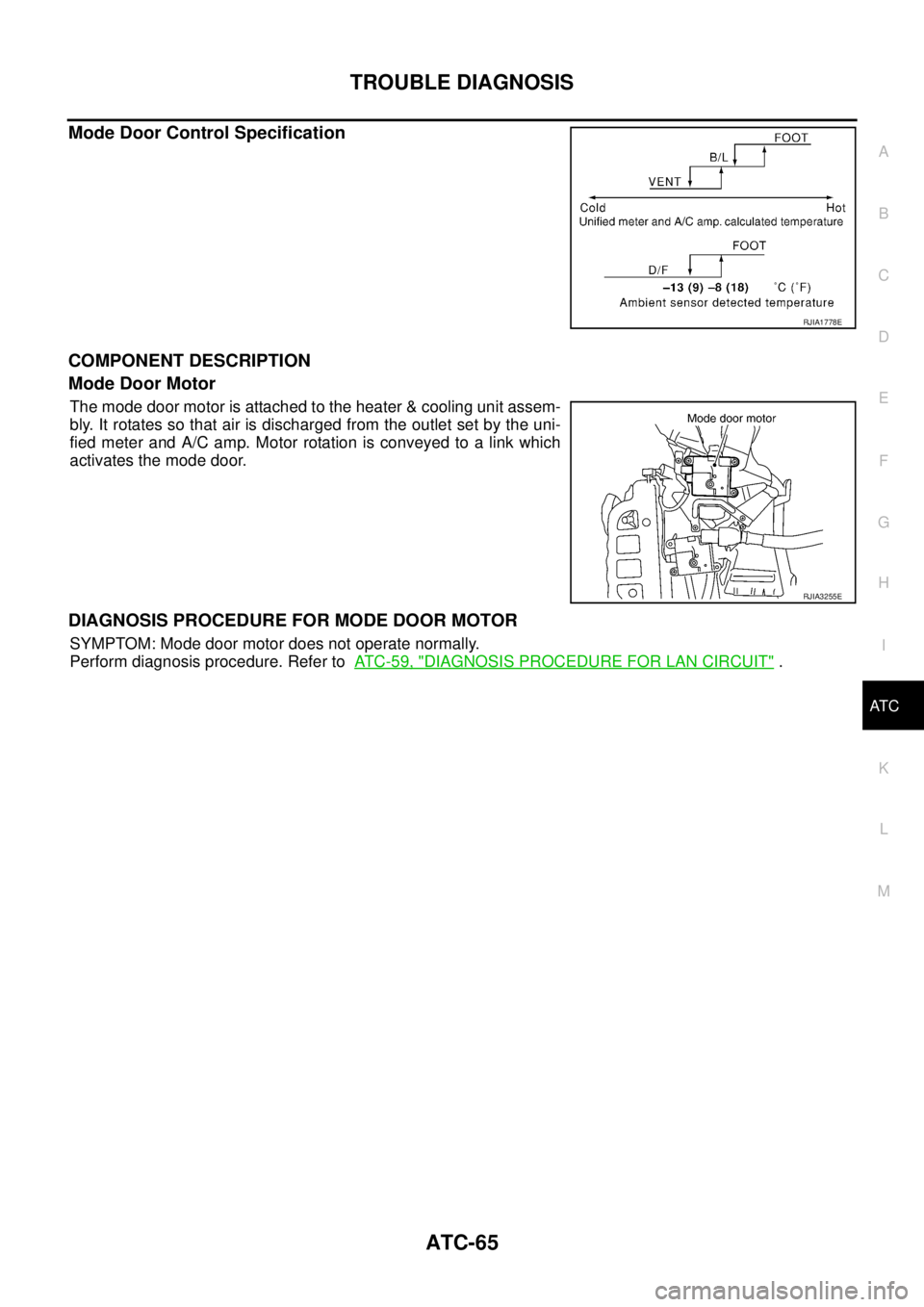

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS ATC-65 C D E F G H I K L MA B AT C Mode Door Control Specification COMPONENT DESCRIPTION Mode Door Motor The mode door motor is attached to the heater & cooling unit assem- bly. It

Page 444 of 3502

NISSAN TEANA 2003 Service Manual ATC-66 TROUBLE DIAGNOSIS Air Mix Door Motor CircuitBJS000G2 SYMPTOM Discharge air temperature does not change. Air mix door motor does not operate normally. INSPECTION FLOW *1ATC-47, "FUNCTION CON

Page 445 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS ATC-67 C D E F G H I K L MA B AT C SYSTEM DESCRIPTION Component Parts Air mix door control system components are: Unified meter and A/C amp. Air mix door motor (LCU) A/C LAN sys

Page 446 of 3502

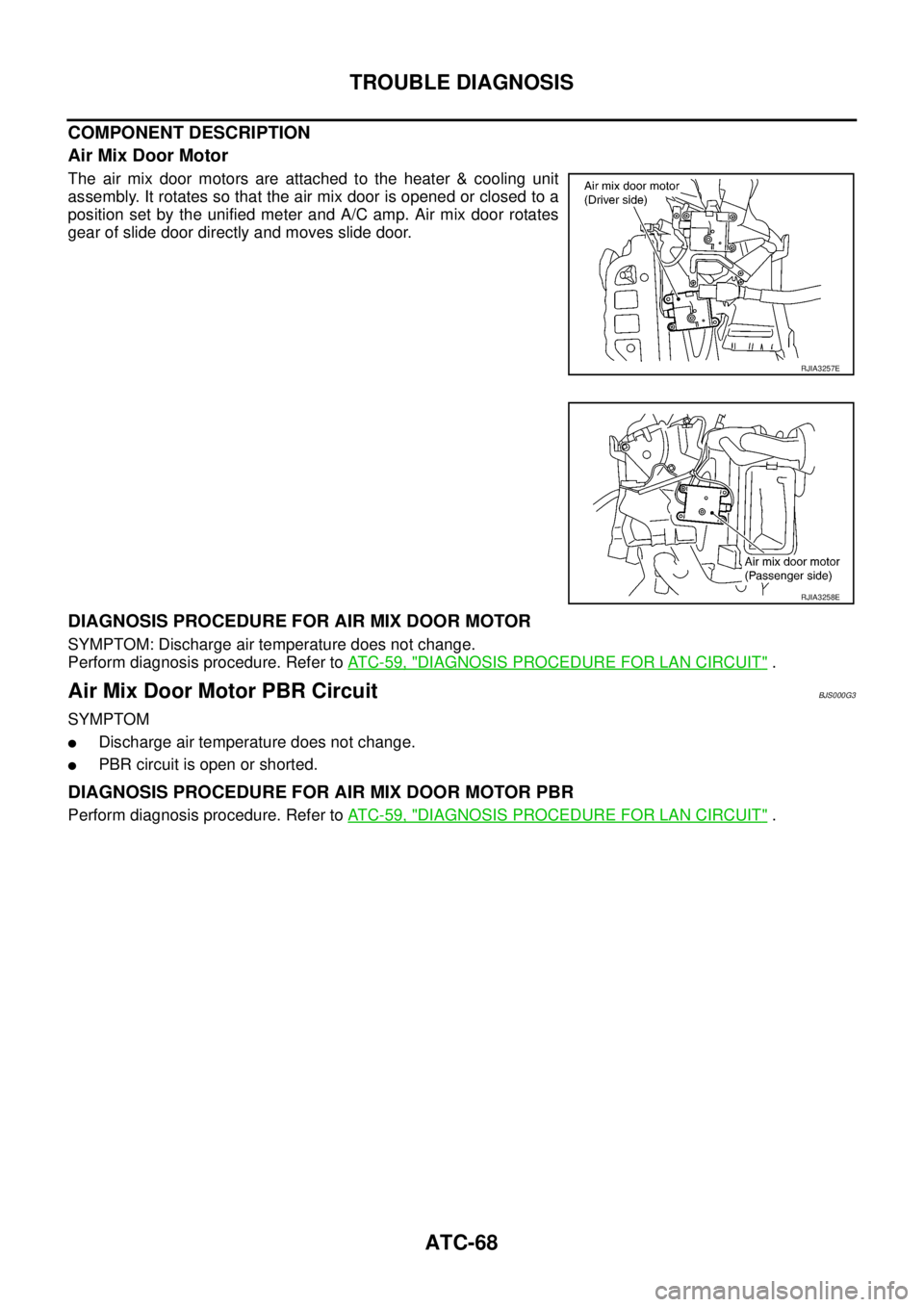

NISSAN TEANA 2003 Service Manual ATC-68 TROUBLE DIAGNOSIS COMPONENT DESCRIPTION Air Mix Door Motor The air mix door motors are attached to the heater & cooling unit assembly. It rotates so that the air mix door is opened or closed

Page 447 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS ATC-69 C D E F G H I K L MA B AT C Intake Door Motor CircuitBJS000G4 SYMPTOM Intake door does not change. Intake door motor does not operate normally. INSPECTION FLOW *1AT C - 4

Page 448 of 3502

NISSAN TEANA 2003 Service Manual ATC-70 TROUBLE DIAGNOSIS SYSTEM DESCRIPTION Component Parts Intake door control system components are: Unified meter and A/C amp. Intake door motor (LCU) A/C LAN system (PBR built-in mode door mo
