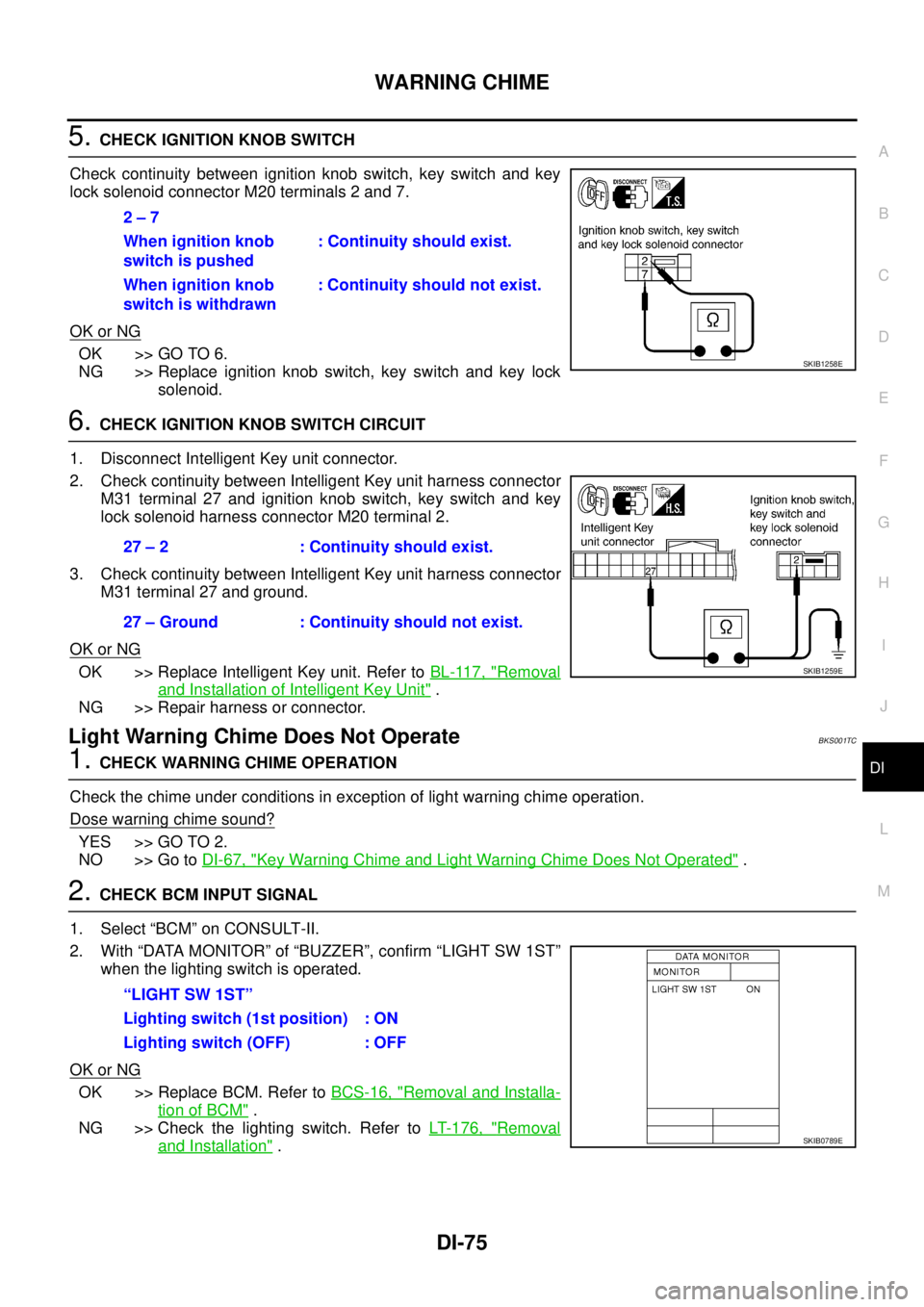

NISSAN TEANA 2003 Service Manual WARNING CHIME
DI-75
C
D
E
F
G
H
I
J
L
MA
B
DI

5. CHECK IGNITION KNOB SWITCH
Check continuity between ignition knob switch, key switch and key
lock solenoid connector M20 terminals 2 and 7.
OK or NG

Page 1282 of 3502

NISSAN TEANA 2003 Service Manual DI-76
CAN COMMUNICATION

CAN COMMUNICATIONPFP:23710
System DescriptionBKS003SL
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex

Page 1283 of 3502

NISSAN TEANA 2003 Service Manual EC-1
ENGINE CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EC
A
EC

ENGINE CONTROL SYSTEM
QR
INDEX FOR DTC ...................................................... 10
DTC No. Index .

EC-1
ENGINE CONTROL SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EC
A
EC

ENGINE CONTROL SYSTEM
QR
INDEX FOR DTC ...................................................... 10
DTC No. Index ....................................................... 10
Alphabetical Index .................................................. 12
PRECAUTIONS ........................................................ 14
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ................................................................ 14
On Board Diagnostic (OBD) System of Engine ...... 14
Precaution .............................................................. 14
PREPARATION ......................................................... 18
Special Service Tools ............................................. 18
Commercial Service Tools ...................................... 19
ENGINE CONTROL SYSTEM .................................. 20
System Diagram ..................................................... 20
Multiport Fuel Injection (MFI) System .................... 21
Electronic Ignition (EI) System ............................... 23
Fuel Cut Control (At No Load and High Engine
Speed) .................................................................... 24
AIR CONDITIONING CUT CONTROL ..................... 25
Input/Output Signal Chart ....................................... 25
CAN COMMUNICATION .......................................... 26
System Description ................................................ 26
EVAPORATIVE EMISSION SYSTEM ....................... 27
Description ............................................................. 27
Component Inspection ........................................... 29
POSITIVE CRANKCASE VENTILATION ................. 30
Description ............................................................. 30
Component Inspection ........................................... 30
NATS (NISSAN ANTI-THEFT SYSTEM) .................. 32
Description ............................................................. 32
ON BOARD DIAGNOSTIC (OBD) SYSTEM ............ 33
Introduction ............................................................ 33
Two Trip Detection Logic ........................................ 33
Emission-related Diagnostic Information ................ 33
Malfunction Indicator (MI) ....................................... 36
BASIC SERVICE PROCEDURE .............................. 40
Basic Inspection ..................................................... 40
Idle Speed and Ignition Timing Check .................... 45
Procedure After Replacing ECM ............................ 47Accelerator Pedal Released Position Learning ...... 47
Throttle Valve Closed Position Learning ................. 47
Idle Air Volume Learning ........................................ 47
Fuel Pressure Check .............................................. 49
TROUBLE DIAGNOSIS ............................................ 52
Trouble Diagnosis Introduction ............................... 52
DTC Inspection Priority Chart ................................. 58
Fail-Safe Chart ....................................................... 59
Symptom Matrix Chart ............................................ 60
Engine Control Component Parts Location ............ 64
Vacuum Hose Drawing ........................................... 69
Circuit Diagram ....................................................... 70
ECM Harness Connector Terminal Layout ............. 72
ECM Terminals and Reference Value ..................... 72
CONSULT-II Function (ENGINE) ............................ 80
CONSULT-II Reference Value in Data Monitor Mode
... 90
Major Sensor Reference Graph in Data Monitor
Mode ....................................................................... 93
TROUBLE DIAGNOSIS - SPECIFICATION VALUE ... 95
Description .............................................................. 95
Testing Condition .................................................... 95
Inspection Procedure .............................................. 95
Diagnostic Procedure ............................................. 96
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-
DENT .......................................................................105
Description ............................................................105
Diagnostic Procedure ...........................................105
POWER SUPPLY AND GROUND CIRCUIT ...........106
Wiring Diagram .....................................................106
Diagnostic Procedure ...........................................107
Ground Inspection .................................................111
DTC U1000, U1001 CAN COMMUNICATION LINE .113
Description ............................................................113
On Board Diagnosis Logic ....................................113
DTC Confirmation Procedure ...............................113
Wiring Diagram .....................................................114
Diagnostic Procedure ...........................................115
DTC P0011 IVT CONTROL .....................................116
Description ............................................................116

Page 1284 of 3502

NISSAN TEANA 2003 Service Manual EC-2 CONSULT-II Reference Value in Data Monitor Mode
.116
On Board Diagnosis Logic ....................................117
DTC Confirmation Procedure ...............................117
Overall Func

EC-2 CONSULT-II Reference Value in Data Monitor Mode
.116
On Board Diagnosis Logic ....................................117
DTC Confirmation Procedure ...............................117
Overall Function Check ........................................118
Wiring Diagram .....................................................119
Diagnostic Procedure ...........................................121
Component Inspection ..........................................123
Removal and Installation ......................................123
DTC P0102, P0103 MAF SENSOR .........................124
Component Description ........................................124
CONSULT-II Reference Value in Data Monitor Mode
.124
On Board Diagnosis Logic ....................................124
DTC Confirmation Procedure ...............................124
Wiring Diagram .....................................................126
Diagnostic Procedure ...........................................127
Component Inspection ..........................................129
Removal and Installation ......................................130
DTC P0117, P0118 ECT SENSOR ..........................131
Component Description ........................................131
On Board Diagnosis Logic ....................................131
DTC Confirmation Procedure ...............................132
Wiring Diagram .....................................................133
Diagnostic Procedure ...........................................134
Component Inspection ..........................................135
Removal and Installation ......................................135
DTC P0122, P0123 TP SENSOR ............................136
Component Description ........................................136
CONSULT-II Reference Value in Data Monitor Mode
.136
On Board Diagnosis Logic ....................................136
DTC Confirmation Procedure ...............................137
Wiring Diagram .....................................................138
Diagnostic Procedure ...........................................139
Component Inspection ..........................................142
Removal and Installation ......................................142
DTC P0132 HO2S1 .................................................143
Component Description ........................................143
CONSULT-II Reference Value in Data Monitor Mode
.143
On Board Diagnosis Logic ....................................143
DTC Confirmation Procedure ...............................144
Wiring Diagram .....................................................145
Diagnostic Procedure ...........................................146
Component Inspection ..........................................148
Removal and Installation ......................................149
DTC P0134 HO2S1 .................................................150
Component Description ........................................150
CONSULT-II Reference Value in Data Monitor Mode
.150
On Board Diagnosis Logic ....................................150
Overall Function Check ........................................151
Wiring Diagram .....................................................152
Diagnostic Procedure ...........................................153
Component Inspection ..........................................154
Removal and Installation ......................................156
DTC P0222, P0223 TP SENSOR ............................157
Component Description ........................................157CONSULT-II Reference Value in Data Monitor Mode
.157
On Board Diagnosis Logic ....................................157
DTC Confirmation Procedure ................................158
Wiring Diagram .....................................................159
Diagnostic Procedure ............................................160
Component Inspection ..........................................163
Removal and Installation .......................................163
DTC P0327, P0328 KS ............................................164
Component Description ........................................164
On Board Diagnosis Logic ....................................164
DTC Confirmation Procedure ................................164
Wiring Diagram .....................................................165
Diagnostic Procedure ............................................166
Component Inspection ..........................................168
Removal and Installation .......................................168
DTC P0335 CKP SENSOR (POS) ..........................169
Component Description ........................................169
CONSULT-II Reference Value in Data Monitor Mode
.169
On Board Diagnosis Logic ....................................169
DTC Confirmation Procedure ................................170
Wiring Diagram .....................................................171
Diagnostic Procedure ............................................173
Component Inspection ..........................................174
Removal and Installation .......................................175
DTC P0340 CMP SENSOR (PHASE) .....................176
Component Description ........................................176
CONSULT-II Reference Value in Data Monitor Mode
.176
On Board Diagnosis Logic ....................................176
DTC Confirmation Procedure ................................177
Wiring Diagram .....................................................178
Diagnostic Procedure ............................................179
Component Inspection ..........................................182
Removal and Installation .......................................182
DTC P0500 VSS ......................................................183
Description ............................................................183
On Board Diagnosis Logic ....................................183
DTC Confirmation Procedure ................................183
Overall Function Check .........................................184
Diagnostic Procedure ............................................184
DTC P0550 PSP SENSOR ......................................185
Component Description ........................................185
CONSULT-II Reference Value in Data Monitor Mode
.185
On Board Diagnosis Logic ....................................185
DTC Confirmation Procedure ................................185
Wiring Diagram .....................................................186
Diagnostic Procedure ............................................187
Component Inspection ..........................................189
Removal and Installation .......................................189
DTC P0605 ECM .....................................................190
Component Description ........................................190
On Board Diagnosis Logic ....................................190
DTC Confirmation Procedure ................................190
Diagnostic Procedure ............................................192
DTC P1065 ECM POWER SUPPLY ........................193
Component Description ........................................193

Page 1285 of 3502

NISSAN TEANA 2003 Service Manual EC-3
C
D
E
F
G
H
I
J
K
L
M
ECA
On Board Diagnosis Logic ................................... 193
DTC Confirmation Procedure ............................... 193
Wiring Diagram ......................

EC-3
C
D
E
F
G
H
I
J
K
L
M
ECA
On Board Diagnosis Logic ................................... 193
DTC Confirmation Procedure ............................... 193
Wiring Diagram .................................................... 194
Diagnostic Procedure ........................................... 195
DTC P1121 ELECTRIC THROTTLE CONTROL
ACTUATOR ............................................................ 197
Component Description ........................................ 197
On Board Diagnosis Logic ................................... 197
DTC Confirmation Procedure ............................... 197
Diagnostic Procedure ........................................... 198
Removal and Installation ...................................... 199
DTC P1122 ELECTRIC THROTTLE CONTROL
FUNCTION .............................................................. 200
Description ........................................................... 200
On Board Diagnosis Logic ................................... 200
DTC Confirmation Procedure ............................... 200
Wiring Diagram .................................................... 201
Diagnostic Procedure ........................................... 202
Component Inspection ......................................... 206
Removal and Installation ...................................... 206
DTC P1124, P1126 THROTTLE CONTROL MOTOR
RELAY .................................................................... 207
Component Description ........................................ 207
CONSULT-II Reference Value in Data Monitor Mode
. 207
On Board Diagnosis Logic ................................... 207
DTC Confirmation Procedure ............................... 207
Wiring Diagram .................................................... 209
Diagnostic Procedure ........................................... 210
DTC P1128 THROTTLE CONTROL MOTOR ........ 213
Component Description ........................................ 213
On Board Diagnosis Logic ................................... 213
DTC Confirmation Procedure ............................... 213
Wiring Diagram .................................................... 214
Diagnostic Procedure ........................................... 215
Component Inspection ......................................... 216
Removal and Installation ...................................... 217
DTC P1217 ENGINE OVER TEMPERATURE ....... 218
System Description .............................................. 218
CONSULT-II Reference Value in Data Monitor Mode
. 219
On Board Diagnosis Logic ................................... 219
Overall Function Check ........................................ 220
Wiring Diagram .................................................... 222
Diagnostic Procedure ........................................... 224
Main 12 Causes of Overheating ........................... 227
Component Inspection ......................................... 228
DTC P1225 TP SENSOR ........................................ 229
Component Description ........................................ 229
On Board Diagnosis Logic ................................... 229
DTC Confirmation Procedure ............................... 229
Diagnostic Procedure ........................................... 230
Removal and Installation ...................................... 230
DTC P1226 TP SENSOR ........................................ 231
Component Description ........................................ 231
On Board Diagnosis Logic ................................... 231
DTC Confirmation Procedure ............................... 231
Diagnostic Procedure ........................................... 232
Removal and Installation ...................................... 232DTC P1229 SENSOR POWER SUPPLY ................233
On Board Diagnosis Logic ....................................233
DTC Confirmation Procedure ...............................233
Wiring Diagram .....................................................234
Diagnostic Procedure ...........................................236
DTC P1706 PNP SWITCH ......................................238
Component Description ........................................238
CONSULT-II Reference Value in Data Monitor Mode
.238
On Board Diagnosis Logic ....................................238
Overall Function Check ........................................238
Wiring Diagram .....................................................239
Diagnostic Procedure ...........................................240
DTC P1720 VSS ......................................................243
Description ............................................................243
CONSULT-II Reference Value in Data Monitor Mode
.243
On Board Diagnosis Logic ....................................243
DTC Confirmation Procedure ...............................243
Diagnostic Procedure ...........................................244
DTC P1805 BRAKE SWITCH .................................245
Description ............................................................245
CONSULT-II Reference Value in Data Monitor Mode
.245
On Board Diagnosis Logic ....................................245
DTC Confirmation Procedure ...............................245
Wiring Diagram .....................................................247
Diagnostic Procedure ...........................................248
Component Inspection ..........................................250
DTC P2122, P2123 APP SENSOR .........................251
Component Description ........................................251
CONSULT-II Reference Value in Data Monitor Mode
.251
On Board Diagnosis Logic ....................................251
DTC Confirmation Procedure ...............................252
Wiring Diagram .....................................................253
Diagnostic Procedure ...........................................254
Component Inspection ..........................................256
Removal and Installation ......................................257
DTC P2127, P2128 APP SENSOR .........................258
Component Description ........................................258
CONSULT-II Reference Value in Data Monitor Mode
.258
On Board Diagnosis Logic ....................................258
DTC Confirmation Procedure ...............................259
Wiring Diagram .....................................................260
Diagnostic Procedure ...........................................261
Component Inspection ..........................................264
Removal and Installation ......................................264
DTC P2135 TP SENSOR ........................................265
Component Description ........................................265
CONSULT-II Reference Value in Data Monitor Mode
.265
On Board Diagnosis Logic ....................................265
DTC Confirmation Procedure ...............................266
Wiring Diagram .....................................................267
Diagnostic Procedure ...........................................268
Component Inspection ..........................................271
Removal and Installation ......................................271

Page 1286 of 3502

NISSAN TEANA 2003 Service Manual EC-4 DTC P2138 APP SENSOR .....................................272
Component Description ........................................272
CONSULT-II Reference Value in Data Monitor Mode
.272
On Board D

EC-4 DTC P2138 APP SENSOR .....................................272
Component Description ........................................272
CONSULT-II Reference Value in Data Monitor Mode
.272
On Board Diagnosis Logic ....................................272
DTC Confirmation Procedure ...............................273
Wiring Diagram .....................................................274
Diagnostic Procedure ...........................................275
Component Inspection ..........................................279
Removal and Installation ......................................279
ELECTRICAL LOAD SIGNAL ................................280
Description ............................................................280
CONSULT-II Reference Value in Data Monitor Mode
.280
Diagnostic Procedure ...........................................280
EVAP CANISTER PURGE VOLUME CONTROL
SOLENOID VALVE .................................................282
Description ............................................................282
CONSULT-II Reference Value in Data Monitor Mode
.282
Wiring Diagram .....................................................283
Diagnostic Procedure ...........................................285
Component Inspection ..........................................288
Removal and Installation ......................................288
FUEL INJECTOR ....................................................289
Component Description ........................................289
CONSULT-II Reference Value in Data Monitor Mode
.289
Wiring Diagram .....................................................290
Diagnostic Procedure ...........................................291
Component Inspection ..........................................293
Removal and Installation ......................................294
FUEL PUMP ............................................................295
Description ............................................................295
CONSULT-II Reference Value in Data Monitor Mode
.295
Wiring Diagram .....................................................296
Diagnostic Procedure ...........................................297
Component Inspection ..........................................300
Removal and Installation ......................................300
HO2S1 .....................................................................301
Component Description ........................................301
CONSULT-II Reference Value in Data Monitor Mode
.301
Wiring Diagram .....................................................302
Diagnostic Procedure ...........................................304
Component Inspection ..........................................305
Removal and Installation ......................................307
HO2S1 HEATER .....................................................308
Description ............................................................308
CONSULT-II Reference Value in Data Monitor Mode
.308
Wiring Diagram .....................................................309
Diagnostic Procedure ...........................................310
Component Inspection ..........................................312
Removal and Installation ......................................312
HO2S2 .....................................................................313
Component Description ........................................313CONSULT-II Reference Value in Data Monitor Mode
.313
Wiring Diagram .....................................................314
Diagnostic Procedure ............................................315
Component Inspection ..........................................317
Removal and Installation .......................................318
HO2S2 HEATER ......................................................319
Description ............................................................319
CONSULT-II Reference Value in Data Monitor Mode
.319
Wiring Diagram .....................................................320
Diagnostic Procedure ............................................321
Component Inspection ..........................................323
Removal and Installation .......................................323
IAT SENSOR ...........................................................324
Component Description ........................................324
Wiring Diagram .....................................................325
Diagnostic Procedure ............................................326
Component Inspection ..........................................328
Removal and Installation .......................................328
IGNITION SIGNAL ..................................................329
Component Description ........................................329
Wiring Diagram .....................................................330
Diagnostic Procedure ............................................333
Component Inspection ..........................................337
Removal and Installation .......................................338
REFRIGERANT PRESSURE SENSOR ..................339
Component Description ........................................339
Wiring Diagram .....................................................340
Diagnostic Procedure ............................................341
Removal and Installation .......................................343
MI & DATA LINK CONNECTORS ...........................344
Wiring Diagram .....................................................344
SERVICE DATA AND SPECIFICATIONS (SDS) ....346
Fuel Pressure ........................................................346
Idle Speed and Ignition Timing ..............................346
Mass Air Flow Sensor ...........................................346
Intake Air Temperature Sensor .............................346
Engine Coolant Temperature Sensor ....................346
Crankshaft Position Sensor (POS) .......................346
Camshaft Position Sensor (PHASE) .....................346
Heated Oxygen Sensor 1 Heater ..........................346
Heated Oxygen sensor 2 Heater ..........................346
Throttle Control Motor ...........................................346
Fuel Injector ..........................................................346
Fuel Pump .............................................................346
VQ
INDEX FOR DTC .....................................................347
DTC No. Index ......................................................347
Alphabetical Index .................................................349
PRECAUTIONS .......................................................351
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ...............................................................351
On Board Diagnostic (OBD) System of Engine ....351
Precaution .............................................................351

Page 1287 of 3502

NISSAN TEANA 2003 Service Manual EC-5
C
D
E
F
G
H
I
J
K
L
M
ECA
PREPARATION ....................................................... 355
Special Service Tools ........................................... 355
Commercial Service Tools

EC-5
C
D
E
F
G
H
I
J
K
L
M
ECA
PREPARATION ....................................................... 355
Special Service Tools ........................................... 355
Commercial Service Tools .................................... 356
ENGINE CONTROL SYSTEM ................................ 357
System Diagram ................................................... 357
Multiport Fuel Injection (MFI) System .................. 358
Electronic Ignition (EI) System ............................. 360
Fuel Cut Control (at No Load and High Engine
Speed) .................................................................. 361
AIR CONDITIONING CUT CONTROL ................... 362
Input/Output Signal Chart ..................................... 362
System Description .............................................. 362
AUTOMATIC SPEED CONTROL DEVICE (ASCD) . 363
System Description .............................................. 363
Component Description ........................................ 364
CAN COMMUNICATION ........................................ 365
System Description .............................................. 365
EVAPORATIVE EMISSION SYSTEM ..................... 366
Description ........................................................... 366
Component Inspection ......................................... 369
POSITIVE CRANKCASE VENTILATION ............... 370
Description ........................................................... 370
Component Inspection ......................................... 370
NATS (NISSAN ANTI-THEFT SYSTEM) ................ 372
Description ........................................................... 372
ON BOARD DIAGNOSTIC (OBD) SYSTEM .......... 373
Introduction .......................................................... 373
Two Trip Detection Logic ...................................... 373
Emission-related Diagnostic Information .............. 373
Malfunction Indicator (MI) ..................................... 377
BASIC SERVICE PROCEDURE ............................ 381
Basic Inspection ................................................... 381
Idle Speed and Ignition Timing Check .................. 387
Procedure After Replacing ECM .......................... 389
Accelerator Pedal Released Position Learning .... 389
Throttle Valve Closed Position Learning .............. 389
Idle Air Volume Learning ...................................... 389
Fuel Pressure Check ............................................ 392
TROUBLE DIAGNOSIS .......................................... 394
Trouble Diagnosis Introduction ............................. 394
DTC Inspection Priority Chart .............................. 400
Fail-Safe Chart ..................................................... 401
Symptom Matrix Chart ......................................... 402
Engine Control Component Parts Location .......... 406
Vacuum Hose Drawing ......................................... 412
Circuit Diagram .................................................... 413
ECM Harness Connector Terminal Layout ........... 415
ECM Terminals and Reference Value .................. 415
CONSULT-II Function (ENGINE) ......................... 425
CONSULT-II Reference Value in Data Monitor Mode
. 434
Major Sensor Reference Graph in Data Monitor
Mode .................................................................... 438
TROUBLE DIAGNOSIS - SPECIFICATION VALUE . 440
Description ........................................................... 440
Testing Condition .................................................. 440
Inspection Procedure ........................................... 440
Diagnostic Procedure ........................................... 441
TROUBLE DIAGNOSIS FOR INTERMITTENT INCI-DENT .......................................................................450
Description ............................................................450
Diagnostic Procedure ...........................................450
POWER SUPPLY AND GROUND CIRCUIT ...........451
Wiring Diagram .....................................................451
Diagnostic Procedure ...........................................452
Ground Inspection ................................................457
DTC U1000, U1001 CAN COMMUNICATION LINE .458
Description ............................................................458
On Board Diagnosis Logic ....................................458
DTC Confirmation Procedure ...............................458
Wiring Diagram .....................................................459
Diagnostic Procedure ...........................................460
DTC P0011, P0021 IVT CONTROL ........................461
Description ............................................................461
CONSULT-II Reference Value in Data Monitor Mode
.461
On Board Diagnosis Logic ....................................462
DTC Confirmation Procedure ...............................462
Overall Function Check ........................................463
Diagnostic Procedure ...........................................464
Component Inspection ..........................................465
Removal and Installation ......................................465
DTC P0102, P0103 MAF SENSOR ........................466
Component Description ........................................466
CONSULT-II Reference Value in Data Monitor Mode
.466
On Board Diagnosis Logic ....................................466
DTC Confirmation Procedure ...............................467
Wiring Diagram .....................................................468
Diagnostic Procedure ...........................................469
Component Inspection ..........................................472
Removal and Installation ......................................473
DTC P0117, P0118 ECT SENSOR .........................474
Component Description ........................................474
On Board Diagnosis Logic ....................................474
DTC Confirmation Procedure ...............................475
Wiring Diagram .....................................................476
Diagnostic Procedure ...........................................477
Component Inspection ..........................................478
Removal and Installation ......................................478
DTC P0122, P0123 TP SENSOR ............................479
Component Description ........................................479
CONSULT-II Reference Value in Data Monitor Mode
.479
On Board Diagnosis Logic ....................................479
DTC Confirmation Procedure ...............................480
Wiring Diagram .....................................................481
Diagnostic Procedure ...........................................482
Component Inspection ..........................................485
Removal and Installation ......................................485
DTC P0132, P0152 HO2S1 .....................................486
Component Description ........................................486
CONSULT-II Reference Value in Data Monitor Mode
.486
On Board Diagnosis Logic ....................................486
DTC Confirmation Procedure ...............................487
Wiring Diagram .....................................................488
Diagnostic Procedure ...........................................491

Page 1288 of 3502

NISSAN TEANA 2003 Service Manual EC-6 Component Inspection ..........................................494
Removal and Installation ......................................495
DTC P0134, P0154 HO2S1 ....................................

EC-6 Component Inspection ..........................................494
Removal and Installation ......................................495
DTC P0134, P0154 HO2S1 .....................................496
Component Description ........................................496
CONSULT-II Reference Value in Data Monitor Mode
.496
On Board Diagnosis Logic ....................................496
Overall Function Check ........................................497
Wiring Diagram .....................................................498
Diagnostic Procedure ...........................................501
Component Inspection ..........................................503
Removal and Installation ......................................504
DTC P0222, P0223 TP SENSOR ............................505
Component Description ........................................505
CONSULT-II Reference Value in Data Monitor Mode
.505
On Board Diagnosis Logic ....................................505
DTC Confirmation Procedure ...............................506
Wiring Diagram .....................................................507
Diagnostic Procedure ...........................................508
Component Inspection ..........................................511
Removal and Installation ......................................511
DTC P0327, P0328 KS ............................................512
Component Description ........................................512
On Board Diagnosis Logic ....................................512
DTC Confirmation Procedure ...............................512
Wiring Diagram .....................................................513
Diagnostic Procedure ...........................................514
Component Inspection ..........................................516
Removal and Installation ......................................516
DTC P0335 CKP SENSOR (POS) ..........................517
Component Description ........................................517
CONSULT-II Reference Value in Data Monitor Mode
.517
On Board Diagnosis Logic ....................................517
DTC Confirmation Procedure ...............................518
Wiring Diagram .....................................................519
Diagnostic Procedure ...........................................520
Component Inspection ..........................................523
Removal and Installation ......................................523
DTC P0340, P0345 CMP SENSOR (PHASE) .........524
Component Description ........................................524
On Board Diagnosis Logic ....................................524
DTC Confirmation Procedure ...............................525
Wiring Diagram .....................................................526
Diagnostic Procedure ...........................................529
Component Inspection ..........................................532
Removal and Installation ......................................532
DTC P0550 PSP SENSOR ......................................533
Component Description ........................................533
CONSULT-II Reference Value in Data Monitor Mode
.533
On Board Diagnosis Logic ....................................533
DTC Confirmation Procedure ...............................533
Wiring Diagram .....................................................534
Diagnostic Procedure ...........................................535
Component Inspection ..........................................537
Removal and Installation ......................................537DTC P0605 ECM .....................................................538
Component Description ........................................538
On Board Diagnosis Logic ....................................538
DTC Confirmation Procedure ................................538
Diagnostic Procedure ............................................540
DTC P1065 ECM POWER SUPPLY ........................541
Component Description ........................................541
On Board Diagnosis Logic ....................................541
DTC Confirmation Procedure ................................541
Wiring Diagram .....................................................542
Diagnostic Procedure ............................................543
D T C P1111, P 1136 IVT CONTROL SOLENOID
VALVE ......................................................................545
Component Description ........................................545
CONSULT-II Reference Value in Data Monitor Mode
.545
On Board Diagnosis Logic ....................................545
DTC Confirmation Procedure ................................545
Wiring Diagram .....................................................546
Diagnostic Procedure ............................................550
Component Inspection ..........................................551
Removal and Installation .......................................551
DTC P1121 ELECTRIC THROTTLE CONTROL
ACTUATOR .............................................................552
Component Description ........................................552
On Board Diagnosis Logic ....................................552
DTC Confirmation Procedure ................................552
Diagnostic Procedure ............................................553
DTC P1122 ELECTRIC THROTTLE CONTROL
FUNCTION ..............................................................555
Description ............................................................555
On Board Diagnosis Logic ....................................555
DTC Confirmation Procedure ................................555
Wiring Diagram .....................................................556
Diagnostic Procedure ............................................557
Component Inspection ..........................................561
Removal and Installation .......................................561
DTC P1124, P1126 THROTTLE CONTROL MOTOR
RELAY .....................................................................562
Component Description ........................................562
CONSULT-II Reference Value in Data Monitor Mode
.562
On Board Diagnosis Logic ....................................562
DTC Confirmation Procedure ................................562
Wiring Diagram .....................................................564
Diagnostic Procedure ............................................565
DTC P1128 THROTTLE CONTROL MOTOR .........568
Component Description ........................................568
On Board Diagnosis Logic ....................................568
DTC Confirmation Procedure ................................568
Wiring Diagram .....................................................569
Diagnostic Procedure ............................................570
Component Inspection ..........................................571
Removal and Installation .......................................572
DTC P1211 TCS CONTROL UNIT ..........................573
Description ............................................................573
On Board Diagnosis Logic ....................................573
DTC Confirmation Procedure ................................573
Diagnostic Procedure ............................................573

Load next 8 pages

Page: < prev 1-10 ... 1249-1256 1257-1264 1265-1272 1273-1280 1281-1288 1289-1296 1297-1304 1305-1312 1313-1320 ... 3504 next >

manual radio set immobilizer child lock fuse box diagram brake rotor checking oil
