Page 25 of 3502

NISSAN TEANA 2003 Service Manual A/T CONTROL SYSTEM AT-17 D E F G H I J K L MA B AT Shift MechanismBCS000ZO CONSTRUCTION FUNCTION OF CLUTCH AND BRAKE 1. Torque converter 2. Oil pump 3. Input shaft 4. Brake band 5. Reverse clutch 6.

Page 26 of 3502

NISSAN TEANA 2003 Service Manual AT-18 A/T CONTROL SYSTEM CLUTCH AND BAND CHART *1: Oil pressure is applied to both 2nd “apply” side and 3rd “release” side of band servo piston. However, brake band does not con- tract beca

Page 27 of 3502

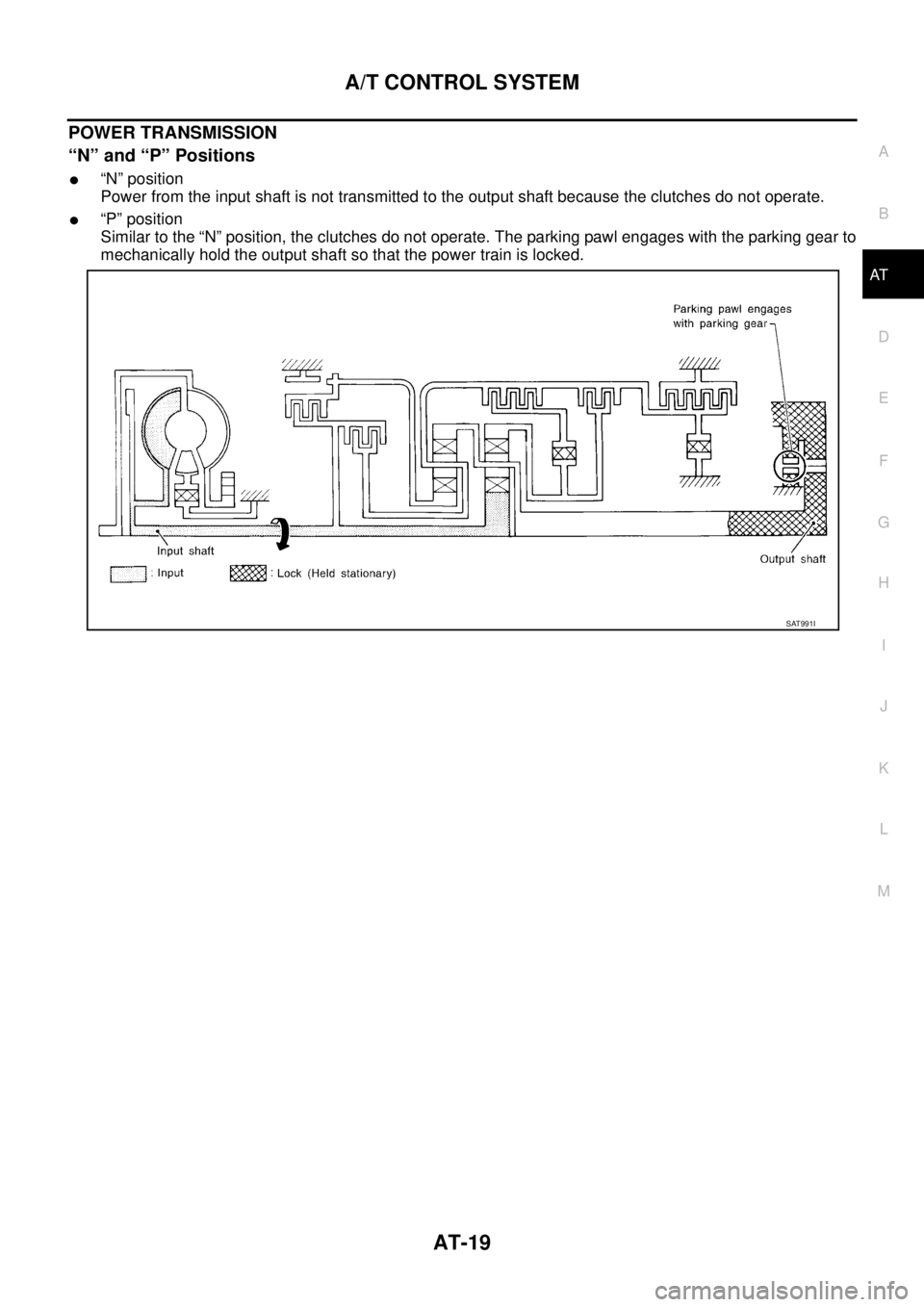

NISSAN TEANA 2003 Service Manual A/T CONTROL SYSTEM AT-19 D E F G H I J K L MA B AT POWER TRANSMISSION “N” and “P” Positions “N” position Power from the input shaft is not transmitted to the output shaft because the c

Page 28 of 3502

NISSAN TEANA 2003 Service Manual AT-20 A/T CONTROL SYSTEM “11 ” Position Forward one-way clutch Forward clutch Overrun clutch Low & reverse brakeAs overrun clutch engages, rear internal gear is locked by the operation of l

Page 29 of 3502

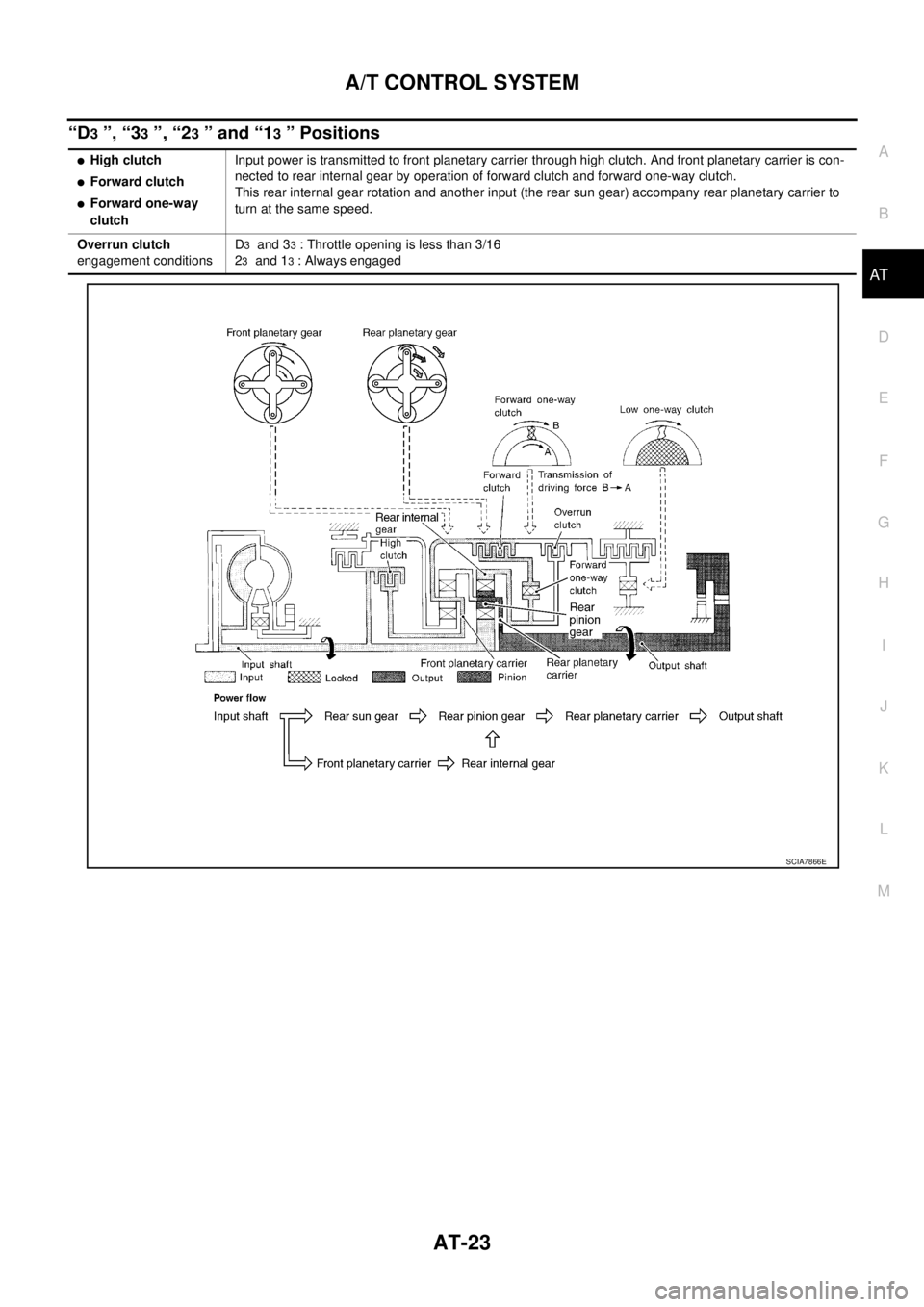

NISSAN TEANA 2003 Service Manual A/T CONTROL SYSTEM AT-21 D E F G H I J K L MA B AT “D1 ”, “31 ” and “21 ” Positions Forward one-way clutch Forward clutch Low one-way clutchRear internal gear is locked to rotate coun

Page 30 of 3502

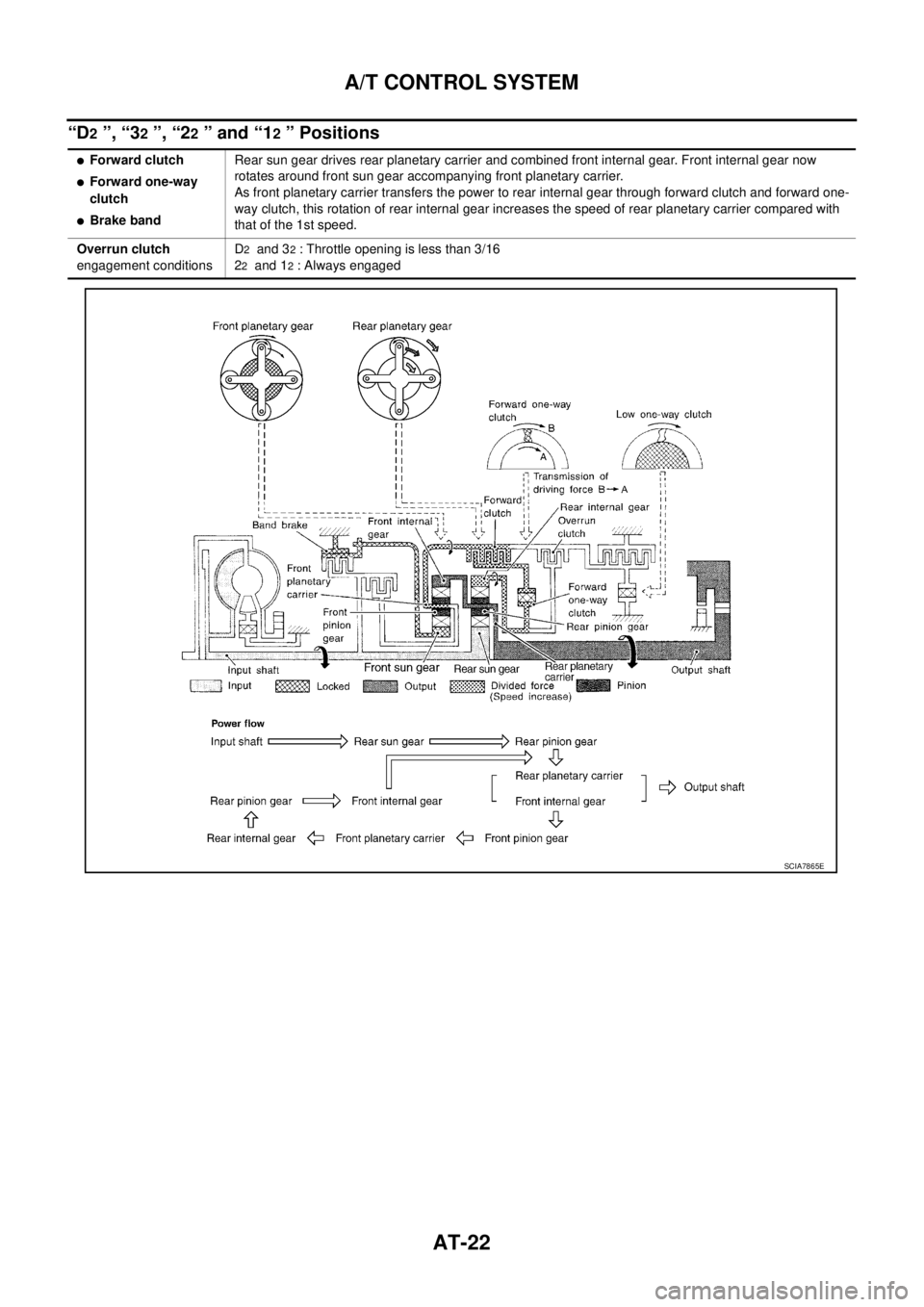

NISSAN TEANA 2003 Service Manual AT-22 A/T CONTROL SYSTEM “D2 ”, “32 ”, “22 ” and “12 ” Positions Forward clutch Forward one-way clutch Brake bandRear sun gear drives rear planetary carrier and combined front in

Page 31 of 3502

NISSAN TEANA 2003 Service Manual A/T CONTROL SYSTEM AT-23 D E F G H I J K L MA B AT “D3 ”, “33 ”, “23 ” and “13 ” Positions High clutch Forward clutch Forward one-way clutchInput power is transmitted to front pl

Page 32 of 3502

NISSAN TEANA 2003 Service Manual AT-24 A/T CONTROL SYSTEM “D4 ” Position High clutch Brake band Forward clutch (Does not affect power transmission)Input power is transmitted to front carrier through high clutch. This front
