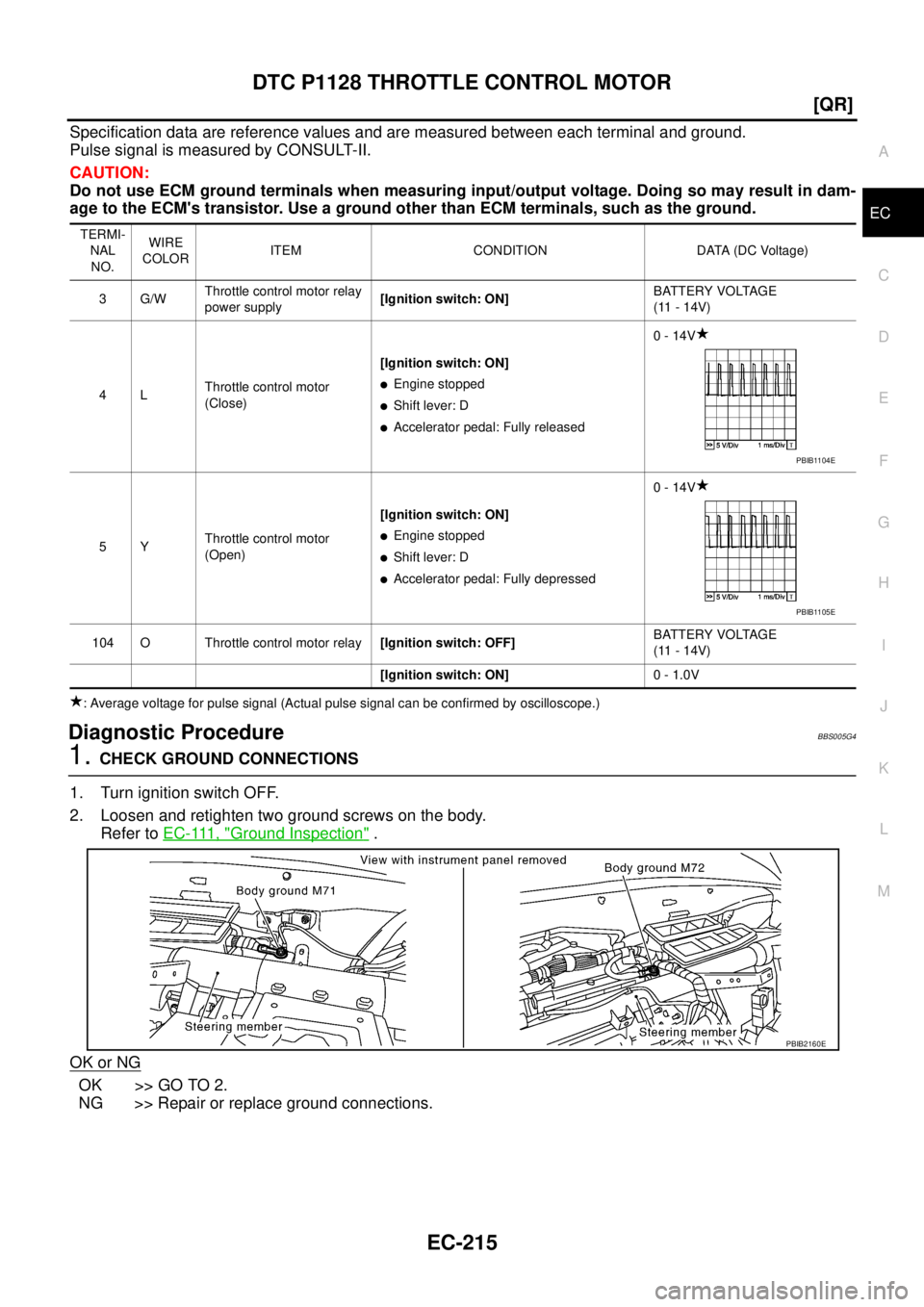

Page 1497 of 3502

NISSAN TEANA 2003 Service Manual DTC P1128 THROTTLE CONTROL MOTOR
EC-215
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-

Page 1498 of 3502

NISSAN TEANA 2003 Service Manual EC-216
[QR]
DTC P1128 THROTTLE CONTROL MOTOR

2. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Disconnect electric throttle control actuator harness connector.
2. Disconnect

Page 1499 of 3502

NISSAN TEANA 2003 Service Manual DTC P1128 THROTTLE CONTROL MOTOR
EC-217
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

Removal and InstallationBBS005G6
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-19, "INTAKE MANIFOLD" .

Page 1500 of 3502

NISSAN TEANA 2003 Service Manual EC-218
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
System DescriptionBBS005G7
SYSTEM DESCRIPTION
NOTE:
If DTC P1217 is displayed with DTC U1000 or U1001, first

Page 1501 of 3502

NISSAN TEANA 2003 Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-219
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
COMPONENT DESC

Page 1502 of 3502

NISSAN TEANA 2003 Service Manual EC-220
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-10, "
Changing Engine
Coolant" . Also, replace the engine oil. Ref

EC-220
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-10, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-9, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-15, "
Anti-Freeze Coolant Mixture Ratio" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
Overall Function CheckBBS005GA
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-224,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-224,
"Diagnostic Procedure" .
3. Turn ignition switch ON.
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-224, "
Diagnostic Procedure" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over tempera-
ture (Overheat)
Cooling fan does not operate properly (Over-
heat).
Cooling fan system does not operate prop-
erly (Overheat).
Engine coolant was not added to the system
using the proper filling method.
Engine coolant is not within the specified
range.
Harness or connectors
(The cooling fan circuit is open or
shorted.)
IPDM E/R
Cooling fan
Radiator hose
Radiator
Radiator cap
Water pump
Thermostat
For more information, refer to EC-227,
"Main 12 Causes of Overheating" .
SEF621W
SEF646X

Page 1503 of 3502

NISSAN TEANA 2003 Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-221
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

WITHOUT CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolan

Page 1504 of 3502

NISSAN TEANA 2003 Service Manual EC-222
[QR]
DTC P1217 ENGINE OVER TEMPERATURE

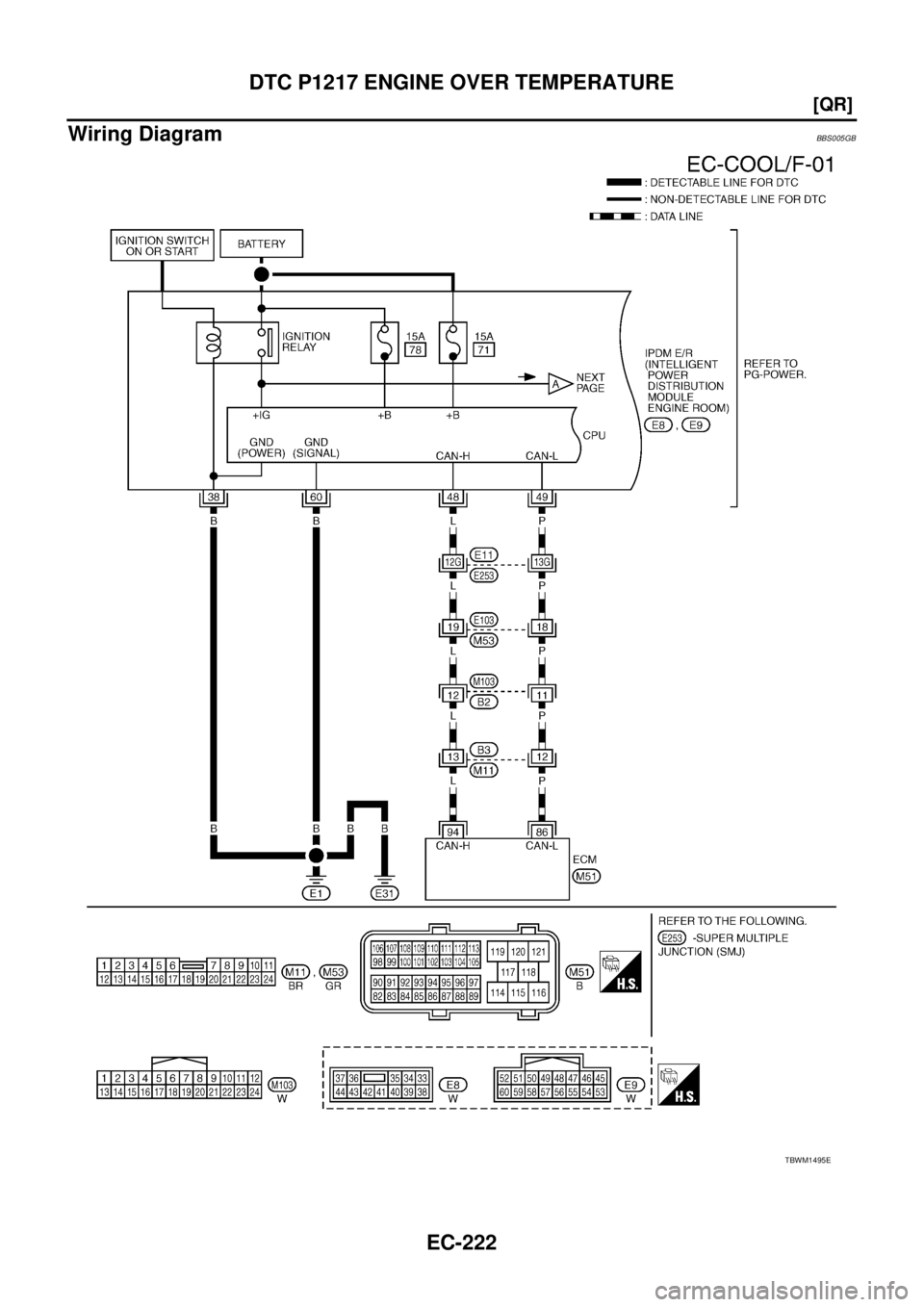

Wiring DiagramBBS005GB
TBWM1495E
