Page 3393 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
SRS-19
C
D
E
F
G
I
J
K
L
MA
B
SRS

DRIVER AIRBAG
MODULE
[OPEN]
[B1049]Driver air bag module circuit is open (including the spiral cable). 1. Visually check the wiring harness
con

TROUBLE DIAGNOSIS
SRS-19
C
D
E
F
G
I
J
K
L
MA
B
SRS

DRIVER AIRBAG
MODULE
[OPEN]
[B1049]Driver air bag module circuit is open (including the spiral cable). 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace driver air bag module.
(Before disposal, it must be
deployed.)
4. Replace the spiral cable.
5. Replace the diagnosis sensor unit.
6. Replace the related harness. DRIVER AIRBAG
MODULE
[VB-SHORT]
[B1050]
Driver air bag module circuit is shorted to a power supply circuit
(including the spiral cable).
DRIVER AIRBAG
MODULE
[GND-SHORT]
[B1051]
Driver air bag module circuit is shorted to ground (including the
spiral cable).
DRIVER AIRBAG
MODULE
[SHORT]
[B1052]
Driver air bag module circuit is shorted between lines.
ASSIST A/B MODULE
[OPEN]
[B1065]
Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front passenger air bag
module. (Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. ASSIST A/B MODULE
[VB-SHORT]
[B1066]
Front passenger air bag module circuit is shorted to a power
supply circuit.
ASSIST A/B MODULE
[GND-SHORT]
[B1067]
Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]
[B1068]
Front passenger air bag module circuit is shorted between lines.
CONTROL UNIT
[B1001-B1015]
[B1026-B1031]
[B1042-B1047]
[B1058-B1063]
[B1074-B1079]
[ B 11 0 6 - B 1111 ]
[B1122-B1127]
[B1138-B1143]
[B1170-B1175]
[B1186-B1191]
[B1202-B1207]
Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the diagnosis sensor unit.
SIDE MODULE RH
[OPEN]
[B1129]
Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front RH setback assembly
(front RH side air bag module).
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE RH
[VB-SHORT]
[B1130]
Front RH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE RH
[GND-SHORT]
[B1131]
Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]
[B1132]
Front RH side air bag module circuit is shorted between lines. Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”

Page 3394 of 3502

NISSAN TEANA 2003 Service Manual SRS-20
TROUBLE DIAGNOSIS

SIDE MODULE LH
[OPEN]
[B1134]Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damag

SRS-20
TROUBLE DIAGNOSIS

SIDE MODULE LH
[OPEN]
[B1134]Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front LH setback assembly
(front LH side air bag module).
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE LH
[VB-SHORT]
[B1135]
Front LH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE LH
[GND-SHORT]
[B1136]
Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]
[B1137]
Front LH side air bag module circuit is shorted between lines.
PRE-TEN FRONT RH
[OPEN]
[B1081]
Front RH pre-tensioner circuit is open.
1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front RH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT RH
[VB-SHORT]
[B1082]
Front RH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT RH
[GND-SHORT]
[B1083]
Front RH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT RH
[SHORT]
[B1084]
Front RH pre-tensioner circuit is shorted between lines.
PRE-TEN FRONT LH
[OPEN]
[B1086]
Front LH pre-tensioner circuit is open.
1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace front LH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT LH
[VB-SHORT]
[B1087]
Front LH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT LH
[GND-SHORT]
[B1088]
Front LH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT LH
[SHORT]
[B1089]
Front LH pre-tensioner circuit is shorted between lines.
SATELLITE SENS RH
[UNIT FAIL]
[ B 111 3 ]
SATELLITE SENS RH
[COMM FAIL]
[ B 111 5 ]
RH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the RH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SATELLITE SENS LH
[UNIT FAIL]
[ B 111 8 ]
SATELLITE SENS LH
[COMM FAIL]
[B1120]
LH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the LH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness. Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”

Page 3395 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
SRS-21
C
D
E
F
G
I
J
K
L
MA
B
SRS

NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warnin

TROUBLE DIAGNOSIS
SRS-21
C
D
E
F
G
I
J
K
L
MA
B
SRS

NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is
eliminated using air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is still
observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.
CURTAIN MODULE RH
[OPEN]
[B1145]RH side curtain air bag module circuit is open.
1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace RH side curtain air bag
module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. CURTAIN MODULE RH
[VB-SHORT]
[B1146]
RH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE RH
[GND-SHORT]
[B1147]
RH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE RH
[SHORT]
[B1148]
RH side curtain air bag module circuit is shorted between lines.
CURTAIN MODULE LH
[OPEN]
[B1150]
LH side curtain air bag module circuit is open.
1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace LH side curtain air bag
module.
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. CURTAIN MODULE LH
[VB-SHORT]
[B1151]
LH side curtain air bag module circuit is shorted to a power sup-
ply circuit.
CURTAIN MODULE LH
[GND-SHORT]
[B1152]
LH side curtain air bag module circuit is shorted to ground.
CURTAIN MODULE LH
[SHORT]
[B1153]
LH side curtain air bag module circuit is shorted between lines.
CRASH ZONE SEN
[UNIT FAIL]
[B1033]
CRASH ZONE SEN
[COMM FAIL]
[B1035]
Crash zone sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the crash zone sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness. Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”

Page 3396 of 3502

NISSAN TEANA 2003 Service Manual SRS-22
TROUBLE DIAGNOSIS

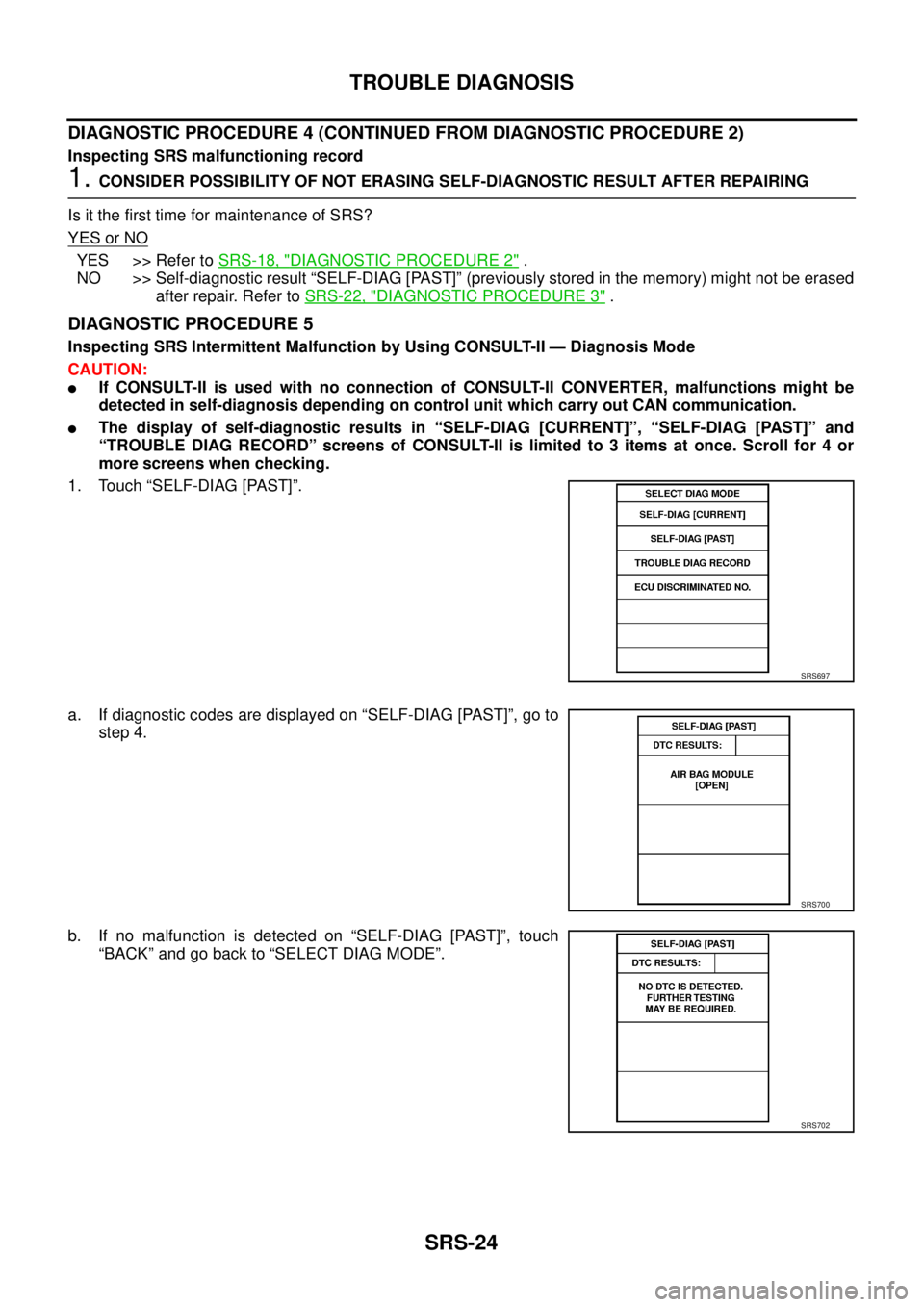

DIAGNOSTIC PROCEDURE 3
Final checking after repairing SRS by using CONSULT-II — Diagnosis mode
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER,

Page 3397 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
SRS-23
C
D
E
F
G
I
J
K
L
MA
B
SRS

4. Check that no malfunction is detected on “SELF-DIAG [PAST]”.
5. Touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears in ord

Page 3398 of 3502

NISSAN TEANA 2003 Service Manual SRS-24
TROUBLE DIAGNOSIS

DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM DIAGNOSTIC PROCEDURE 2)
Inspecting SRS malfunctioning record
1. CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULT AFTER REPAI

Page 3399 of 3502

NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSIS
SRS-25
C
D
E
F
G
I
J
K
L
MA
B
SRS

2. Touch “TROUBLE DIAG RECORD”.
NOTE:
With “TROUBLE DIAG RECORD”, diagnosis results previously
erased by a reset operation can be displaye

TROUBLE DIAGNOSIS
SRS-25
C
D
E
F
G
I
J
K
L
MA
B
SRS

2. Touch “TROUBLE DIAG RECORD”.
NOTE:
With “TROUBLE DIAG RECORD”, diagnosis results previously
erased by a reset operation can be displayed.
3. Diagnostic code is displayed on “TROUBLE DIAG RECORD”.
4. Touch “PRINT”.
5. Compare diagnostic codes toSRS-25, "
CONSULT-II Diagnostic
Code Chart (“SELF-DIAG [PAST]” or “TROUBLE DIAG
RECORD”)" .
6. Touch “BACK” key of CONSULT-II until “SELECT SYSTEM”
appears.
7. Turn ignition switch OFF, then turn off and disconnect CON-
SULT-II, and both battery cables.
8. Repair the system as outlined by the “Repair order” in “Intermit-
tent Malfunction Diagnostic Code Chart”, that corresponds to the
self-diagnostic result. For replacement procedure of component parts, refer to the Removal and Installa-
tion procedure for the appropriate component.
9. Refer to SRS-22, "
DIAGNOSTIC PROCEDURE 3" , for final checking.
CONSULT-II Diagnostic Code Chart (“SELF-DIAG [PAST]” or “TROUBLE DIAG RECORD”)
SRS697
SHIA0182E
Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”
NO DTC IS
DETECTED.When malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode.
Low battery voltage (Less than 9V)Refer to SRS-22, "DIAGNOSTIC
PROCEDURE 3" after charging the
battery.
Self-diagnostic result “SELF-DIAG
[PAST]” (previously stored in the
memory) might not be erased after
repair.
Intermittent malfunction has been
detected in the past.
Refer to SRS-24, "DIAGNOSTIC
PROCEDURE 4 (CONTINUED
FROM DIAGNOSTIC PROCEDURE
2)" .
Refer to SRS-24, "DIAGNOSTIC
PROCEDURE 5" .
No malfunction is detected. —
DRIVER AIRBAG
MODULE
[OPEN]
[B1049]
Driver air bag module circuit is open (including the spiral cable). 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace driver air bag module.
(Before disposal, it must be
deployed.)
4. Replace the spiral cable.
5. Replace the diagnosis sensor unit.
6. Replace the related harness. DRIVER AIRBAG
MODULE
[VB-SHORT]
[B1050]
Driver air bag module circuit is shorted to a power supply circuit
(including the spiral cable).
DRIVER AIRBAG
MODULE
[GND-SHORT]
[B1051]
Driver air bag module circuit is shorted to ground (including the
spiral cable).
DRIVER AIRBAG
MODULE
[SHORT]
[B1052]
Driver air bag module circuit is shorted between lines.

Page 3400 of 3502

NISSAN TEANA 2003 Service Manual SRS-26
TROUBLE DIAGNOSIS

ASSIST A/B MODULE
[OPEN]
[B1065]Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible

SRS-26
TROUBLE DIAGNOSIS

ASSIST A/B MODULE
[OPEN]
[B1065]Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front passenger air bag
module. (Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. ASSIST A/B MODULE
[VB-SHORT]
[B1066]
Front passenger air bag module circuit is shorted to a power
supply circuit.
ASSIST A/B MODULE
[GND-SHORT]
[B1067]
Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]
[B1068]
Front passenger air bag module circuit is shorted between lines.
CONTROL UNIT
[B1001-B1015]
[B1026-B1031]
[B1042-B1047]
[B1058-B1063]
[B1074-B1079]
[ B 11 0 6 - B 1111 ]
[B1122-B1127]
[B1138-B1143]
[B1170-B1175]
[B1186-B1191]
[B1202-B1207]
Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the diagnosis sensor unit.
SIDE MODULE RH
[OPEN]
[B1129]
Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front RH setback assembly
(front RH side air bag module).
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE RH
[VB-SHORT]
[B1130]
Front RH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE RH
[GND-SHORT]
[B1131]
Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]
[B1132]
Front RH side air bag module circuit is shorted between lines.
SIDE MODULE LH
[OPEN]
[B1134]
Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace front LH setback assembly
(front LH side air bag module).
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE LH
[VB-SHORT]
[B1135]
Front LH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE LH
[GND-SHORT]
[B1136]
Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]
[B1137]
Front LH side air bag module circuit is shorted between lines. Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”

Load next 8 pages

Page: < prev 1-10 ... 3361-3368 3369-3376 3377-3384 3385-3392 3393-3400 3401-3408 3409-3416 3417-3424 3425-3432 ... 3504 next >

oil capacity fuse box ESP inoperative heating fuel type bonnet
