Page 2777 of 3502

NISSAN TEANA 2003 Service Manual ACTIVE AFS
LT-89
C
D
E
F
G
H
I
J
L
MA
B
LT

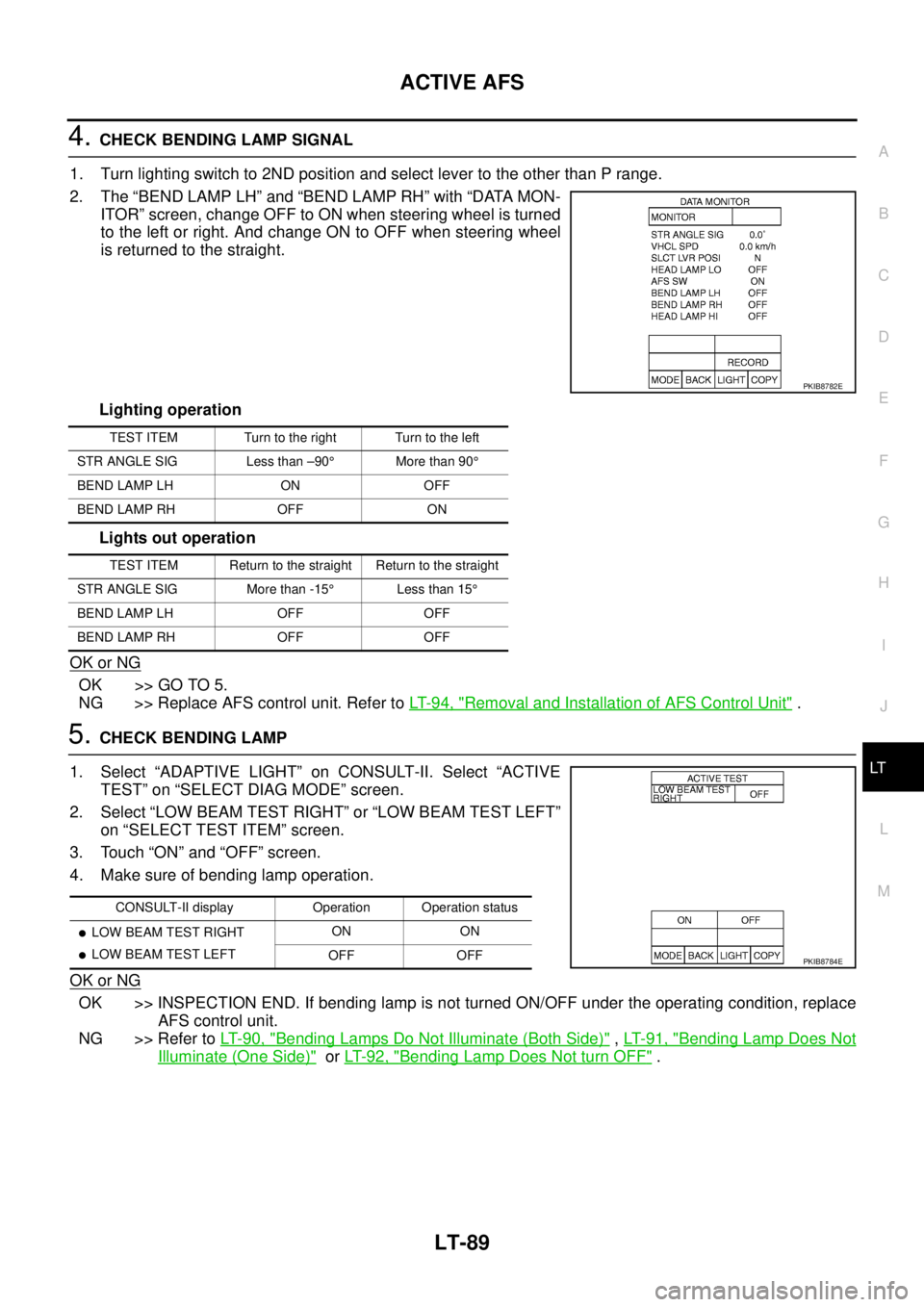

4. CHECK BENDING LAMP SIGNAL
1. Turn lighting switch to 2ND position and select lever to the other than P range.
2. The “BEND LAMP LH” and “BEND LAMP

Page 2778 of 3502

NISSAN TEANA 2003 Service Manual LT-90
ACTIVE AFS

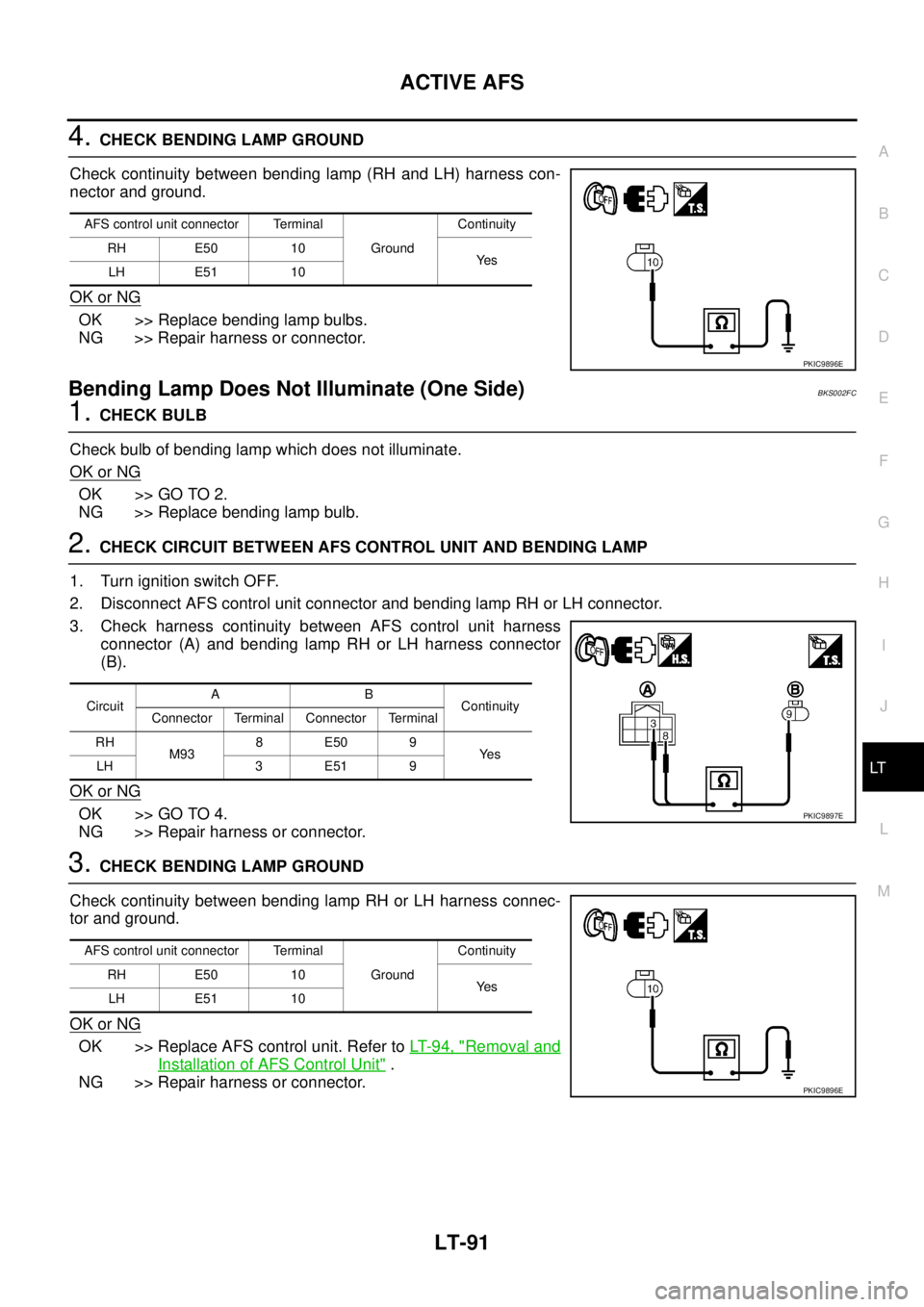

Bending Lamps Do Not Illuminate (Both Side)BKS002FB
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect AFS control unit connector.
3. Check voltage between AFS

Page 2779 of 3502

NISSAN TEANA 2003 Service Manual ACTIVE AFS
LT-91
C
D
E
F
G
H
I
J
L
MA
B
LT

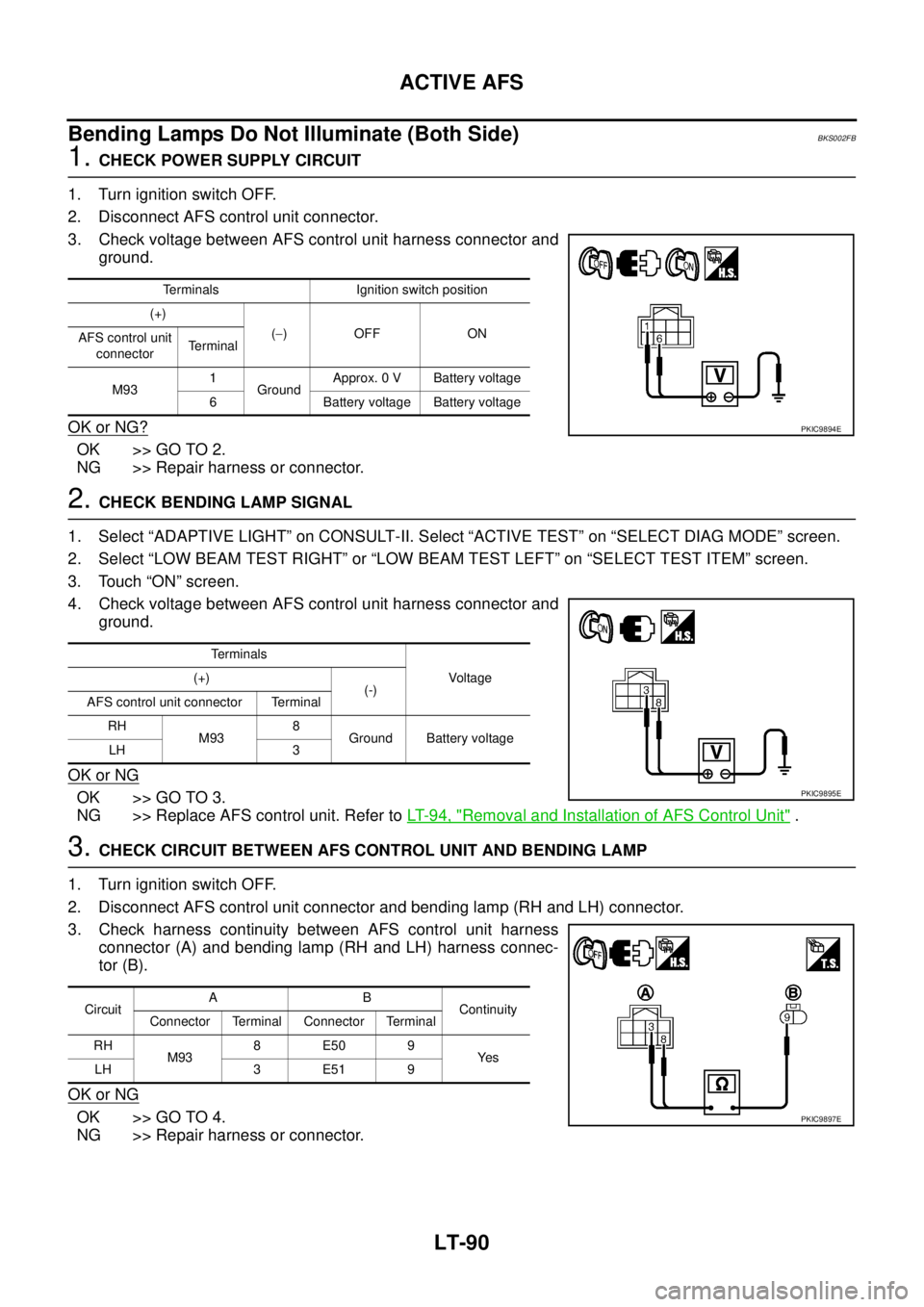

4. CHECK BENDING LAMP GROUND
Check continuity between bending lamp (RH and LH) harness con-
nector and ground.
OK or NG
OK >> Replace bending lamp bulbs.
N

Page 2780 of 3502

NISSAN TEANA 2003 Service Manual LT-92
ACTIVE AFS

Bending Lamp Does Not turn OFFBKS002FD
1. CHECK BENDING LAMP POWER SUPPLY CIRCUIT
Check if continuity does not exist between bending lamp signal circuit and power supply.
OK or NG
O

Page 2781 of 3502

NISSAN TEANA 2003 Service Manual ACTIVE AFS
LT-93
C
D
E
F
G
H
I
J
L
MA
B
LT

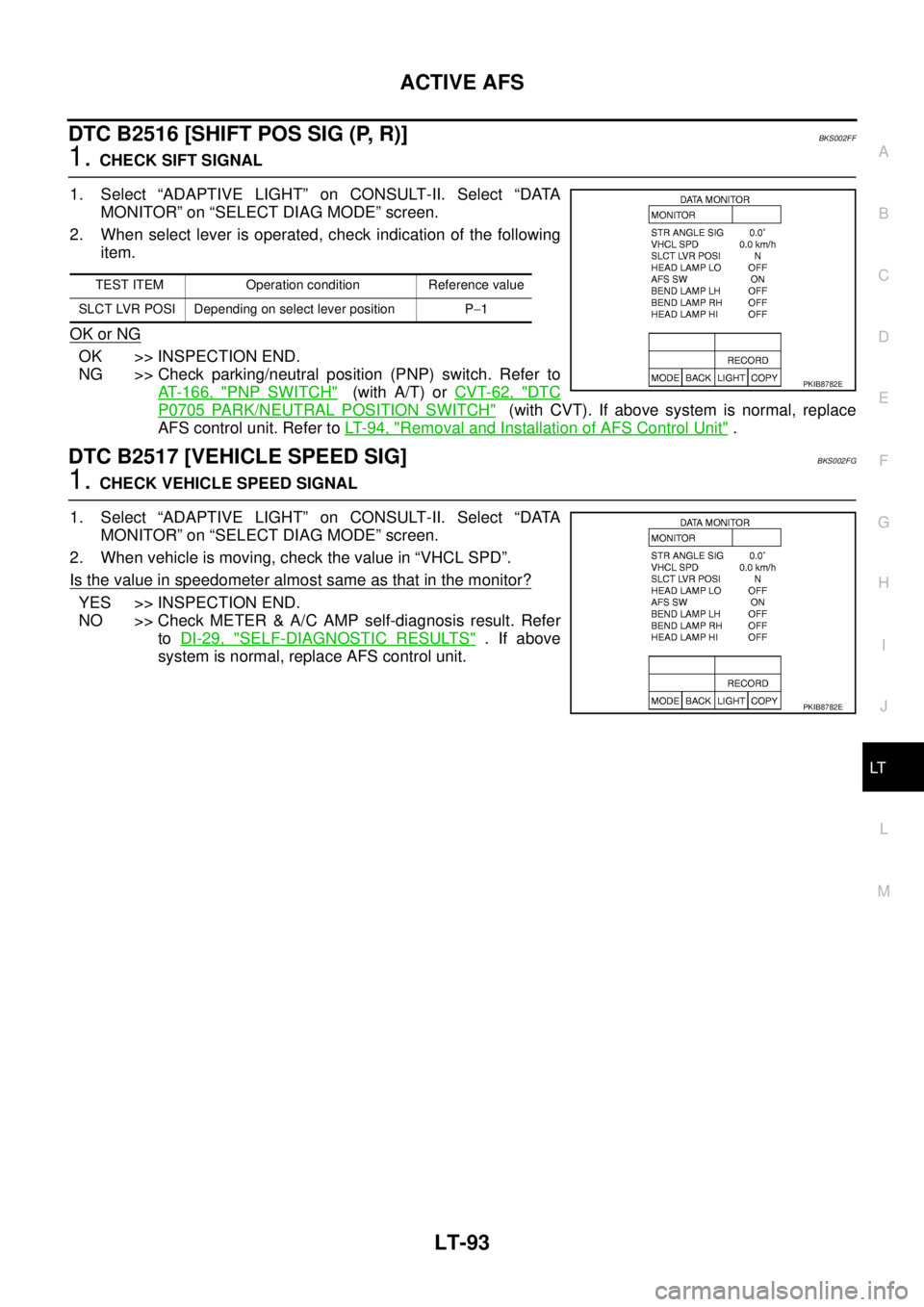

DTC B2516 [SHIFT POS SIG (P, R)]BKS002FF
1. CHECK SIFT SIGNAL
1. Select “ADAPTIVE LIGHT” on CONSULT-II. Select “DATA
MONITOR” on “SELECT DIAG MOD

Page 2782 of 3502

NISSAN TEANA 2003 Service Manual LT-94
ACTIVE AFS

Aiming AdjustmentBKS002FH
Refer to LT- 3 3 , "Aiming Adjustment" .
Bulb ReplacementBKS002FI
Refer to LT- 3 5 , "BENDING LAMP" .
Removal and Installation of AFS Control UnitBKS002F

Page 2783 of 3502

NISSAN TEANA 2003 Service Manual HEADLAMP AIMING CONTROL (AUTO)
LT-95
C
D
E
F
G
H
I
J
L
MA
B
LT

HEADLAMP AIMING CONTROL (AUTO)PFP:53821
Component Parts and Harness connector LocationBKS002B9
PKID0045E

Page 2784 of 3502

NISSAN TEANA 2003 Service Manual LT-96
HEADLAMP AIMING CONTROL (AUTO)

System DescriptionBKS002BA
The height sensor is located on the right side of the rear suspension member. With the lighting switch in the
1ST or 2ND position, the

LT-96
HEADLAMP AIMING CONTROL (AUTO)

System DescriptionBKS002BA
The height sensor is located on the right side of the rear suspension member. With the lighting switch in the
1ST or 2ND position, the height sensor detects vehicle height change by sensing the displacement of the sus-
pension arm. And the height sensor transmits a corresponding signal to the headlamp aiming motors. The sig-
nal drives the headlamp aiming motors, which adjusts the low beam reflector of each headlamp to an angle
appropriate for the vehicle height.
The aiming motor drive signal level retains when the following conditions are not met.
When the stopped vehicle changes the height and keeps it for more than 10 seconds, the height sensor
outputs a aiming motor drive signal. And height sensor keeps signal voltage to headlamp aiming motor.
Upon reception of the aiming motor drive signal, both headlamp aiming motors cause the low beam reflec-
tors to move to the position commanded by the signal.
When the vehicle is running (excluded when accelerating/decelerating), the height sensor transmits aim-
ing motor drive signal to headlamp aiming motors at the predetermined intervals. The voltage level of
every signal input is maintained unchanged until the next signal is input.
Upon reception of the aiming motor drive signal, both headlamp aiming motors cause the low beam reflec-
tors to move to the position commanded by the signal.
When the vehicle is accelerating or decelerating, the height sensor keeps the same aiming motor drive
signal voltage level rather than changing it, so that the low beam reflectors of both headlamps do not
operate.
When the lighting switch is turned OFF position, the height sensor retains the aiming motor drive signal level
at that moment and stops transmitting the signal.
OUTLINE
Power is supplied at all times
to ignition relay [located in IPDM E/R (Intelligent Power Distribution Module Engine Room)], from battery
direct,
through 15A fuse (No. 71, located in IPDM E/R)
to tail lamp relay (located in IPDM E/R) and
to CPU (central processing unit) in IPDM E/R,
through 15A fuse (No. 78, located in IPDM E/R)
to CPU in IPDM E/R,
through 50A fusible link (letter M, located in fuse and fusible link block)
to BCM terminal 55,
through 15A fuse [No. 17, located in fuse block (J/B)]
to BCM terminal 42.
With the ignition switch in the ON or START position, power is supplied
to ignition relay (located in IPDM E/R),
through 10A fuse [No. 1, located in fuse block (J/B)]
to BCM terminal 38,
through 10A fuse [No. 12, located in fuse block (J/B)]
to height sensor terminal 2.
With the ignition switch in ACC or ON position, power is supplied
through 10A fuse [No. 6, located in fuse block (J/B)]
to BCM terminal 11.
Ground is supplied
to BCM terminal 52
through grounds M71 and M72,
to IPDM E/R terminals 38 and 60
through grounds E1 and E31,
to height sensor terminal 1
through grounds B214 and B217.
