Page 105 of 3502

NISSAN TEANA 2003 Service Manual SHIFT SOLENOID VALVE B AT-97 D E F G H I J K L MA B AT Data are reference value and are measured between each terminal and ground. Diagnostic ProcedureBCS0011E 1. CHECK INPUT SIGNAL With CONSULT-I

Page 106 of 3502

NISSAN TEANA 2003 Service Manual AT-98 SHIFT SOLENOID VALVE B 2. CHECK SHIFT SOLENOID VALVE B CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect TCM connector. 3. Check resistance between TCM connector terminal and ground. OK or NG

Page 107 of 3502

NISSAN TEANA 2003 Service Manual SHIFT SOLENOID VALVE B AT-99 D E F G H I J K L MA B AT 6. CHECK TCM 1. Check TCM input/output signals. Refer to AT- 6 4 , " TCM Terminals and Reference Value" . 2. If NG, recheck TCM pin terminals

Page 108 of 3502

NISSAN TEANA 2003 Service Manual AT-100 OVERRUN CLUTCH SOLENOID VALVE OVERRUN CLUTCH SOLENOID VALVEPFP:31940 DescriptionBCS0011G Overrun clutch solenoid valve is activated by TCM in response to signals sent from PNP switch, 3rd pos

Page 109 of 3502

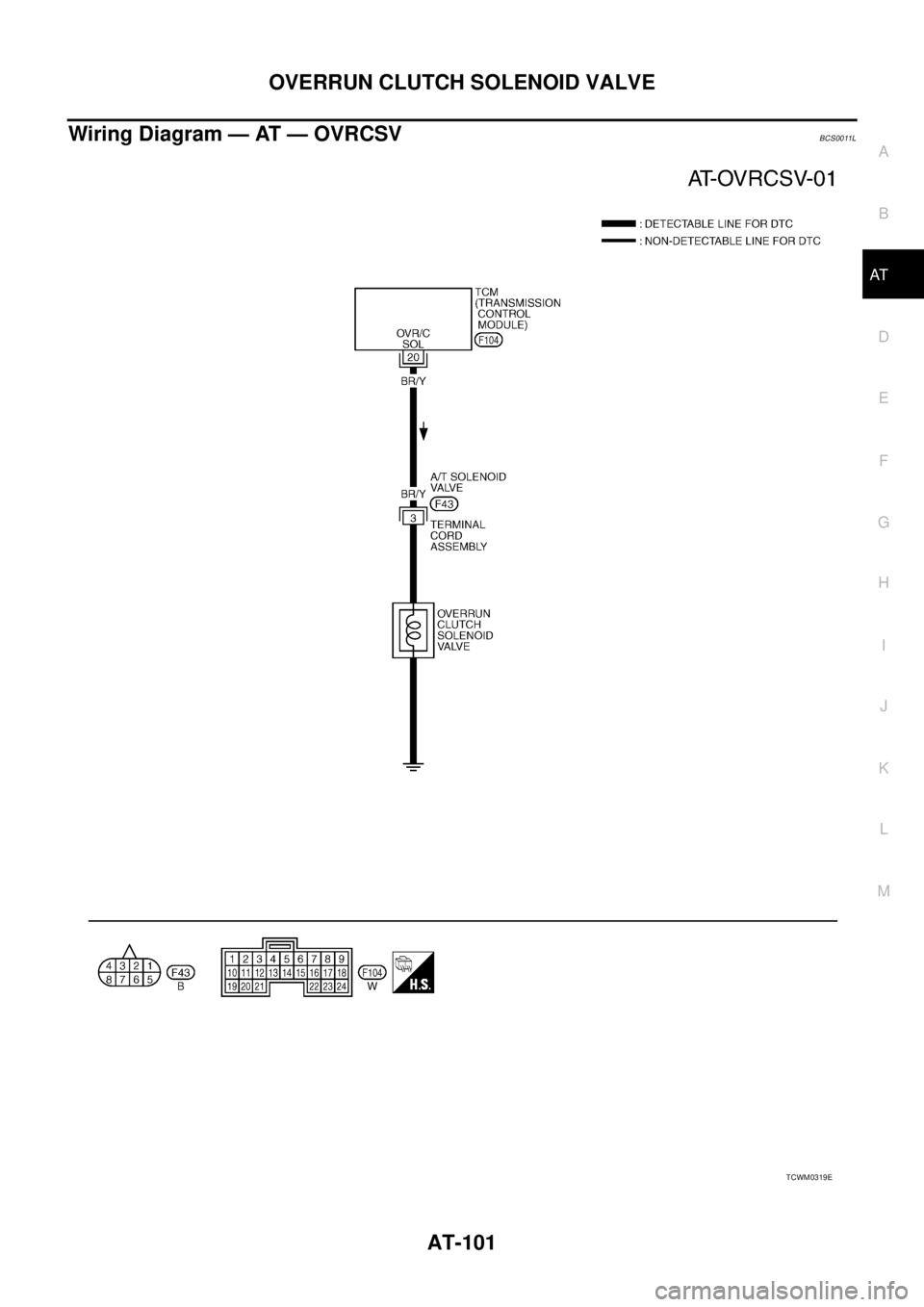

NISSAN TEANA 2003 Service Manual OVERRUN CLUTCH SOLENOID VALVE AT-101 D E F G H I J K L MA B AT Wiring Diagram — AT — OVRCSVBCS0011L TCWM0319E

Page 110 of 3502

NISSAN TEANA 2003 Service Manual AT-102 OVERRUN CLUTCH SOLENOID VALVE Data are reference value and are measured between each terminal and ground. Diagnostic ProcedureBCS0011M 1. CHECK INPUT SIGNAL With CONSULT-II 1. Start engine.

Page 111 of 3502

NISSAN TEANA 2003 Service Manual OVERRUN CLUTCH SOLENOID VALVE AT-103 D E F G H I J K L MA B AT 2. CHECK OVERRUN CLUTCH SOLENOID VALVE CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect TCM connector. 3. Check resistance between TC

Page 112 of 3502

NISSAN TEANA 2003 Service Manual AT-104 OVERRUN CLUTCH SOLENOID VALVE 6. CHECK TCM 1. Check TCM input/output signals. Refer to AT- 6 4 , " TCM Terminals and Reference Value" . 2. If NG, recheck TCM pin terminals for damage or loos
