NISSAN TEANA 2003 Service Manual DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-51
C
D
E
F
G
I
J
K
L
MA
B
SRS

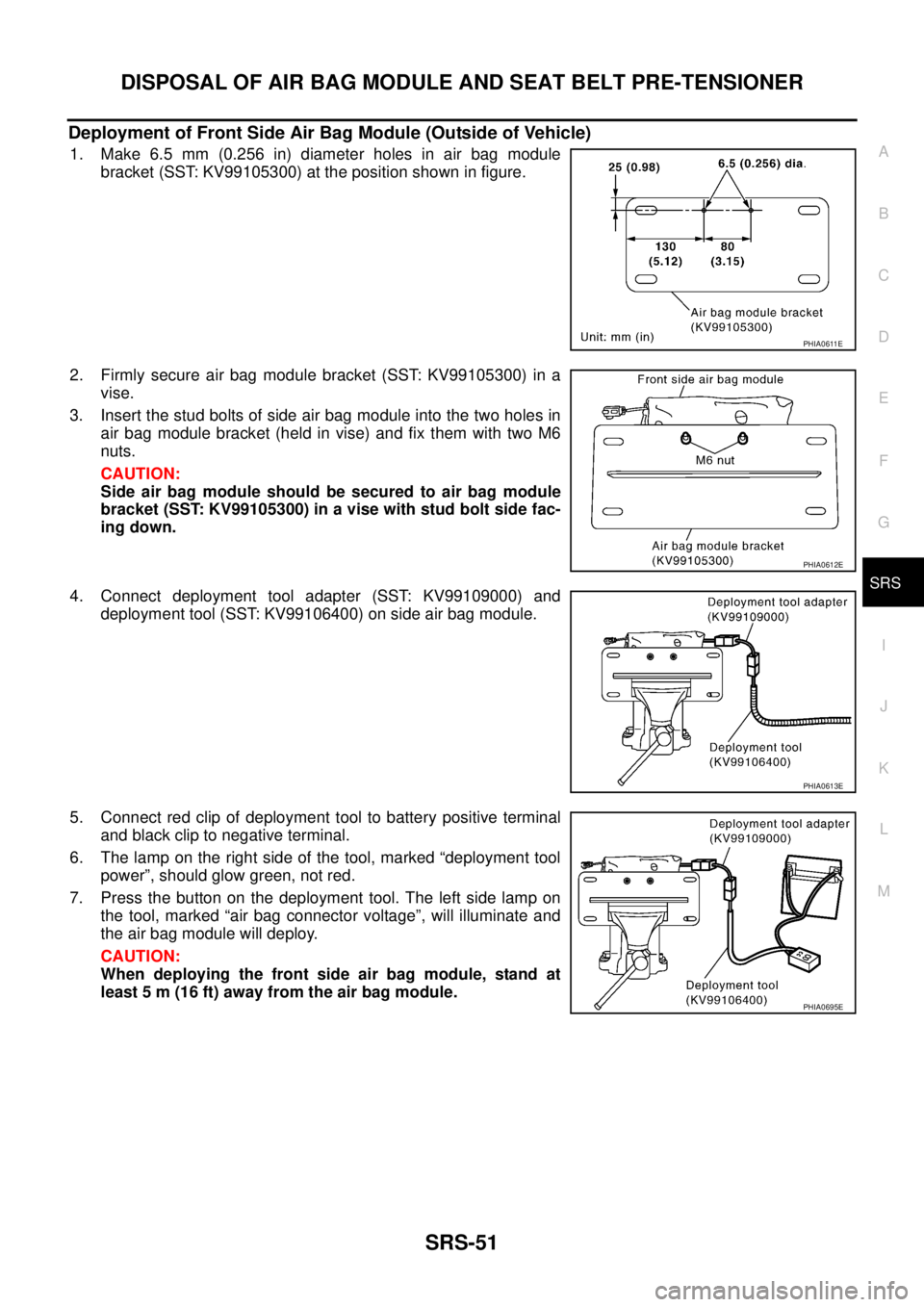

Deployment of Front Side Air Bag Module (Outside of Vehicle)
1. Make 6.5 mm (0.256 in) diameter holes in air

Page 3426 of 3502

NISSAN TEANA 2003 Service Manual SRS-52
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

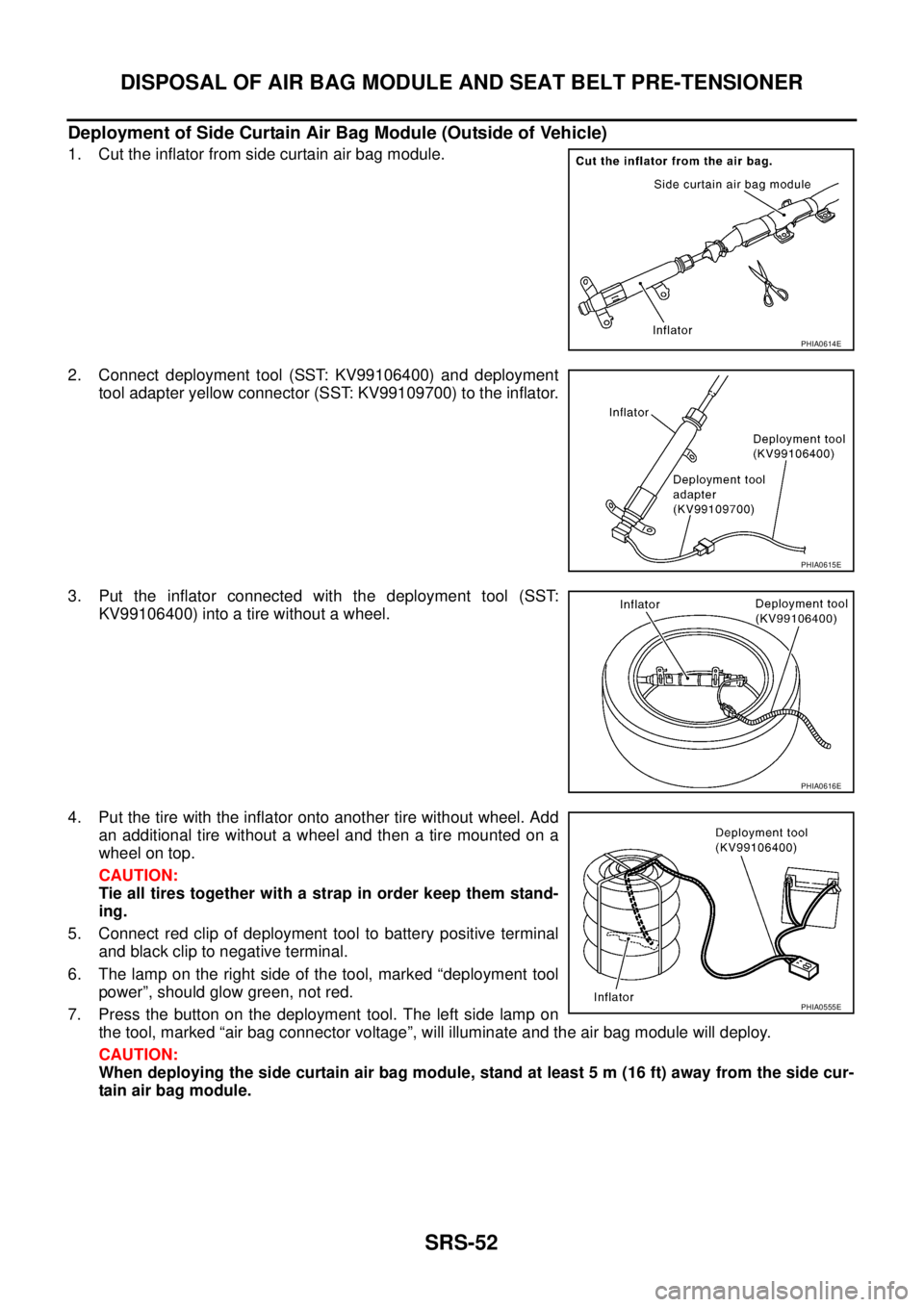

Deployment of Side Curtain Air Bag Module (Outside of Vehicle)
1. Cut the inflator from side curtain air bag module.
2. Connect deployme

Page 3427 of 3502

NISSAN TEANA 2003 Service Manual DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
SRS-53
C
D
E
F
G
I
J
K
L
MA
B
SRS

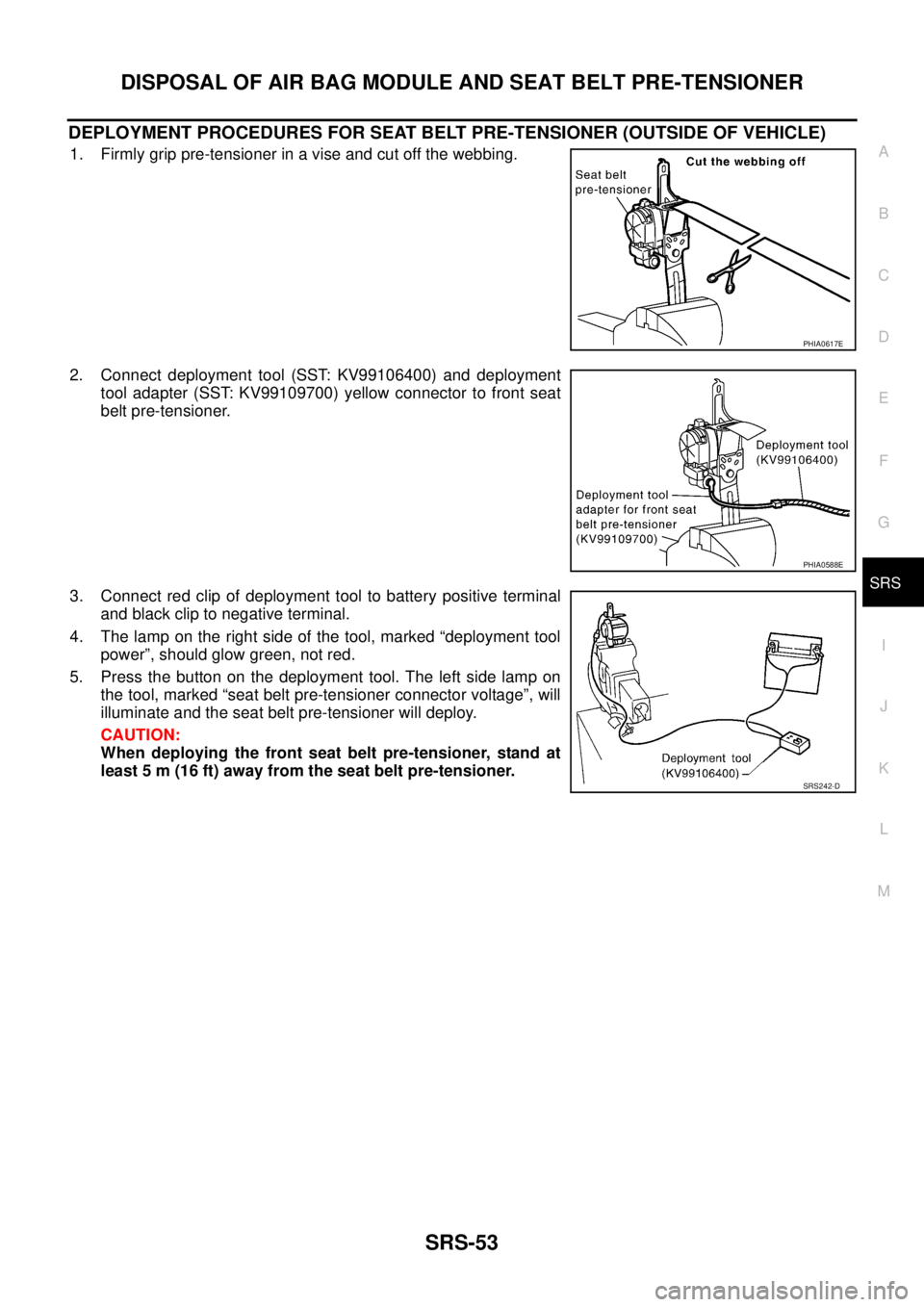

DEPLOYMENT PROCEDURES FOR SEAT BELT PRE-TENSIONER (OUTSIDE OF VEHICLE)
1. Firmly grip pre-tensioner in a vise

Page 3428 of 3502

NISSAN TEANA 2003 Service Manual SRS-54
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

DEPLOYMENT OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER WHILE MOUNTED IN
VEHICLE
When disposing of a vehicle, deploy air bag module an

SRS-54
DISPOSAL OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

DEPLOYMENT OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER WHILE MOUNTED IN
VEHICLE
When disposing of a vehicle, deploy air bag module and seat belt pre-tensioners while they are mounted in
vehicle.
CAUTION:
When deploying air bag module or seat belt pre-tensioner, ensure vehicle is empty.
1. Disconnect both the vehicle battery cables and wait 3 minutes.
2. Disconnect air bag module and seat belt pre-tensioner connector.
3. Connect deployment tool (SST: KV99106400) to air bag module.
For front passenger air bag module, attach deployment tool adapter (SST: KV99108300) to the tool con-
nector. For side air bag module, attach deployment tool adapter (SST: KV99109000). For curtain air bag
module and seat belt pre-tensioner, attach deployment tool adapter (SST: KV99109700).
4. Connect red clip of deployment tool to battery positive terminal
and black clip to negative terminal.
5. The lamp on the right side of the tool, marked “deployment tool
power”, should glow green, not red.
6. Press the button on the deployment tool. The left side lamp on
the tool, marked “air bag connector voltage”, will illuminate and
the air bag module or seat belt pre-tensioner will deploy.
CAUTION:
Activate only one air bag module or seat belt pre-tensioner
at a time.
DISPOSING OF AIR BAG MODULE AND SEAT BELT PRE-TENSIONER
Deployed air bag module and seat belt pre-tensioner are very hot. Before disposing of air bag module and
seat belt pre-tensioner, wait at least 30 minutes, and 10 minutes, respectively. Seal them in a plastic bag
before disposal.
CAUTION:
Never apply water to a deployed air bag module or seat belt
pre-tensioner.
Be sure to wear gloves when handling a deployed air bag
module or seat belt pre-tensioner.
No poisonous gas is produced upon air bag module
deployment. However, be careful not to inhale gas since it
irritates the throat and can cause choking.
Do not attempt to disassemble air bag module or seat belt
pre-tensioner.
Air bag module and seat belt pre-tensioner cannot be
reused.
Wash your hands clean after finishing work.
SRS006
SBF276H

Page 3429 of 3502

NISSAN TEANA 2003 Service Manual COLLISION DIAGNOSIS
SRS-55
C
D
E
F
G
I
J
K
L
MA
B
SRS

COLLISION DIAGNOSISPFP:00015
For Frontal CollisionBHS0004O
To repair the SRS, perform the following steps.
When SRS (except the front side air b

COLLISION DIAGNOSIS
SRS-55
C
D
E
F
G
I
J
K
L
MA
B
SRS

COLLISION DIAGNOSISPFP:00015
For Frontal CollisionBHS0004O
To repair the SRS, perform the following steps.
When SRS (except the front side air bag and side curtain air bag modules) is activated in a collision:
1. Replace the diagnosis sensor unit.
2. Remove the air bag modules (except the front side air bag modules and side curtain air bag modules),
crash zone sensor assembly, bracket and seat belt pre-tensioner assemblies.
3. Check the SRS components using the table below:
–Replace any SRS components showing visible signs of damage (dents, cracks and deformation).
4. Install new air bag modules (except the front side air bag modules and side curtain air bag modules) crash
zone sensor assembly, bracket and seat belt pre-tensioner assemblies.
5. Perform self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to SRS-16, "
SRS Operation
Check" for details. Ensure entire SRS operates properly.
When SRS is not activated in a collision:
1. Check the SRS components using the table below:
–Replace any SRS components showing visible signs of damage (dents, cracks and deformation).
2. Perform self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to SRS-16, "
SRS Operation
Check" for details. Ensure entire SRS operates properly.
SRS INSPECTION (FOR FRONTAL COLLISION)
Part SRS is activated SRS is NOT activated
Air bag module
(driver or front pas-
senger air bag mod-
ule)Replace
Install with new bolts.1. Remove air bag module. Check harness cover and connectors for damage, termi-
nals for deformation, and harness for binding.
2.
–Install driver air bag module into the steering wheel to check fit and alignment with
the wheel.
–Install passenger air bag module into the instrument panel to check fit with the
instrument panel.
3. No damage found, reinstall with new bolts.
4. If damaged—Replace air bag modules with new special bolts.
Air bag must be activated before disposal.
Crash zone sensor Replace the crash
zone sensor and
bracket with new
nuts.1. Remove the crash zone sensor. Check harness connectors for damage, terminals
for deformation, and harness for binding.
2. Check for visible signs of damage (dents, cracks, deformation) of the crash zone
sensor and bracket.
3. Install the crash zone sensor to check fit.
4. No damage found, reinstall with new bolts.
5. If damaged—Replace the crash zone sensor and bracket with new nuts.
Seat belt pre-ten-
sioner assembliesReplace
Install seat belt pre-
tensioner with new
bolts.1. Remove seat belt pre-tensioners.
Check harness cover and connectors for damage, terminals for deformation, and
harness for binding.
2. Check belts for damage and anchors for loose mounting.
3. Check retractor for smooth operation.
4. Check seat belt adjuster for damage.
5. If no damage is found, reinstall seat belt pre-tensioner assembly with new bolts.
6. If damaged—Replace seat belt pre-tensioners with new bolts.
Seat belt pre-tensioners must be activated before disposal.
Diagnosis sensor unit Replace
Install with new bolts.1. Check case for dents, cracks or deformation.
2. Check connectors for damage, and terminals for deformation.
3. If no damage is found, reinstall with new bolts and ground bolt.
4. If damaged—Replace diagnosis sensor unit with new bolts and ground bolt.

Page 3430 of 3502

NISSAN TEANA 2003 Service Manual SRS-56
COLLISION DIAGNOSIS

Steering wheel 1. Visually check steering wheel for deformation.
2. Check harness (built into steering wheel) and connectors for damage, and terminals for deformation.
3.

Page 3431 of 3502

NISSAN TEANA 2003 Service Manual COLLISION DIAGNOSIS
SRS-57
C
D
E
F
G
I
J
K
L
MA
B
SRS

For Side CollisionBHS0004P
WHEN THE SIDE AIR BAG IS ACTIVATED IN A SIDE COLLISION:
1. Replace the following components:
–All parts of front se

COLLISION DIAGNOSIS
SRS-57
C
D
E
F
G
I
J
K
L
MA
B
SRS

For Side CollisionBHS0004P
WHEN THE SIDE AIR BAG IS ACTIVATED IN A SIDE COLLISION:
1. Replace the following components:
–All parts of front seatback (including front seatback frame) with front side air bag module (on the side on
which front side air bag is activated)
–Curtain air bag module (on the side on which side curtain air bag is activated)
–Diagnosis sensor unit
–Satellite sensor (on the side on which side air bag and side curtain air bag are activated)
2. Check the SRS components and the related parts using the following table.
–Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).
3. Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to SRS-16, "
SRS Operation
Check" . Ensure entire SRS operates properly.
WHEN SRS IS NOT ACTIVATED IN A SIDE COLLISION:
1. Check the SRS components and the related parts using the following table.
–Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).
2. Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to SRS-16, "
SRS Operation
Check" . Ensure entire SRS operates properly.
SRS INSPECTION (FOR SIDE COLLISION)
PartFront side air bag and
side curtain air bag
are activatedFront side air bag and side curtain air bag are NOT activated
LH or RH side curtain
air bag moduleReplace the side cur-
tain air bag module.
(Repair the center pil-
lar inner, etc. before
installing new one if
damaged.)1. Check for visible signs of damage (dents, tears, deformation) of the center pillar on
the collision side.
2. If damaged—Remove the side curtain air bag module.
3. Check for visible signs of damaged (tears etc.) of the LH or RH side curtain air bag
module.
4. Check harness and connectors for damage, and terminals for deformation.
5. If no damage is found, reinstall the LH or RH side curtain air bag module with new
bolts.
6. If damaged—Replace the LH or RH side curtain air bag module with new bolts.
Air bag must be activated before disposal.
Front LH or RH side
air bag moduleReplace all parts of
seatback with
deployed front side
air bag module.1. Check for visible signs of damage (dents, tears, deformation) of the seatback on
the collision side.
2. Check harness and connectors for damage, and terminals for deformation.
3. If damaged—Replace the front seatback assembly.
Air bag must be activated before disposal.
LH or RH side air bag
(Satellite) sensorReplace the side air
bag (Satellite) sensor
on the collision side
with new nuts.
(Repair the center pil-
lar inner, etc. before
installing new one if
damaged.)1. Remove the LH or RH side air bag (Satellite) sensor on the collision side. Check
harness connectors for damage, terminals for deformities, and harness for binding.
2. Check for visible signs of damage (dents, cracks, deformation) of the LH or RH
side air bag (Satellite) sensor.
3. Install the LH or RH side air bag (Satellite) sensor to check fit.
4. If no damage is found, reinstall the LH or RH side sir bag (Satellite) sensor with
new nuts.
5. If damaged—Replace the LH or RH side air bag (Satellite) sensor with new nuts.
Diagnosis sensor unit Replace the diagno-
sis sensor unit with
the new bolts.1. Check case and bracket for dents, cracks or deformation.
2. Check connectors for damage, and terminals for deformation.
3. If no damage is found, reinstall the diagnosis sensor unit with new bolts and ground
bolt.
4. If damaged—Replace the diagnosis sensor unit with new bolts and ground bolt.

Page 3432 of 3502

NISSAN TEANA 2003 Service Manual SRS-58
COLLISION DIAGNOSIS

Seat belt pre-ten-
sioner assembly1. Check if the seat belt can be extended smoothly.
If the seat belt cannot be extended smoothly,
–Check for deformities of the center
