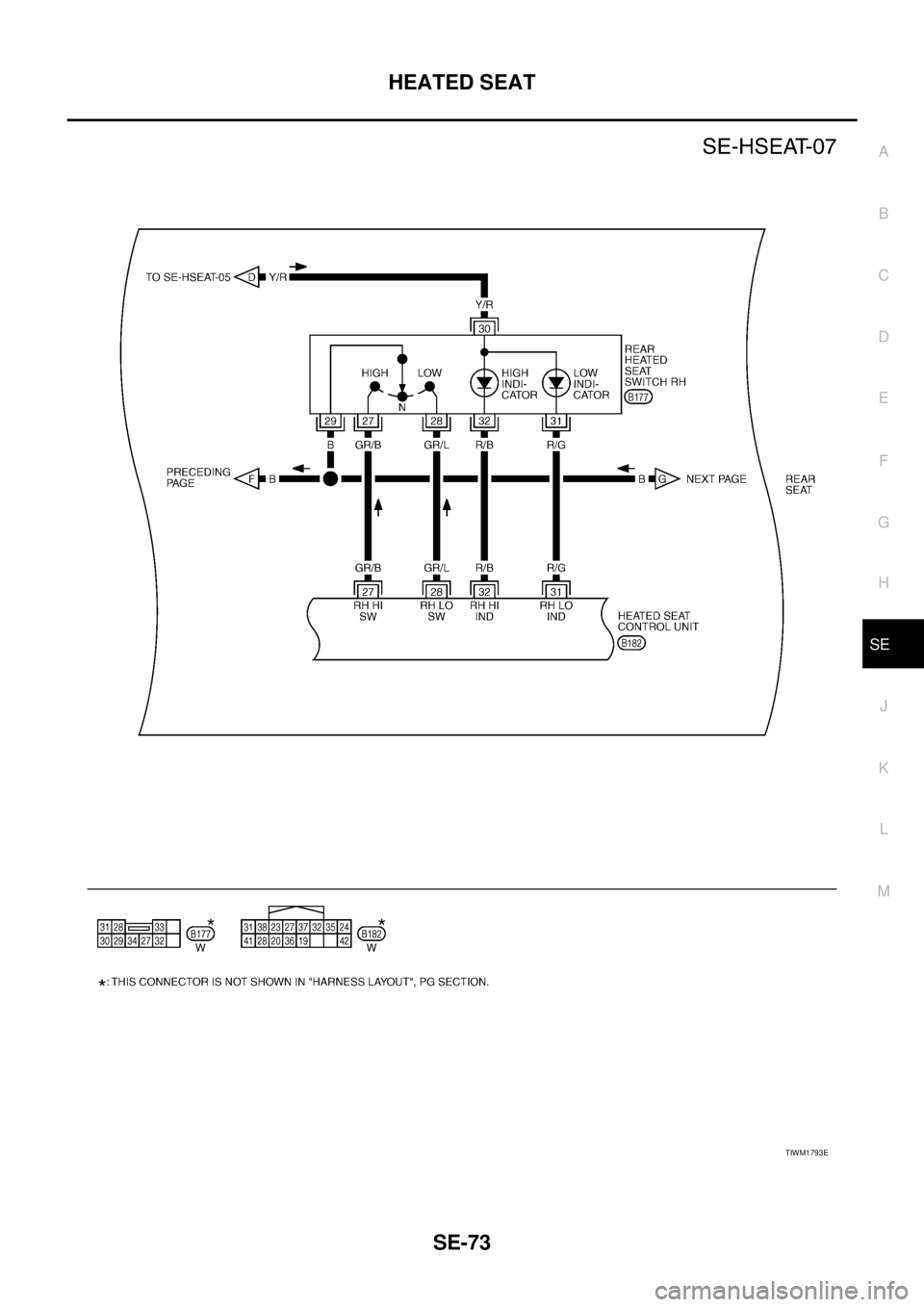

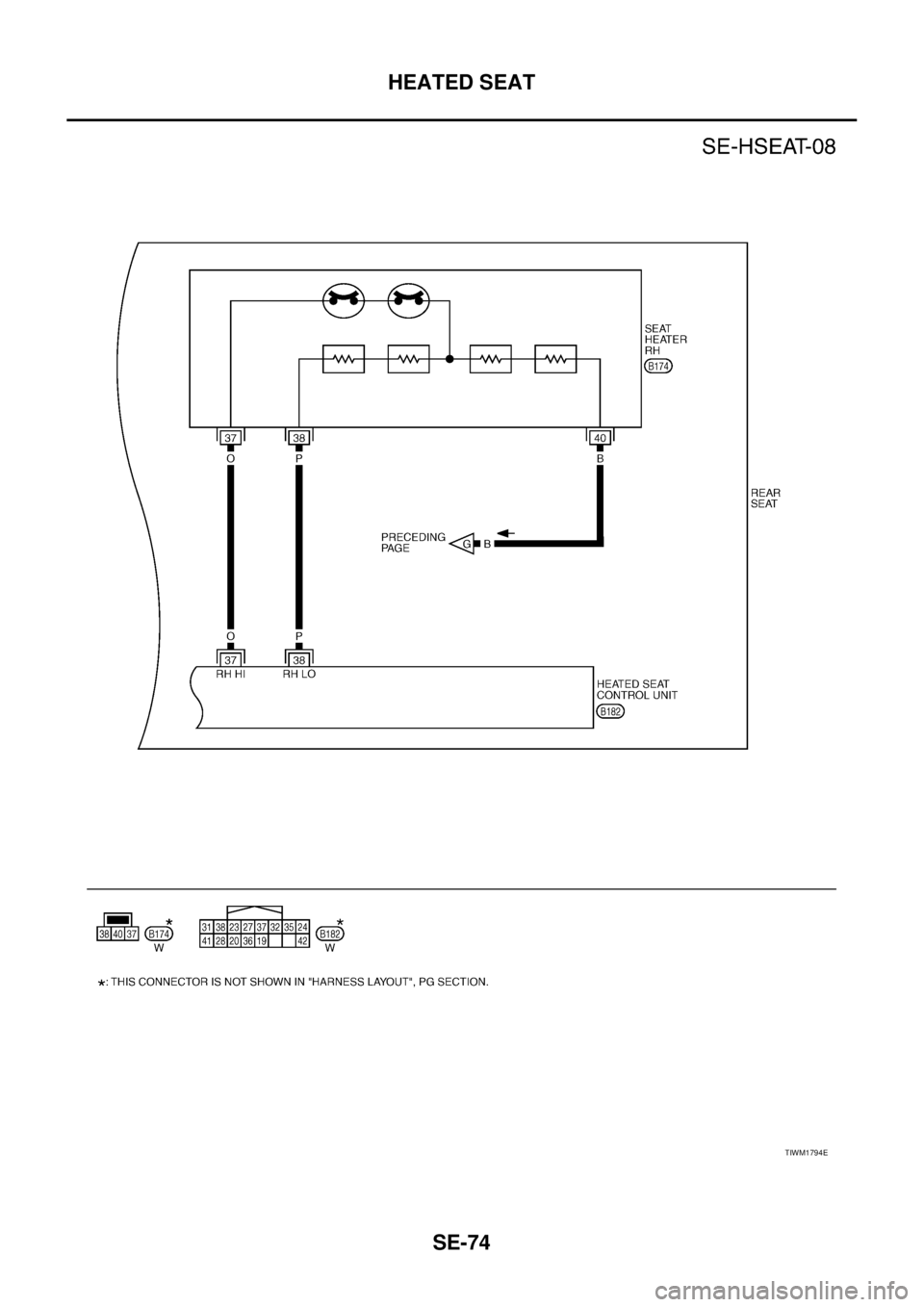

Terminals and Reference Values for Heated Seat Control UnitBIS0013H
Work FlowBIS0013I
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to SE-61, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SE-76,
"Trouble Diagnoses Symptom Chart For Rear Heated Seat" .
4. Does heated seat operate normally?
YES: GO TO 5.
NO: GO TO 3.
5. INSPECTION END.
Te r -
minalWire
colorItemSignal
Input/OutputIgnition
switchConditionVoltage [V]
(Approx.)
19 GR/R LH High switch signal Input
ONHeated seat switch LH is in High position 0
Except above 5
20 GR LH Low switch signal InputHeated seat switch LH is in Low position 0
Except above 5
23 R/W LH Low indicator signal OutputHeated seat switch LH is in Low position 0
Except above Battery voltage
24 R/Y LH High indicator signal OutputHeated seat switch LH is in High position 0
Except above Battery voltage
27 GR/B RH High switch signal InputHeated seat switch RH is in HIgh position 0
Except above 5
28 GR/L RH Low switch signal InputHeated seat switch RH is in Low position 0
Except above 5
31 R/G RH Low indicator signal OutputHeated seat switch RH is in Low position 0
Except above Battery voltage
32 R/B RH High indicator signal OutputHeated seat switch RH is in High position 0
Except above Battery voltage
35 G LH High signal Output Seat heater LH High operation Battery voltage
36 L LH Low signal Output Seat heater LH Low operation Battery voltage
37 O RH High signal Output Seat heater RH High operation Battery voltage
38 P RH Low signal Output Seat heater RH Low operation Battery voltage
41 Y/R Power source Input — Battery voltage
42 B Ground — — 0
Page 3332 of 3502
SE-76
HEATED SEAT
Trouble Diagnoses Symptom Chart For Rear Heated SeatBIS0013J
Symptom Diagnosis procedureReference
page
All functions of seat heater do not activate.1. Check heated seat control unit power supply and ground circuit SE-77
2. Replace heated seat control unit –
Seat heater LH does not activate.1. Check heated seat switch LH circuit SE-79
2. Check seat heater LH circuit SE-83
3. Replace heated seat control unit –
Seat heater RH does not activate.1. Check heated seat switch RH circuitSE-81
2. Check seat heater RH circuit SE-84
3. Replace heated seat control unit –
Heated seat switch indicator LH does not illuminate.1. Check heated seat switch indicator LH circuit SE-85
2. Replace heated seat control unit –
Heated seat switch indicator RH does not illuminate.1. Check heated seat switch indicator RH circuit SE-87
2. Replace heated seat control unit –
Page 3333 of 3502

HEATED SEAT
SE-77
C
D
E
F
G
H
J
K
L
MA
B
SE
Check Heated Seat Control Unit Power Supply and Ground Circuit BIS0013K
1. CHECK FUSE
Check the following fuses.
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK HEATED SEAT RELAY
Check voltage between heated seat relay harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between fuse and heated
seat relay.
3. CHECK HEATED SEAT RELAY
1. Turn ignition switch OFF.
2. Disconnect heated seat relay connector.
3. Check continuity between terminals.
OK or NG
OK >> GO TO 4.
NG >> Replace heated seat relay.
Component parts Fuse No. Ampere
Fuse block (J/B)3
10A 8
12
ConnectorTerminal
(Wire color)
ConditionVoltage [V]
(Approx.)
(+) (–)
M792 (G)
Ground IGN ON Battery voltage 5 (L)
7 (L)
PIIB2144E
Terminal
Condition Continuity
(+) (–)
3512V direct current supply between terminals
1 and 2.Ye s
No current supply No
6712V direct current supply between terminals
1 and 2.Ye s
No current supply No
SEC202B
Page 3334 of 3502
SE-78
HEATED SEAT
4. CHECK HEATED SEAT RELAY GROUND CIRCUIT
Check continuity between heated seat relay harness connector M79
terminal 1 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness.
5. CHECK HEATED SEAT CONTROL UNIT POWER SUPPLY
1. Connect heated seat relay connector.
2. Turn ignition switch ON.
3. Check voltage between heated seat control unit harness con-
nector B182 terminal 41 and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 7.
6. CHECK HEATED SEAT CONTROL UNIT GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect heated seat control unit connector.
3. Check continuity between heated seat control unit harness con-
nector B182 terminal 42 and ground.
OK or NG
OK >> Heated seat control unit power supply and ground circuit
are OK.
NG >> Repair or replace harness.1 (B) – Ground : Continuity should exist.
PIIB2145E
41 (Y/R) – Ground : Battery voltage
PIIB8697E
42 (B) – Ground : Continuity should exist.
PIIB8698E
Page 3335 of 3502

HEATED SEAT
SE-79
C
D
E
F
G
H
J
K
L
MA
B
SE
7. CHECK HEATED SEAT CONTROL UNIT POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect heated seat control unit connector.
3. Check continuity between heated seat relay harness connector
M79 terminal 6 and heated seat control unit harness connector
M182 terminal 41.
4. Check continuity between heated seat relay harness connector
M79 terminal 6 and ground.
OK or NG
OK >> Check harness connection.
If it is OK, replace heated seat control unit.
If it is NG, repair or replace malfunction part.
NG >> Repair or replace harness.
Check Heated Seat Switch LH Circuit BIS0013L
1. CHECK HEATED SEAT SWITCH LH CIRCUIT (VOLTAGE)
1. Turn ignition switch OFF.
2. Disconnect heated seat switch LH connector.
3. Turn ignition switch ON.
4. Check voltage between heated seat switch LH harness connec-
tor and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
2. CHECK HEATED SEAT SWITCH LH
1. Turn ignition switch OFF.
2. Check continuity between heated seat switch LH terminals.
OK or NG
OK >> GO TO 4.
NG >> Replace heated seat switch LH.6 (G/R) – 41(Y/R) : Continuity should exist.
6 (G/R) – Ground : Continuity should not exist.
PIIB8699E
ConnectorTerminal
(Wire color)
ConditionVoltage [V]
(Approx.)
(+) (-)
B17620 (GR)
GroundHeated seat switch LH is in
LOW position.5
Except above. 0
19 (GR/R)Heated seat switch LH is in
HIGH position.5
Except above. 0
PIIB2149E
Terminal Condition Continuity
20 - 21Heated seat switch is in LOW position. Yes
Except above. No
19 - 21Heated seat switch is in HIGH position. Yes
Except above. No
PIIB2150E
Page 3336 of 3502

SE-80
HEATED SEAT
3. CHECK HEATED SEAT SWITCH LH CIRCUIT (CONTINUITY)
1. Turn ignition switch OFF.
2. Disconnect heated seat control unit connector.
3. Check continuity between heated seat switch LH harness con-
nector B176 terminal 19, 20 and heated seat control unit har-
ness connector B182 terminal 19, 20.
4. Check continuity between heated switch LH harness connector
B176 terminal 19, 20 and ground.
OK or NG
OK >> Check harness connection.
If it is OK, replace heated seat control unit.
If it is NG, repair or replace malfunction part.
NG >> Repair or replace harness.
4. CHECK HEATED SEAT SWITCH LH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between heated seat switch LH harness con-
nector B176 terminal 21 and ground.
OK or NG
OK >> Check harness connection.
If it is OK, replace heated seat switch LH.
If it is NG, repair or replace malfunction part.
NG >> Repair or replace harness.LOW
20 (GR) – 20 (GR) : Continuity should exist.
HIGH
19 (GR/R) – 19 (GR/R) : Continuity should exist.
LOW
20 (GR) – Ground : Continuity should not exist.
HIGH
19 (GR/R) – Ground : Continuity should not exist.
PIIB8700E
21 (B) – Ground : Continuity should exist.
PIIB2152E
