Page 3361 of 3502

NISSAN TEANA 2003 Service Manual FRONT SEAT SE-105 C D E F G H J K L MA B SE 8. Remove seatback frame bolts, and then remove seatback frame. 9. Remove hog rings (non-reusable parts) to separate the seatback trim and pad. ASSEMBLY A

Page 3362 of 3502

NISSAN TEANA 2003 Service Manual SE-106 FRONT SEAT 5. Remove retainer from back of seatback. 6. Remove side air bag module mounting nuts, and then remove side air bag module. 7. Disconnect pump tube connector. 8. Shift the lower po

Page 3363 of 3502

NISSAN TEANA 2003 Service Manual FRONT SEAT SE-107 C D E F G H J K L MA B SE 10. Remove hog rings (non-reusable parts) to separate the seatback trim, pad and seatback frame. 11. Cut the band which fixes the air bladder to the seatb

Page 3364 of 3502

NISSAN TEANA 2003 Service Manual SE-108 FRONT SEAT 5. Remove retainer from seat cushion lower. 6. Disconnect seat heater harness connector (only with the seat heater). 7. Remove seat cushion trim and pad from seat cushion frame. 8.

Page 3365 of 3502

NISSAN TEANA 2003 Service Manual FRONT SEAT SE-109 C D E F G H J K L MA B SE 4. Remove retainer from seat cushion lower. 5. Disconnect seat heater harness connector (only with the seat heater). 6. Remove seat cushion trim and pad f

Page 3366 of 3502

NISSAN TEANA 2003 Service Manual SE-110 FRONT SEAT 2. Remove seat slide & lifter switch knob and seat reclining switch knob using a plastic spatula. 3. Remove seat switch escutcheon. 4. Using a tool such as a slotted screwdriver wr

Page 3367 of 3502

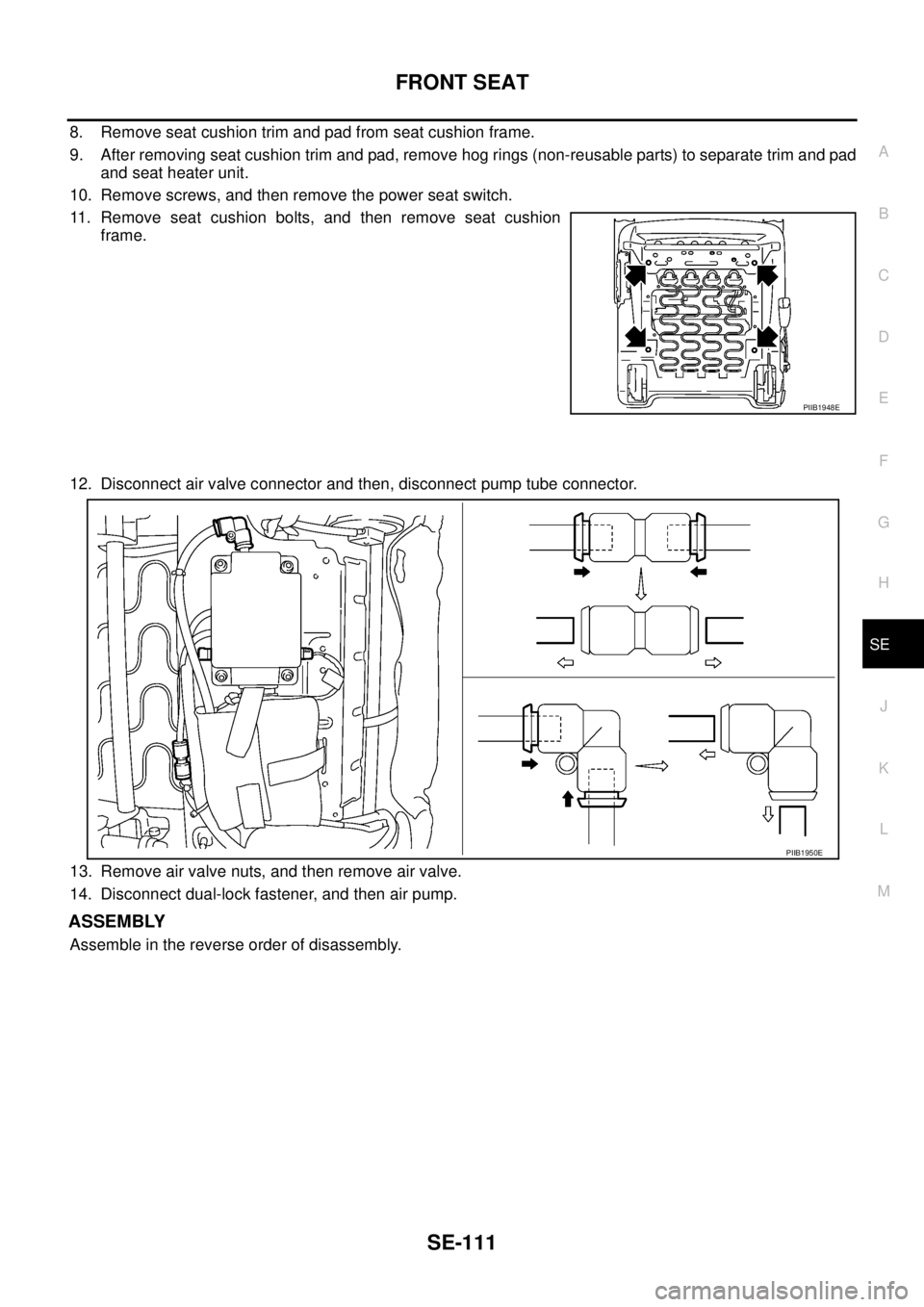

NISSAN TEANA 2003 Service Manual FRONT SEAT SE-111 C D E F G H J K L MA B SE 8. Remove seat cushion trim and pad from seat cushion frame. 9. After removing seat cushion trim and pad, remove hog rings (non-reusable parts) to separat

Page 3368 of 3502

NISSAN TEANA 2003 Service Manual SE-112 REAR SEAT REAR SEATPFP:88300 Headrest Fixed Type Seat ComponentsBIS0014K PIIB1958E
