2003 NISSAN TEANA Service Manual

fog light bulb towing capacity service interval charging warning language

Load previous 8 pages

Page 1649 of 3502

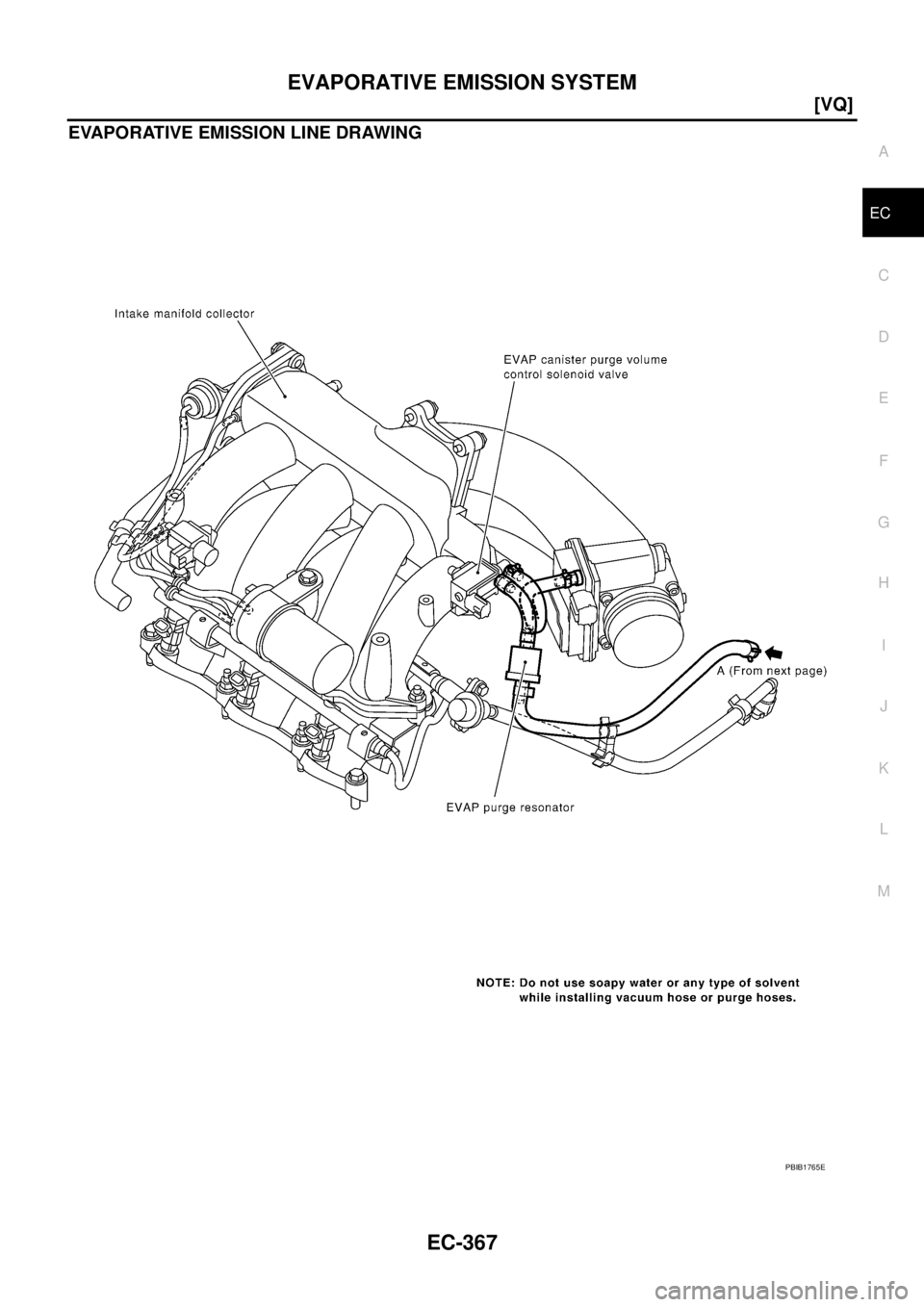

NISSAN TEANA 2003 Service Manual EVAPORATIVE EMISSION SYSTEM
EC-367
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

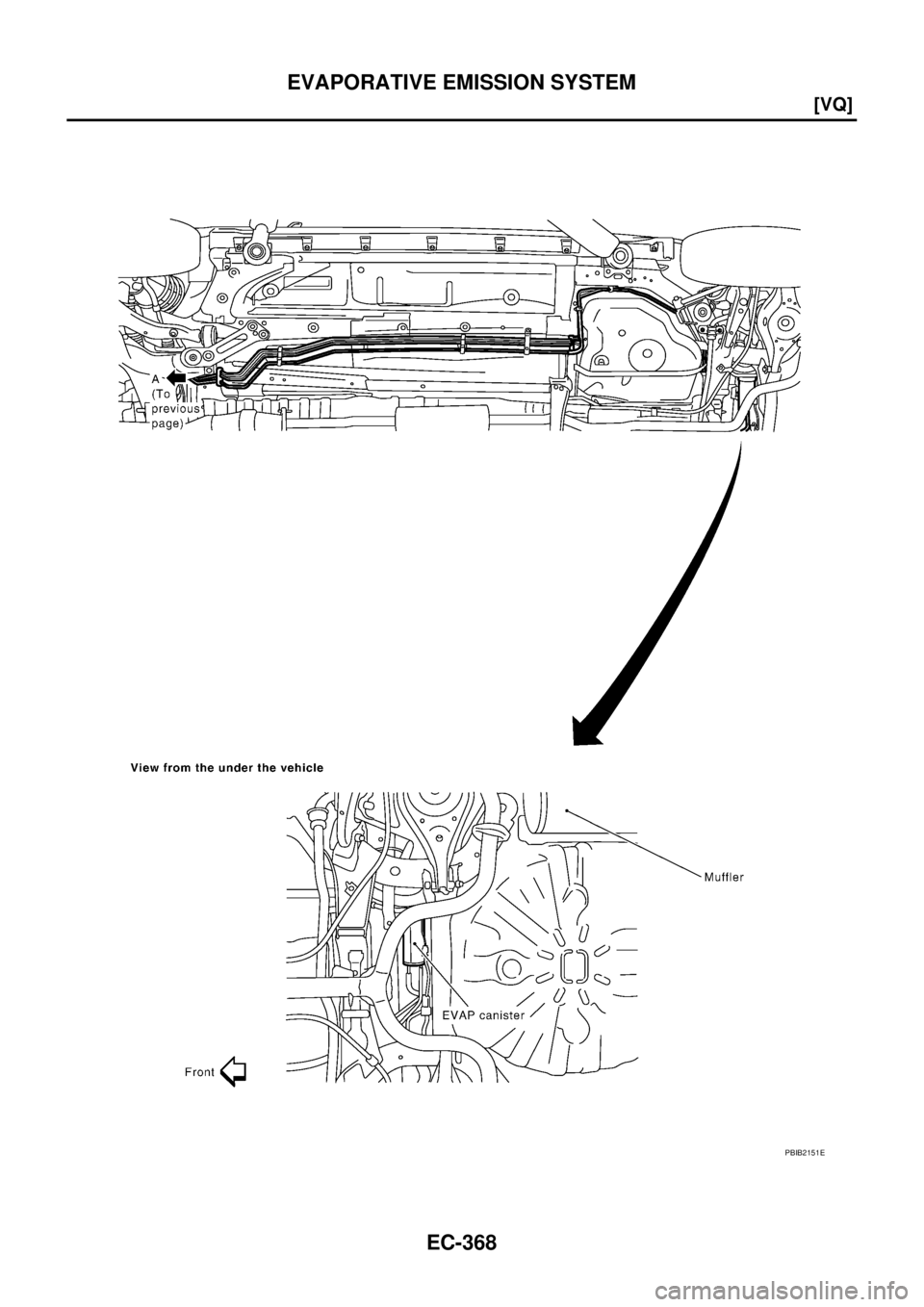

EVAPORATIVE EMISSION LINE DRAWING
PBIB1765E

Page 1650 of 3502

NISSAN TEANA 2003 Service Manual EC-368
[VQ]
EVAPORATIVE EMISSION SYSTEM

PBIB2151E

Page 1651 of 3502

NISSAN TEANA 2003 Service Manual EVAPORATIVE EMISSION SYSTEM
EC-369
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

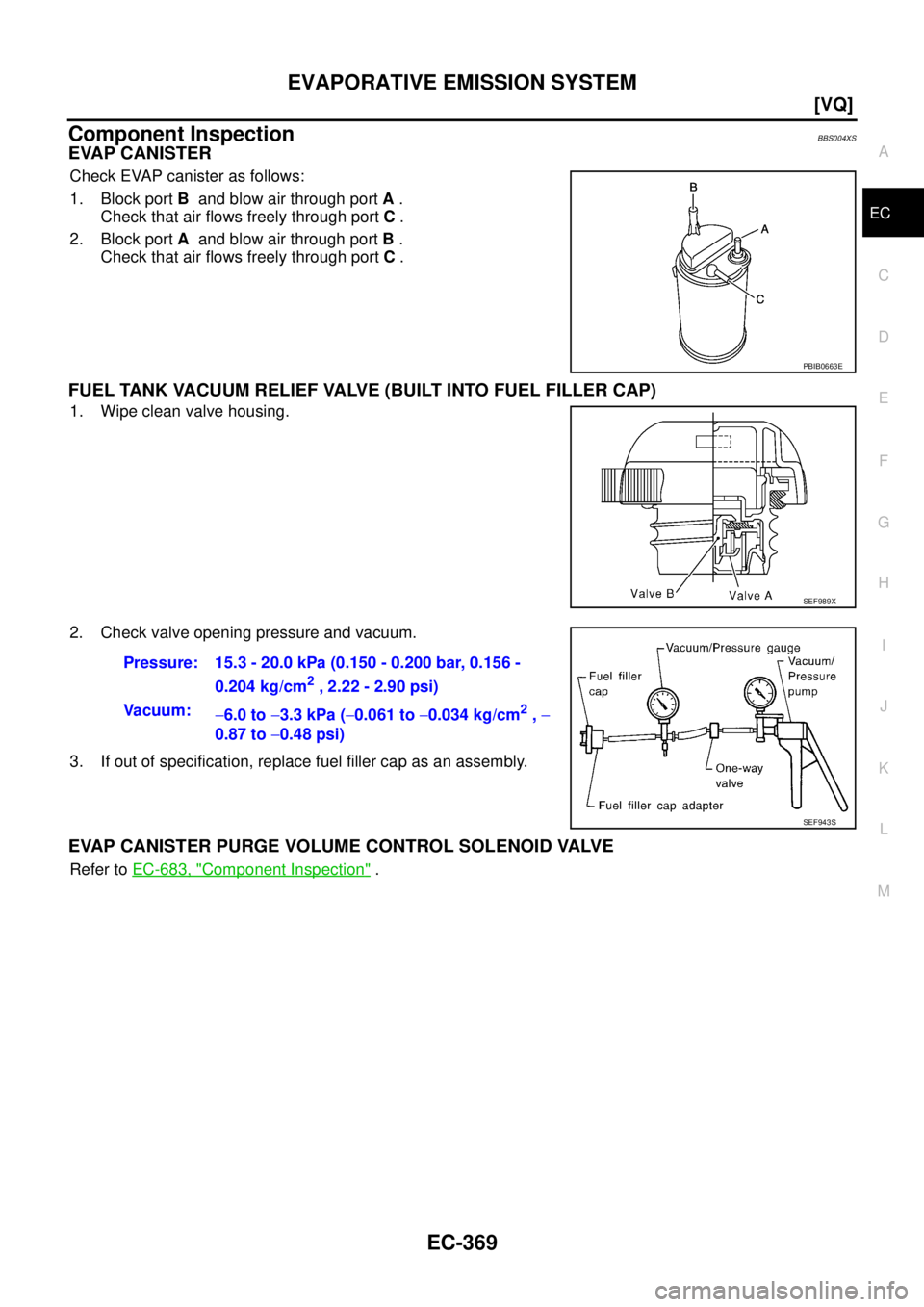

Component InspectionBBS004XS
EVAP CANISTER
Check EVAP canister as follows:
1. Block port B and blow air through port A .
Check that

Page 1652 of 3502

NISSAN TEANA 2003 Service Manual EC-370
[VQ]

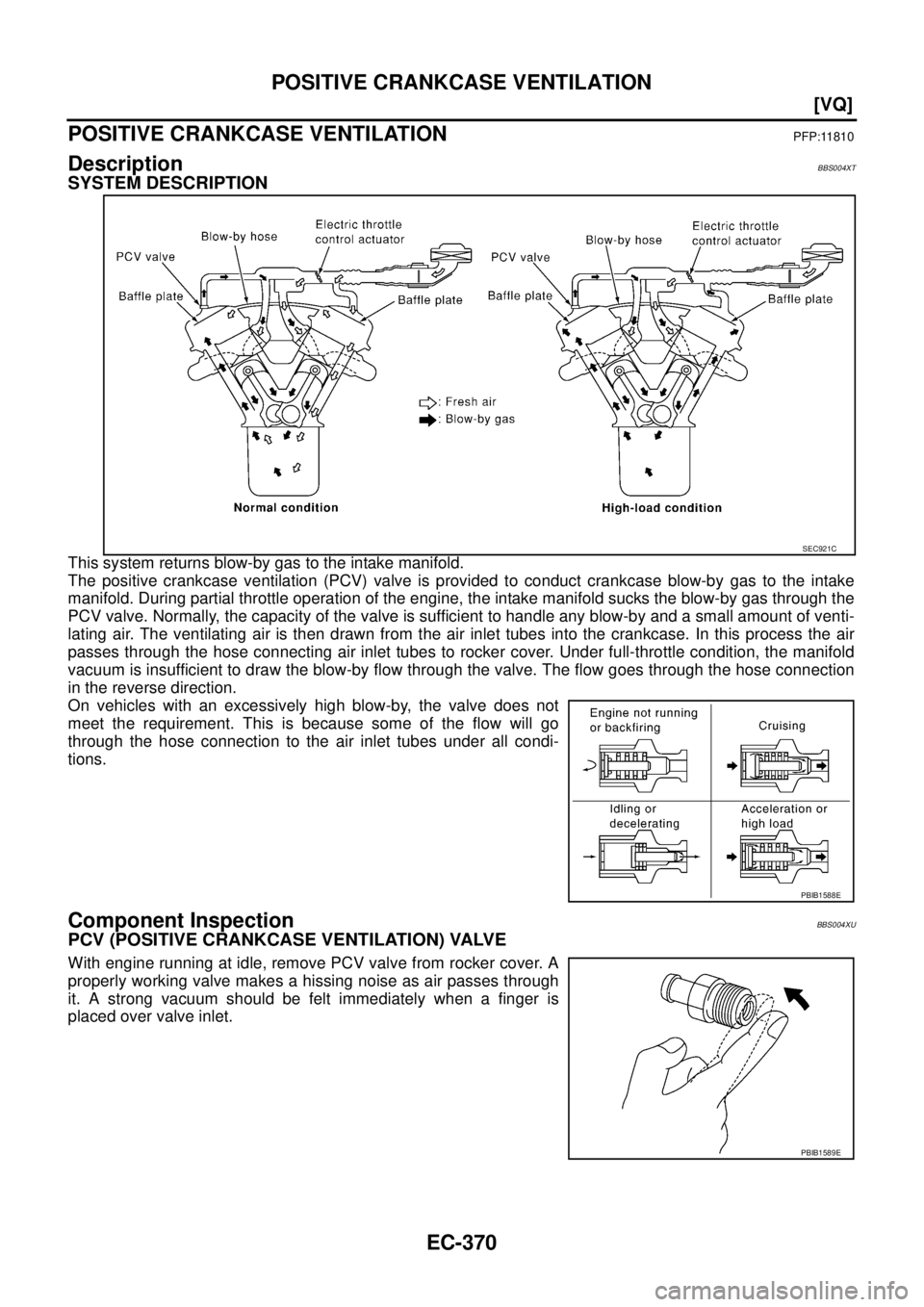

POSITIVE CRANKCASE VENTILATION

POSITIVE CRANKCASE VENTILATIONPFP:11810
DescriptionBBS004XT
SYSTEM DESCRIPTION
This system returns blow-by gas to the intake manifold.
The positive crankca

Page 1653 of 3502

NISSAN TEANA 2003 Service Manual POSITIVE CRANKCASE VENTILATION
EC-371
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

PCV VALVE VENTILATION HOSE
1. Check hoses and hose connections for leaks.
2. Disconnect all hoses and clean with compressed air.

Page 1654 of 3502

NISSAN TEANA 2003 Service Manual EC-372
[VQ]
NATS (NISSAN ANTI-THEFT SYSTEM)

NATS (NISSAN ANTI-THEFT SYSTEM)PFP:25386
DescriptionBBS004XV
If the security indicator lights up with the ignition switch in
the ON position or “NATS M

Page 1655 of 3502

NISSAN TEANA 2003 Service Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-373
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionBBS004XW
The ECM has an on board diagnostic system, which detects malfunc

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-373
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EC

ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionBBS004XW
The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actua-
tors. The ECM also records various emission-related diagnostic information including:
The above information can be checked using procedures listed in the table below.
×: Applicable —: Not applicable
*: When DTC and 1st trip DTC simultaneously appear on the display, they cannot be clearly distinguished from each other.
The malfunction indicator (MI) on the instrument panel lights up when the same malfunction is detected in two
consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode. (Refer to EC-401, "
Fail-
Safe Chart" .)
Two Trip Detection LogicBBS004XX
When a malfunction is detected for the first time, 1st trip DTC and 1st trip Freeze Frame data are stored in the
ECM memory. The MI will not light up at this stage. <1st trip>
If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in
the ECM memory, and the MI lights up. The MI lights up at the same time when the DTC is stored. <2nd trip>
The “trip” in the “Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed during
vehicle operation. When the ECM enters fail-safe mode (Refer to EC-401, "
Fail-Safe Chart" .), the DTC is
stored in the ECM memory even in the 1st trip.
When there is an open circuit on MI circuit, the ECM cannot warn the driver by lighting up MI when there is
malfunction on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine control system malfunctions and MI circuit is open by means
of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MI circuit are detected and demands the
driver to repair the malfunction.
Emission-related Diagnostic InformationBBS004XY
EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS
×: Applicable –: Not applicable Emission-related diagnostic information
Diagnostic Trouble Code (DTC)
Freeze Frame data
1st Trip Diagnostic Trouble Code (1st Trip DTC)
1st Trip Freeze Frame data
DTC 1st trip DTC Freeze Frame data 1st trip Freeze Frame data
CONSULT-II×× × ×
ECM××*— —
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut
Items
(CONSULT-II screen terms)DTC*1
Trip MI Reference page
CONSULT-II
ECM*2
CAN COMM CIRCUIT U1000
1000*32—EC-458
CAN COMM CIRCUIT U1001
1001*3 2—EC-458
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.P0000 0000—— —
INT/V TIM CONT-B1 P0011 0011 2 —EC-461
INT/V TIM CONT-B2 P0021 0021 2 —EC-461
MAF SEN/CIRCUIT P0102 0102 1×EC-466
MAF SEN/CIRCUIT P0103 0103 1×EC-466
ECT SEN/CIRC P0117 0117 2×EC-474

Page 1656 of 3502

NISSAN TEANA 2003 Service Manual EC-374
[VQ]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

ECT SEN/CIRC P0118 0118 2×EC-474
TP SEN 2/CIRC P0122 0122 1×EC-479
TP SEN 2/CIRC P0123 0123 1×EC-479
HO2S1 (B1) P0132 0132 2×EC-486
HO2S1 (B1) P013

Load next 8 pages
