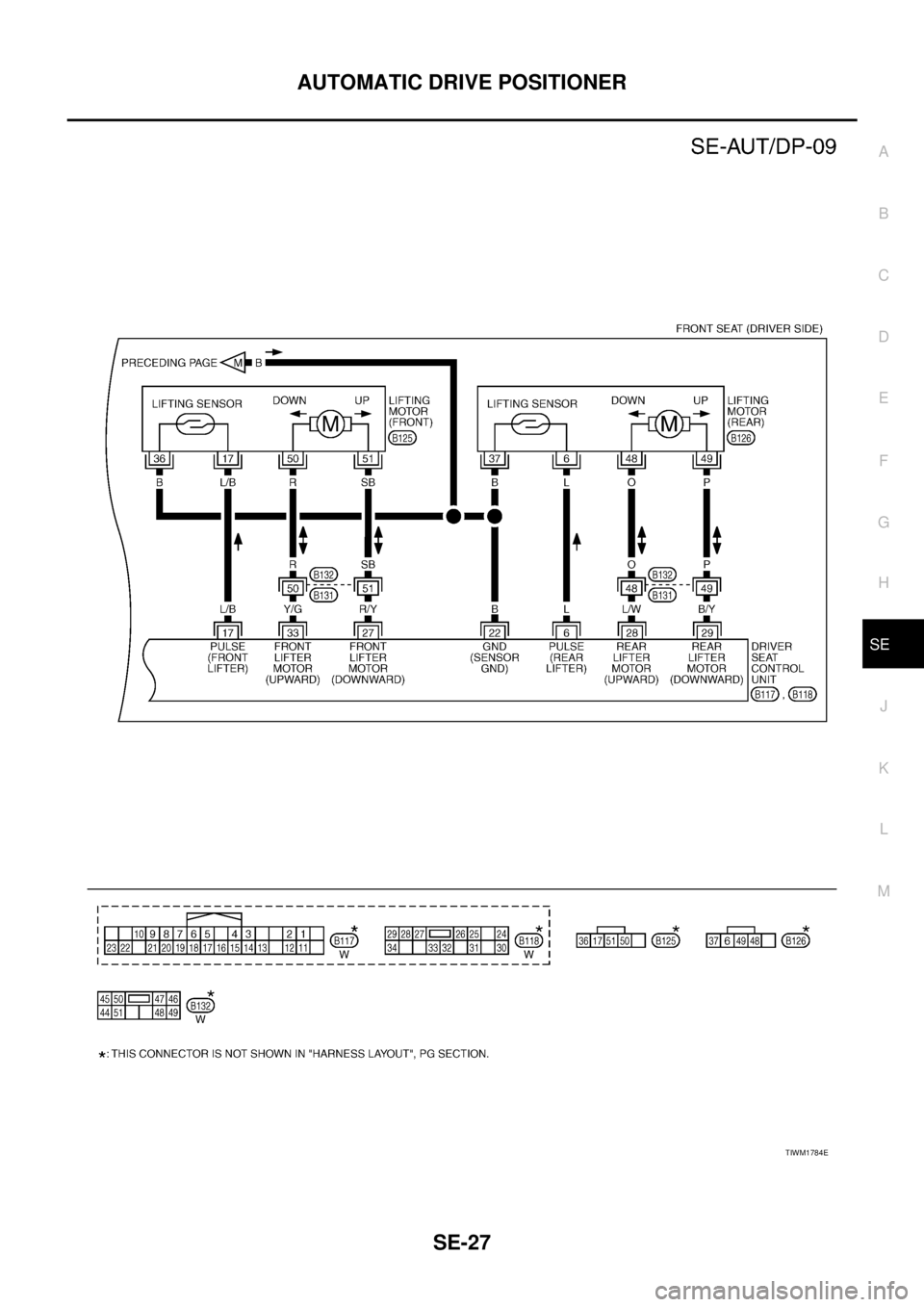

AUTOMATIC DRIVE POSITIONER
SE-25
C
D
E
F
G
H
J
K
L
MA
B
SE
TIWM1828E
Page 3282 of 3502
SE-26
AUTOMATIC DRIVE POSITIONER
TIWM1783E
Page 3283 of 3502
AUTOMATIC DRIVE POSITIONER
SE-27
C
D
E
F
G
H
J
K
L
MA
B
SE
TIWM1784E
Page 3284 of 3502

SE-28
AUTOMATIC DRIVE POSITIONER
Terminals and Reference Values for BCMBIS0012M
*: With Intelligent Key
Terminals and Reference Values for Driver Seat Control UnitBIS0012N
TerminalWire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
11 V Ignition switch (ACC) InputIgnition switch
(ACC or ON position)Battery voltage
37B/R*
or
BRKey switch signal InputKey switch ON (key is inserted in
ignition key cylinder)Battery voltage
Key switch OFF (key is removed
from ignition key cylinder)0
38 R Ignition switch (ON) InputIgnition switch
(ON or START position)Battery voltage
39 L CAN-H Input/Output — —
40 P CAN-L Input/Output — —
42 Y/R Power source (Fuse) Input — Battery voltage
52 B Ground (Power) — — 0
55 W/B Power supply (Fusible link) Input — Battery voltage
62 SB Front door switch (driver side) Output ON (Open) → OFF (Closed) 0 → Battery voltage
Te r m i -
nal Wire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
1WSeat memory switch
indictor 1 signalOutputMemory switch 1: ON 1
Memory switch 1: OFF Battery voltage
2 R CAN-H Input/Output — —
3 G Ignition switch (START) Input Ignition switch (START position) Battery voltage
4YSeat memory switch 1
signalInputMemory switch 1: ON 0
Memory switch 1: OFF 5
5 V Reclining sensor signal InputON (reclining motor operation)
Other than above 0 or 5
6 L Rear lifting sensor signal InputON (rear lifting motor operation)
Other than above 0 or 5
7GRSeat sliding switch
BACKWARD signalInputWhen seat sliding switch
BACKWARD operation0
Other than above Battery voltage
8BRSeat reclining switch
BACKWARD signalInputWhen seat reclining switch
BACKWARD operation0
Other than above Battery voltage
PIIB2807E
PIIB2809E
Page 3285 of 3502

AUTOMATIC DRIVE POSITIONER
SE-29
C
D
E
F
G
H
J
K
L
MA
B
SE
9LGFront lifting switch
DOWN signalInputWhen front lifting switch DOWN
operation0
Other than above Battery voltage
10 PRear lifting switch
DOWN signalInputWhen rear lifting switch DOWN
operation0
Other than above Battery voltage
11 OSeat memory switch
indictor 2 signalOutputMemory switch 2: ON 1
Memory switch 2: OFF Battery voltage
12 G/W CAN-L Input/Output — —
13 W/B Detention key switch InputSelector lever other than P position Battery voltage
Selector lever is on P position 0
14 R/BSeat memory switch 2
signalInputMemory switch 2: ON 0
Memory switch 2: OFF 5
15 G/B Set switch signal InputSet witch: ON 0
Set witch: OFF 5
16 Y/B Sliding sensor signal InputON (sliding motor operation)
Other than above 0 or 5
17 L/BFront lifting sensor
signalInputON (front lifting motor operation)
Other than above 0 or 5
18 LG/BSeat sliding switch
FORWARD signalInputWhen seat sliding switch
FORWARD operation0
Other than above Battery voltage
19 P/BSeat reclining switch
FORWARD signalInputWhen seat reclining switch
FORWARD operation0
Other than above Battery voltage
20 SBFront lifting switch UP
signalInputWhen front lifting switch UP
operation0
Other than above Battery voltage
21 R/WRear lifting switch UP
signalInputWhen rear lifting switch UP
operation0
Other than above Battery voltage
22 B Ground (Sensor) — — 0
23 B Ground (Signal) — — 0
24 B/R Power source (PTC) Input — Battery voltage Termi-
nal Wire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
PIIB2808E
PIIB2809E
Page 3286 of 3502

SE-30
AUTOMATIC DRIVE POSITIONER
Work Flow BIS0012O
1. Check the symptom and customer's requests.
2. Understand the system description. Refer to SE-12, "
System Description" .
3. Perform the preliminary check, refer to SE-31, "
Preliminary Check" .
4. Perform the CAN communication inspection using CONSULT-II, refer to SE-33, "
CONSULT-II Function
(AUTO DRIVE POS.)" .
5. Perform the self-diagnosis. Refer to SE-35, "
Check CAN Communication System" .
6. Repair or replace depending on the self-diagnostic results.
7. Based on the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SE-35,
"Symptom Chart" .
8. Does the automatic drive positioner system operate normally?
If it is normal, GO TO 8.
If it is not normal, GO TO 3.
9. INSPECTION END
25 W/RSliding motor
FORWARD signalOutputWhen sliding motor FORWARD
operationBattery voltage
Other than above 0
26 G/RReclining motor
FORWARD signalOutputWhen reclining motor FORWARD
operationBattery voltage
Other than above 0
27 R/YFront lifting motor
DOWN signalOutputWhen front lifting motor DOWN
operationBattery voltage
Other than above 0
28 L/WRear lifting motor UP
signalOutputWhen rear lifting motor UP
operationBattery voltage
Other than above 0
29 B/YRear lifting motor
DOWN signalOutputWhen rear lifting motor DOWN
operationBattery voltage
Other than above 0
30 R/L Power source (Fuse) Input — Battery voltage
31 W/GSliding motor
BACKWARD signalOutputWhen sliding motor BACKWARD
operationBattery voltage
Other than above 0
32 L/OReclining motor
BACKWARD signalOutputWhen reclining motor BACKWARD
operationBattery voltage
Other than above 0
33 Y/GFront lifting motor UP
signalOutputWhen front lifting motor UP
operationBattery voltage
Other than above 0
34 B Ground (Power) — — 0 Te r m i -
nal Wire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
Page 3287 of 3502

AUTOMATIC DRIVE POSITIONER
SE-31
C
D
E
F
G
H
J
K
L
MA
B
SE
Preliminary CheckBIS0012P
SETTING CHANGE FUNCTION
The settings of the automatic driving positioner system can be changed, using CONSULT-II.
×: Applicable –: Not applicable
It is possible to set sliding driver seat for entry/exit of vehicle by pressing set switch.
NOTE:
After the setting is registered, the new setting is effective, even if the battery is disconnected.
CHECK POWER SUPPLY AND GROUND
1. CHECK FUSE
Check if any of the following fuses in the BCM are blown.
Check 50A fusible link (letter M , located in the fuse and fusible link box.)
Check 15A fuse [No.17, located in the fuse block (J/B)]
Check 10A fuse [No.1, located in the fuse block (J/B)]
Check 10A fuse [No.6, located in the fuse block (J/B)]
NOTE:
Refer to SE-16, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
Setting item ContentCONSULT–II
(WORK SUPPORT)Factory
setting
Change seat sliding volume settingThe distance at retain operation can be selected from
the following 3 modes.40 mm×
80 mm —
150 mm —
Change the Entry/Exit seat slide function
settingThe seat sliding turnout and return at entry/exit can
be selected: ON (operated) – OFF (not operated)ON×
OFF —
Reset custom settings All settings to default. — —
Content Setting change operation Indicator LEDs
The seat sliding turnout at
entry/exit can be operated.
Press the set switch for more than 10 secondsBlinking twice
The seat sliding turnout at
entry/exit can be not operated.Blinking ones
Page 3288 of 3502

SE-32
AUTOMATIC DRIVE POSITIONER
2. CHECK POWER SUPPLY CIRCUIT (BCM)
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open and short between BCM and
fuse or fusible link.
3. CHECK GROUND CIRCUIT (BCM)
1. Turn ignition switch OFF.
2. Check continuity between BCM connector M4 terminal 52 and
ground.
OK or NG
OK >> BCM circuit is OK. Check the driver seat control unit.
GO TO 4.
NG >> Repair or replace the harness between BCM and
ground.
4. CHECK FUSE
Check 10A fuse [No.9, located in fuse block (J/B)].
NOTE:
Refer to SE-16, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 5.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
ConnectorTerminals (Wire color)
Ignition
switchVoltage (V)
(Approx.)
(+) (–)
M311 ( V )
GroundACC
Battery voltage 38 (R) ON
M442 (Y/R)
OFF
55 (W/B)
PIIA5083E
52 (B) – Ground : Continuity should exist.
PIIB2026E
