TROUBLE DIAGNOSIS
LAN-13
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CAN Diagnostic Support MonitorBKS0040W
CONSULT-II and CAN diagnostic support monitor (on-board diagnosis function) are used for detecting root
cause.
MONITOR ITEM (CONSULT-II)

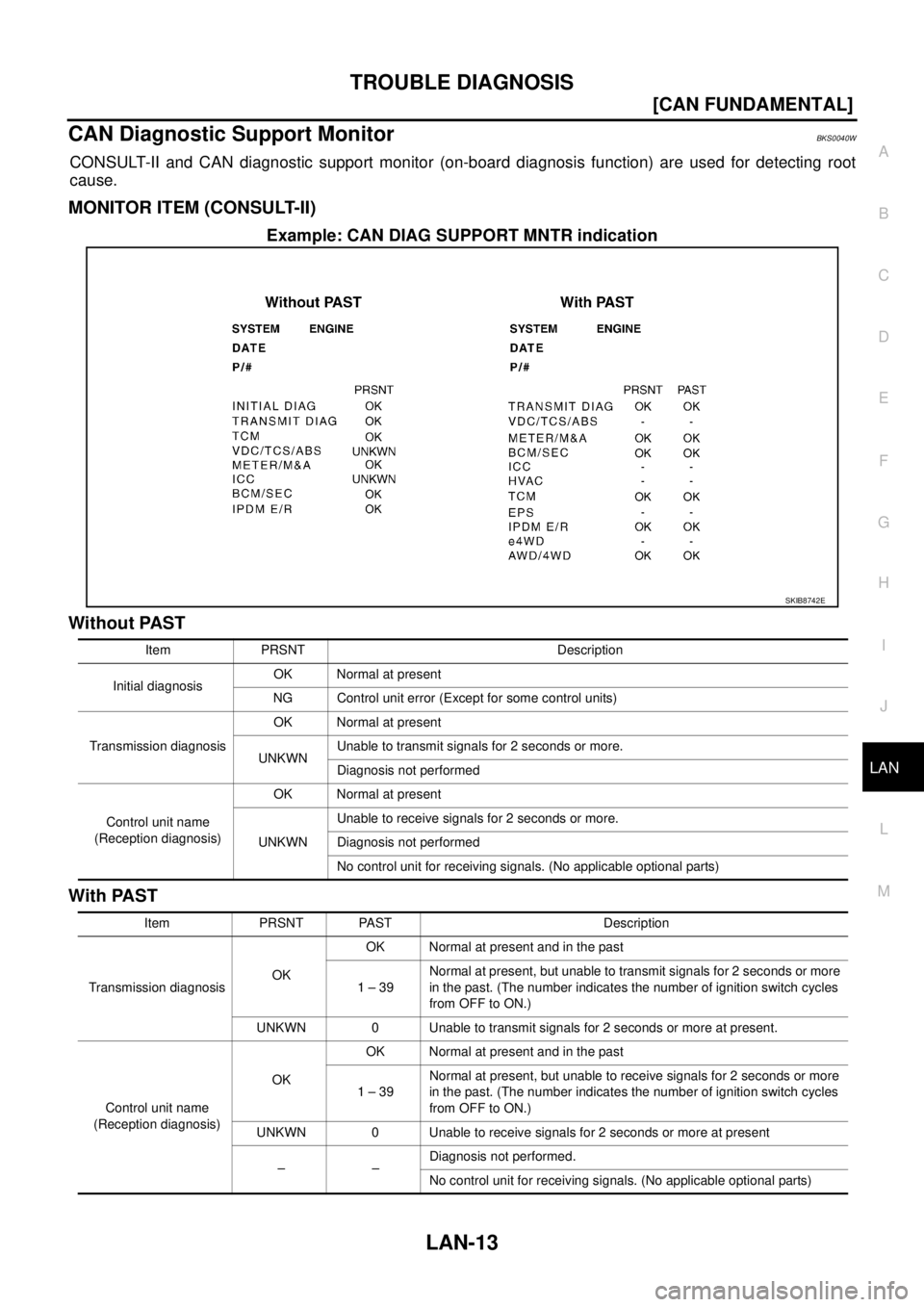

Example: CAN DIAG SUPPORT MNTR indication
Without PAST
With PAST
SKIB8742E
Item PRSNT Description
Initial diagnosisOK Normal at present
NG Control unit error (Except for some control units)
Transmission diagnosisOK Normal at present
UNKWNUnable to transmit signals for 2 seconds or more.
Diagnosis not performed
Control unit name
(Reception diagnosis)OK Normal at present
UNKWNUnable to receive signals for 2 seconds or more.
Diagnosis not performed
No control unit for receiving signals. (No applicable optional parts)
Item PRSNT PAST Description
Transmission diagnosisOKOK Normal at present and in the past
1 – 39Normal at present, but unable to transmit signals for 2 seconds or more
in the past. (The number indicates the number of ignition switch cycles
from OFF to ON.)
UNKWN 0 Unable to transmit signals for 2 seconds or more at present.
Control unit name
(Reception diagnosis)OKOK Normal at present and in the past
1 – 39Normal at present, but unable to receive signals for 2 seconds or more
in the past. (The number indicates the number of ignition switch cycles
from OFF to ON.)
UNKWN 0 Unable to receive signals for 2 seconds or more at present
––Diagnosis not performed.
No control unit for receiving signals. (No applicable optional parts)
Page 2618 of 3502
LAN-14
[CAN FUNDAMENTAL]
TROUBLE DIAGNOSIS
MONITOR ITEM (ON-BOARD DIAGNOSIS)
NOTE:
For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT-
II is not available.)
Refer to LAN-48, "MONITOR ITEM LIST (ON-BOARD DIAGNOSIS)" for the details.
Example: Vehicle Display
ItemResult indi-
catedError counter Description
CAN_COMM
(Initial diagnosis)OK 0 Normal at present
NG 1 – 50Control unit error
(The number indicates how many times diagnosis has been
run.)
CAN_CIRC_1
(Transmission diagnosis)OK 0 Normal at present
UNKWN 1 – 50Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)
CAN_CIRC_2 – 9
(Reception diagnosis of each unit)OK 0 Normal at present
UNKWN 1 – 50Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)
Diagnosis not performed.
No control unit for receiving signals. (No applicable optional
parts)
Page 2619 of 3502
![NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSES WORK FLOW
LAN-15
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
TROUBLE DIAGNOSES WORK FLOWPFP:00004
Information Needed for Trouble DiagnosisBKS0040X
CAN communication system perform NISSAN TEANA 2003 Service Manual TROUBLE DIAGNOSES WORK FLOW
LAN-15
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
TROUBLE DIAGNOSES WORK FLOWPFP:00004
Information Needed for Trouble DiagnosisBKS0040X
CAN communication system perform](/manual-img/5/57392/w960_57392-2618.png)
TROUBLE DIAGNOSES WORK FLOW
LAN-15
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
TROUBLE DIAGNOSES WORK FLOWPFP:00004
Information Needed for Trouble DiagnosisBKS0040X
CAN communication system performs trouble diagnosis with the following tools.
How to Use CAN Communication Signal ChartBKS0040Y

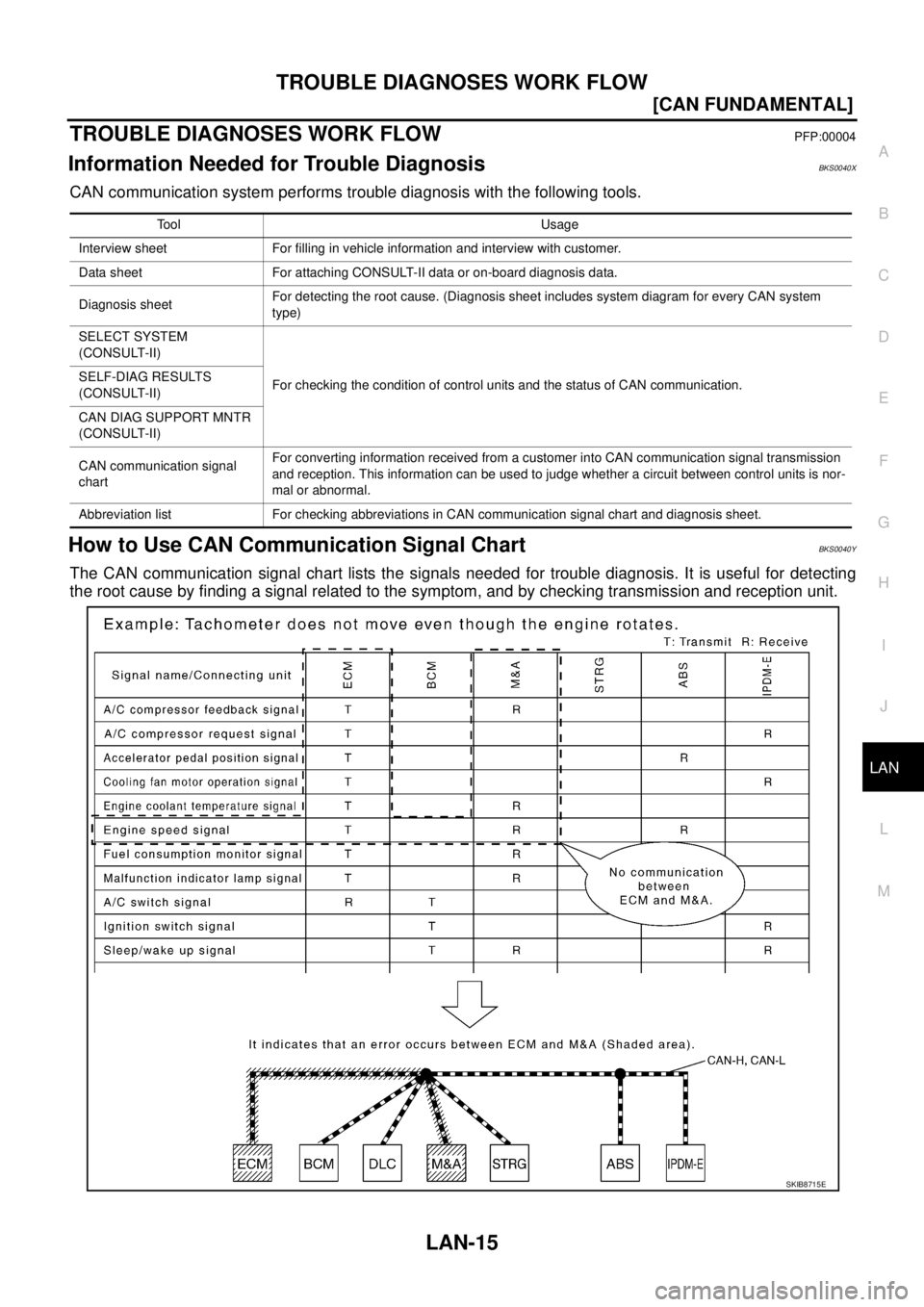

The CAN communication signal chart lists the signals needed for trouble diagnosis. It is useful for detecting
the root cause by finding a signal related to the symptom, and by checking transmission and reception unit.
Tool Usage
Interview sheet For filling in vehicle information and interview with customer.
Data sheet For attaching CONSULT-II data or on-board diagnosis data.
Diagnosis sheetFor detecting the root cause. (Diagnosis sheet includes system diagram for every CAN system
type)
SELECT SYSTEM
(CONSULT-II)
For checking the condition of control units and the status of CAN communication. SELF-DIAG RESULTS
(CONSULT-II)
CAN DIAG SUPPORT MNTR
(CONSULT-II)
CAN communication signal
chartFor converting information received from a customer into CAN communication signal transmission
and reception. This information can be used to judge whether a circuit between control units is nor-
mal or abnormal.
Abbreviation list For checking abbreviations in CAN communication signal chart and diagnosis sheet.
SKIB8715E
Page 2620 of 3502
LAN-16
[CAN FUNDAMENTAL]
TROUBLE DIAGNOSES WORK FLOW
Trouble Diagnosis Flow ChartBKS0040Z

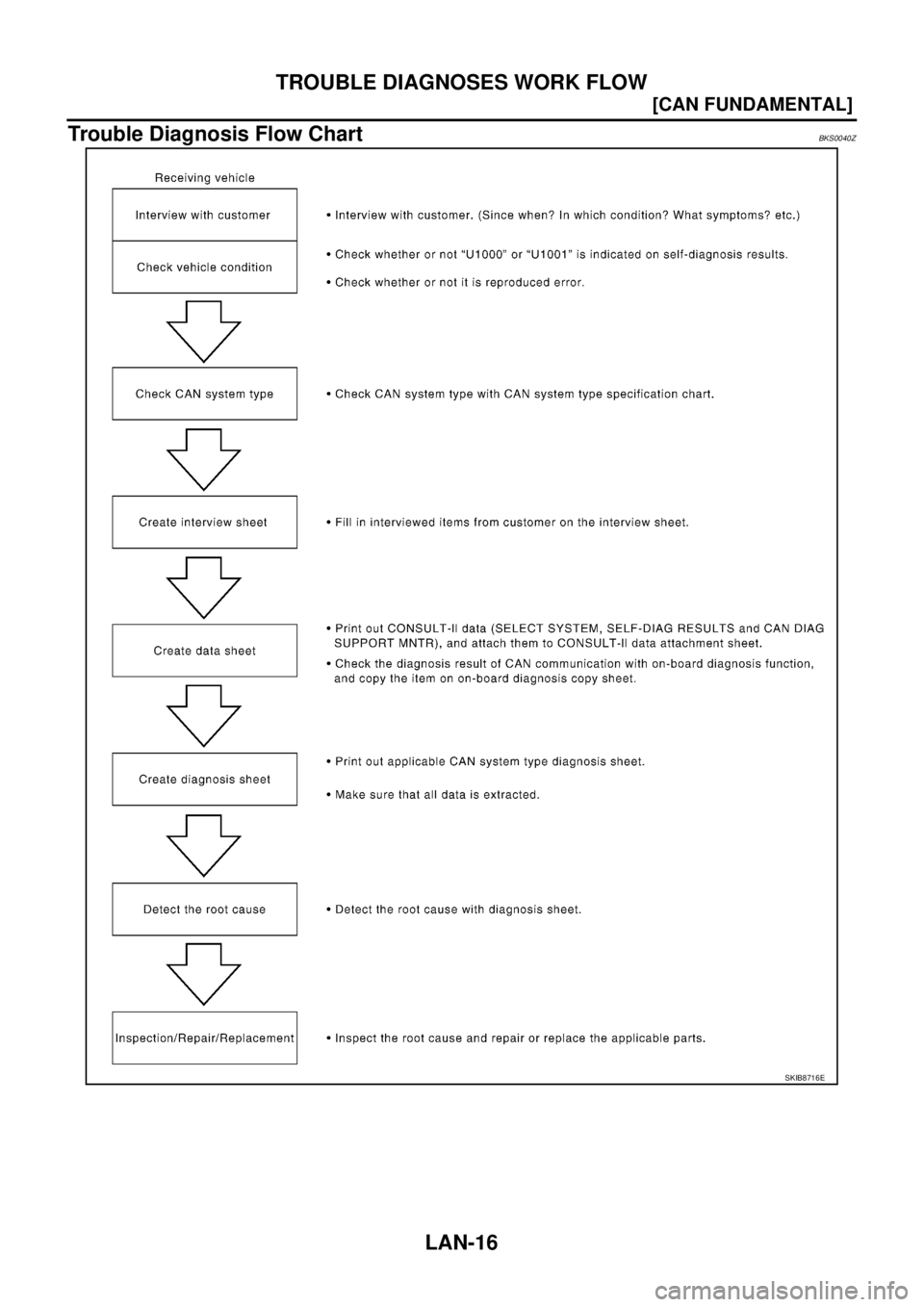

SKIB8716E
Page 2621 of 3502
TROUBLE DIAGNOSES WORK FLOW
LAN-17
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Trouble Diagnosis ProcedureBKS00410
INTERVIEW WITH CUSTOMER
Interview with the customer is important to detect the root cause of CAN communication system errors and to
understand vehicle condition and symptoms for proper trouble diagnosis.
Points in interview
What: Parts name, system name
When: Date, Frequency
Where: Road condition, Place
In what condition: Driving condition/environment
Result: Symptom
NOTE:
Check normal units as well as error symptoms.
–Example: Circuit between ECM and the combination meter is judged normal if the customer indicates
tachometer functions normally.
When a CAN communication system error is present, multiple control units may malfunction or go into fail-
safe mode.

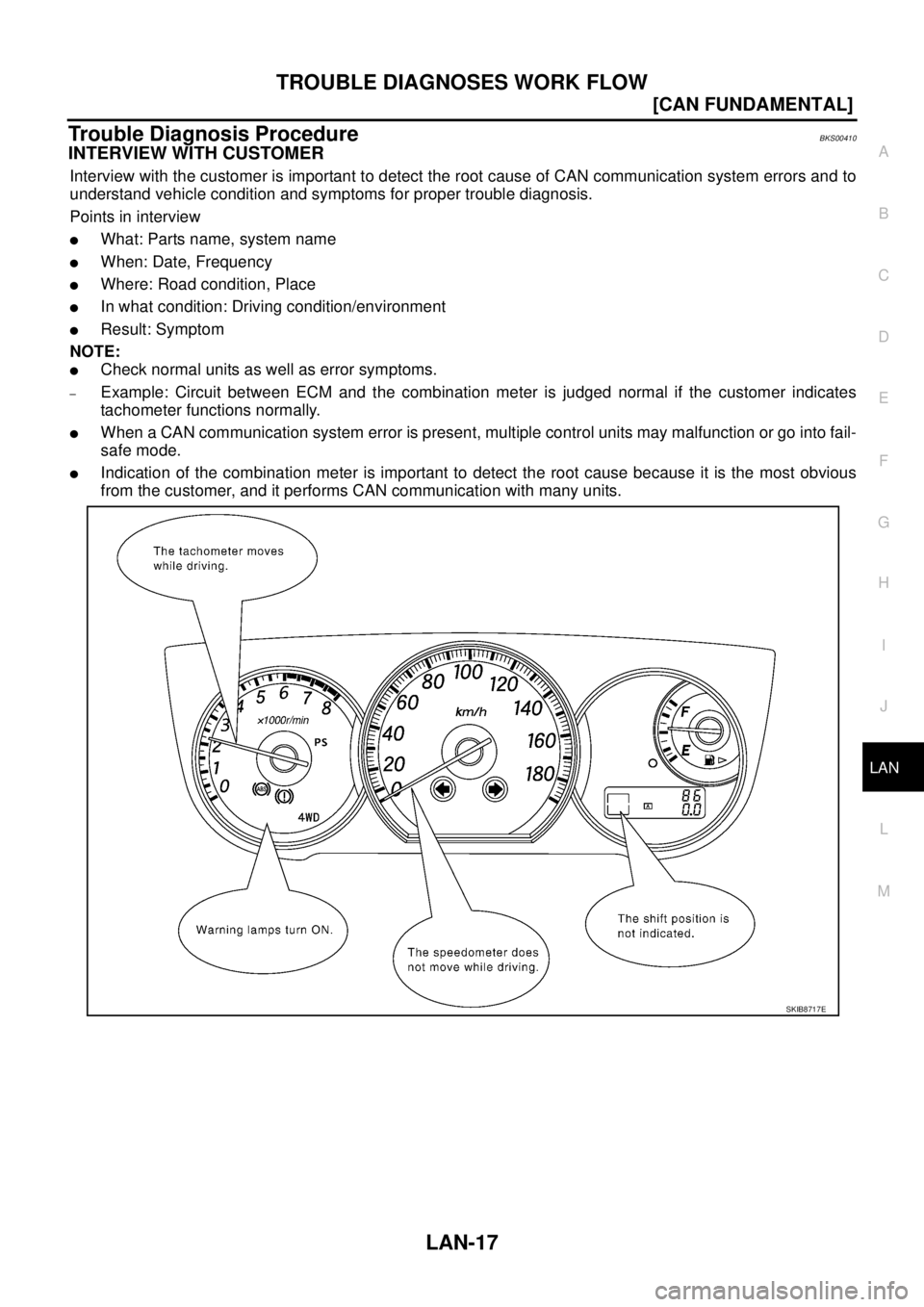

Indication of the combination meter is important to detect the root cause because it is the most obvious
from the customer, and it performs CAN communication with many units.
SKIB8717E
Page 2622 of 3502
LAN-18
[CAN FUNDAMENTAL]
TROUBLE DIAGNOSES WORK FLOW
INSPECTION OF VEHICLE CONDITION
Check whether or not “U1000” or “U1001” is indicated on “SELF-DIAG RESULTS” by CONSULT-II.
NOTE:
Root cause cannot be detected using the procedure in this section if “U1000” or “U1001” is not indicated.
Check whether the symptom is reproduced or not.
NOTE:
Never turn the ignition switch OFF or disconnect the battery cable while the reproducing the error. The
error may temporarily correct itself, making it difficult to determine the root cause.
The procedures for present errors differ from the procedures for past errors. Refer to LAN-25,
"DETECT THE ROOT CAUSE" .
Page 2623 of 3502
TROUBLE DIAGNOSES WORK FLOW
LAN-19
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK OF CAN SYSTEM TYPE (HOW TO USE CAN SYSTEM TYPE SPECIFICATION CHART)

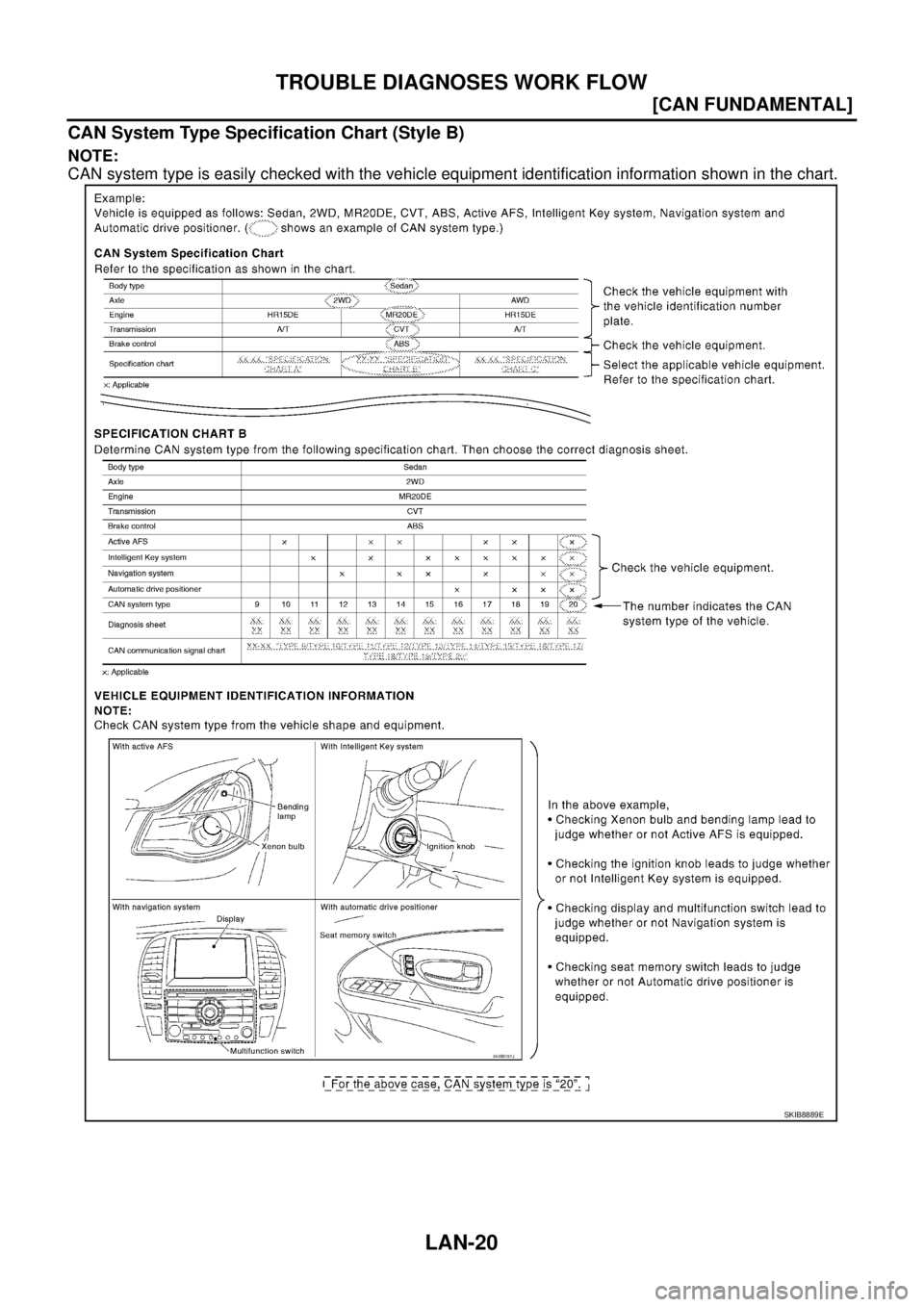

Determine CAN system type based on vehicle equipment. Then choose the correct diagnosis sheet.
