REAR SUSPENSION MEMBERPFP:55501
Removal and InstallationBES0004B
REMOVAL
1. Remove tires from vehicle.
2. Remove wheel sensor from axle housi

REAR SUSPENSION MEMBER
RSU-17
C
D
F
G
H
I
J
K
L
MA
B
RSU

REAR SUSPENSION MEMBERPFP:55501
Removal and InstallationBES0004B
REMOVAL
1. Remove tires from vehicle.
2. Remove wheel sensor from axle housing, and then disconnect sensor harness from suspension arm and
suspension member. Refer to BRC-33, "
WHEEL SENSORS" .
CAUTION:
Do not pull wheel sensor harness.
3. Remove torque member fixing bolts. Hang torque member in a place where it will not interfere with work.
Refer to BR-33, "
REAR DISC BRAKE" .
NOTE:
Do not depress brake pedal while brake caliper is removed.
4. Remove main muffler and center muffler. Refer to EX-2, "
EXHAUST SYSTEM" .
5. Remove stabilizer bar. Refer to RSU-16, "
STABILIZER BAR" .
6. Remove parking brake cable (rear cables) from rear suspension member and body. Refer to PB-2,
"PARKING BRAKE SYSTEM" .
7. Remove coil spring. Refer to RSU-15, "
REAR LOWER LINK & COIL SPRING" .
8. Remove mounting nuts on lower side of shock absorber assembly.
9. Set jack under rear suspension member.
10. Remove rear suspension member mounting nuts, and then remove rebound stopper.
11. Gradually lower jack to remove rear suspension member, suspension arm, radius rod, and front lower link
from vehicle as a unit.
12. Remove nuts and bolts, and remove suspension arm, radius rod, and front lower link from rear suspen-
sion member.
INSPECTION AFTER REMOVAL
Check rear suspension member for deformation, cracks, or other damage. Replace if there are.
INSTALLATION
Installation is the reverse order of the removal. For tightening torque, refer to RSU-7, "Component" .
NOTE:
Do not reuse non-reusable parts.
Perform final tightening of each of parts, under unladen conditions, which were removed when removing
rear suspension member. Check the wheel alignment. Refer to RSU-5, "
Wheel Alignment Inspection" .
Adjust neutral position of steering angle sensor after checking the wheel alignment for models with VDC.
Refer to BRC-40, "
Adjustment of Steering Angle Sensor Neutral Position" .
Check for the following after finishing work.
–Parking brake operation (stroke): Refer to PB-2, "On-Vehicle Inspection" .
–Check wheel sensor harness for proper connection: Refer to BRC-33, "WHEEL SENSORS" .

Page 3210 of 3502

NISSAN TEANA 2003 Service Manual RSU-18
SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Wheel Alignment (Unladen*)BES0004C
*: Fuel, engine coolant and engine oil full. Spare tire, jack, hand too

Page 3211 of 3502

NISSAN TEANA 2003 Service Manual SB-1
SEAT BELTS
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION SB
A
B
SB

SEAT BELTS
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restrain

Page 3212 of 3502

NISSAN TEANA 2003 Service Manual SB-2
PRECAUTIONS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BHS0003P
The Supplemental Restraint System such as “AIR B

SB-2
PRECAUTIONS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BHS0003P
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precaution for Seat Belt ServiceBHS0003Q
CAUTION:
Before removing the front seat belt pre-tensioner assembly, turn the ignition switch off, discon-
nect both battery cables and wait at least 3 minutes.
Do not use electrical test equipment for front seat belt pre-tensioner connector.
After replacing or reinstalling front seat belt pre-tensioner assembly, or reconnecting front seat
belt pre-tensioner connector, check the system function. Refer to SRS-16, "
SRS Operation Check"
.
Activate front seat belt pre-tensioner assembly before disposing. Refer to SRS-48, "DISPOSAL OF
AIR BAG MODULE AND SEAT BELT PRE-TENSIONER" .
Do not use disassembled buckle or seat belt assembly.
Replace anchor bolts if they are deformed or worn out.
Do not oil tongue and buckle.
If any component of seat belt assembly is questionable, do not repair. Replace the whole seat belt
assembly.
If webbing is cut, frayed, or damaged, replace seat belt assembly.
When replacing seat belt assembly, use a genuine NISSAN seat belt assembly.
AFTER A COLLISION
WARNING:
Inspect all seat belt assemblies including retractors and attaching hardware after any collision.
NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the col-
lision was minor and the belts show no damage and continue to operate properly. Failure to do so
could result in serious personal injury in an accident. Seat belt assemblies not in use during a colli-
sion should also be replaced if either damage or improper operation is noted. Seat belt pre-tensioners
should be replaced even if the seat belts are not in use during a frontal collision in which the air bags
are deployed.
Replace any seat belt assembly (including anchor bolts) if:
The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and
buckles show no damage and continue to operate properly).
The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide).
The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage
or distortion and repair as necessary before installing a new seat belt assembly.
Anchor bolts are deformed or worn out.
The front seat belt pre-tensioners should be replaced even if the seat belts are not in use during the colli-
sion in which the air bags are deployed.

Page 3213 of 3502

NISSAN TEANA 2003 Service Manual SEAT BELTS
SB-3
C
D
E
F
G
I
J
K
L
MA
B
SB

SEAT BELTSPFP:86884
Removal and Installation of Front Seat Belt BHS0003R
CAUTION:
Before removal or installation, be sure to turn ignition switch OFF and di

Page 3214 of 3502

NISSAN TEANA 2003 Service Manual SB-4
SEAT BELTS

6. Remove seat belt retractor mounting screw and anchor bolt.
7. Remove seat belt assembly.
INSTALLATION OF RETRACTOR
Install in the reverse order of removal.
REMOVAL OF BUCKLE
1. Re

Page 3215 of 3502

NISSAN TEANA 2003 Service Manual SEAT BELTS
SB-5
C
D
E
F
G
I
J
K
L
MA
B
SB

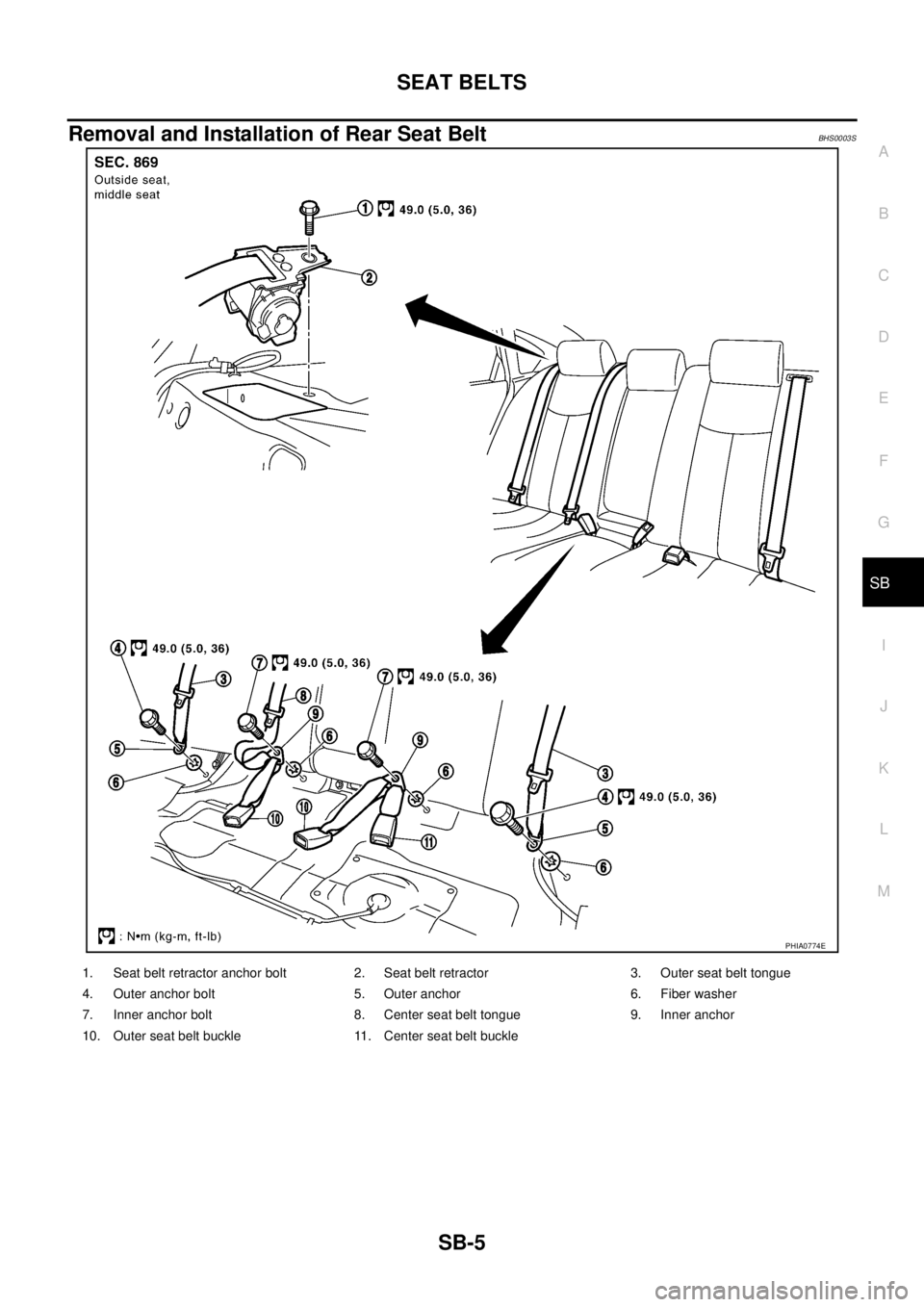

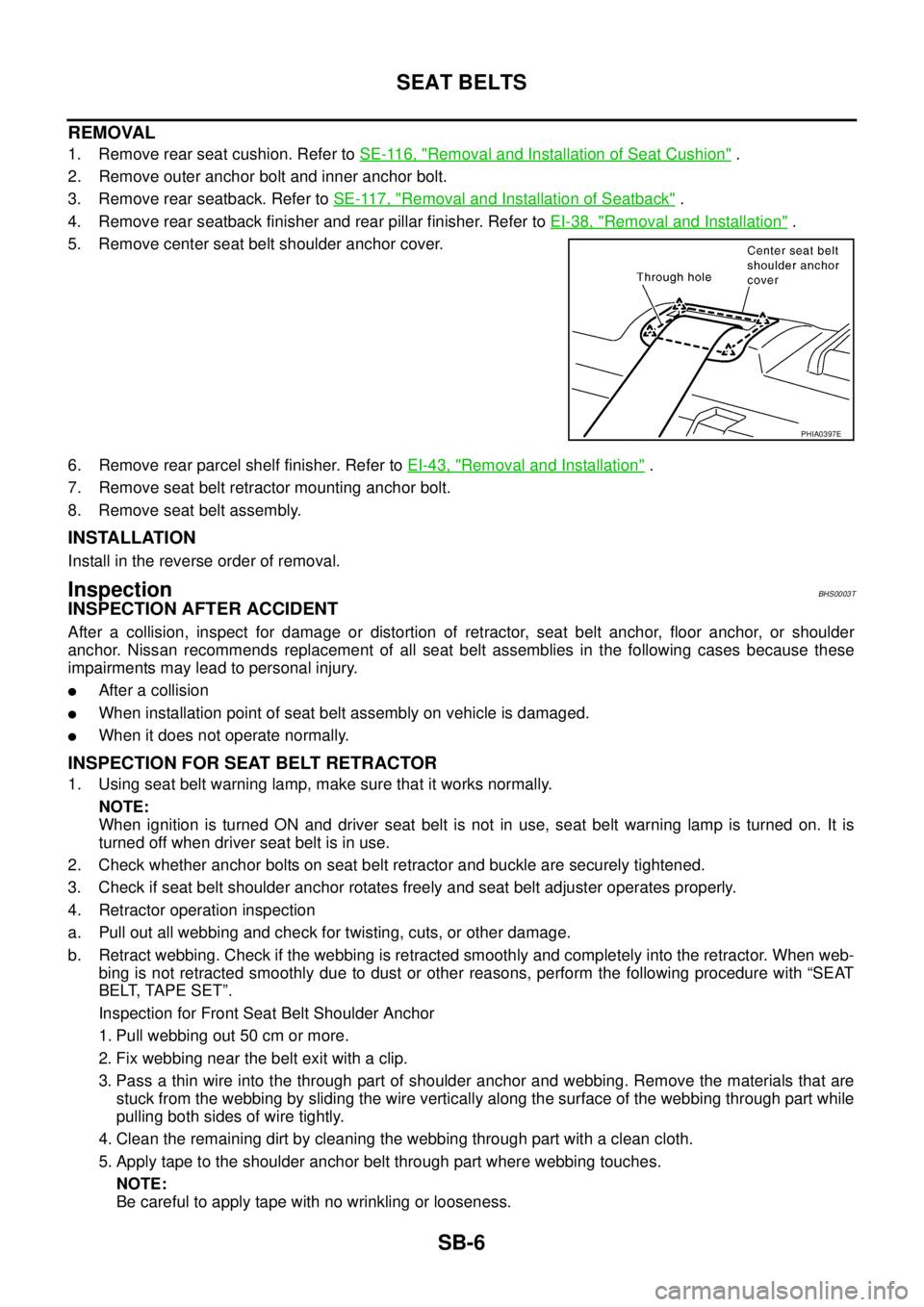

Removal and Installation of Rear Seat BeltBHS0003S
