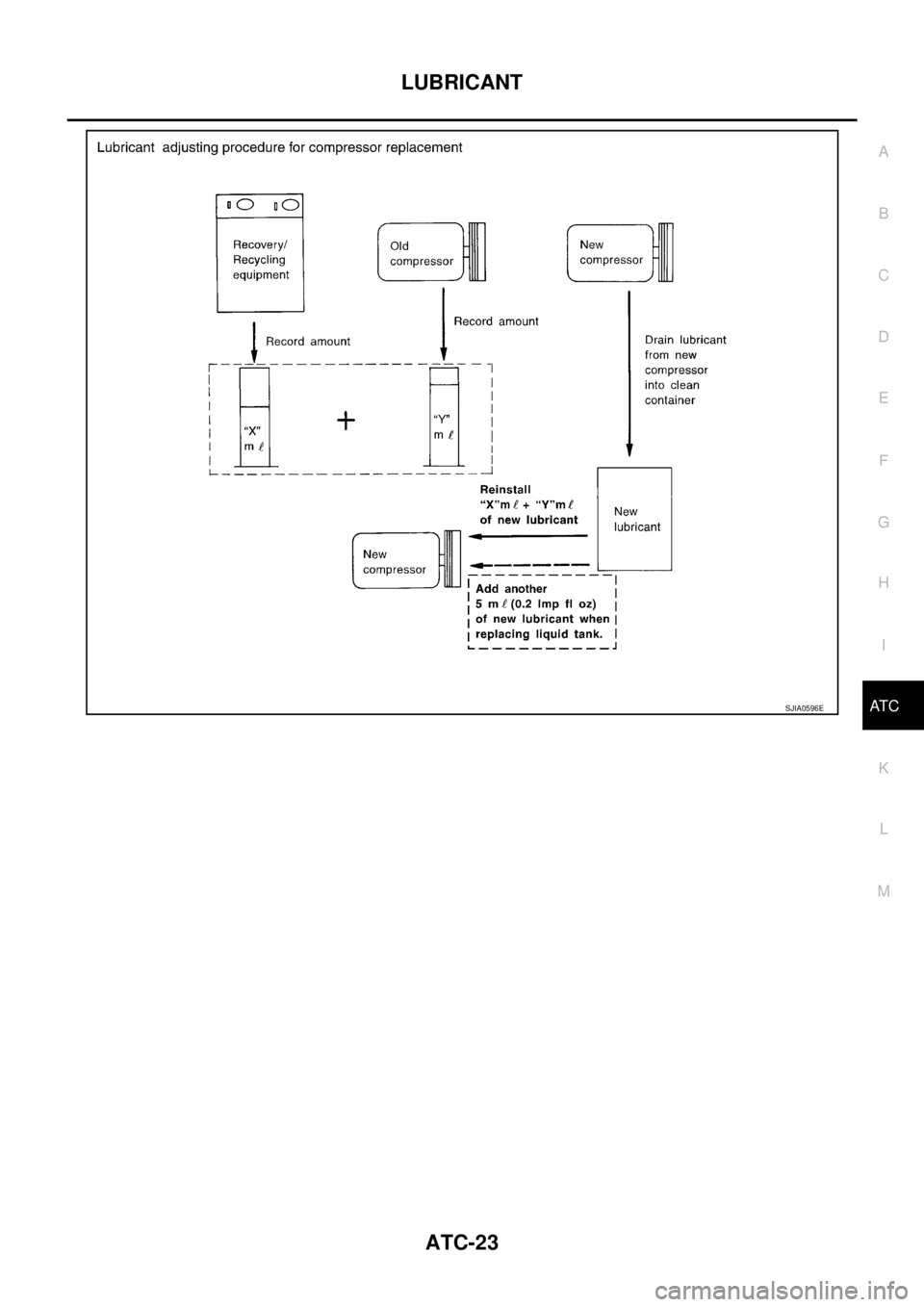

NISSAN TEANA 2003 Service Manual LUBRICANT ATC-23 C D E F G H I K L MA B AT C SJIA0596E

Page 402 of 3502

NISSAN TEANA 2003 Service Manual ATC-24 AIR CONDITIONER CONTROL AIR CONDITIONER CONTROLPFP:27500 Description of Air Conditioner LAN Control SystemBJS000FJ The LAN (Local Area Network) system consists of unified meter and A/C amp.,

Page 403 of 3502

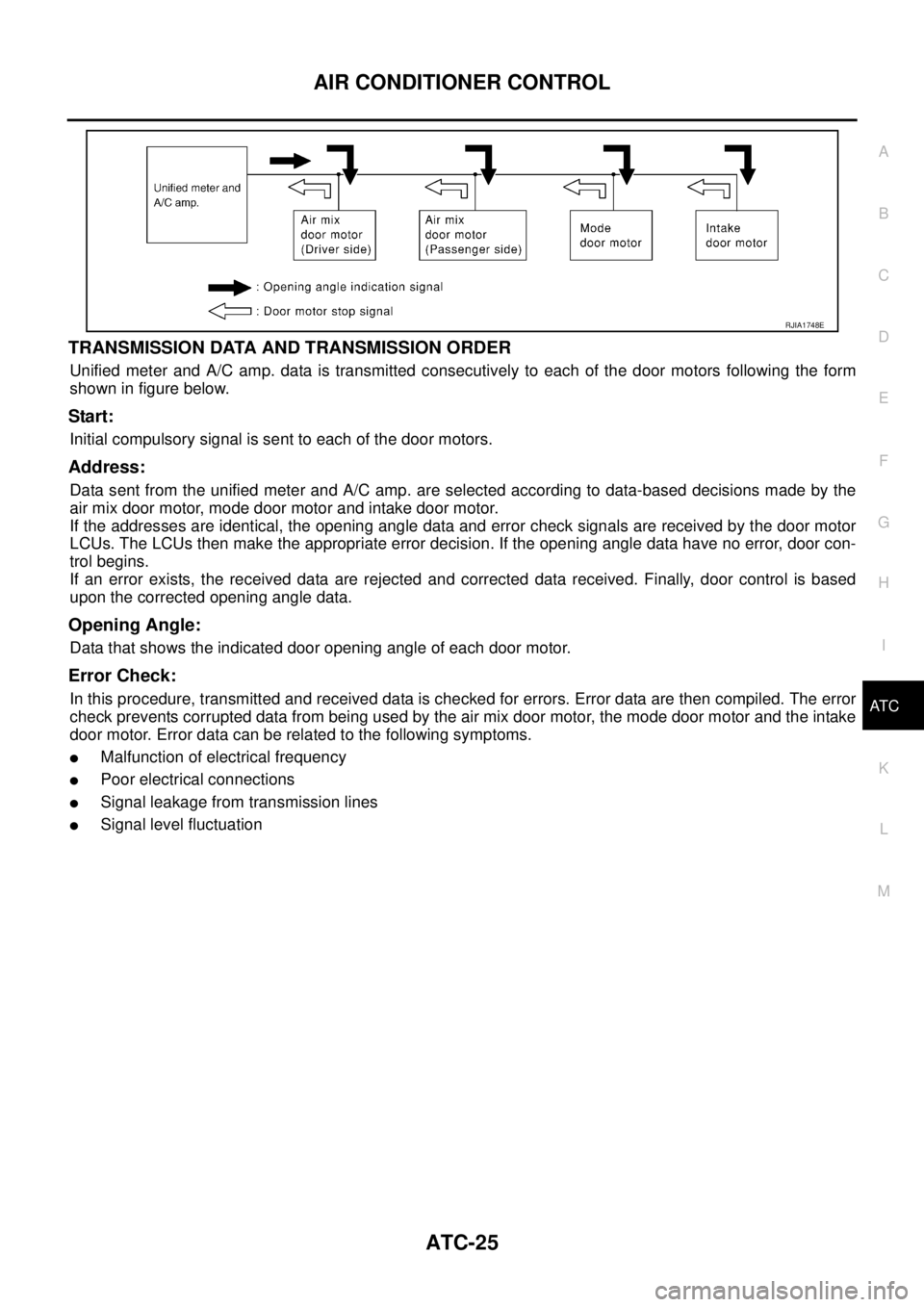

NISSAN TEANA 2003 Service Manual AIR CONDITIONER CONTROL ATC-25 C D E F G H I K L MA B AT C TRANSMISSION DATA AND TRANSMISSION ORDER Unified meter and A/C amp. data is transmitted consecutively to each of the door motors following

Page 404 of 3502

NISSAN TEANA 2003 Service Manual ATC-26 AIR CONDITIONER CONTROL Stop Signal: At the end of each transmission, a stop operation, in-operation, or internal malfunction message is delivered to the unified meter and A/C amp. This compl

Page 405 of 3502

NISSAN TEANA 2003 Service Manual AIR CONDITIONER CONTROL ATC-27 C D E F G H I K L MA B AT C MAGNET CLUTCH CONTROL When A/C switch is pressed (with FAN ON), press DEF switch, unified meter and A/C amp. transmits com- pressor ON sign

Page 406 of 3502

NISSAN TEANA 2003 Service Manual ATC-28 AIR CONDITIONER CONTROL Description of Control SystemBJS000FL The control system consists of input sensors, switches, the unified meter and A/C amp. (microcomputer) and outputs. The relations

Page 407 of 3502

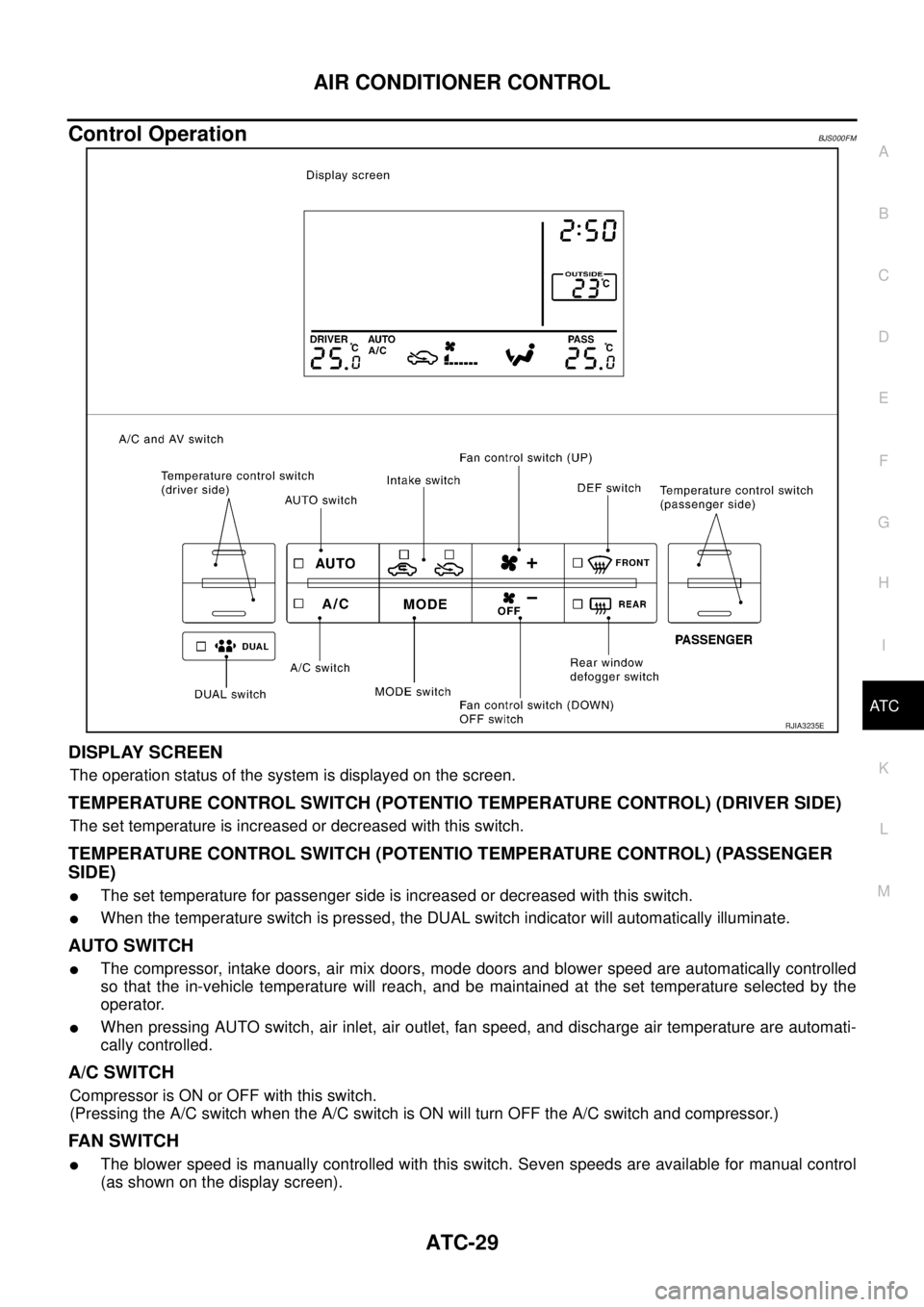

NISSAN TEANA 2003 Service Manual AIR CONDITIONER CONTROL ATC-29 C D E F G H I K L MA B AT C Control OperationBJS000FM DISPLAY SCREEN The operation status of the system is displayed on the screen. TEMPERATURE CONTROL SWITCH (POTENTI

Page 408 of 3502

NISSAN TEANA 2003 Service Manual ATC-30 AIR CONDITIONER CONTROL When fan control switch (DOWN) is pressed for approximately 2 seconds or longer or press fan control switch when blower fan motor operates at 1st speed, A/C system wi
