HYDRAULIC LINE
PS-39
C
D
E
F
H
I
J
K
L
MA
B
PS
HYDRAULIC LINEPFP:49721
Removal and InstallationBGS00041
COMPONENTS (EXCEPT FOR QR20DE MODELS)
1. Reservoir tank 2. Reservoir tank bracket 3. Suction hose
4. Oil pump assembly 5. High pressure hose 6. Steering gear assembly
7. Low pressure piping 8. High pressure piping 9. O-ring
10. Clamp 11. Copper washer 12. Eye-joint (assembled to high pres-
sure side hose)
13. Pressure sensor 14. Eye-bolt
Refer to GI-10, "
Components" , and the followings for the symbols in the figure.
: Apply power steering fluid.
SGIA1621E
Page 3154 of 3502
PS-40
HYDRAULIC LINE
COMPONENTS (QR20DE MODELS)
CAUTION:
Securely insert harness connector to pressure sensor.
1. Reservoir tank 2. Reservoir tank bracket 3. Suction hose
4. Oil pump assembly 5. High pressure hose 6. Steering gear assembly
7. Low pressure piping 8. High pressure piping 9. O-ring
10. Eye-bolt 11. Copper washer 12. Eye-joint (assembled to high pres-
sure side hose)
13. Pressure sensor 14. Clamp
Refer to GI-10, "
Components" , and the followings for the symbols in the figure.
: Apply power steering fluid.
SGIA1622E
Page 3155 of 3502
HYDRAULIC LINE
PS-41
C
D
E
F
H
I
J
K
L
MA
B
PS

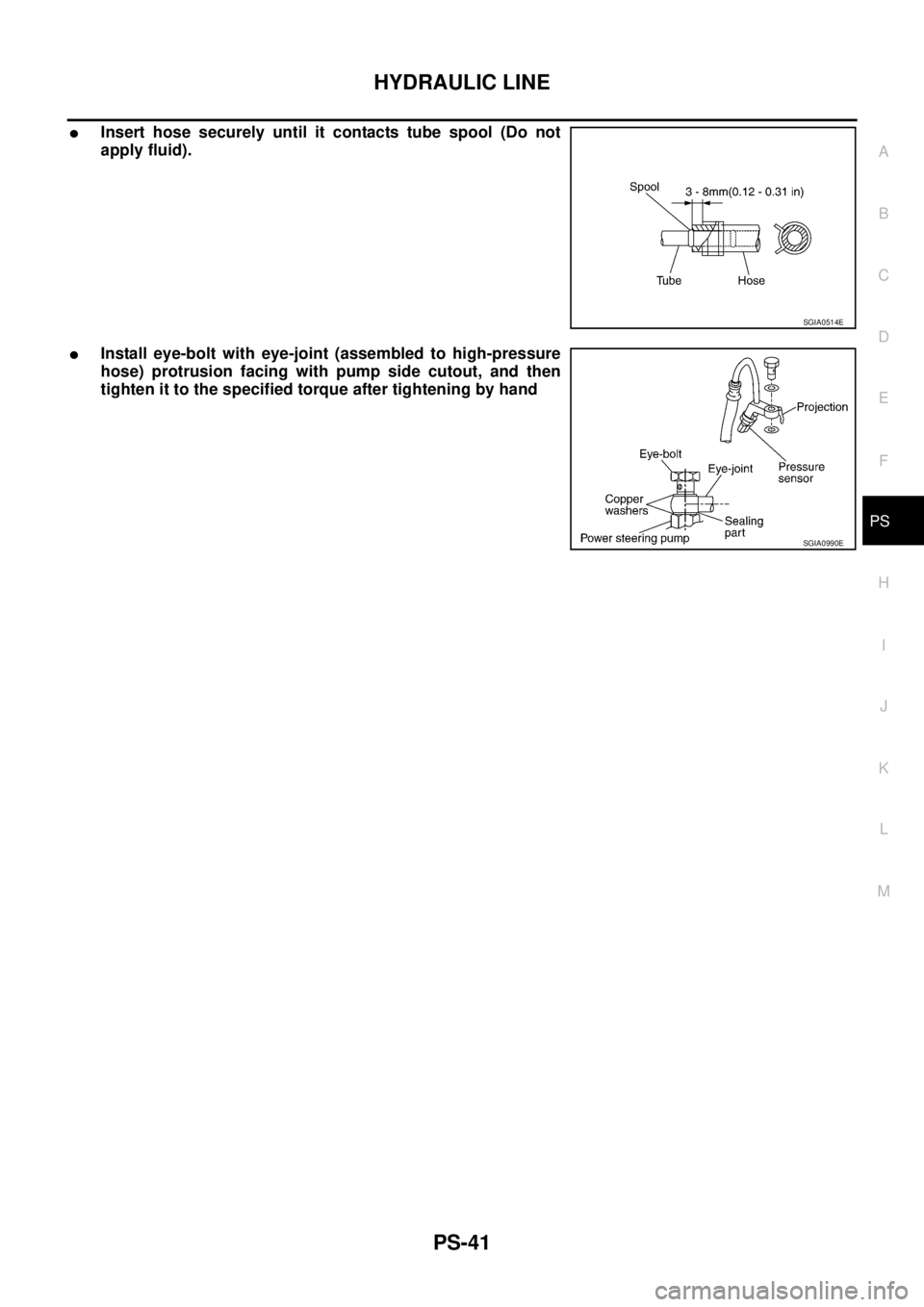

Insert hose securely until it contacts tube spool (Do not
apply fluid).
Install eye-bolt with eye-joint (assembled to high-pressure
hose) protrusion facing with pump side cutout, and then
tighten it to the specified torque after tightening by hand
SGIA0514E
SGIA0990E
Page 3156 of 3502
PS-42
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Steering WheelBGS00043
Steering AngleBGS00044
Steering ColumnBGS00045

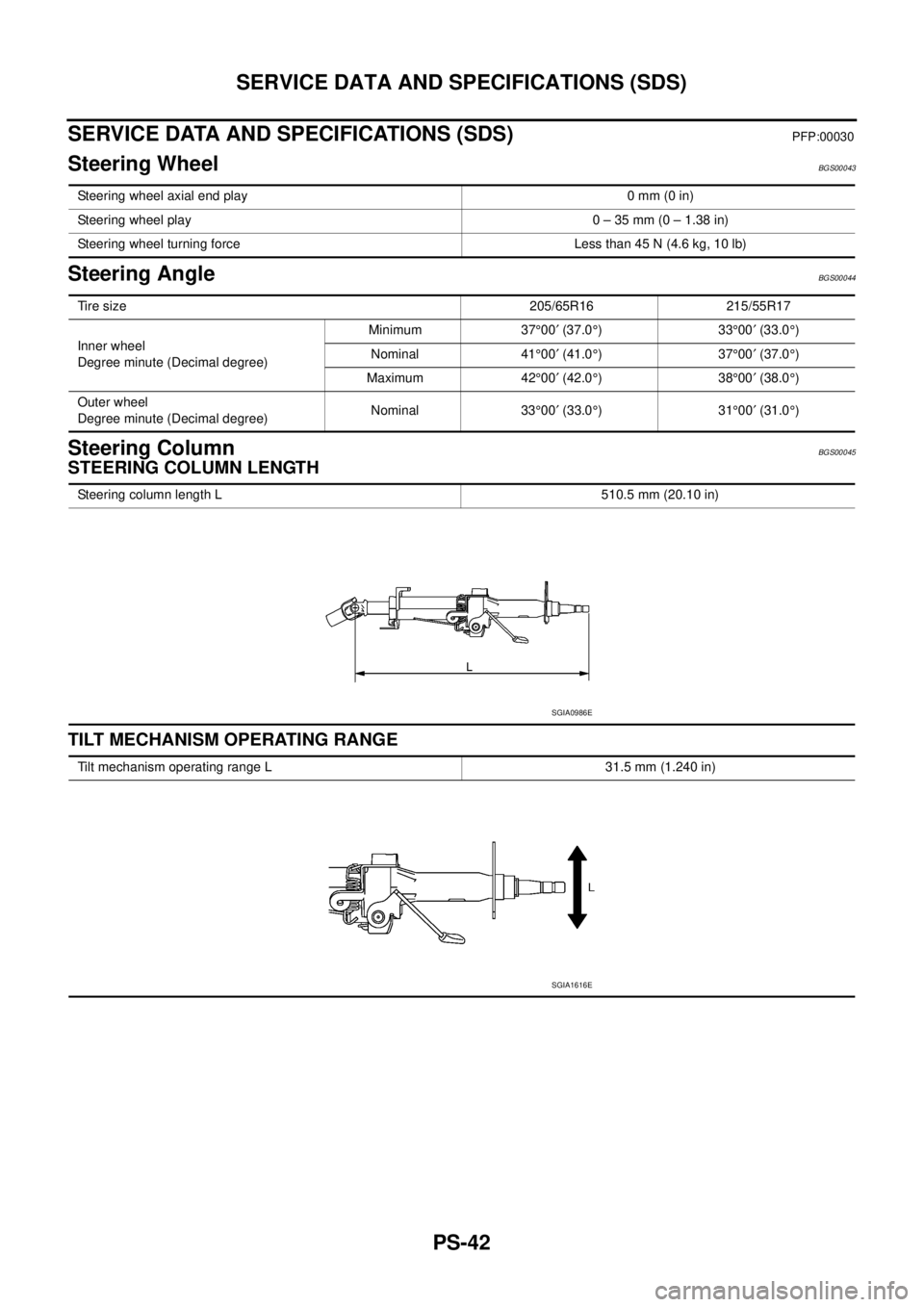

STEERING COLUMN LENGTH
TILT MECHANISM OPERATING RANGE
Steering wheel axial end play 0 mm (0 in)
Steering wheel play 0 – 35 mm (0 – 1.38 in)
Steering wheel turning force Less than 45 N (4.6 kg, 10 lb)
Tire size 205/65R16 215/55R17
Inner wheel
Degree minute (Decimal degree)Minimum 37°00′ (37.0°)33°00′ (33.0°)
Nominal 41°00′ (41.0°)37°00′ (37.0°)
Maximum 42°00′ (42.0°)38°00′ (38.0°)
Outer wheel
Degree minute (Decimal degree)Nominal 33°00′ (33.0°)31°00′ (31.0°)
Steering column length L 510.5 mm (20.10 in)
SGIA0986E
Tilt mechanism operating range L 31.5 mm (1.240 in)
SGIA1616E
Page 3157 of 3502

SERVICE DATA AND SPECIFICATIONS (SDS)
PS-43
C
D
E
F
H
I
J
K
L
MA
B
PS
Steering GearBGS00046
STEERING OUTER SOCKET AND INNER SOCKET
RACK STROKE
RACK SLIDING FORCE
Oil PumpBGS00048
Steering FluidBGS00049
Steering gear typePR26AM
Outer socketSwinging torque 0.3 – 2.9 N·m (0.03 – 0.29 kg-m, 3 – 25 in-lb)
Measurement on spring balance
Measuring point at cotter pin hole of stud4.84 – 46.7 N (0.5 – 4.8 kg, 1 – 10 lb)
Rotating torque 0.3 – 2.9 N·m (0.03 – 0.29 kg-m, 3 – 25 in-lb)
Axial end play 0.5 mm (0.020 in) or less
Inner socketSwinging torque 1.0 – 7.8 N·m (0.11 – 0.79 kg-m, 9 – 69 in-lb)
Measurement on spring balance
Measuring point at *mark shown in the figure12.1 – 93.7 N (1.2 – 9.6 kg, 3 – 21 lb)
Axial end play 0.2 mm (0.008 in) or less
Inner socket length L127.3 mm (5.01 in)
SGIA0950E
Steering gear typePR26AM
Tire size 205/65R16 215/55R17
Rack stroke neutral position, dimension L (rack stroke) 73.5 mm (2.894 in) 68.5 mm (2.697 in)
SGIA0629J
Rack sliding force 210.6 – 269.4 N (21.5 – 27.5 kg, 47 – 61 lb)
Oil pump relief hydraulic pressureExcept for QR20DE models8,000 – 8,800 kPa
(80 – 88 bar, 81.6 – 89.8 kg/cm
2 , 1,160 – 1,276 psi)
QR20DE models9,000 – 9,800 kPa
(90 – 98 bar, 91.8 – 100 kg/cm
2 , 1,305 – 1,421 psi)
Fluid capacity
Approx. 1.0 (7/8 Imp qt)
