SUNSHADE
EI-49
C
D
E
F
G
H
J
K
L
MA
B
EI

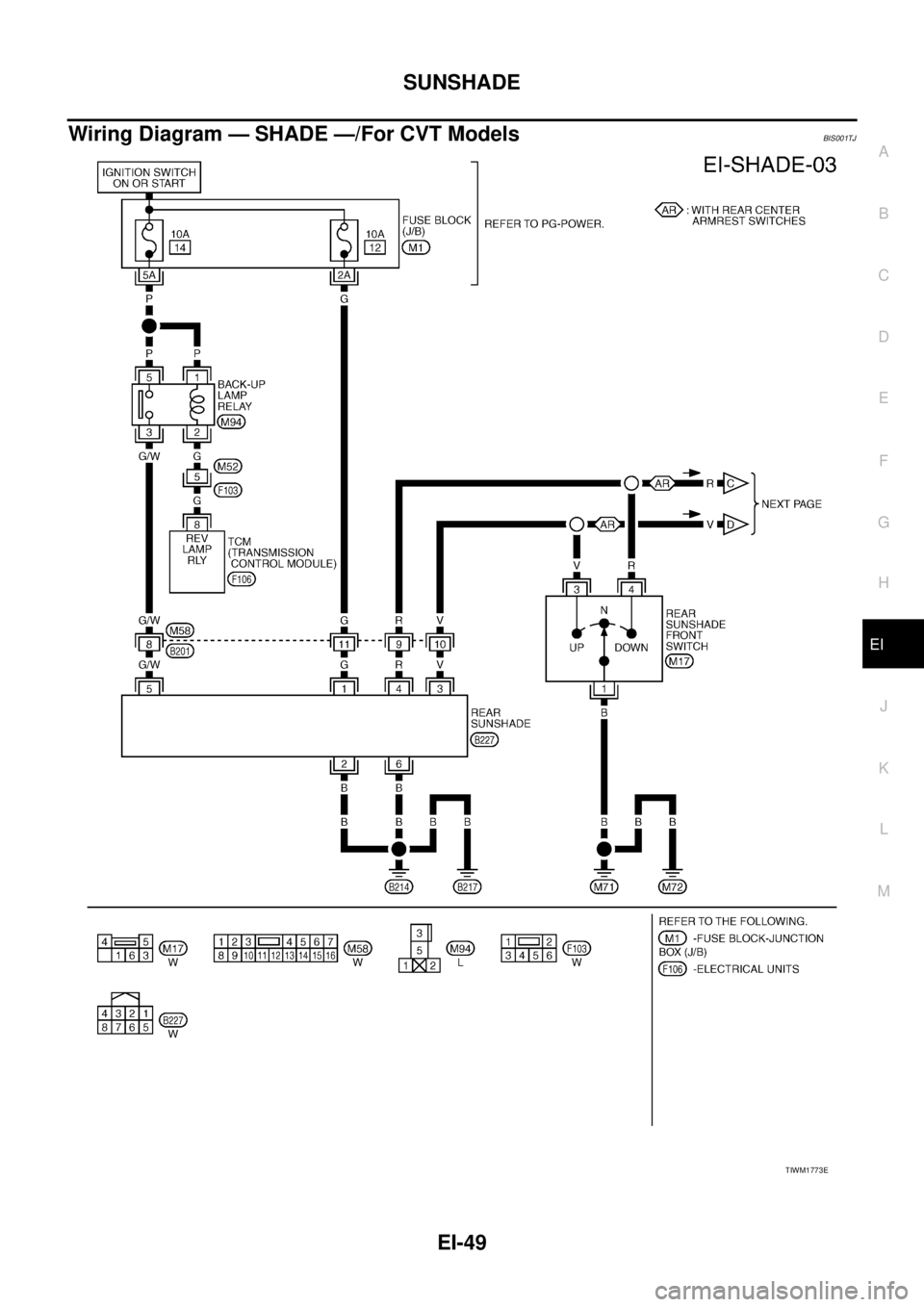

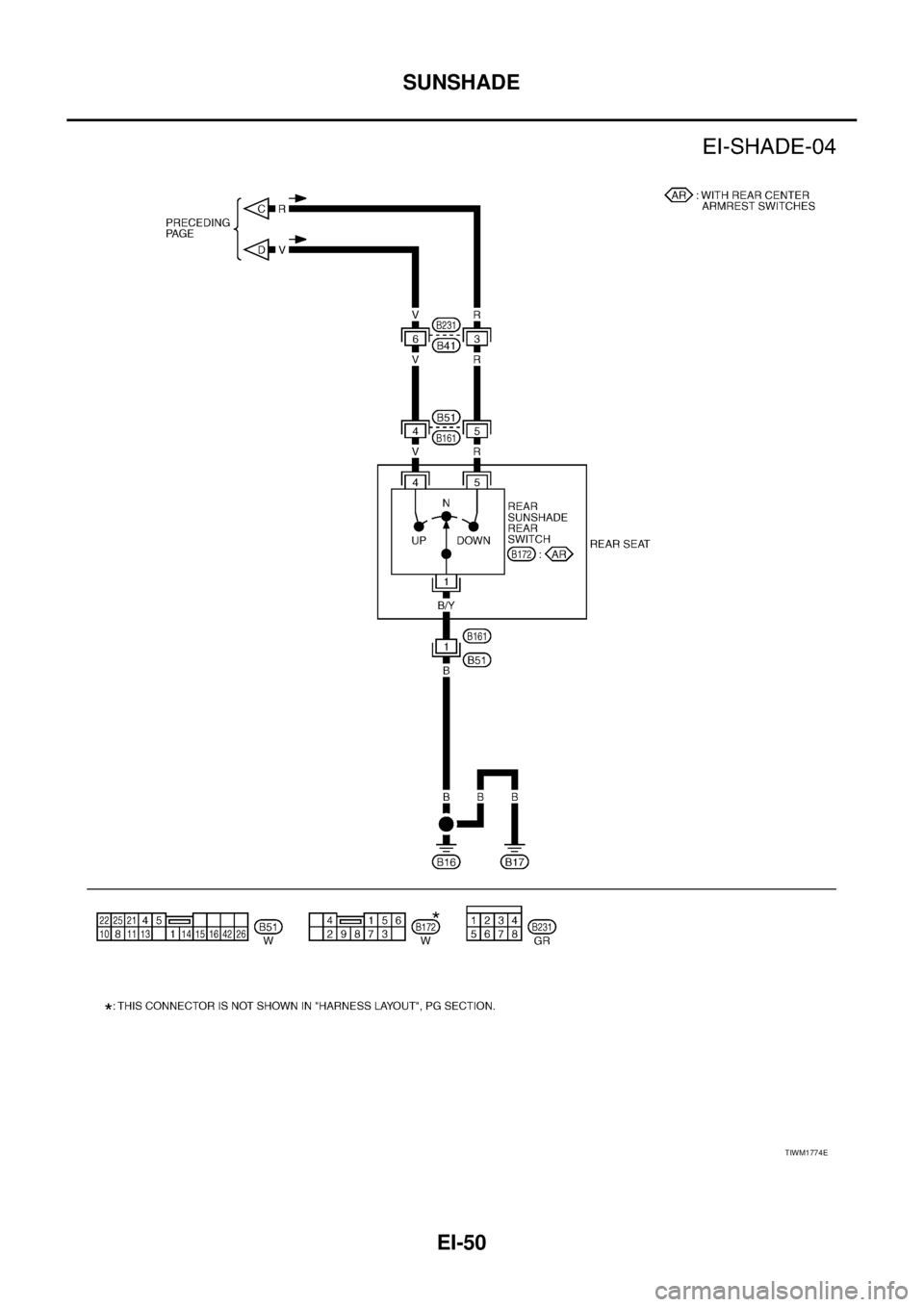

Wiring Diagram — SHADE —/For CVT ModelsBIS001TJ
TIWM1773E
Page 2098 of 3502
Page 2099 of 3502
SUNSHADE
EI-51
C
D
E
F
G
H
J
K
L
MA
B
EI
Terminals and Reference Values for Rear SunshadeBIS0011W
Te r m i -
nalWire
colorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
1 G Ignition switch (ON or START) Input Ignition switch is ON or START position Battery voltage
2 B Ground — — 0
3 V Rear sunshade UP signal InputRear sunshade front switch or rear sunshade
rear switch (rear center armrest switch) operates
UP position 0
Other than above Battery voltage
4 R Rear sunshade DOWN signal InputRear sunshade front switch or rear sunshade
rear switch (rear center armrest switch) operates
DOWN position0
Other than above Battery voltage
5 G/W R range switch signal InputWhen A/T or CVT shift lever is R position Battery voltage
When A/T or CVT shift lever is other than
R position0
6 B Ground — — 0
Page 2100 of 3502
EI-52
FLOOR TRIM
FLOOR TRIMPFP:74902
Removal and InstallationBIS0011X
REMOVAL
1. Remove front seat (LH/RH) and rear seat cushion. Refer to SE-97, "FRONT SEAT" and SE-112, "REAR
SEAT" .
2. Remove front seat belt floor anchor bolt (LH). Refer to SB-3, "
SEAT BELTS" .
3. Remove center console box. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
4. Remove instrument panel cover (lower, LH). Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
5. Remove floor hook.
6. Remove front kicking plate inner, center pillar lower garnish, and rear kicking plate inner. Refer to EI-38,
"BODY SIDE TRIM" .
7. Remove parking brake cable clamp mounting bolts.
PIIB1764E

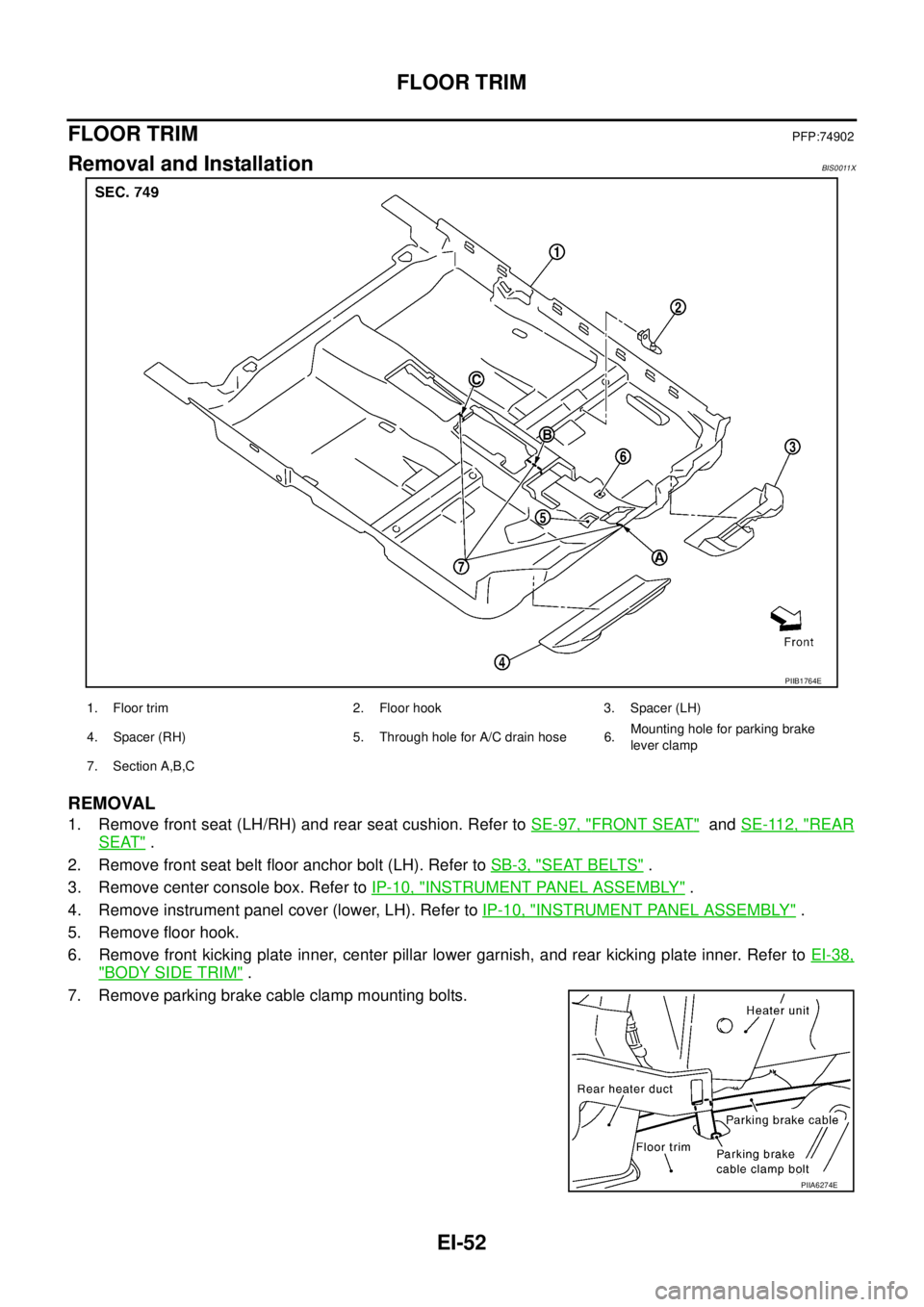

1. Floor trim 2. Floor hook 3. Spacer (LH)
4. Spacer (RH) 5. Through hole for A/C drain hose 6.Mounting hole for parking brake
lever clamp
7. Section A,B,C
PIIA6274E
Page 2101 of 3502
FLOOR TRIM
EI-53
C
D
E
F
G
H
J
K
L
MA
B
EI
8. Remove A/C drain hose from A/C unit.

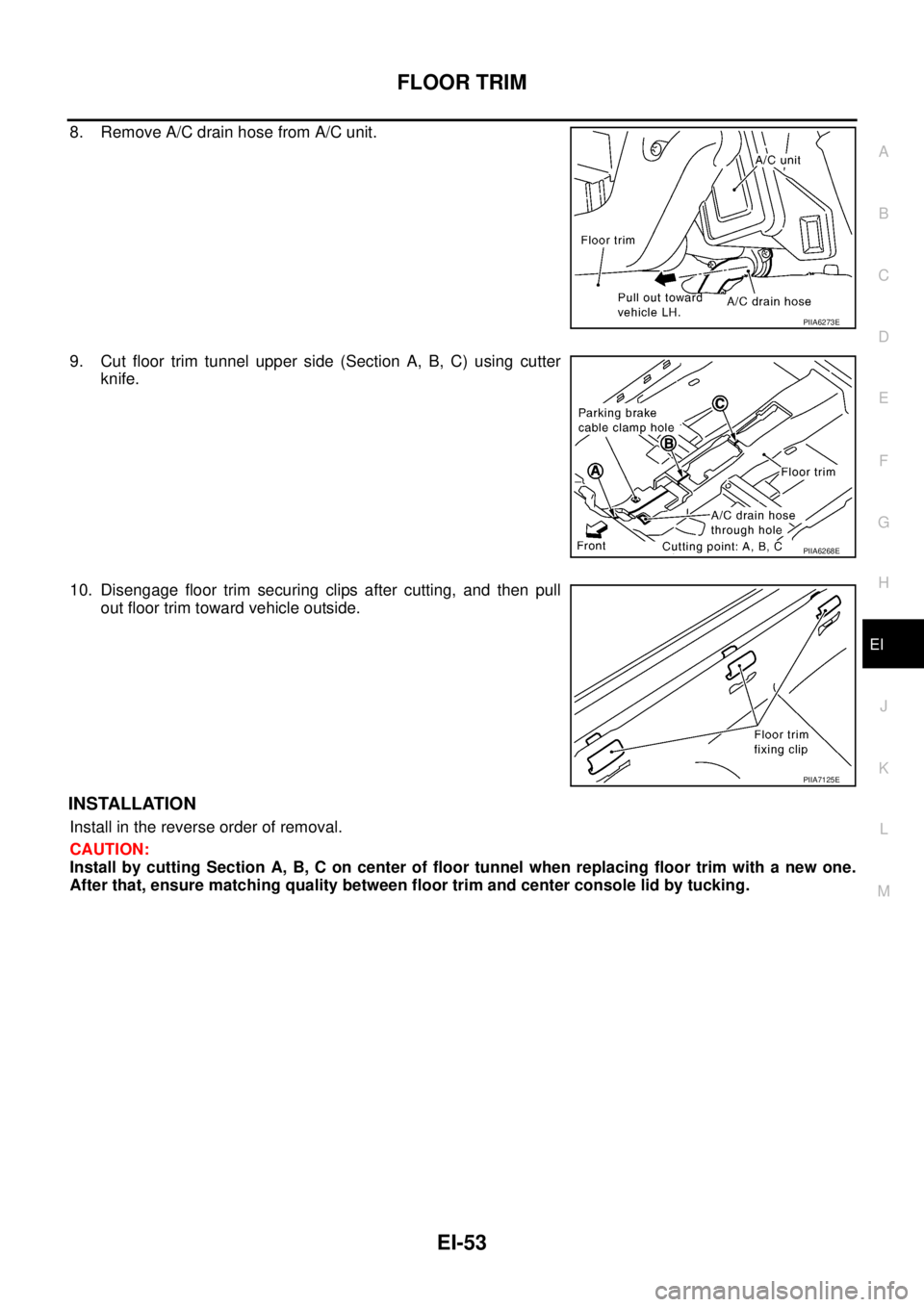

9. Cut floor trim tunnel upper side (Section A, B, C) using cutter
knife.
10. Disengage floor trim securing clips after cutting, and then pull
out floor trim toward vehicle outside.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Install by cutting Section A, B, C on center of floor tunnel when replacing floor trim with a new one.
After that, ensure matching quality between floor trim and center console lid by tucking.
PIIA6273E
PIIA6268E
PIIA7125E
Page 2102 of 3502
EI-54
HEADLINING
HEADLININGPFP:73910
Removal and InstallationBIS0011Y
PIIB1765E
Page 2103 of 3502

HEADLINING
EI-55
C
D
E
F
G
H
J
K
L
MA
B
EI
REMOVAL
1. Remove front seat belt floor anchor bolt and rear seat belt floor ancher bolt. Refer to SB-3, "SEAT BELTS"
and SB-5, "Removal and Installation of Rear Seat Belt" .
2. Remove rear seat. Refer to SE-112, "
REAR SEAT" .
3. Remove front pillar garnish (LH/RH). Refer to EI-38, "
BODY SIDE TRIM" .
4. Remove roof harness securing clip using a clip clamp remover
after removing, and then disconnect roof harness connector.
5. Remove front kicking plate inner, center pillar lower garnish, center pillar upper garnish, front body side
welt, rear kicking plate inner, rear seatback finisher, rear pillar finisher, and rear body side welt. Refer to
EI-38, "
BODY SIDE TRIM" .
6. Remove mounting clips of front assist grip (RH) and rear assist
grip (LH/RH).
7. Remove sun-visor (LH/RH) mounting screws.
NOTE:
Disconnect vanity mirror illumination harness connector when removing sun-visor.

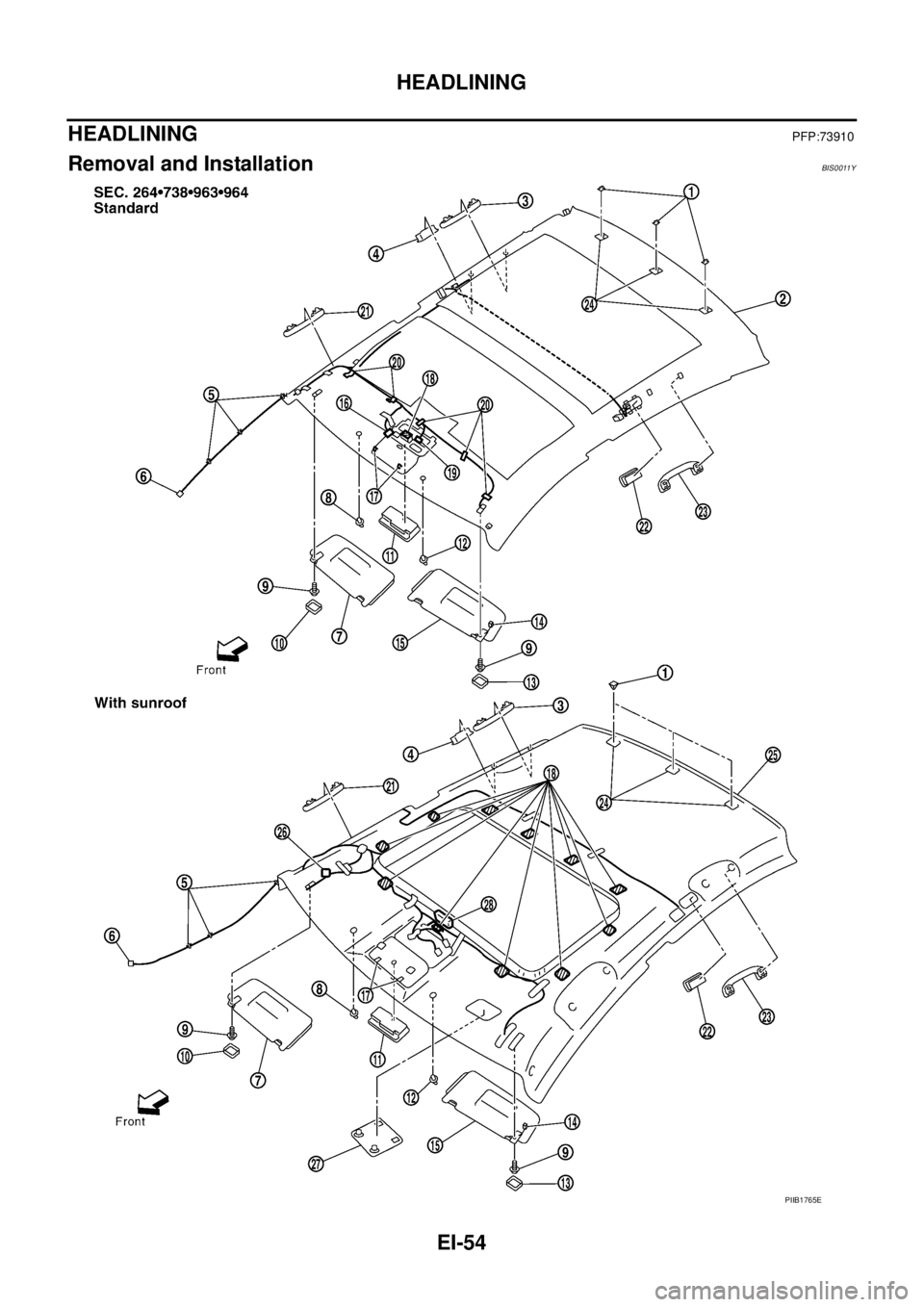

1. Clip (C101) 2. Headlining (standard model) 3. Rear assist grip (RH)
4. Personal lamp (RH) 5. Roof harness securing clip 6. Roof harness connector
7. Sun-visor (RH) 8. Sun-visor holder (RH) 9. Screw
10. Cap (RH) 11. Spot lamp (map lamp) 12. Sun-visor holder (LH)
13. Cap (LH) 14.Vanity mirror illumination harness con-
nector15. Sun-visor (LH)
16.Spot lamp(map lamp) harness
connector (standardmodel)17. Metal clip 18. Dual lock fastener (with sunroof model)
19.Harness connector for hands-
free phone microphone
(model with car wings unit)20.Roof harness securing tape (standard
model)21. Front assist grip (RH)
22. Personal lamp (LH) 23. Rear assist grip (LH) 24. Clip holder
25.Headlining (model with sun-
roof)26.Sunroof motor harness connector
(model with sunroof)27. Front roof finisher (model with sunroof)
28.Roof hook (model with sun-
roof)
PIIA7118E
PIIA6267E
Page 2104 of 3502
EI-56
HEADLINING
8. Remove sun-visor holder (LH/RH).
NOTE:
Insert a screwdriver into the cutout and rotate 90 degrees to
remove.
9. Remove clips from back of front roof finisher, and then pull out
front roof finisher toward front of vehicle to remove it. (with sun-
roof model)
10. Pull out sunroof motor harness connector from front roof finisher
mounting hole to disconnect. (with sunroof model)
11. Pull out spot lamp (map lamp) toward lower side of vehicle and disconnect harness connector.
12. Disconnect harness connector for hands-free phone microphone. (Only for models with Car wings unit)
13. Pull spot lamp holder assembly toward vehicle lower, and disen-
gage dual-lock fastener and metal clips.
SIIA0224J
PIIA9621E
PIIA9622E
PIIA6272E
