NISSAN TEANA 2003 Service Manual DTC P2138 APP SENSOR
EC-279
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

15. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-47, "
Accelerator Pedal Released Position Learn

Page 1562 of 3502

NISSAN TEANA 2003 Service Manual EC-280
[QR]
ELECTRICAL LOAD SIGNAL

ELECTRICAL LOAD SIGNALPFP:25350
DescriptionBBS005I7
The electrical load signal (Headlamp switch signal, rear window defogger switch signal, etc.) is transferred
th

Page 1563 of 3502

NISSAN TEANA 2003 Service Manual ELECTRICAL LOAD SIGNAL
EC-281
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

3. CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
Check “HEATER FAN SW” indication under the following conditions.
OK or NG
OK >>IN

Page 1564 of 3502

NISSAN TEANA 2003 Service Manual EC-282
[QR]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVEPFP:14920
DescriptionBBS005IA
SYSTEM DESCRIPTION
*1: ECM determines the start signal s

EC-282
[QR]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVEPFP:14920
DescriptionBBS005IA
SYSTEM DESCRIPTION
*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.
This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-
sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP
canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the
ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is
determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor
from the EVAP canister is regulated as the air flow changes.
COMPONENT DESCRIPTION
The EVAP canister purge volume control solenoid valve uses a ON/
OFF duty to control the flow rate of fuel vapor from the EVAP canis-
ter. The EVAP canister purge volume control solenoid valve is
moved by ON/OFF pulses from the ECM. The longer the ON pulse,
the greater the amount of fuel vapor that will flow through the valve.
CONSULT-II Reference Value in Data Monitor ModeBBS005IB
Specification data are reference values.
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
1
EVAP canister
purge flow controlEVAP canister purge volume
control solenoid valve Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Battery
Battery voltage*1
Throttle position sensor Throttle position
Accelerator pedal position sensor Closed throttle position
Heated oxygen sensor 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)
Wheel sensor
Vehicle speed*
2
SEF337U
MONITOR ITEM CONDITION SPECIFICATION
PURG VOL C/V
Engine: After warming up
Air conditioner switch: OFF
Shift lever: N
No loadIdle 0%
2,000 rpm 20 - 30%

Page 1565 of 3502

NISSAN TEANA 2003 Service Manual EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-283
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

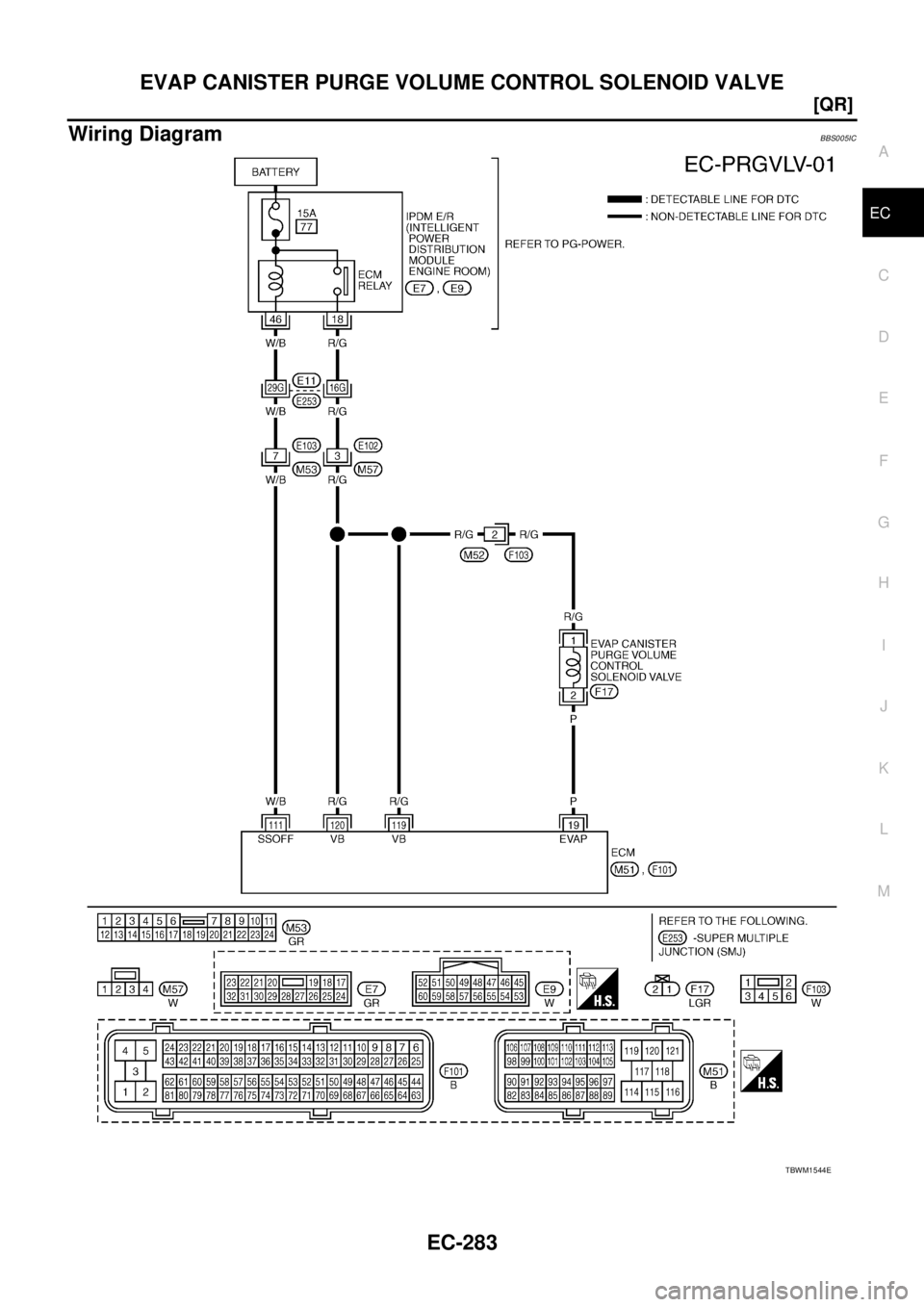

Wiring DiagramBBS005IC
TBWM1544E

Page 1566 of 3502

NISSAN TEANA 2003 Service Manual EC-284
[QR]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTI

Page 1567 of 3502

NISSAN TEANA 2003 Service Manual EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-285
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EC

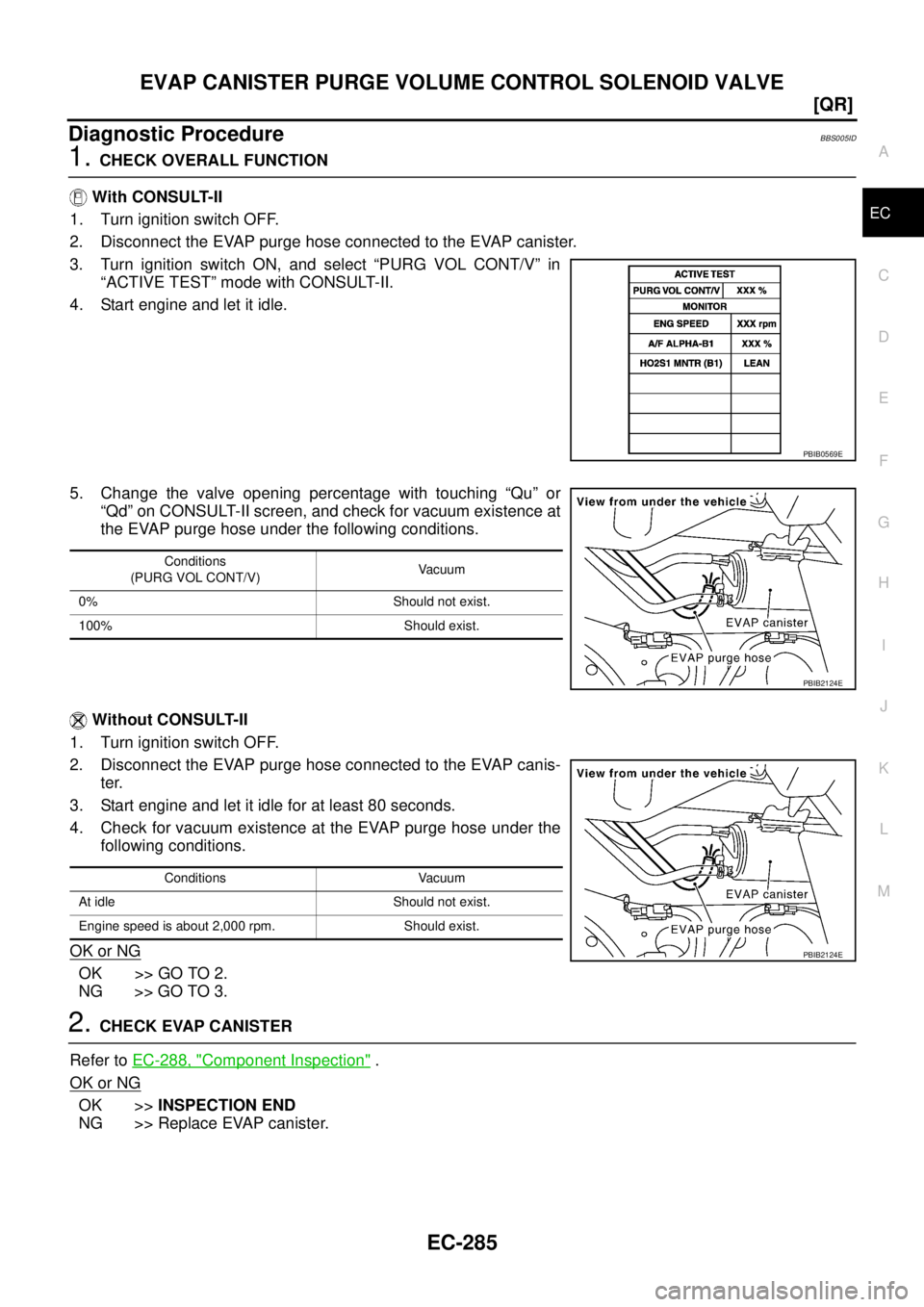

Diagnostic ProcedureBBS005ID
1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch OFF.
2. Discon

Page 1568 of 3502

NISSAN TEANA 2003 Service Manual EC-286
[QR]
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

3. CHECK EVAP PURGE LINE
Check EVAP purge line (pipe, rubber tube, fuel tank and EVAP canister) for cracks or improper connection.
Refer
