FRONT DISC BRAKE
BR-31
C
D
E
G
H
I
J
K
L
MA
B
BR

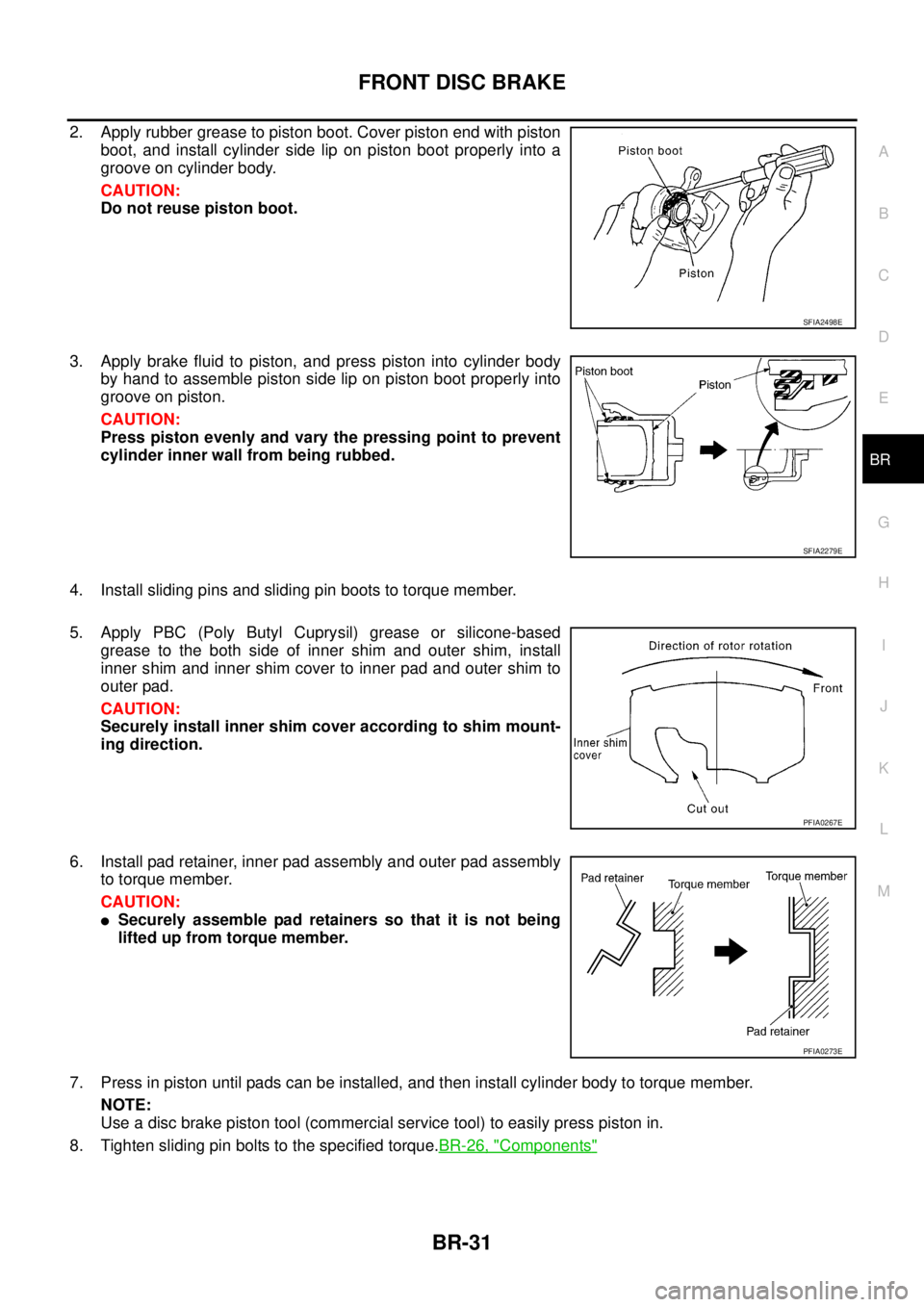

2. Apply rubber grease to piston boot. Cover piston end with piston
boot, and install cylinder side lip on piston boot properly into a
groove on cylinder body.
CAUTION:
Do not reuse piston boot.
3. Apply brake fluid to piston, and press piston into cylinder body
by hand to assemble piston side lip on piston boot properly into
groove on piston.
CAUTION:
Press piston evenly and vary the pressing point to prevent
cylinder inner wall from being rubbed.
4. Install sliding pins and sliding pin boots to torque member.
5. Apply PBC (Poly Butyl Cuprysil) grease or silicone-based
grease to the both side of inner shim and outer shim, install
inner shim and inner shim cover to inner pad and outer shim to
outer pad.
CAUTION:
Securely install inner shim cover according to shim mount-
ing direction.
6. Install pad retainer, inner pad assembly and outer pad assembly
to torque member.
CAUTION:
Securely assemble pad retainers so that it is not being
lifted up from torque member.
7. Press in piston until pads can be installed, and then install cylinder body to torque member.
NOTE:
Use a disc brake piston tool (commercial service tool) to easily press piston in.
8. Tighten sliding pin bolts to the specified torque.BR-26, "
Components"
SFIA2498E
SFIA2279E
PFIA0267E
PFIA0273E
Page 850 of 3502

BR-32
FRONT DISC BRAKE

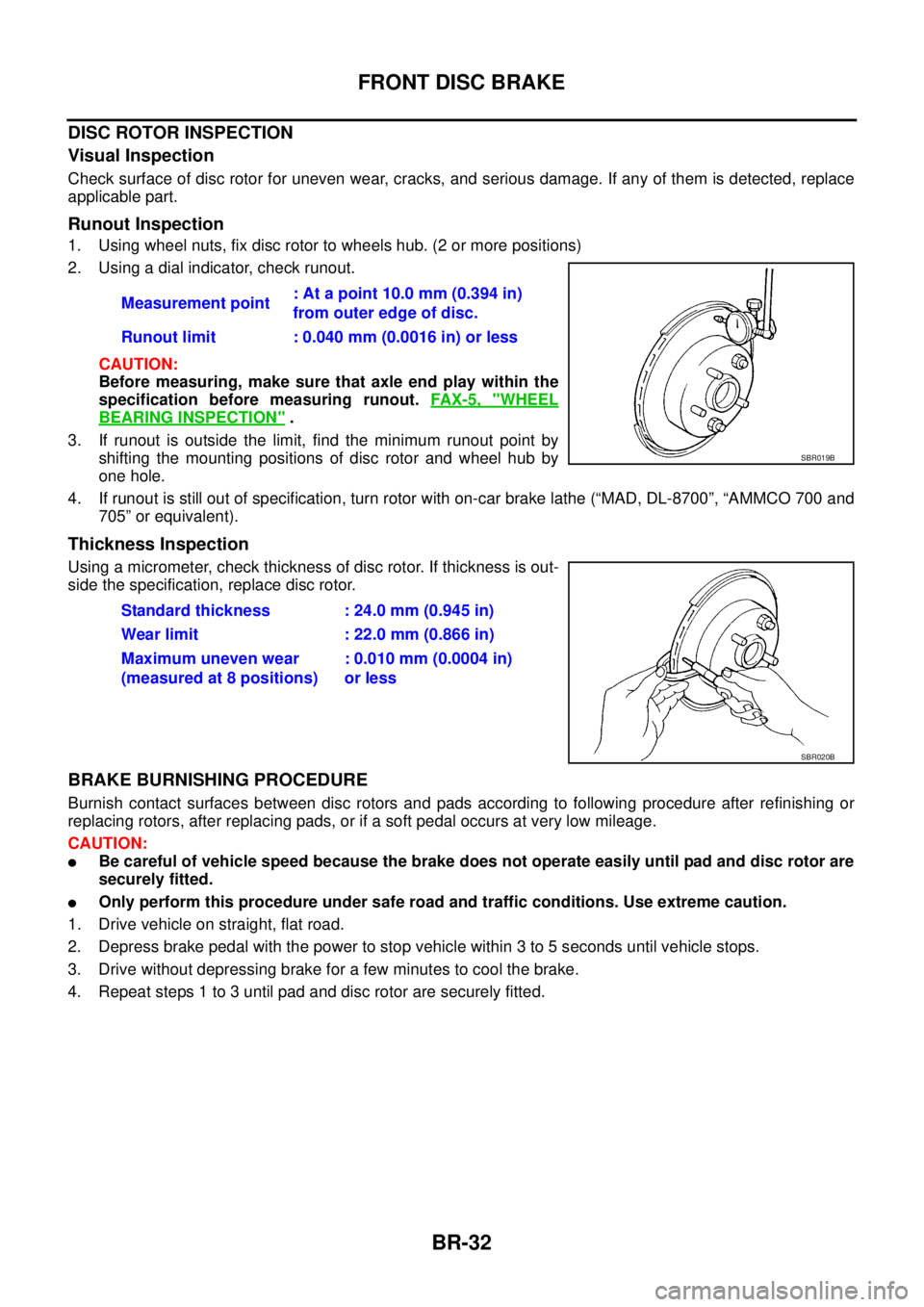

DISC ROTOR INSPECTION
Visual Inspection
Check surface of disc rotor for uneven wear, cracks, and serious damage. If any of them is detected, replace
applicable part.
Runout Inspection
1. Using wheel nuts, fix disc rotor to wheels hub. (2 or more positions)
2. Using a dial indicator, check runout.
CAUTION:
Before measuring, make sure that axle end play within the
specification before measuring runout. FAX-5 , "
WHEEL
BEARING INSPECTION" .
3. If runout is outside the limit, find the minimum runout point by
shifting the mounting positions of disc rotor and wheel hub by
one hole.
4. If runout is still out of specification, turn rotor with on-car brake lathe (“MAD, DL-8700”, “AMMCO 700 and
705” or equivalent).
Thickness Inspection
Using a micrometer, check thickness of disc rotor. If thickness is out-
side the specification, replace disc rotor.
BRAKE BURNISHING PROCEDURE
Burnish contact surfaces between disc rotors and pads according to following procedure after refinishing or
replacing rotors, after replacing pads, or if a soft pedal occurs at very low mileage.
CAUTION:
Be careful of vehicle speed because the brake does not operate easily until pad and disc rotor are
securely fitted.
Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1. Drive vehicle on straight, flat road.
2. Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until vehicle stops.
3. Drive without depressing brake for a few minutes to cool the brake.
4. Repeat steps 1 to 3 until pad and disc rotor are securely fitted.Measurement point: At a point 10.0 mm (0.394 in)
from outer edge of disc.
Runout limit : 0.040 mm (0.0016 in) or less
SBR019B
Standard thickness : 24.0 mm (0.945 in)
Wear limit : 22.0 mm (0.866 in)
Maximum uneven wear
(measured at 8 positions): 0.010 mm (0.0004 in)
or less
SBR020B
Page 851 of 3502
REAR DISC BRAKE
BR-33
C
D
E
G
H
I
J
K
L
MA
B
BR
REAR DISC BRAKEPFP:44000
On-Board InspectionBFS000C2
PAD WEAR INSPECTION
Check pad thickness from the inspection hole on cylinder body.
Use a scale for inspection.
ComponentsBFS000C3
Standard thickness : 8.5 mm (0.335 in)
Repair limit thickness : 2.0 mm (0.079 in)
BRA0010D
1. Brake hose 2. Union bolt 3. Copper washer
4. Cap 5. Bleed valve 6. Sliding pin bolt
7. Cylinder body 8. Piston seal 9. Piston
10. Piston boot 11. Retaining ring 12. Inner shim cover
13. Inner shim 14. Inner pad 15. Pad retainer
16. Outer pad 17. Outer shim 18. Outer shim cover
19. Sliding pin boot 20. Bushing 21. Torque member mounting bolt
22. Washer 23. Torque member 24. Pad wear sensor
25. Inner pad (RH)
PFIA0810E
Page 852 of 3502

BR-34
REAR DISC BRAKE
WARNING:
Clean dust on caliper and brake pads with a vacuum dust collector to minimize the hazard of air borne
particles or other materials.
CAUTION:
While removing cylinder body, do never depress brake pedal because piston will pop out.
It is not necessary to remove bolts on torque member and brake hose except for disassembly or
replacement of caliper assembly. In this case, hang cylinder body with wire so as not to stretch
brake hose.
Do not damage piston boot.
If any shim is subject to serious corrosion, replace it with a new one.
Always replace shims and shim covers as a set when replacing brake pads.
Keep rotor clean from brake fluid.
Burnish brake contact surface after refinishing or replacing rotors, after replacing pads, or if a soft
pedal occurs at very low mileage. Refer to BR-39, "
BRAKE BURNISHING PROCEDURE" .
Removal and Installation of Brake PadBFS000C4
REMOVAL
1. Remove tyres from vehicle.
2. Remove upper sliding pin bolt.
3. Suspend cylinder body with wire, and remove pads, pad retainers and shims, and shim covers from
torque member.
INSTALLATION
1. Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease to the bosh side of inner shim and outer
shin, install inner shim, inner shim cover to inner pad, and outer shim, outer shim cover to outer pad.
2. Install pad retainers and pads to torque member.
3. Press in piston until pads can be installed, and then install cylin-
der body to torque member.
NOTE:
Using a disc brake piston tool (commercial service tool) to easily
press piston in.
CAUTION:
When replacing pads with new ones, press in piston until
pads can be installed. In this case, carefully monitor brake
fluid level in reservoir tank because brake fluid will return to
master cylinder reservoir tank.
4. Install upper sliding pin bolt and tighten to the specified torque. Refer to BR-33, "
Components" .
5. Secure disc rotor with wheel nut. Depress brake pedal a few times until it gets a responsive touch.
6. Check rear disc brake for drag.
7. Install tyres to vehicle.
Refer to GI-10, "Components" and the followings for the symbols in the figure.
1: Apply rubber grease.
2: Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease.
3: Apply polyglycol ether based lubricant.
: Apply brake fluid.
PFIA0273E
Page 853 of 3502

REAR DISC BRAKE
BR-35
C
D
E
G
H
I
J
K
L
MA
B
BR
Removal and Installation of Brake Caliper AssemblyBFS000C5
REMOVAL
1. Remove tyres from vehicle.
2. Secure disc rotor using wheel nut to wheel hub.
CAUTION:
Do not drop brake pad.
Put matching marks on both disc rotor and wheel hub
before removing disc rotor, if it is necessary to remove
disc rotor.
3. Drain brake fluid. Refer to BR-9, "
Drain and Refill" .
4. Remove union bolt and then disconnect brake hose from caliper
assembly.
5. Remove torque member bolts, and remove brake caliper
assembly.
6. Remove disc rotor.
INSTALLATION
CAUTION:
Refill with new brake fluid “DOT 3 or DOT 4”.
Do not reuse drained brake fluid.
1. Install disc rotor.
CAUTION:
Align the matching marks of disc rotor and wheel hub,
which were marked at the time of removal when reusing
disc rotor.
2. Install brake caliper assembly to vehicle, and tighten torque
member mounting bolts to the specified torque. refer to BR-33,
"Components" .
CAUTION:
Before installing torque member to vehicle, oil and grease
on washer seats on setting knuckle and torque member.
3. Install L-shaped pin of brake hose to caliper assembly as shown
in the figure, and then tighten union bolt to the specified torque.
Refer to BR-33, "
Components" .
CAUTION:
Do not reuse copper washer for union bolt.
Securely install brake hose to protrusion on caliper
assembly.
4. Refill with new brake fluid and bleed air. Refer to BR-10, "
Bleed-
ing Brake System" .
5. Check rear disc brake for drag.
6. Install tyres to vehicle.
SDIA2638E
PFIA0413E
SDIA2638E
SFIA2049E
Page 854 of 3502
BR-36
REAR DISC BRAKE

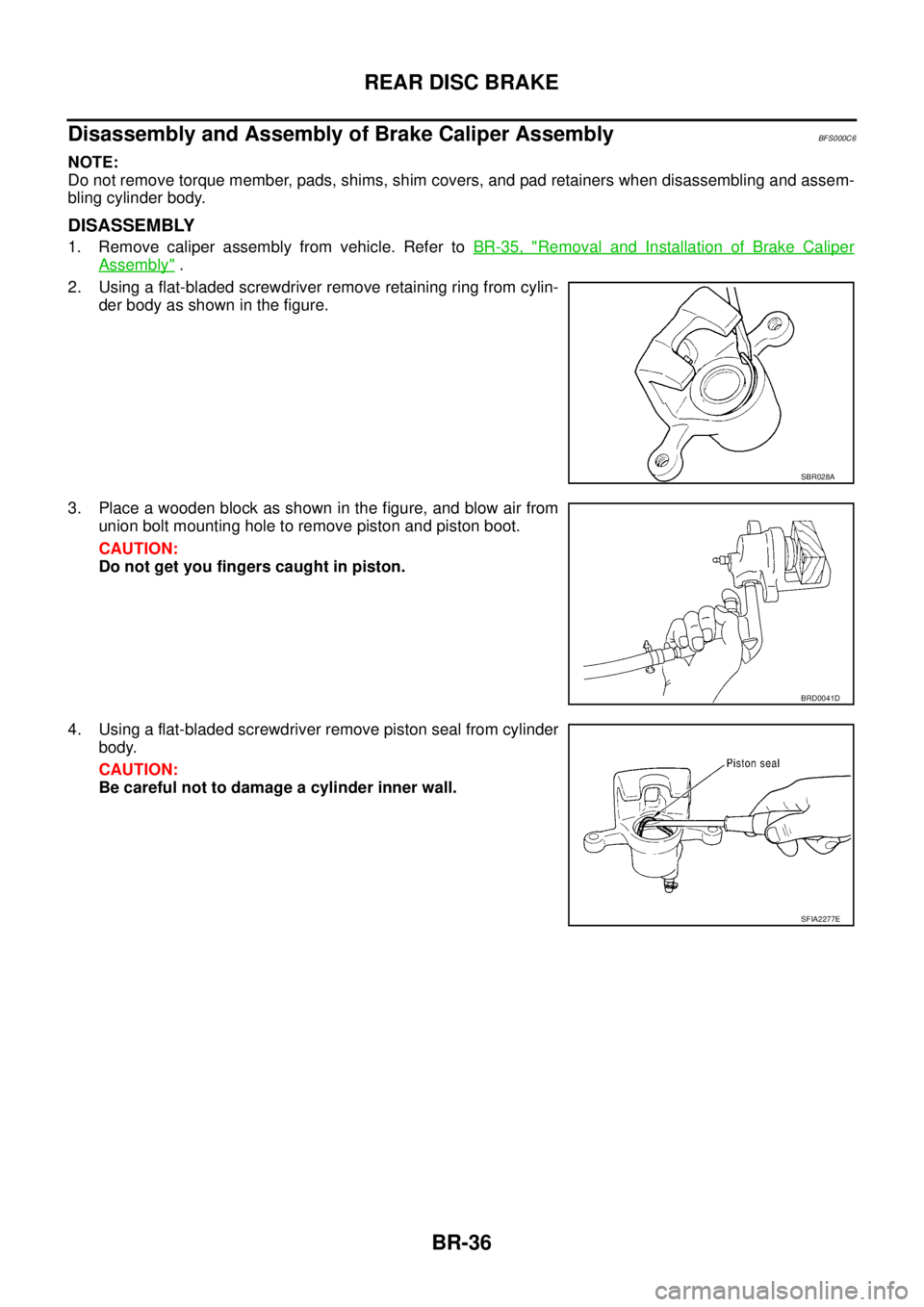

Disassembly and Assembly of Brake Caliper AssemblyBFS000C6
NOTE:
Do not remove torque member, pads, shims, shim covers, and pad retainers when disassembling and assem-
bling cylinder body.
DISASSEMBLY
1. Remove caliper assembly from vehicle. Refer to BR-35, "Removal and Installation of Brake Caliper
Assembly" .
2. Using a flat-bladed screwdriver remove retaining ring from cylin-
der body as shown in the figure.
3. Place a wooden block as shown in the figure, and blow air from
union bolt mounting hole to remove piston and piston boot.
CAUTION:
Do not get you fingers caught in piston.
4. Using a flat-bladed screwdriver remove piston seal from cylinder
body.
CAUTION:
Be careful not to damage a cylinder inner wall.
SBR028A
BRD0041D
SFIA2277E
Page 855 of 3502

REAR DISC BRAKE
BR-37
C
D
E
G
H
I
J
K
L
MA
B
BR

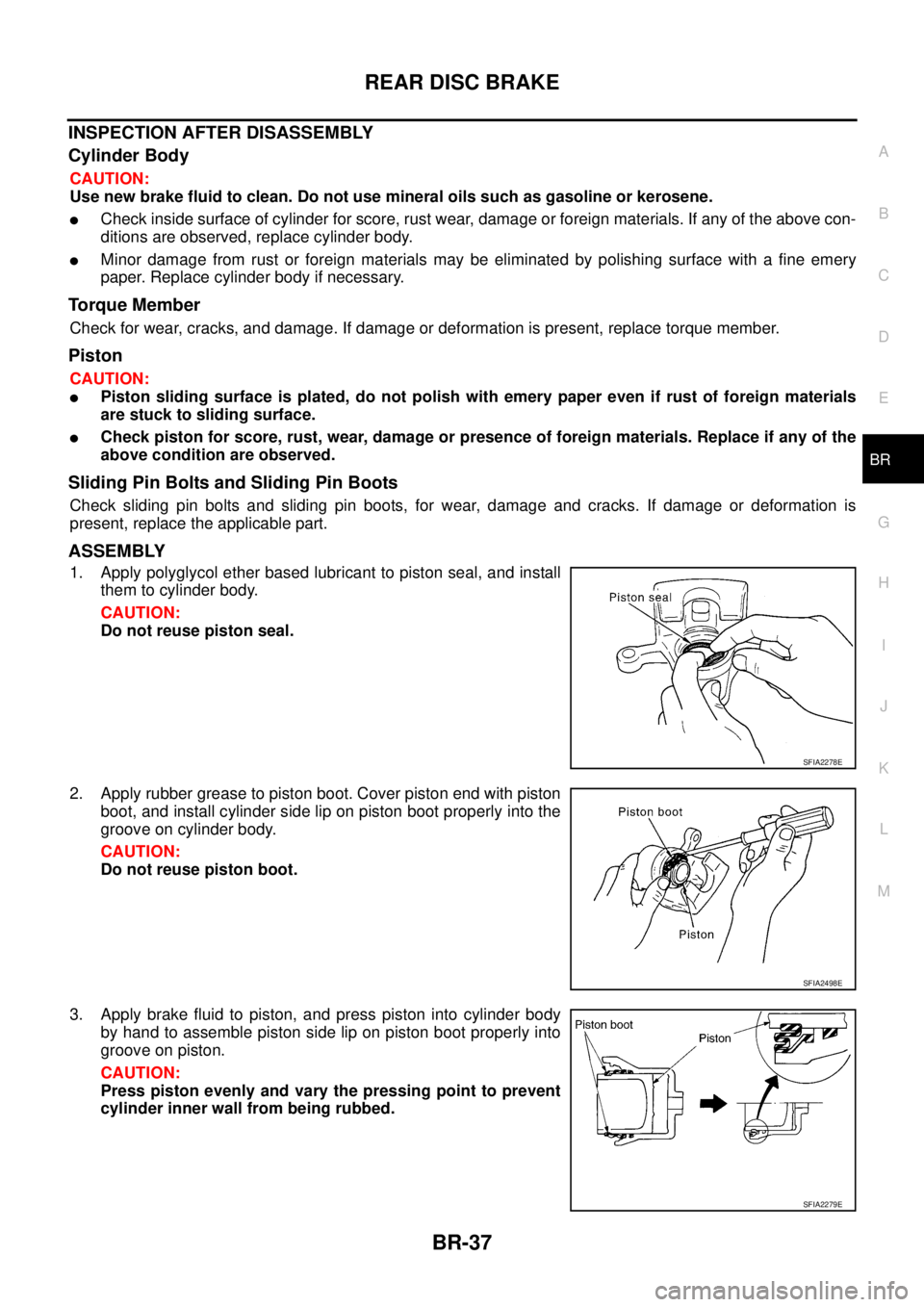

INSPECTION AFTER DISASSEMBLY
Cylinder Body
CAUTION:
Use new brake fluid to clean. Do not use mineral oils such as gasoline or kerosene.
Check inside surface of cylinder for score, rust wear, damage or foreign materials. If any of the above con-
ditions are observed, replace cylinder body.
Minor damage from rust or foreign materials may be eliminated by polishing surface with a fine emery
paper. Replace cylinder body if necessary.
To r q u e M e m b e r
Check for wear, cracks, and damage. If damage or deformation is present, replace torque member.
Piston
CAUTION:
Piston sliding surface is plated, do not polish with emery paper even if rust of foreign materials
are stuck to sliding surface.
Check piston for score, rust, wear, damage or presence of foreign materials. Replace if any of the
above condition are observed.
Sliding Pin Bolts and Sliding Pin Boots
Check sliding pin bolts and sliding pin boots, for wear, damage and cracks. If damage or deformation is
present, replace the applicable part.
ASSEMBLY
1. Apply polyglycol ether based lubricant to piston seal, and install
them to cylinder body.
CAUTION:
Do not reuse piston seal.
2. Apply rubber grease to piston boot. Cover piston end with piston
boot, and install cylinder side lip on piston boot properly into the
groove on cylinder body.
CAUTION:
Do not reuse piston boot.
3. Apply brake fluid to piston, and press piston into cylinder body
by hand to assemble piston side lip on piston boot properly into
groove on piston.
CAUTION:
Press piston evenly and vary the pressing point to prevent
cylinder inner wall from being rubbed.
SFIA2278E
SFIA2498E
SFIA2279E
Page 856 of 3502
BR-38
REAR DISC BRAKE

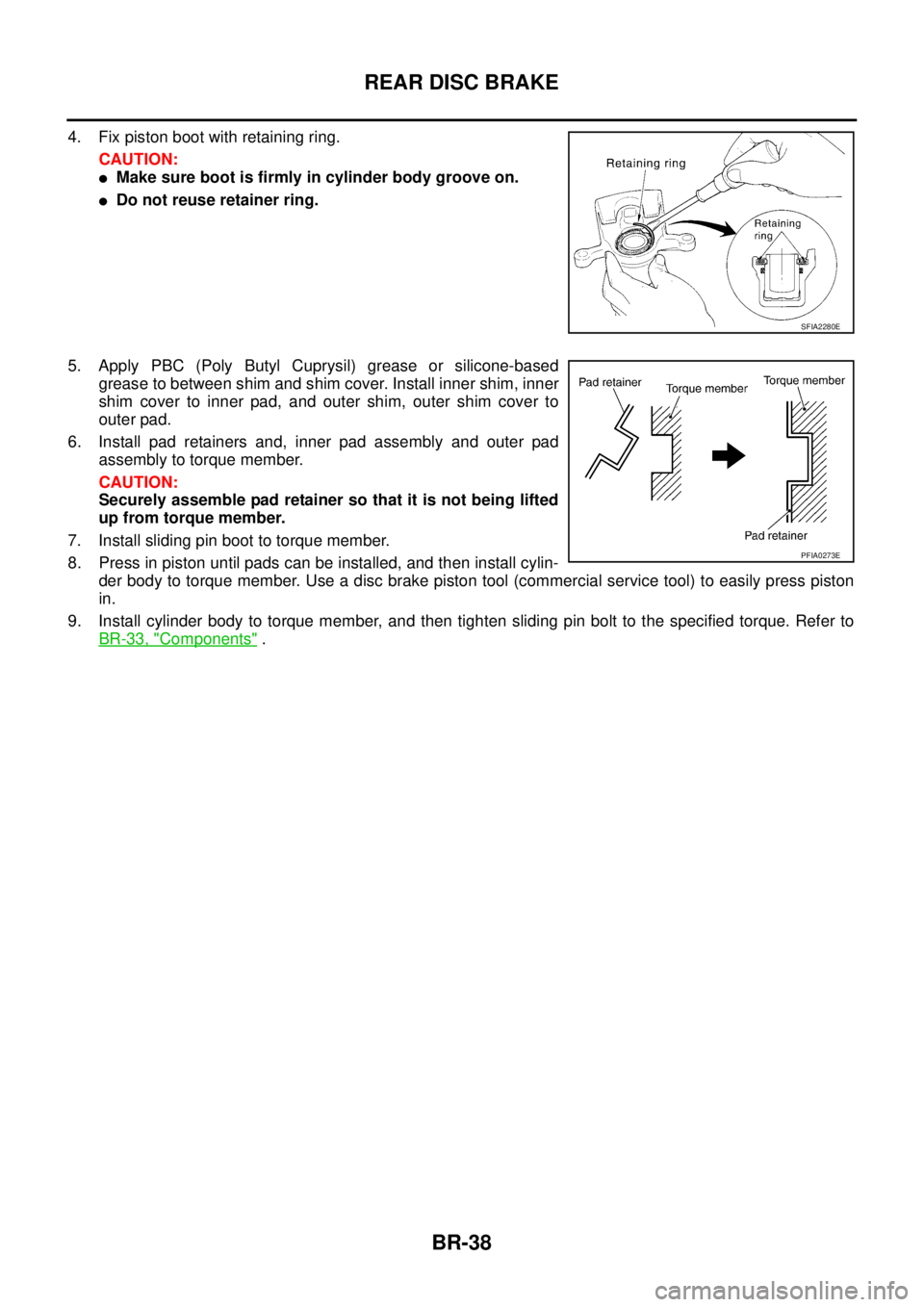

4. Fix piston boot with retaining ring.
CAUTION:
Make sure boot is firmly in cylinder body groove on.
Do not reuse retainer ring.
5. Apply PBC (Poly Butyl Cuprysil) grease or silicone-based
grease to between shim and shim cover. Install inner shim, inner
shim cover to inner pad, and outer shim, outer shim cover to
outer pad.
6. Install pad retainers and, inner pad assembly and outer pad
assembly to torque member.
CAUTION:
Securely assemble pad retainer so that it is not being lifted
up from torque member.
7. Install sliding pin boot to torque member.
8. Press in piston until pads can be installed, and then install cylin-
der body to torque member. Use a disc brake piston tool (commercial service tool) to easily press piston
in.
9. Install cylinder body to torque member, and then tighten sliding pin bolt to the specified torque. Refer to
BR-33, "
Components" .
SFIA2280E
