Check Door Lock Actuator Output SignalBIS000W9

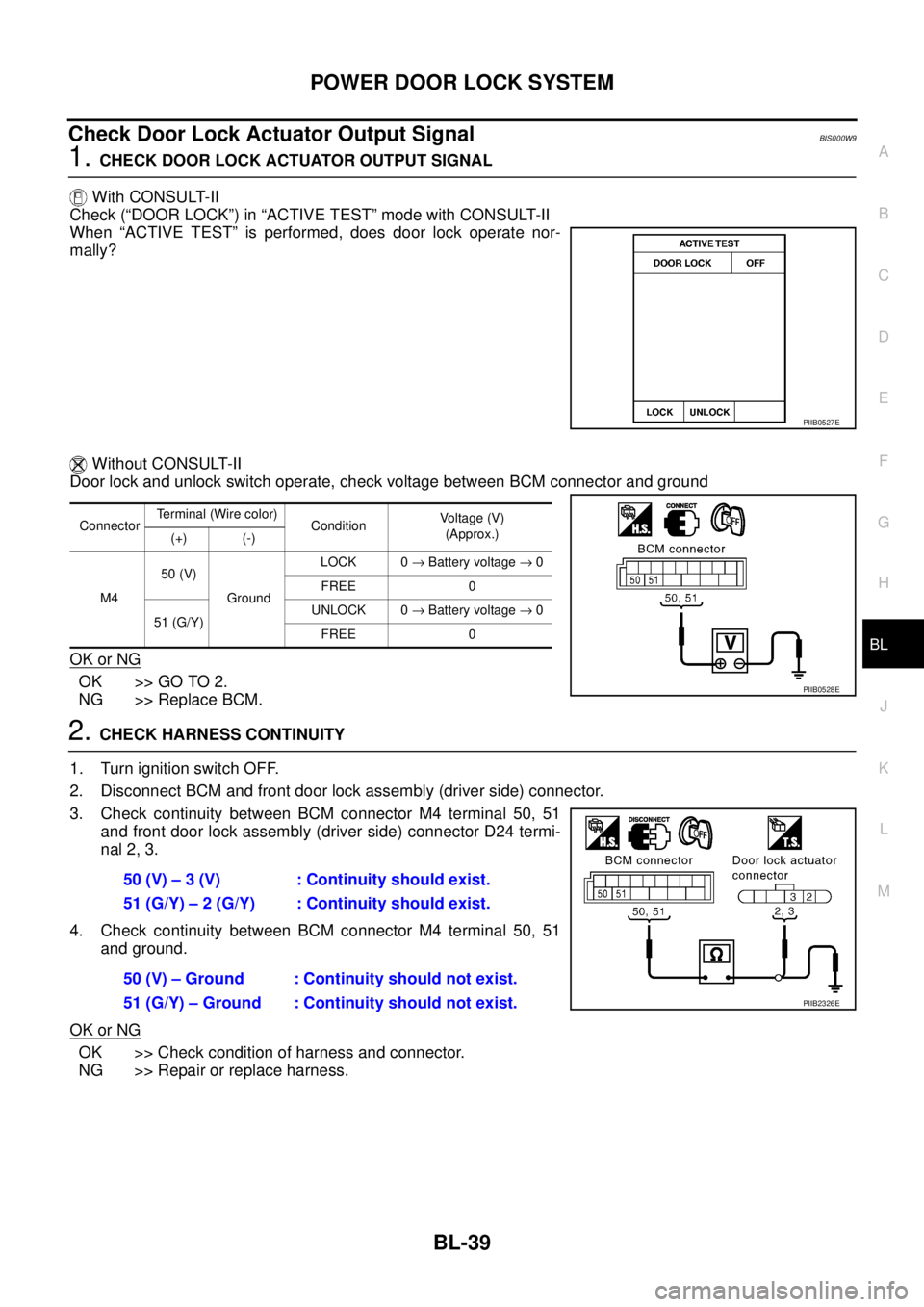

1. CHECK DOOR LOCK ACTUATOR OUTPUT SIGNAL
With CONSULT-II
Check (“DOOR LOCK”) in “ACTIVE TEST” mode with CONSULT-II
When “ACTIVE TEST” is performed, does door lock operate nor-
mally?
Without CONSULT-II
Door lock and unlock switch operate, check voltage between BCM connector and ground
OK or NG
OK >> GO TO 2.
NG >> Replace BCM.
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and front door lock assembly (driver side) connector.
3. Check continuity between BCM connector M4 terminal 50, 51
and front door lock assembly (driver side) connector D24 termi-
nal 2, 3.
4. Check continuity between BCM connector M4 terminal 50, 51
and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Repair or replace harness.
PIIB0527E
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
M450 (V)
GroundLOCK 0 → Battery voltage → 0
FREE 0
51 (G/Y)UNLOCK 0 → Battery voltage → 0
FREE 0
PIIB0528E
50 (V) – 3 (V) : Continuity should exist.
51 (G/Y) – 2 (G/Y) : Continuity should exist.
50 (V) – Ground : Continuity should not exist.
51 (G/Y) – Ground : Continuity should not exist.
PIIB2326E
Page 698 of 3502

BL-40
POWER DOOR LOCK SYSTEM
Check Door Lock Actuator CircuitBIS000WA
(DRIVER SIDE AND REAR LH)
1. CHECK DOOR LOCK ACTUATOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect door lock actuator (driver side or rear LH) connector.
3. Door lock and unlock switch operate, check voltage between
door lock actuator connector and ground.
OK or NG
OK >> Replace malfunction door lock actuator.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Disconnect BCM connector.

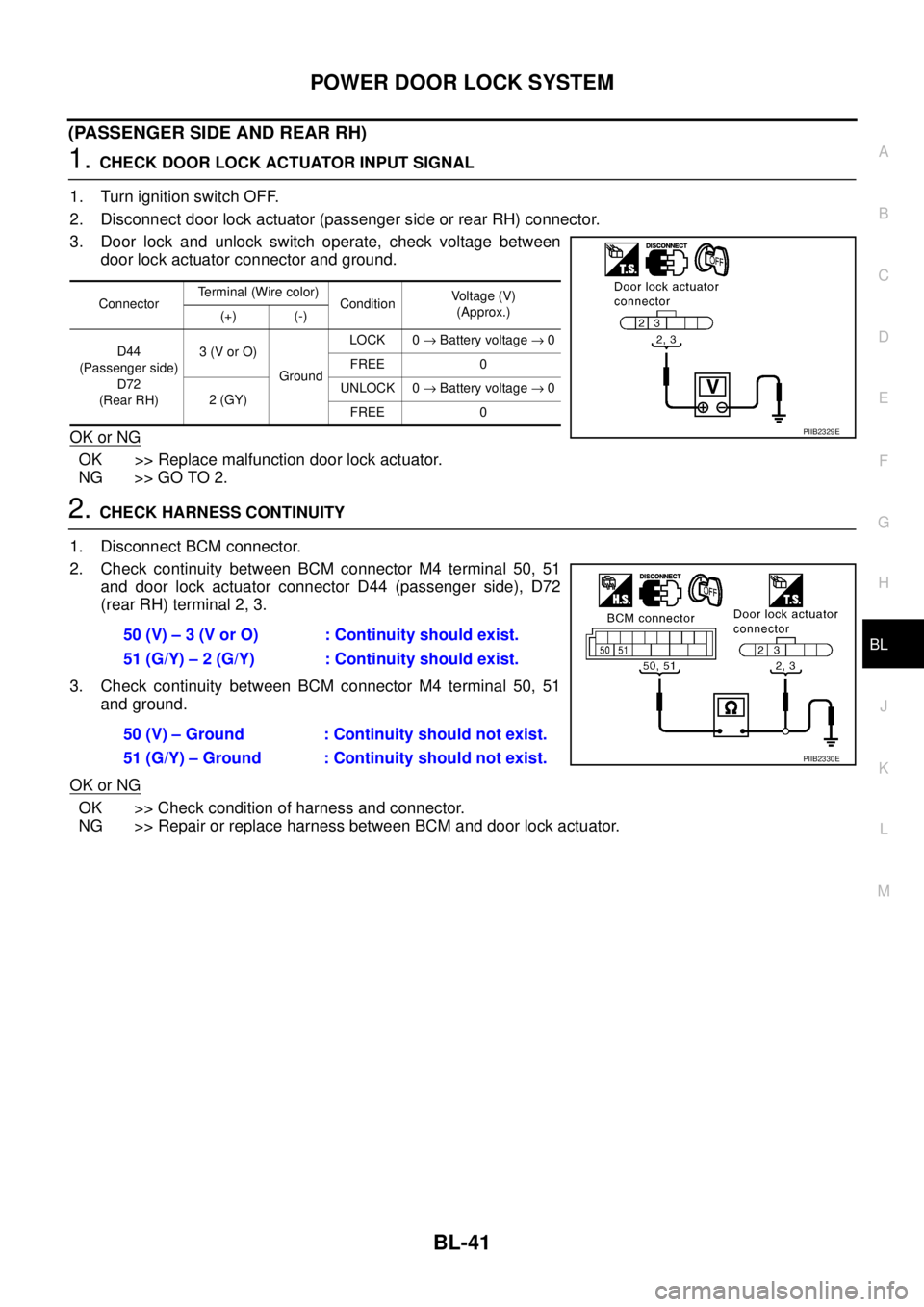

2. Check continuity between BCM connector M4 terminal 50, 51
and door lock actuator connector D24 (driver side), D52 (rear
LH) terminal 2, 3.
3. Check continuity between BCM connector M4 terminal 50, 51
and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Repair or replace harness between BCM and door lock actuator.
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D24
(Driver side)
D52
(Rear LH)3 (V)
GroundLOCK 0 → Battery voltage → 0
FREE 0
2
(G/B or G/Y)UNLOCK 0 → Battery voltage → 0
FREE 0
PIIB2327E
50 (V) – 3 (V) : Continuity should exist.
51 (G/Y) – 2 (G/B or G/Y) : Continuity should exist.
50 (V) – Ground : Continuity should not exist.
51 (G/Y) – Ground : Continuity should not exist.
PIIB2326E
Page 699 of 3502

POWER DOOR LOCK SYSTEM
BL-41
C
D
E
F
G
H
J
K
L
MA
B
BL
(PASSENGER SIDE AND REAR RH)
1. CHECK DOOR LOCK ACTUATOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect door lock actuator (passenger side or rear RH) connector.
3. Door lock and unlock switch operate, check voltage between
door lock actuator connector and ground.
OK or NG
OK >> Replace malfunction door lock actuator.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Disconnect BCM connector.
2. Check continuity between BCM connector M4 terminal 50, 51
and door lock actuator connector D44 (passenger side), D72
(rear RH) terminal 2, 3.
3. Check continuity between BCM connector M4 terminal 50, 51
and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Repair or replace harness between BCM and door lock actuator.
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D44
(Passenger side)
D72
(Rear RH)3 (V or O)
GroundLOCK 0 → Battery voltage → 0
FREE 0
2 (GY)UNLOCK 0 → Battery voltage → 0
FREE 0
PIIB2329E
50 (V) – 3 (V or O) : Continuity should exist.
51 (G/Y) – 2 (G/Y) : Continuity should exist.
50 (V) – Ground : Continuity should not exist.
51 (G/Y) – Ground : Continuity should not exist.
PIIB2330E
Page 700 of 3502

BL-42
POWER DOOR LOCK SYSTEM
Check Door Unlock SensorBIS000WB
1. CHECK DOOR UNLOCK SENSOR SIGNAL
With CONSULT-II
Check lock status (“LOCK STATUS”) in DATA MONITOR mode with CONSULT-II.
When driver side door lock knob is turned to LOCK:
When driver side door lock knob is turned to UNLOCK
Without CONSULT-II
Driver side door lock knob operate, check voltage between BCM connector and ground
OK or NG
OK >> Door unlock sensor is OK.
NG >> GO TO 2.
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and front door lock assembly (driver side) connector.
3. Check continuity between BCM connector M3 terminal 7 and
front door lock assembly (driver side) connector D24 terminal 4.
4. Check continuity between BCM connector M3 terminal 8 and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between BCM and front door
lock assembly (driver side). LOCK STATUS : OFF
LOCK STATUS : ON
PIIB0533E
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
M3 7 (LG/R) GroundDoor lock
knob: LOCK 5
: UNLOCK 0
PIIB8747E
7 (LG/R) – 4 (LG/R) : Continuity should exist.
7 (LG/R) – Ground : Continuity should not exist.
PIIB8748E
Page 701 of 3502
POWER DOOR LOCK SYSTEM
BL-43
C
D
E
F
G
H
J
K
L
MA
B
BL
3. CHECK DOOR UNLOCK SENSOR GROUND CIRCUIT
Check continuity between front door lock assembly (driver side) con-
nector D24 terminal 5 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector M3 terminal 7 and
ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace BCM.5 (B) – Ground : Continuity should exist.
PIIB2332E
7 (LG/R) – Ground : Approx. 5V
PIIB8747E
Page 702 of 3502
BL-44
FUEL FILLER LID OPENER
FUEL FILLER LID OPENERPFP:78820

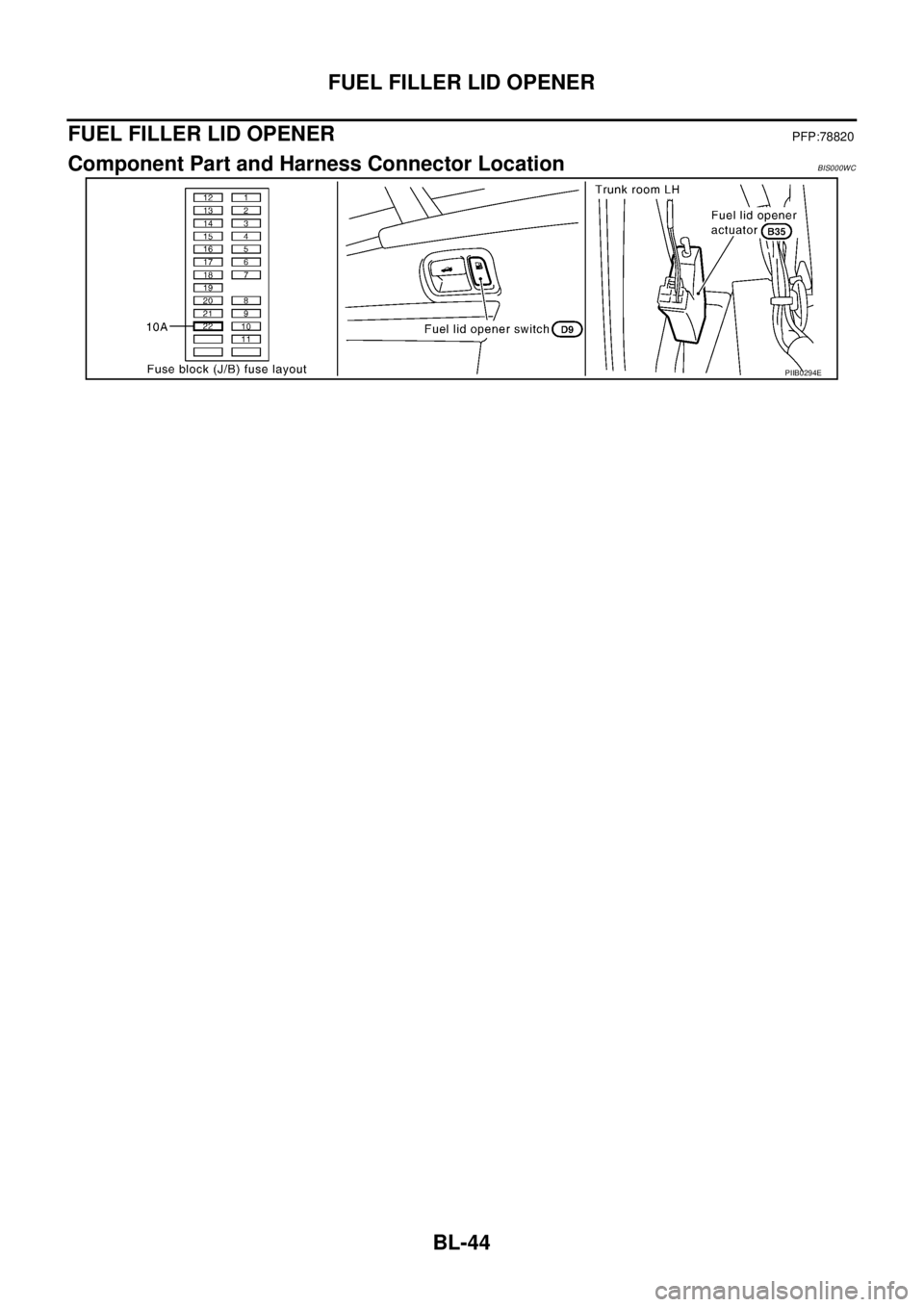

Component Part and Harness Connector LocationBIS000WC
PIIB0294E
Page 703 of 3502
FUEL FILLER LID OPENER
BL-45
C
D
E
F
G
H
J
K
L
MA
B
BL

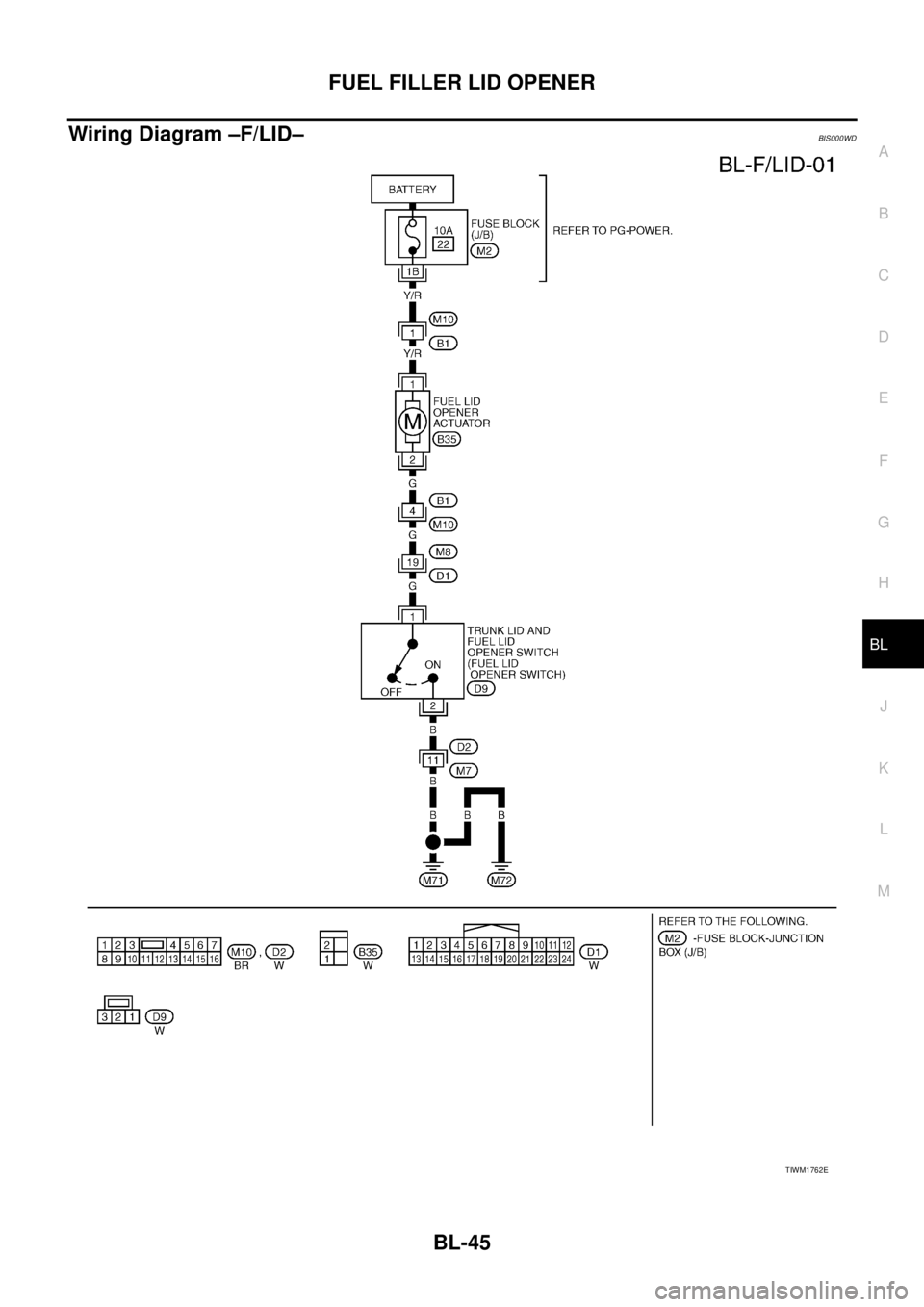

Wiring Diagram –F/LID–BIS000WD
TIWM1762E
Page 704 of 3502

BL-46
REMOTE KEYLESS ENTRY SYSTEM
REMOTE KEYLESS ENTRY SYSTEMPFP:28596
Component Parts and Harness Connector LocationBIS000WE
System DescriptionBIS000WF
INPUTS
Power is supplied at all times
through 50A fusible link (letter M , located in the fuse and fusible link box)
to BCM terminal 55.
through 15A fuse [No. 17, located in the fuse block (J/B)]
to BCM terminal 42.
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied
through 15A fuse [No. 17, located in the fuse block (J/B)]
through key switch terminals 1 and 4
to BCM terminal 37.
When the ignition switch is ACC or ON, power is supplied
through 10A fuse [No. 6, located in the fuse block (J/B)]
to BCM terminal 11.
When the ignition switch is ON or START, power is supplied
through 10A fuse [No. 1, located in the fuse block (J/B)]
1. BCM M3,M4,M5 2. Front door switch B10
(Driver side)3. Rear door switch (LH) B14
4. Key switch and key lock solenoid
connector M345. Trunk lid lock assembly T7
(Trunk room lamp switch)
