Page 2513 of 3502

NISSAN TEANA 2003 Service Manual POWER WINDOW SYSTEM
GW-19
C
D
E
F
G
H
J
K
L
MA
B
GW

through power window main switch terminal 8
through power window main switch terminal 17
through ground M71 and M72.
Then, the motor lowers the

POWER WINDOW SYSTEM
GW-19
C
D
E
F
G
H
J
K
L
MA
B
GW

through power window main switch terminal 8
through power window main switch terminal 17
through ground M71 and M72.
Then, the motor lowers the window until the switch is released.
POWER WINDOW MAIN SWITCH OPERATION
WINDOW UP
When the passenger side switch in the power window main switch is operated in the up position
Power is supplied
through power window main switch terminal 8
through front power window switch (passenger side) terminal 2 and 5
to front power window motor (passenger side) terminal 2.
Ground is supplied
to front power window motor (passenger side) terminal 1
through front power window switch (passenger side) terminal 4 and 3
through power window main switch terminal 11
through power window main switch terminal 17
through ground M71 and M72.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the passenger side switch in the power window main switch is operated in the down position,
Power is supplied
through power window main switch terminal 11
through front power window switch (passenger side) terminal 3 and 4
to front power window motor (passenger side) terminal 1.
Ground is supplied
to front power window motor (passenger side) terminal 2
through front power window switch (passenger side) terminal 5 and 2.
to power window main switch terminal 8
through power window main switch terminal 17
through ground M71 and M72.
Then, the motor raises the window until the switch is released.
Rear Door (RH or LH)
REAR POWER WINDOW SWITCH (RH OR LH) OPERATION
WINDOW UP
When the rear power window switch (RH or LH) is operated in the up position,
Power is supplied
through rear power window switch (RH or LH) terminal 1 and 5
to rear power window motor (RH or LH) terminal 2.
Ground is supplied
to rear power window motor (RH or LH) terminal 1
through rear power window switch (RH or LH) terminal 4 and 3
through power window main switch terminal 5 (RH) or 3 (LH)
through power window main switch terminal 17
through ground M71 and M72.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear power window switch (RH or LH) is operated in the down position,
Power is supplied
through rear power window switch (RH or LH) terminal 1 and 4
to rear power window motor (RH or LH) terminal 1.
Ground is supplied

Page 2514 of 3502

NISSAN TEANA 2003 Service Manual GW-20
POWER WINDOW SYSTEM

to rear power window motor (RH or LH) terminal 2
through rear power window switch (RH or LH) terminal 5 and 2
through power window main switch terminal 7 (RH) or 1 (LH)

GW-20
POWER WINDOW SYSTEM

to rear power window motor (RH or LH) terminal 2
through rear power window switch (RH or LH) terminal 5 and 2
through power window main switch terminal 7 (RH) or 1 (LH)
through power window main switch terminal 17
through ground M71 and M72.
Then, the motor lowers the window until the switch is released.
POWER WINDOW MAIN SWITCH OPERATION
WINDOW UP
When the rear RH or LH switch in the power window main switch is operated in the up position,
Power is supplied
through power window main switch terminal 7 (RH) or 1 (LH).
through rear power window switch (RH or LH) terminal 2 and 5
to rear power window motor (RH or LH) terminal 2.
Ground is supplied
to rear power window motor (RH or LH) terminal 1
through rear power window switch (RH or LH) terminal 4 and 3
through power window main switch terminal 5 (RH) or 3 (LH)
through power window main switch terminal 17
through ground M71 and M72.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the rear RH or LH switch in the power window main switch is operated in the down position,
Power is supplied
through power window main switch terminal 5 (RH) or 3 (LH)
through rear power window switch (RH or LH) terminal 3 and 4
to rear power window motor (RH or LH) terminal 1.
Ground is supplied
to rear power window motor (RH or LH) terminal 2
through rear power window switch (RH or LH) terminal 5 and 2.
to power window main switch terminal 7 (RH) or 1 (LH)
through power window main switch terminal 17
through ground M71 and M72.
Then, the motor raises the window until the switch is released.
POWER WINDOW LOCK
The power window lock is designed to lock operation of all windows except for driver door window.
When power window lock switch is in LOCK position, ground of passenger and rear power window switches in
the power window main switch are disconnected. This prevents the power window motors from operating.
TIMER FUNCTION
When the ignition switch is turned to OFF position from ON or START position, timer operates for 15 minutes.
Driver power window can be operated for 15 minutes.
Timer operation is canceled when one of the following conditions is satisfied.
ignition switch OFF→ ON
front door switch (driver side) ON → OFF

Page 2515 of 3502

NISSAN TEANA 2003 Service Manual POWER WINDOW SYSTEM
GW-21
C
D
E
F
G
H
J
K
L
MA
B
GW

ANTI-PINCH SYSTEM
Power window main switch monitors the power window motor operation and the power window position (full
closed or other) for driv

Page 2516 of 3502

NISSAN TEANA 2003 Service Manual GW-22
POWER WINDOW SYSTEM

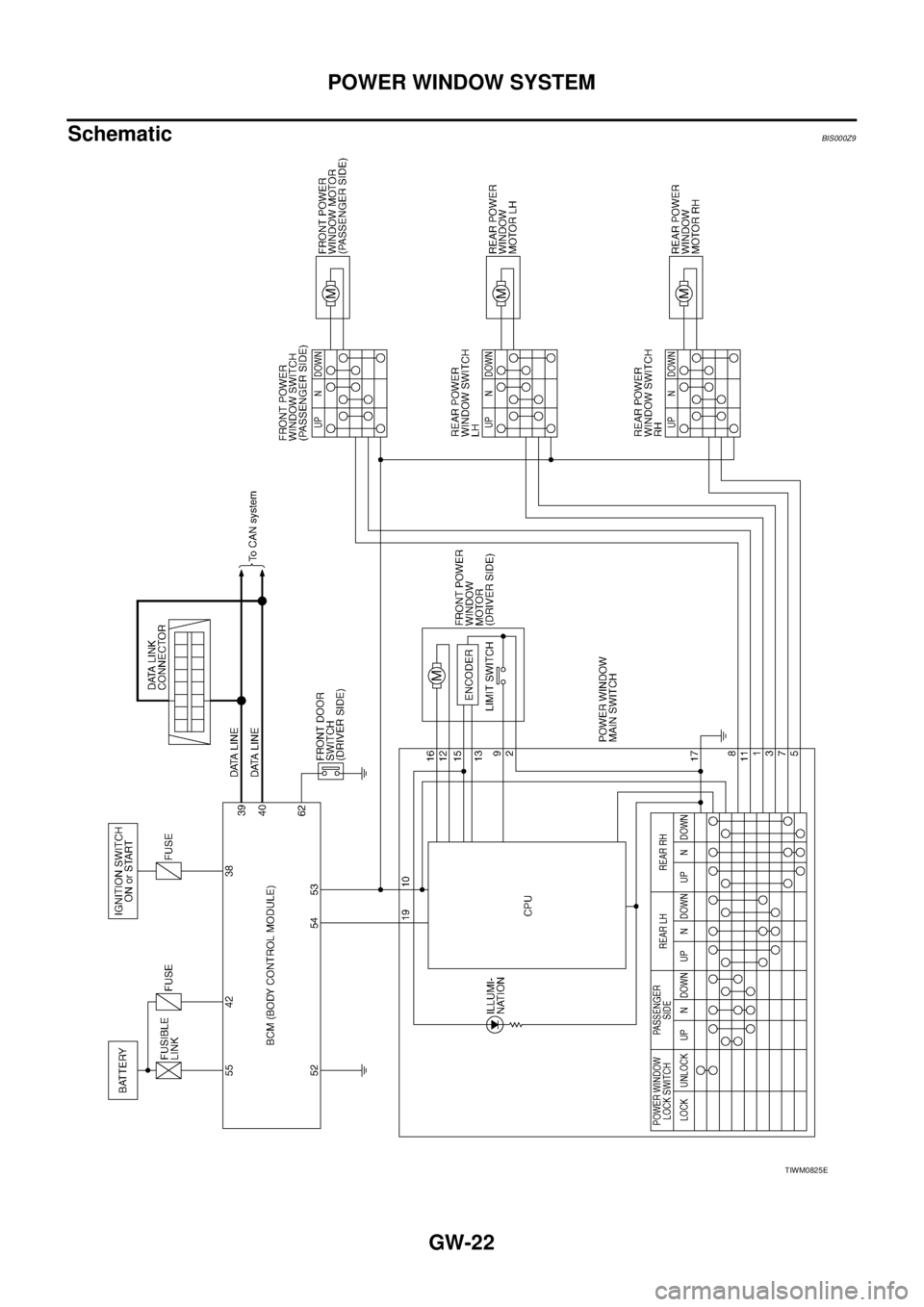

SchematicBIS000Z9
TIWM0825E

Page 2517 of 3502

NISSAN TEANA 2003 Service Manual POWER WINDOW SYSTEM
GW-23
C
D
E
F
G
H
J
K
L
MA
B
GW

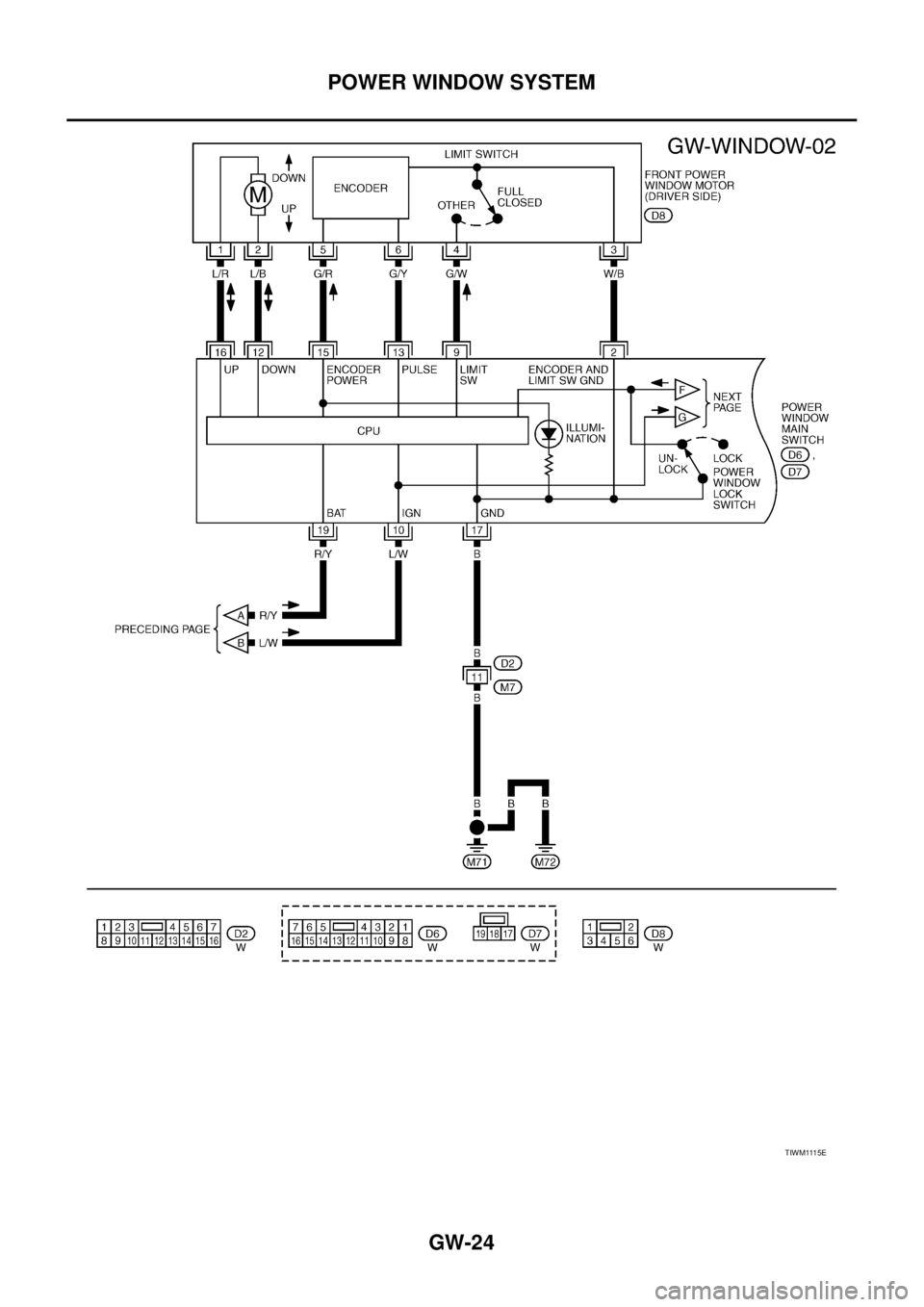

Wiring Diagram — WINDOW —BIS000ZA
TIWM1763E

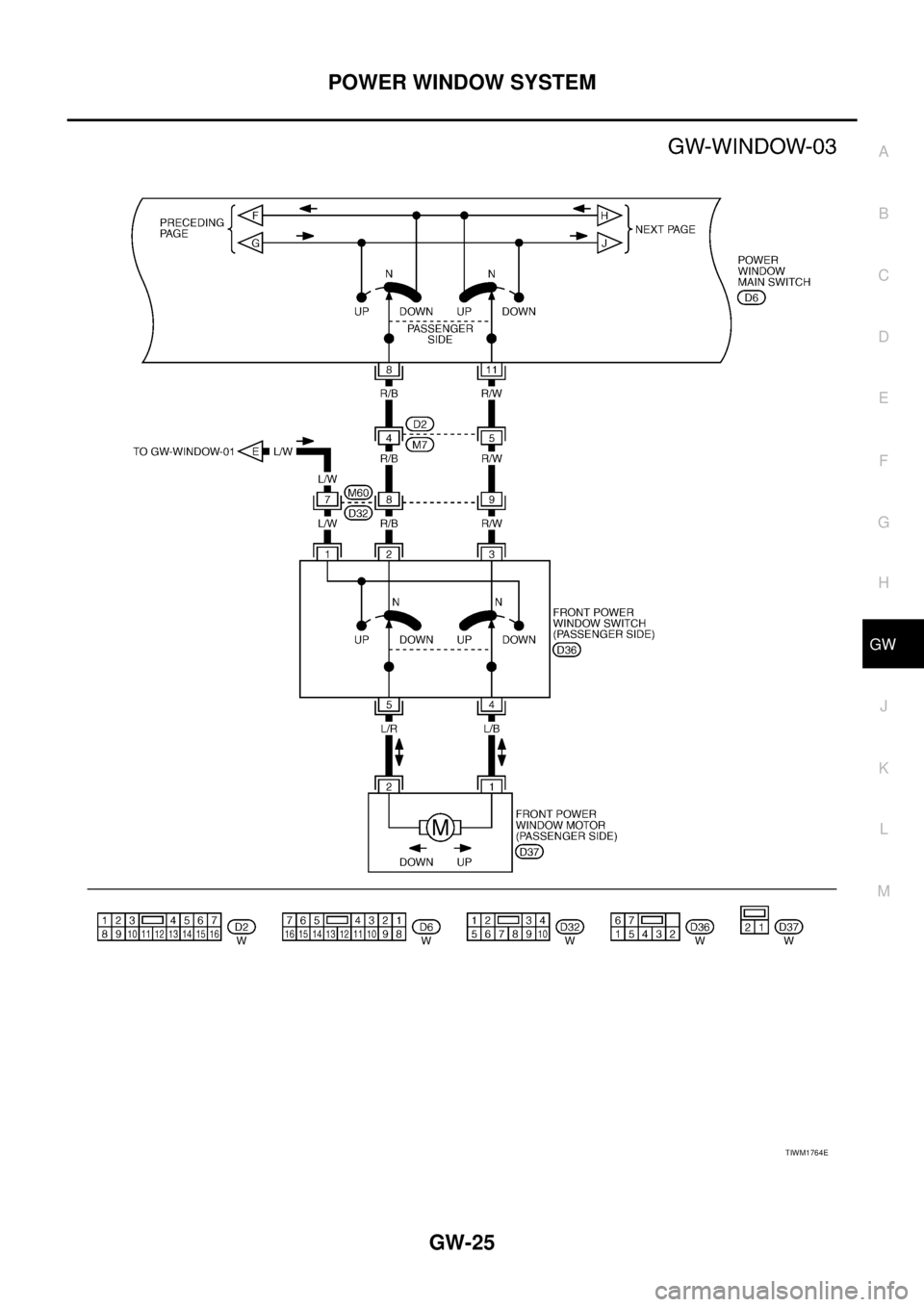

Page 2518 of 3502

NISSAN TEANA 2003 Service Manual GW-24
POWER WINDOW SYSTEM

TIWM1115E

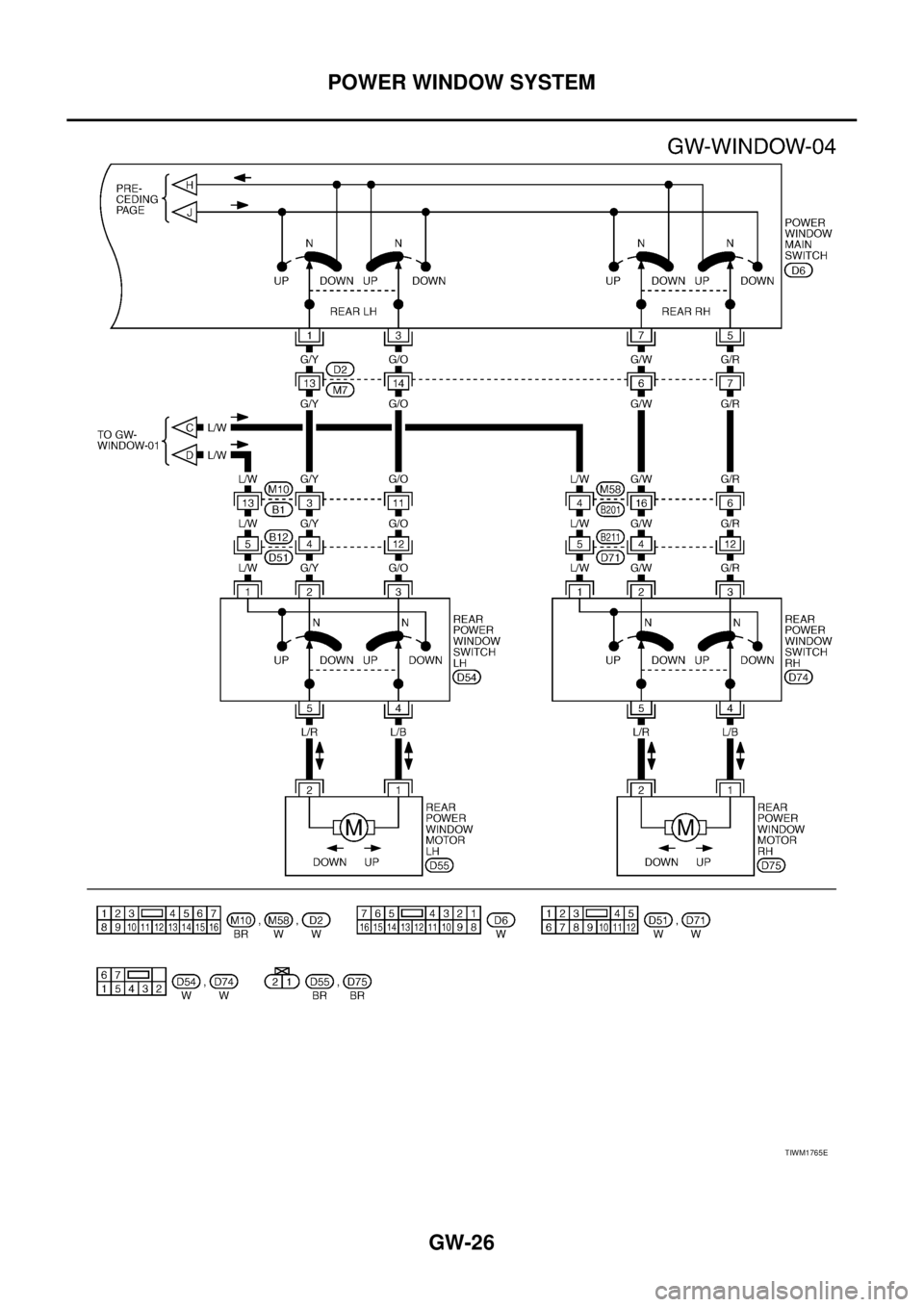

Page 2519 of 3502

NISSAN TEANA 2003 Service Manual POWER WINDOW SYSTEM
GW-25
C
D
E
F
G
H
J
K
L
MA
B
GW

TIWM1764E

Page 2520 of 3502

NISSAN TEANA 2003 Service Manual GW-26
POWER WINDOW SYSTEM

TIWM1765E
