TURN SIGNAL AND HAZARD WARNING LAMPS
LT-169
C
D
E
F
G
H
I
J
L
MA
B
LT

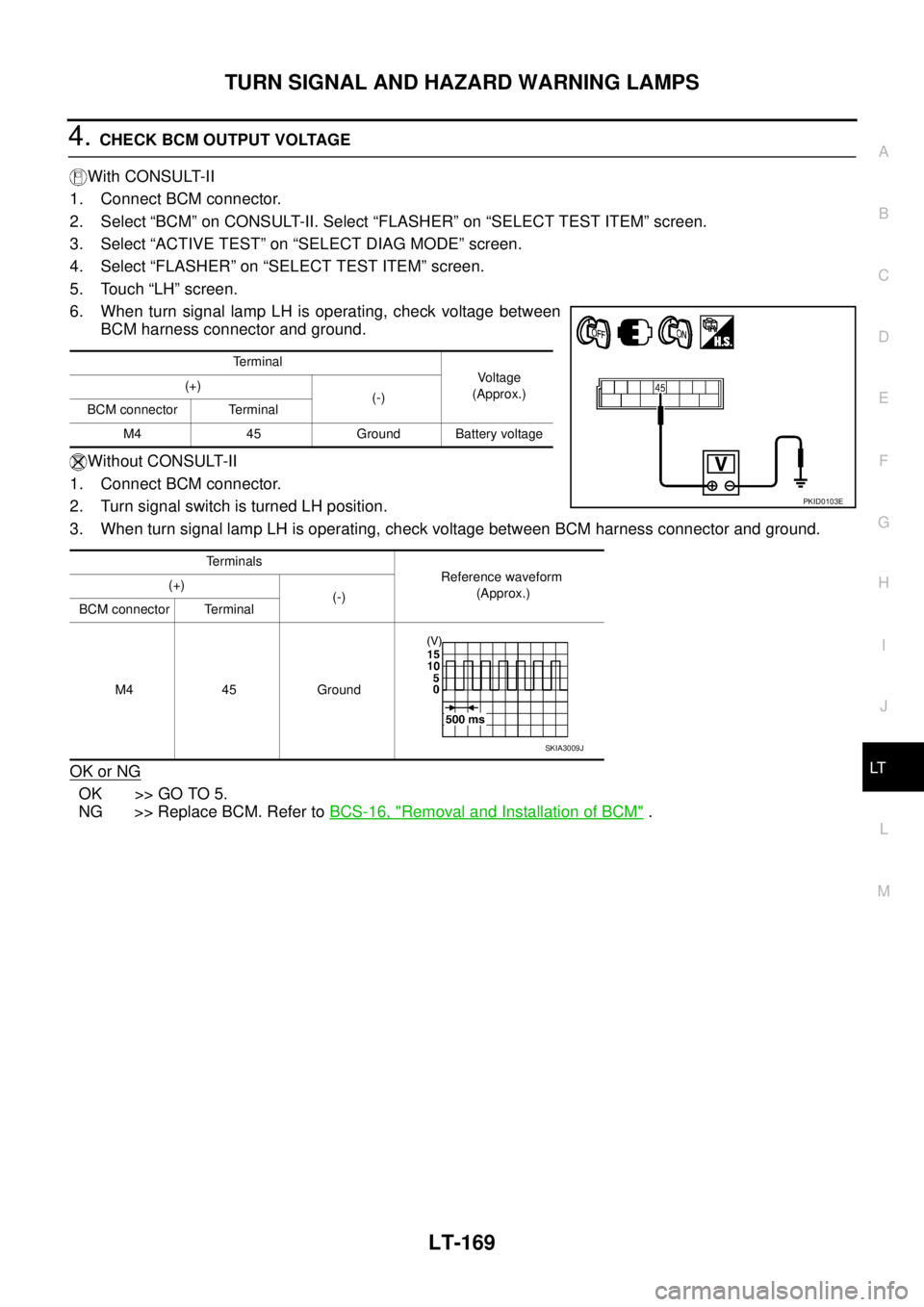

4. CHECK BCM OUTPUT VOLTAGE
With CONSULT-II
1. Connect BCM connector.
2. Select “BCM” on CONSULT-II. Select “FLASHER” on “SELECT TEST ITEM” screen.
3. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “FLASHER” on “SELECT TEST ITEM” screen.
5. Touch “LH” screen.
6. When turn signal lamp LH is operating, check voltage between
BCM harness connector and ground.
Without CONSULT-II
1. Connect BCM connector.
2. Turn signal switch is turned LH position.
3. When turn signal lamp LH is operating, check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 5.
NG >> Replace BCM. Refer to BCS-16, "
Removal and Installation of BCM" .
Terminal
Voltage
(Approx.) (+)
(-)
BCM connector Terminal
M4 45 Ground Battery voltage
Terminals
Reference waveform
(Approx.) (+)
(-)
BCM connector Terminal
M4 45 Ground
PKID0103E
SKIA3009J
Page 2858 of 3502

LT-170
TURN SIGNAL AND HAZARD WARNING LAMPS
5. CHECK CIRCUIT BETWEEN TURN SIGNAL LAMP AND GROUND
1. Turn ignition switch OFF.
2. Check continuity between front combination lamp LH harness
connector and ground.
3. Check continuity between side turn signal lamp LH harness con-
nector and ground.
4. Check continuity between rear combination lamp LH harness
connector and ground.
OK or NG
OK >> Check turn signal lamps LH bulbs.
NG >> Repair harness or connector.
Turn Signal Lamps Do Not Operate But Hazard Warning Lamp OperateBKS0040D
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select “BCM” on CONSULT-II, and select “FLASHER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “TURN SIGNAL R” and “TURN SIGNAL L” turns
ON-OFF according to turn signal switch operation.
Without CONSULT-II
Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installation of BCM" .
NG >> Check combination switch (lighting switch). Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
Headlamp typeFront combination
lamp LH connectorTerminal
GroundContinuity
Xenon E29
4Yes
Conventional E46
SKIB8819E
Side turn signal
lamp LH connectorTerminal
GroundContinuity
E43 2 Yes
PKID0098E
Rear combination
lamp LH connectorTerminal
GroundContinuity
B34 2 Yes
PKID0099E
When turn signal switch is
in the RH position: TURN SIGNAL R ON
When turn signal switch is
in the LH position: TURN SIGNAL L ON
PKIA7600E
Page 2859 of 3502

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-171
C
D
E
F
G
H
I
J
L
MA
B
LT
Hazard Warning Lamp Do Not Operate But Turn Signal Lamp OperateBKS001PX
1. CHECK CIRCUIT BETWEEN HAZARD SWITCH AND BCM
1. Select “BCM” on CONSULT-II, and select “FLASHER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HAZARD SW” turns ON-OFF according to haz-
ard switch operation.
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> GO TO 2.
2. CHECK BCM OUTPUT VOLTAGE
Check voltage between BCM harness connector and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> GO TO 3.
3. CHECK HAZARD SWITCH
1. Turn ignition switch OFF.
2. Remove hazard switch.
3. Check continuity between hazard switch terminals.
OK or NG
OK >> GO TO 4.
NG >> Replace hazard switch. Refer to LT- 1 7 7 , "
Removal and
Installation" . When hazard switch is in the
ON position : HAZARD SW ON
PKIA6865E
Terminal
ConditionVoltage
(Approx.) (+)
(−)
Connector Terminal
M3 29 GroundHazard switch is ON. 0 V
Hazard switch is OFF. Battery Voltage
PKID0301E
Hazard switch
Condition Continuity
Te r m i n a l s
12Hazard switch is ON. Yes
Hazard switch is OFF. No
PKID0281E
Page 2860 of 3502
LT-172
TURN SIGNAL AND HAZARD WARNING LAMPS

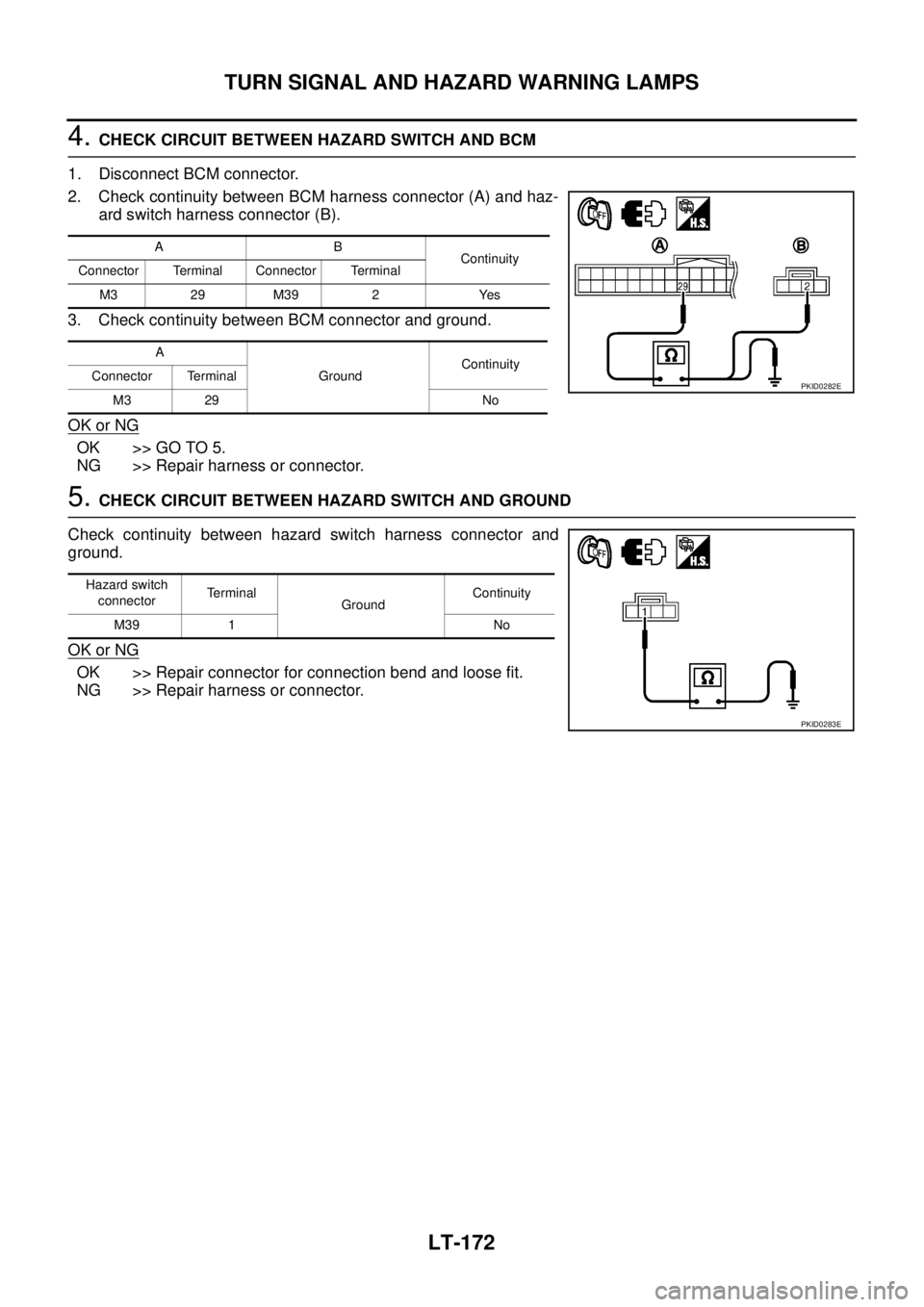

4. CHECK CIRCUIT BETWEEN HAZARD SWITCH AND BCM
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector (A) and haz-
ard switch harness connector (B).
3. Check continuity between BCM connector and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK CIRCUIT BETWEEN HAZARD SWITCH AND GROUND
Check continuity between hazard switch harness connector and
ground.
OK or NG
OK >> Repair connector for connection bend and loose fit.
NG >> Repair harness or connector.
AB
Continuity
Connector Terminal Connector Terminal
M3 29 M39 2 Yes
A
GroundContinuity
Connector Terminal
M3 29 No
PKID0282E
Hazard switch
connectorTerminal
GroundContinuity
M39 1 No
PKID0283E
Page 2861 of 3502

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-173
C
D
E
F
G
H
I
J
L
MA
B
LT

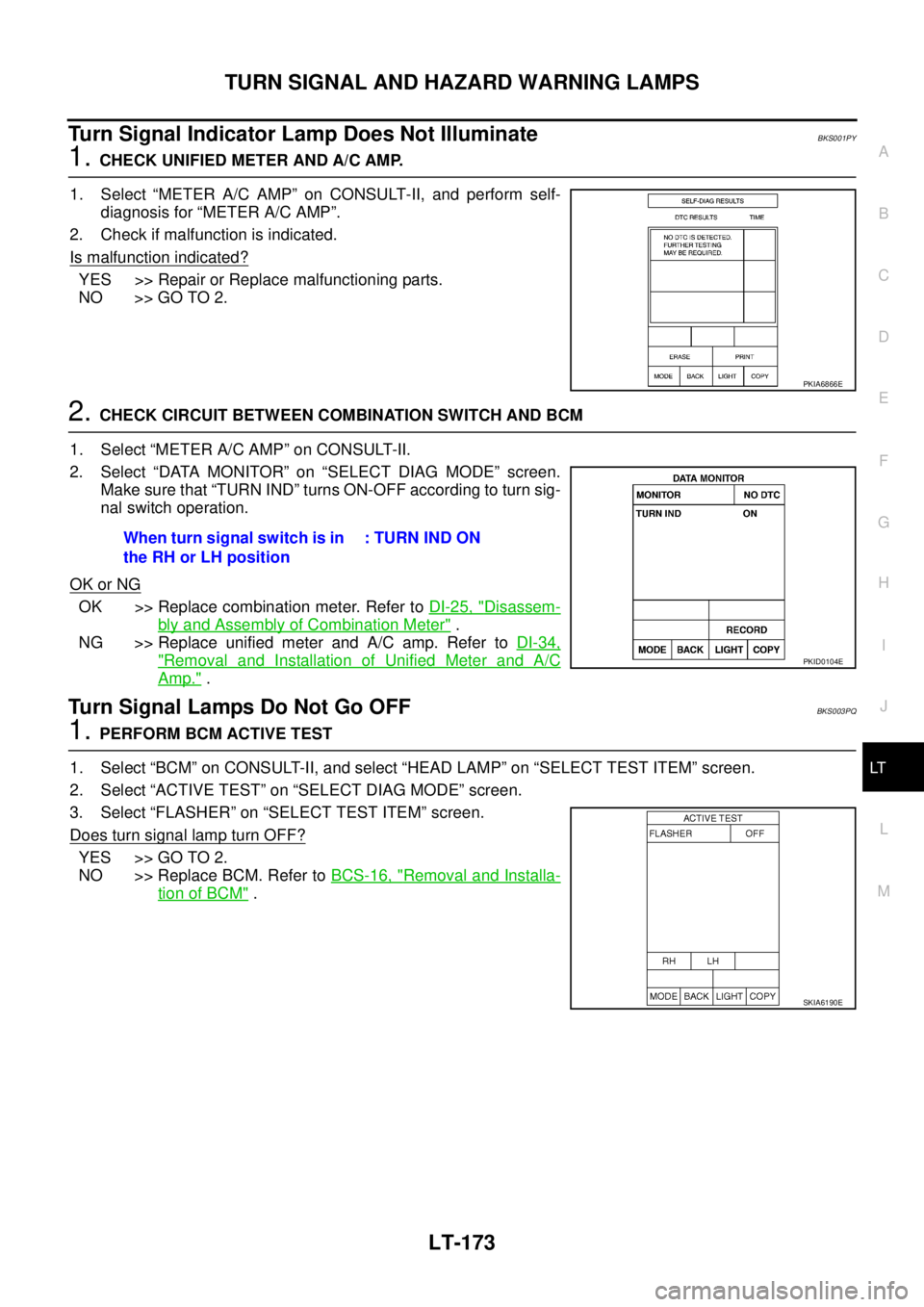

Turn Signal Indicator Lamp Does Not IlluminateBKS001PY
1. CHECK UNIFIED METER AND A/C AMP.
1. Select “METER A/C AMP” on CONSULT-II, and perform self-
diagnosis for “METER A/C AMP”.
2. Check if malfunction is indicated.
Is malfunction indicated?
YES >> Repair or Replace malfunctioning parts.
NO >> GO TO 2.
2. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
1. Select “METER A/C AMP” on CONSULT-II.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “TURN IND” turns ON-OFF according to turn sig-
nal switch operation.
OK or NG
OK >> Replace combination meter. Refer to DI-25, "Disassem-
bly and Assembly of Combination Meter" .
NG >> Replace unified meter and A/C amp. Refer to DI-34,
"Removal and Installation of Unified Meter and A/C
Amp." .
Turn Signal Lamps Do Not Go OFFBKS003PQ
1. PERFORM BCM ACTIVE TEST
1. Select “BCM” on CONSULT-II, and select “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Select “FLASHER” on “SELECT TEST ITEM” screen.
Does turn signal lamp turn OFF?
YES >> GO TO 2.
NO >> Replace BCM. Refer to BCS-16, "
Removal and Installa-
tion of BCM" .
PKIA6866E
When turn signal switch is in
the RH or LH position: TURN IND ON
PKID0104E
SKIA6190E
Page 2862 of 3502

LT-174
TURN SIGNAL AND HAZARD WARNING LAMPS

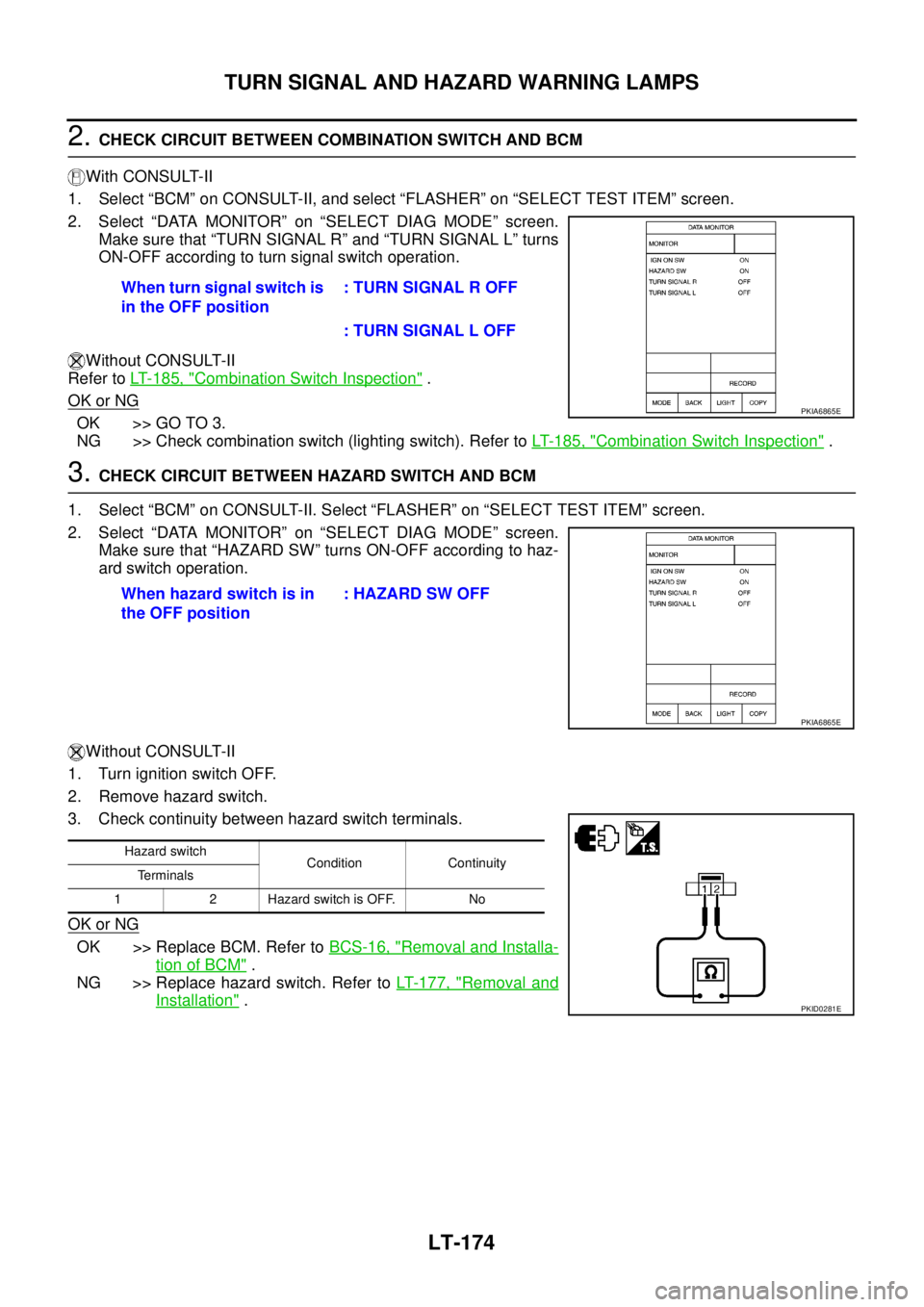

2. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select “BCM” on CONSULT-II, and select “FLASHER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “TURN SIGNAL R” and “TURN SIGNAL L” turns
ON-OFF according to turn signal switch operation.
Without CONSULT-II
Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Check combination switch (lighting switch). Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
3. CHECK CIRCUIT BETWEEN HAZARD SWITCH AND BCM
1. Select “BCM” on CONSULT-II. Select “FLASHER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “HAZARD SW” turns ON-OFF according to haz-
ard switch operation.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Remove hazard switch.
3. Check continuity between hazard switch terminals.
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Replace hazard switch. Refer to LT- 1 7 7 , "
Removal and
Installation" . When turn signal switch is
in the OFF position: TURN SIGNAL R OFF
: TURN SIGNAL L OFF
PKIA6865E
When hazard switch is in
the OFF position : HAZARD SW OFF
PKIA6865E
Hazard switch
Condition Continuity
Terminals
1 2 Hazard switch is OFF. No
PKID0281E
Page 2863 of 3502

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-175
C
D
E
F
G
H
I
J
L
MA
B
LT

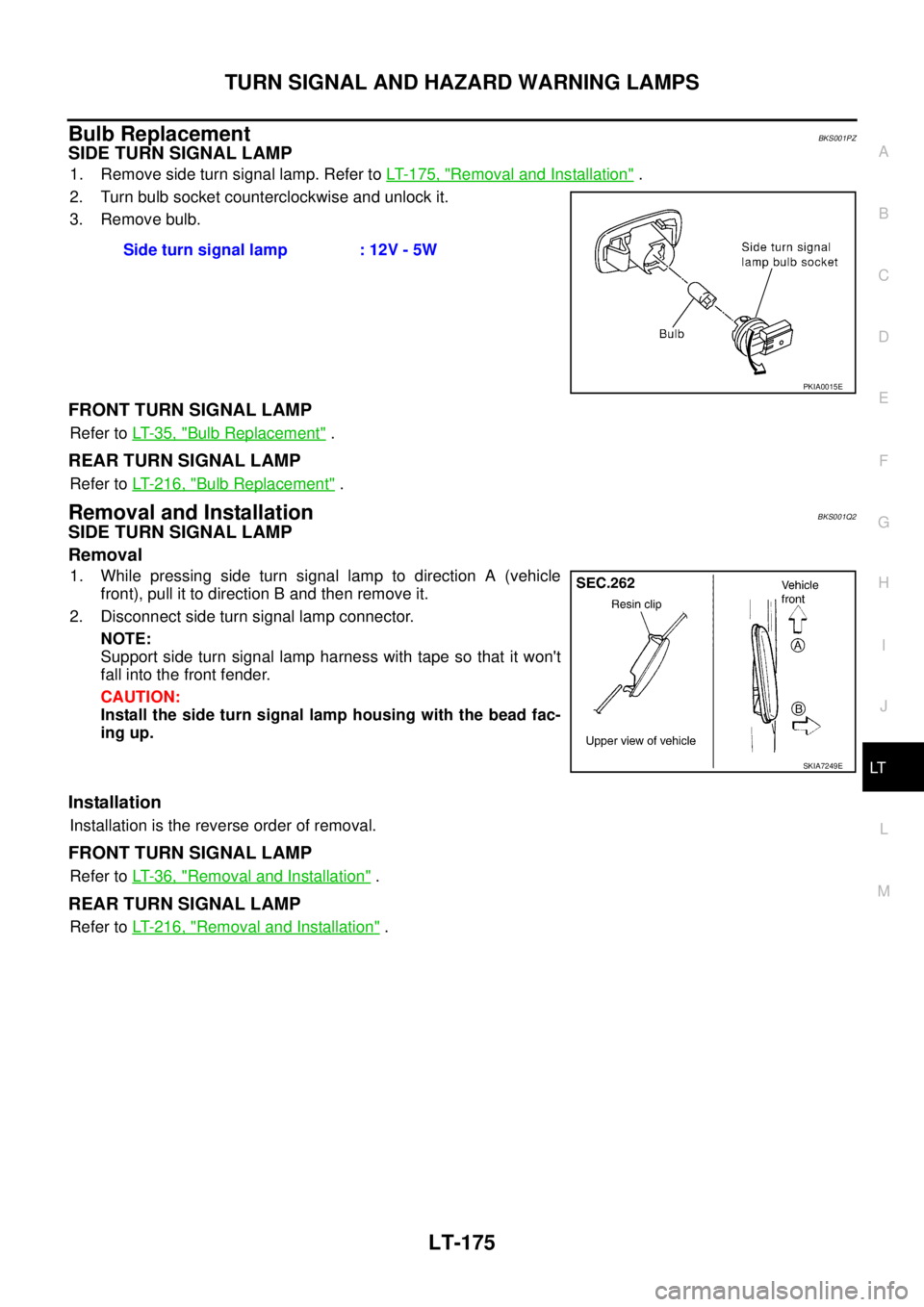

Bulb ReplacementBKS001PZ
SIDE TURN SIGNAL LAMP
1. Remove side turn signal lamp. Refer to LT- 1 7 5 , "Removal and Installation" .
2. Turn bulb socket counterclockwise and unlock it.
3. Remove bulb.
FRONT TURN SIGNAL LAMP
Refer to LT- 3 5 , "Bulb Replacement" .
REAR TURN SIGNAL LAMP
Refer to LT- 2 1 6 , "Bulb Replacement" .
Removal and InstallationBKS001Q2
SIDE TURN SIGNAL LAMP
Removal
1. While pressing side turn signal lamp to direction A (vehicle
front), pull it to direction B and then remove it.
2. Disconnect side turn signal lamp connector.
NOTE:
Support side turn signal lamp harness with tape so that it won't
fall into the front fender.
CAUTION:
Install the side turn signal lamp housing with the bead fac-
ing up.
Installation
Installation is the reverse order of removal.
FRONT TURN SIGNAL LAMP
Refer to LT- 3 6 , "Removal and Installation" .
REAR TURN SIGNAL LAMP
Refer to LT- 2 1 6 , "Removal and Installation" . Side turn signal lamp : 12V - 5W
PKIA0015E
SKIA7249E
Page 2864 of 3502
LT-176
LIGHTING AND TURN SIGNAL SWITCH
LIGHTING AND TURN SIGNAL SWITCHPFP:25540
Removal and InstallationBKS001Q4
REMOVAL
1. Remove steering column cover. Refer to IP-10, "INSTRUMENT
PANEL ASSEMBLY" .
2. While pressing pawls in direction as shown in the figure, pull
lighting and turn signal switch toward driver door and disconnect
from the base.
INSTALLATION
Installation is the reverse order of removal.
Switch Circuit InspectionBKS001Q5
Refer to LT- 1 8 5 , "Combination Switch Inspection" .
