NISSAN TEANA 2003 Service Manual FRONT SUSPENSION ASSEMBLY
FSU-5
C
D
F
G
H
I
J
K
L
MA
B
FSU

FRONT SUSPENSION ASSEMBLYPFP:54010
On-Vehicle Inspection BES0003K
Make sure that the mounting conditions (looseness, back lash) of each com

FRONT SUSPENSION ASSEMBLY
FSU-5
C
D
F
G
H
I
J
K
L
MA
B
FSU

FRONT SUSPENSION ASSEMBLYPFP:54010
On-Vehicle Inspection BES0003K
Make sure that the mounting conditions (looseness, back lash) of each component and component status
(wear, damage) are normal.
INSPECTION OF TRANSVERSE LINK BALL JOINT END PLAY
1. Set front wheels in a straight-ahead position. Do not depress brake pedal.
2. Measure axial end play by placing an iron pry bar or a similar item between suspension arm and strut
assembly and prying up and down.
CAUTION:
Be careful not to damage ball joint boot. Do not damage the installation position by applying
excessive force.
STRUT INSPECTION
Check for oil leakage, damage, and breakage of installation positions.
Wheel Alignment InspectionBES0003L
DESCRIPTION
Measure wheel alignment under unladen conditions.
NOTE:
“Unladen” conditions mean that fuel, engine coolant, and lubricant are full. A spare tire, a jack, hand tools and
mats are in designated positions.
PRELIMINARY CHECK
1. Check Tires for improper air pressure and wear.
2. Check Road wheels for runout. Refer to WT-3, "
ROAD WHEEL" .
3. Check Wheel bearing axial end play. Refer to FAX-5, "
WHEEL BEARING INSPECTION" .
4. Check Transverse link ball joint axial end play. Refer to FSU-14, "
INSPECTION AFTER REMOVAL" .
5. Check Strut operation.
6. Check Each mounting point of axle and suspension for looseness and deformation.
7. Check Each link, rod, and member for cracks, deformation and other damage.
8. Check Vehicle height (posture).
INSPECTION OF CAMBER, CASTER AND KINGPIN INCLINATION ANGLES.
Camber, caster, kingpin inclination angles cannot be adjusted.
Before inspection, mount wheels onto turning radius gauge. Mount rear wheels onto a stand that has
same height so vehicle will remain horizontal.
Using a CCK Gauge
Install CCK gauge attachment [SST:KV991040S0] with the following procedure on wheel, then measure wheel
alignment.
1. Remove three wheel nuts, and install the guide bolts to hub
bolts.
2. Screw adapter into the plate until it contacts the plate tightly.
3. Screw center plate into the plate.
4. Insert plate on guide bolt. Put spring in, and then evenly screw
both guide bolt nuts. When fastening guide bolt nuts, do not
completely compress the spring.Axial end play : 0 mm (0 in)
SEIA0240E

Page 2434 of 3502

NISSAN TEANA 2003 Service Manual FSU-6
FRONT SUSPENSION ASSEMBLY

5. Place the dent of alignment gauge onto the projection of center
plate and tightly contact them to measure.
CAUTION:
If camber, caster, or kingpin inclination angle

Page 2435 of 3502

NISSAN TEANA 2003 Service Manual FRONT SUSPENSION ASSEMBLY
FSU-7
C
D
F
G
H
I
J
K
L
MA
B
FSU

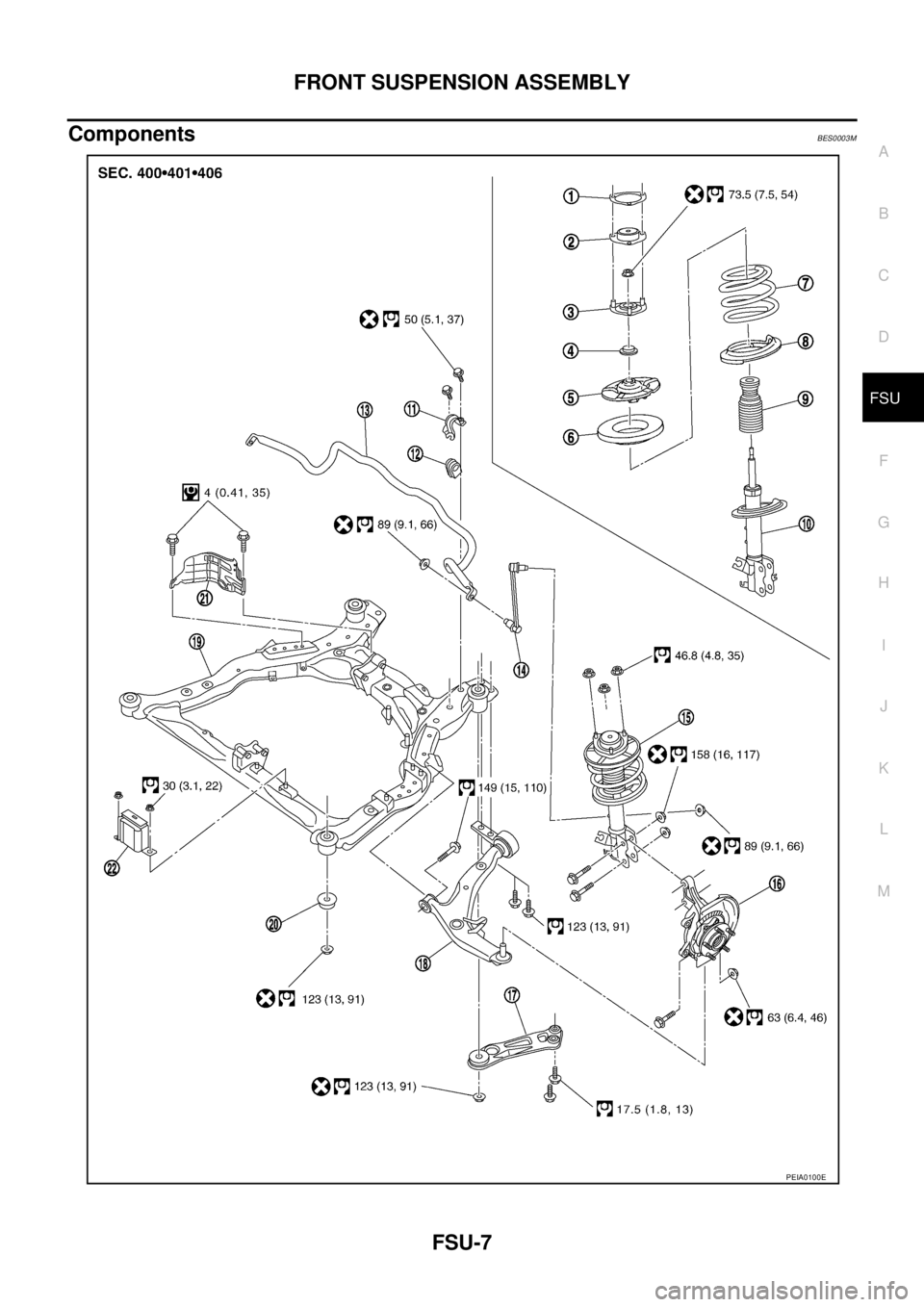

ComponentsBES0003M
PEIA0100E

Page 2436 of 3502

NISSAN TEANA 2003 Service Manual FSU-8
FRONT SUSPENSION ASSEMBLY

Removal and Installation BES0003N
REMOVAL
1. Remove cowl top panel and hood. Install engine slinger, and then hoist engine. (VQ35DE models) Refer
to EI-21, "
COWL TOP

FSU-8
FRONT SUSPENSION ASSEMBLY

Removal and Installation BES0003N
REMOVAL
1. Remove cowl top panel and hood. Install engine slinger, and then hoist engine. (VQ35DE models) Refer
to EI-21, "
COWL TOP" , BL-13, "HOOD" .
2. Remove tires from vehicle.
3. Remove wheel sensor from steering knuckle. Refer to BRC-33, "
WHEEL SENSORS" .
CAUTION:
Do not pull on wheel sensor harness.
4. Remove torque member fixing bolts. Hang torque member in a place where it will not interfere with work.
Refer to BR-26, "
FRONT DISC BRAKE" .
NOTE:
Do not depress brake pedal while brake caliper is removed.
5. Remove undercover and splash guard.
6. Remove disc rotor. Refer to FA X - 5 , "
Removal and Installation" .
7. Remove the mounting nut on the upper side of stabilizer con-
necting rod, and then remove stabilizer connecting rod from strut
assembly. Refer to FSU-16, "
STABILIZER BAR" .
8. Remove fixing nuts and bolts with, and then remove steering
knuckle from strut assembly. Refer to FSU-10, "
Removal and
Installation" .
9. Remove cotter pin, then loosen hub lock nut.
10. Separate wheel hub and bearing assembly from drive shaft by
lightly tapping the end with a hammer (suitable tool) and a wood
block, and then remove lock nut.
CAUTION:
Do not place drive shaft joint at an extreme angle. Also be
careful not to overextend slide joint.
Do not allow drive shaft to hang down without support for
housing (or joint sub-assembly), shaft and the other parts.
NOTE:
Use a puller (suitable tool) if wheel hub and drive shaft cannot be separated even after performing the
above procedure.
11. Remove front exhaust tube. Refer to EX-2, "
EXHAUST SYSTEM" .
12. Remove heat insulator.(Except for QR20DE models)
1. Upper mounting plate 2. Mounting insulator 3. Mounting insulator bracket
4. Mounting bearing 5. Spring upper seat 6. Spring upper rubber seat
7. Coil spring 8. Lower spring seat 9. Bound bumper
10. Strut 11. Stabilizer clamp 12. Stabilizer bushing
13. Stabilizer bar 14. Stabilizer connecting rod 15. Strut assembly
16. Front axle assembly 17. Member stay 18. Transverse link
19. Front suspension member 20. Rebound stopper 21. Heat insulator (Except for QR20DE
models)
22. Damper assembly (For VQ35DE
models)
Refer to GI-10, "
Components" , for the symbols in the figure.
SEIA0370E
SEIA0411J

Page 2437 of 3502

NISSAN TEANA 2003 Service Manual FRONT SUSPENSION ASSEMBLY
FSU-9
C
D
F
G
H
I
J
K
L
MA
B
FSU

13. Remove steering hydraulic piping bracket from front suspension member and rear engine mounting insu-
lator. Refer to PS-39, "
HYDRAULIC

Page 2438 of 3502

NISSAN TEANA 2003 Service Manual FSU-10
COIL SPRING AND STRUT

COIL SPRING AND STRUTPFP:55302
Removal and InstallationBES0003O
REMOVAL
1. Remove tires from vehicle.
2. Remove harness of wheel sensor from strut assembly. Refer to
BRC

Page 2439 of 3502

NISSAN TEANA 2003 Service Manual COIL SPRING AND STRUT
FSU-11
C
D
F
G
H
I
J
K
L
MA
B
FSU

INSTALLATION
Installation is the reverse order of the removal. For tightening torque, refer to FSU-7, "Components" .
NOTE:
Do not reuse non-r

COIL SPRING AND STRUT
FSU-11
C
D
F
G
H
I
J
K
L
MA
B
FSU

INSTALLATION
Installation is the reverse order of the removal. For tightening torque, refer to FSU-7, "Components" .
NOTE:
Do not reuse non-reusable parts.
Perform final tightening of each of parts under unladen conditions, which were removed when removing
coil spring and strut. Check the wheel alignment. Refer to FSU-5, "
Wheel Alignment Inspection" .
Adjust neutral position of steering angle sensor after checking the wheel alignment for models with VDC.
Refer to BRC-40, "
Adjustment of Steering Angle Sensor Neutral Position" .
Check wheel sensor harness for proper connection. Refer to BRC-33, "WHEEL SENSORS" .
Be sure that the identification letters on mounting insulator face
in the direction shown in the figure, and then install strut assem-
bly to the vehicle.
Disassembly and AssemblyBES0003P
DISASSEMBLY
CAUTION:
Do not damage strut piston rod when removing components from strut.
1. Install strut attachment [SST] to strut and secure it in a vise.
CAUTION:
Wrap a shop cloth around strut to protect it from damage
when installing strut attachment [SST] to strut.
2. Compress coil spring between upper rubber seat and lower rub-
ber seat (strut) using spring compressor (commercial service
tool) until coil spring is free.
CAUTION:
Start compressing coil spring after making sure that the
compressor is completely attached to coil spring.
3. Make sure that coil spring with the compressor is free between
spring upper rubber seat and lower spring seat (strut), and then
remove piston rod lock nut while securing the end of piston rod
so as not to rotate piston rod.
4. Remove mounting insulator bracket, mounting bearing, spring
upper seat, spring upper rubber seat, bound bumper from strut.
5. Remove coil spring with the compressor, and then gradually release the compressor.
CAUTION:
Loosen the compressor while checking installation position so that compressor is installed to the
correct position.
6. Remove lower spring seat from strut.
7. Remove strut attachment [SST] from strut.
SEIA0371E
SEIA0372J
SEIA0297E

Page 2440 of 3502

NISSAN TEANA 2003 Service Manual FSU-12
COIL SPRING AND STRUT

INSPECTION AFTER DISASSEMBLY
Strut Inspection
Check strut for deformation, cracks, and damage. Replace if there are.
Check piston rod for damage, uneven wear, and dist
