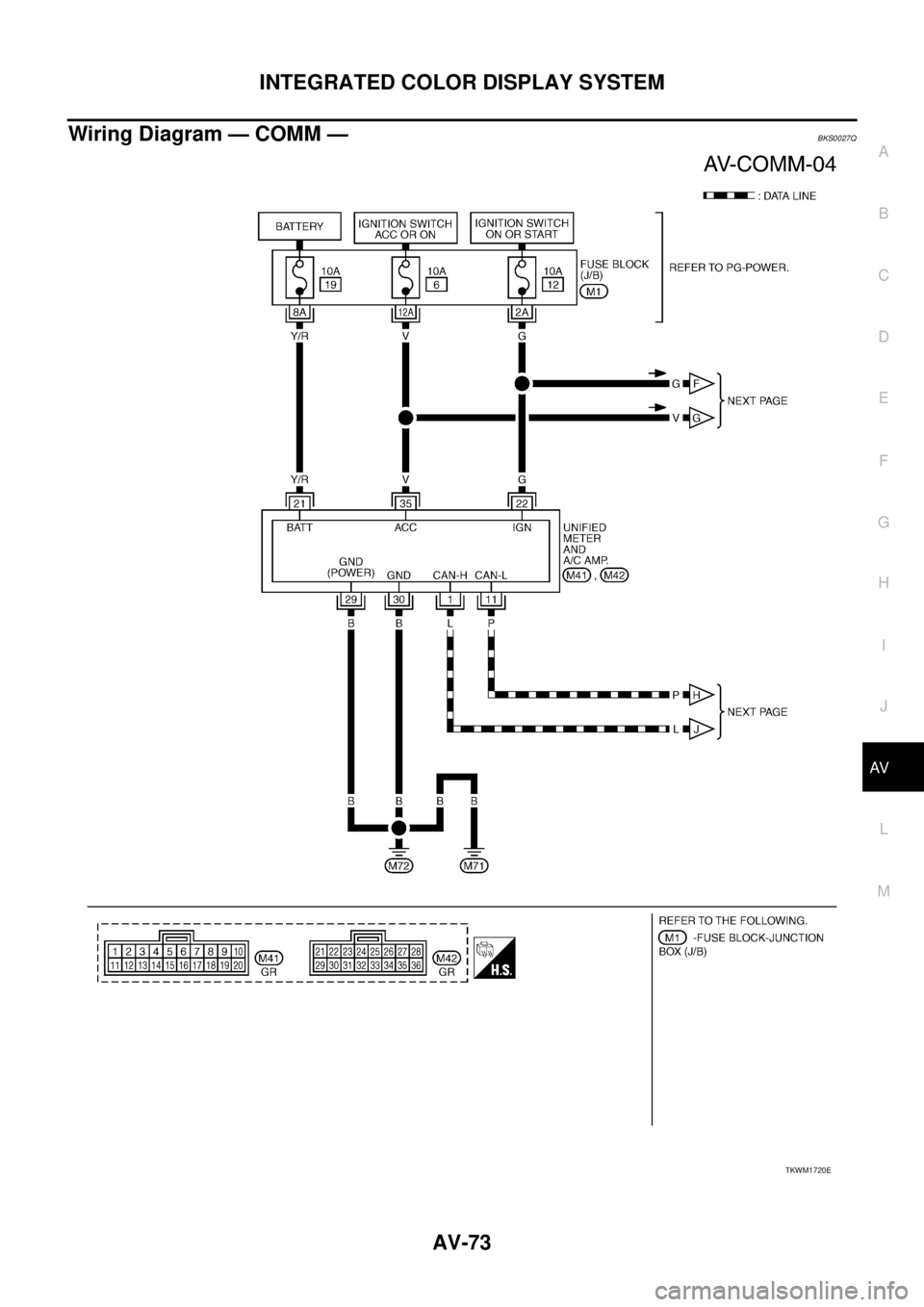

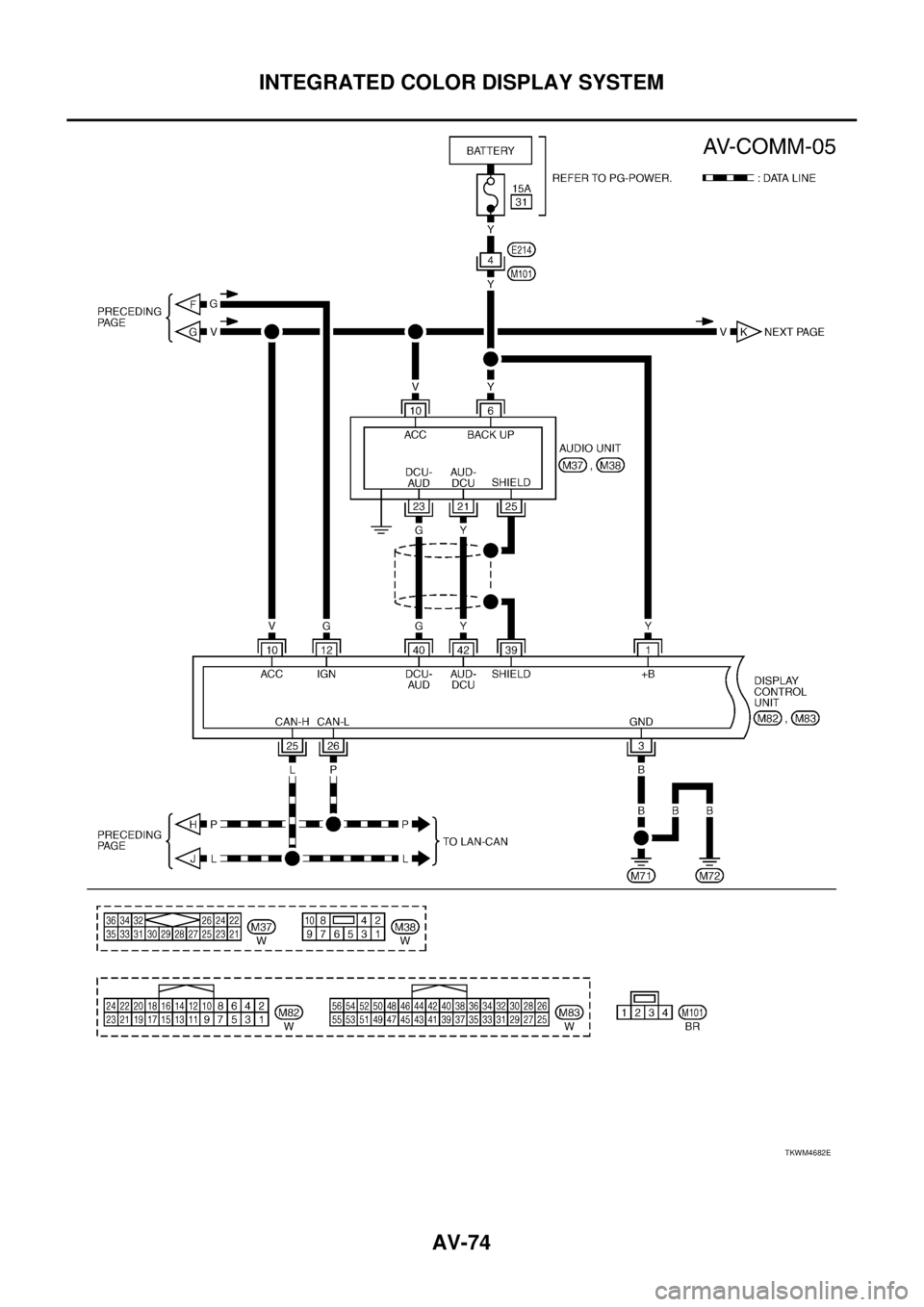

NISSAN TEANA 2003 Service Manual INTEGRATED COLOR DISPLAY SYSTEM AV-73 C D E F G H I J L MA B AV Wiring Diagram — COMM —BKS0027Q TKWM1720E

Page 602 of 3502

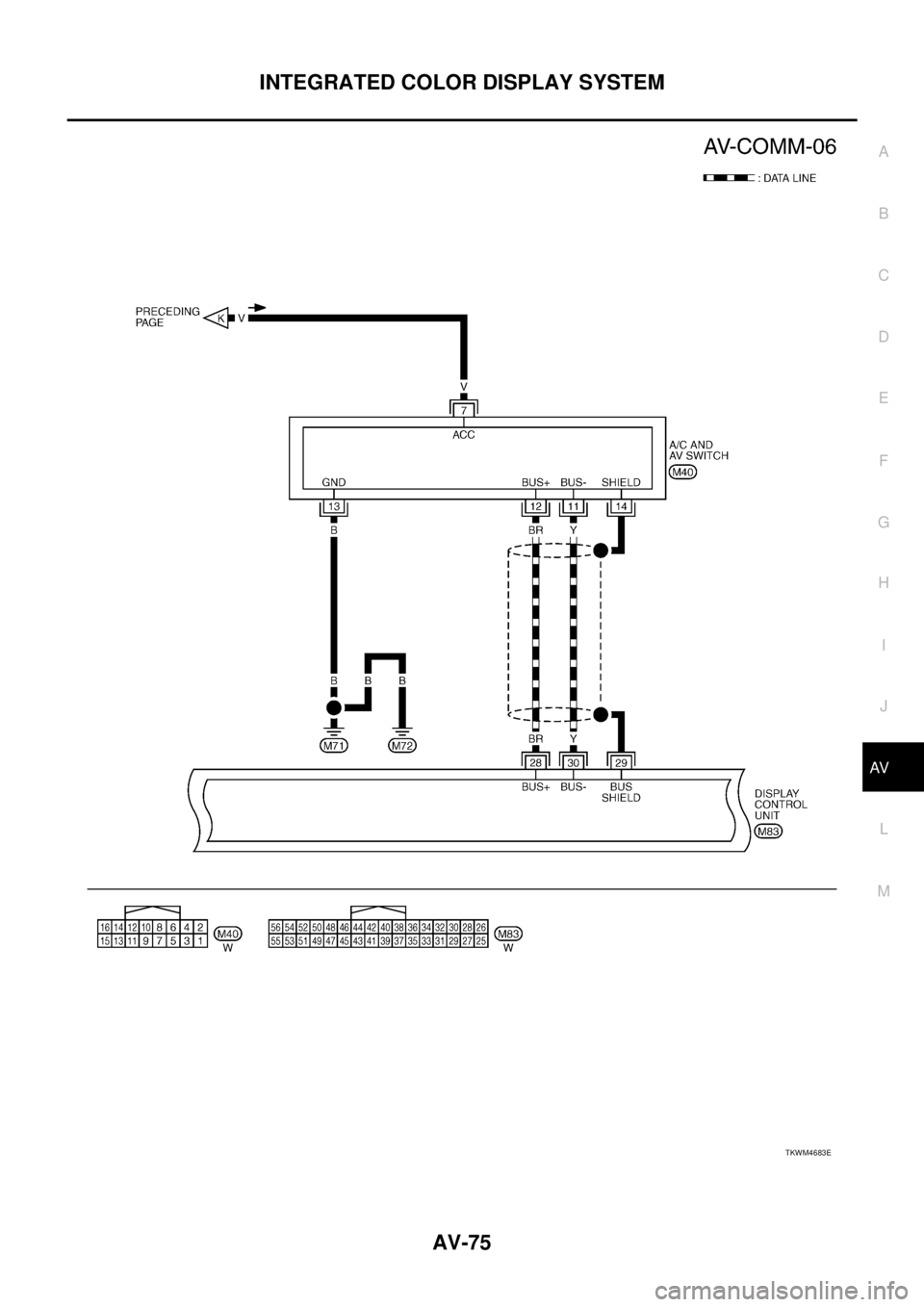

NISSAN TEANA 2003 Service Manual AV-74 INTEGRATED COLOR DISPLAY SYSTEM TKWM4682E

Page 603 of 3502

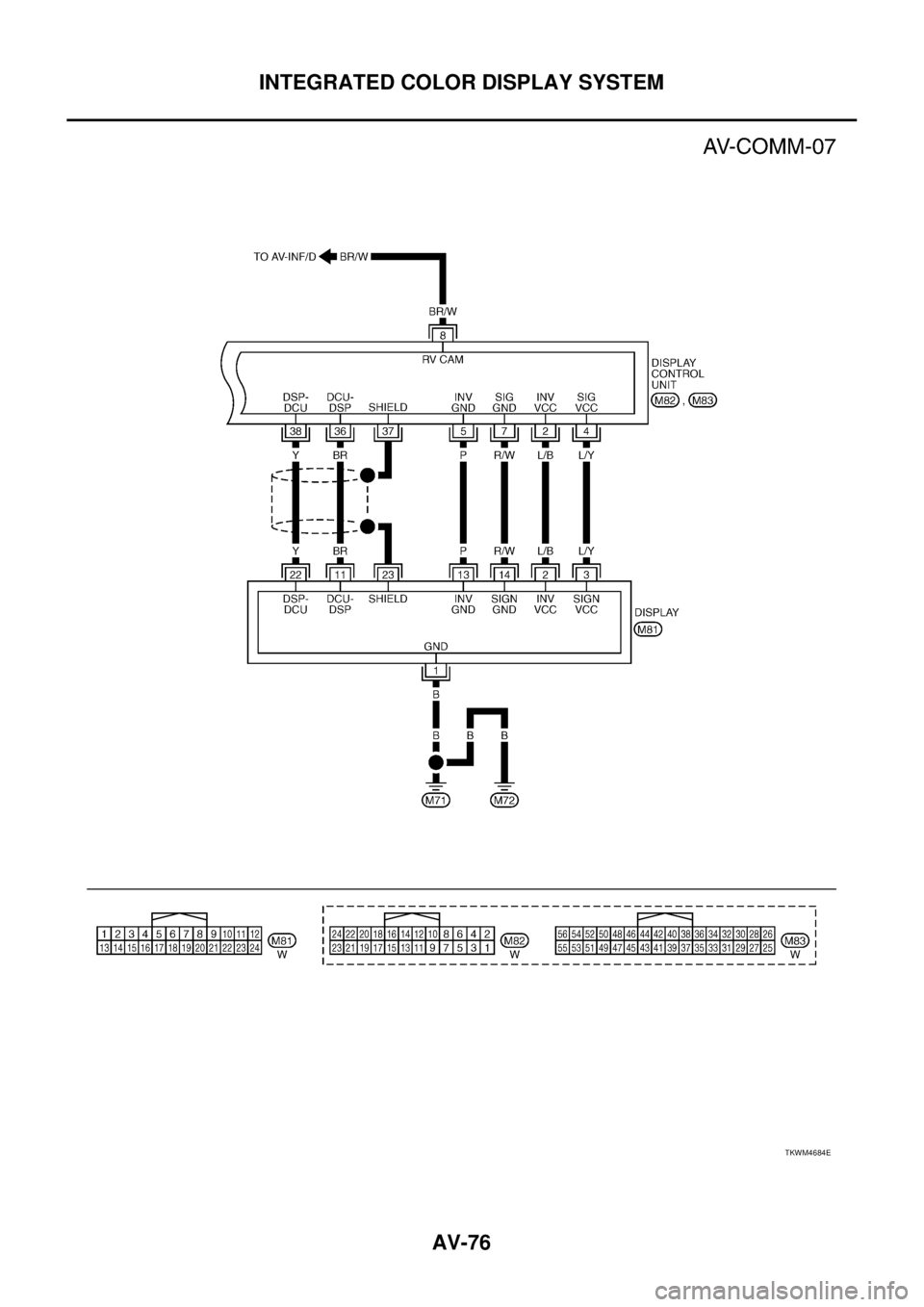

NISSAN TEANA 2003 Service Manual INTEGRATED COLOR DISPLAY SYSTEM AV-75 C D E F G H I J L MA B AV TKWM4683E

Page 604 of 3502

NISSAN TEANA 2003 Service Manual AV-76 INTEGRATED COLOR DISPLAY SYSTEM TKWM4684E

Page 605 of 3502

NISSAN TEANA 2003 Service Manual INTEGRATED COLOR DISPLAY SYSTEM AV-77 C D E F G H I J L MA B AV Terminals and Reference Value for Display Control UnitBKS0027R Terminal (Wire color) ItemSignal input/ outputCondition Reference valu

Page 606 of 3502

NISSAN TEANA 2003 Service Manual AV-78 INTEGRATED COLOR DISPLAY SYSTEM 36 (BR) GroundCommunication signal (DCU-DSP)Output ON — 37 — Shield — — — — 38 (Y) GroundCommunication signal (DSP-DCU)Input ON — 39 — Shield

Page 607 of 3502

NISSAN TEANA 2003 Service Manual INTEGRATED COLOR DISPLAY SYSTEM AV-79 C D E F G H I J L MA B AV 53 (W) GroundVe r ti c a l synchronizing (VP) signalInput ON — 54 (G) 47 (W) RGB signal (B: blue) Output ONStart DCU Confirmation

Page 608 of 3502

NISSAN TEANA 2003 Service Manual AV-80 INTEGRATED COLOR DISPLAY SYSTEM Terminals and Reference Value for DisplayBKS0027S Te r m i n a l (Wire color) ItemSignal input/ outputCondition Reference value +–Ignition switchOperation
