Page 1009 of 3502

NISSAN TEANA 2003 Service Manual CVT-3
D
E
F
G
H
I
J
K
L
MA
B
CVT
On Board Diagnosis Logic ..................................... 97
Possible Cause ...................................................... 97
DTC Confirmation Procedur

CVT-3
D
E
F
G
H
I
J
K
L
MA
B
CVT
On Board Diagnosis Logic ..................................... 97
Possible Cause ...................................................... 97
DTC Confirmation Procedure ................................. 97
WITH CONSULT-II .............................................. 97
Wiring Diagram — CVT — LPSV ........................... 98
Diagnostic Procedure ............................................. 99
Component Inspection ......................................... 101
PRESSURE CONTROL SOLENOID VALVE A
(LINE PRESSURE SOLENOID VALVE) ........... 101
DTC P0746 PRESSURE CONTROL SOLENOID A
PERFORMANCE (LINE PRESSURE SOLENOID
VALVE) .................................................................... 102
Description ........................................................... 102
CONSULT-II Reference Value .............................. 102
On Board Diagnosis Logic ................................... 102
Possible Cause .................................................... 102
DTC Confirmation Procedure ............................... 102
WITH CONSULT-II ............................................ 102
Diagnostic Procedure ........................................... 103
DTC P0776 PRESSURE CONTROL SOLENOID B
PERFORMANCE (SEC PRESSURE SOLENOID
VALVE) .................................................................... 105
Description ........................................................... 105
CONSULT-II Reference Value .............................. 105
On Board Diagnosis Logic ................................... 105
Possible Cause .................................................... 105
DTC Confirmation Procedure ............................... 105
WITH CONSULT-II ............................................ 105
Diagnostic Procedure ........................................... 106
DTC P0778 PRESSURE CONTROL SOLENOID B
ELECTRICAL (SEC PRESSURE SOLENOID
VALVE) .................................................................... 108
Description ........................................................... 108
CONSULT-II Reference Value .............................. 108
On Board Diagnosis Logic ................................... 108
Possible Cause .................................................... 108
DTC Confirmation Procedure ............................... 108
WITH CONSULT-II ............................................ 108
Wiring Diagram — CVT — SECPSV ................... 109
Diagnostic Procedure ............................................ 110
Component Inspection .......................................... 112
PRESSURE CONTROL SORENOID VALVE B
(SECONDARY PRESSURE SOLENOID VALVE)
.. 112
DTC P0826 MANUAL MODE SWITCH CIRCUIT ...113
Description ............................................................ 113
CONSULT-II Reference Value ............................... 113
On Board Diagnosis Logic .................................... 113
Possible Cause ..................................................... 113
DTC Confirmation Procedure ................................ 113
WITH CONSULT-II ............................................. 113
Wiring Diagram — CVT — MMSW ....................... 114
Diagnostic Procedure ............................................ 115
Component Inspection .......................................... 117
MANUAL MODE SWITCH ................................. 117
DTC P0840 TRANSMISSION FLUID PRESSURE
SENSOR A CIRCUIT (SEC PRESSURE SENSOR) ..118
Description ............................................................ 118
CONSULT-II Reference Value ............................... 118On Board Diagnosis Logic ....................................118
Possible Cause .....................................................118
DTC Confirmation Procedure ...............................118
WITH CONSULT-II ............................................118
Wiring Diagram — CVT — SECPS ......................119
Diagnostic Procedure ...........................................120
DTC P0841 PRESSURE SENSOR FUNCTION .....123
Description ............................................................123
CONSULT-II Reference Value ..............................123
On Board Diagnosis Logic ....................................123
Possible Cause .....................................................123
DTC Confirmation Procedure ...............................123
WITH CONSULT-II ............................................123
Diagnostic Procedure ...........................................124
DTC P0845 TRANSMISSION FLUID PRESSURE
SENSOR B CIRCUIT (PRI PRESSURE SENSOR) .126
Description ............................................................126
CONSULT-II Reference Value ..............................126
On Board Diagnosis Logic ....................................126
Possible Cause .....................................................126
DTC Confirmation Procedure ...............................126
WITH CONSULT-II ............................................126
Wiring Diagram — CVT — PRIPS ........................127
Diagnostic Procedure ...........................................128
DTC P0868 SECONDARY PRESSURE DOWN .....131
Description ............................................................131
CONSULT-II Reference Value ..............................131
On Board Diagnosis Logic ....................................131
Possible Cause .....................................................131
DTC Confirmation Procedure ...............................131
WITH CONSULT-II ............................................131
Diagnostic Procedure ...........................................132
DTC P1701 TRANSMISSION CONTROL MODULE
(POWER SUPPLY) ..................................................134
Description ............................................................134
On Board Diagnosis Logic ....................................134
Possible Cause .....................................................134
DTC Confirmation Procedure ...............................134
WITH CONSULT-II ............................................134
Wiring Diagram — CVT — POWER .....................135
Diagnostic Procedure ...........................................136
DTC P1705 THROTTLE POSITION SENSOR .......139
Description ............................................................139
CONSULT-II Reference Value ..............................139
On Board Diagnosis Logic ....................................139
Possible Cause .....................................................139
DTC Confirmation Procedure ...............................139
WITH CONSULT-II ............................................139
Diagnostic Procedure ...........................................140
DTC P1722 ESTM VEHICLE SPEED SIGNAL ......141
Description ............................................................141
CONSULT-II Reference Value ..............................141
On Board Diagnosis Logic ....................................141
Possible Cause .....................................................141
DTC Confirmation Procedure ...............................141
WITH CONSULT-II ............................................141
Diagnostic Procedure ...........................................142
DTC P1723 CVT SPEED SENSOR FUNCTION .....143
Description ............................................................143

Page 1010 of 3502

NISSAN TEANA 2003 Service Manual CVT-4 On Board Diagnosis Logic ....................................143
Possible Cause .....................................................143
DTC Confirmation Procedure ............................

CVT-4 On Board Diagnosis Logic ....................................143
Possible Cause .....................................................143
DTC Confirmation Procedure ...............................143
WITH CONSULT-II ............................................143
Diagnostic Procedure ...........................................144
DTC P1726 ELECTRIC THROTTLE CONTROL
SYSTEM ..................................................................145
Description ............................................................145
On Board Diagnosis Logic ....................................145
Possible Cause .....................................................145
DTC Confirmation Procedure ...............................145
WITH CONSULT-II ............................................145
Diagnostic Procedure ...........................................146
DTC P1740 LOCK-UP SELECT SOLENOID VALVE
CIRCUIT ..................................................................147
Description ............................................................147
CONSULT-II Reference Value ..............................147
On Board Diagnosis Logic ....................................147
Possible Cause .....................................................147
DTC Confirmation Procedure ...............................147
WITH CONSULT-II ............................................147
Wiring Diagram — CVT — L/USSV ......................148
Diagnostic Procedure ...........................................149
Component Inspection ..........................................151
LOCK-UP SELECT SOLENOID VALVE ............151
DTC P1745 LINE PRESSURE CONTROL .............152
Description ............................................................152
On Board Diagnosis Logic ....................................152
Possible Cause .....................................................152
DTC Confirmation Procedure ...............................152
WITH CONSULT-II ............................................152
Diagnostic Procedure ...........................................152
DTC P1777 STEP MOTOR - CIRCUIT ...................153
Description ............................................................153
CONSULT-II Reference Value ..............................153
On Board Diagnosis Logic ....................................153
Possible Cause .....................................................153
DTC Confirmation Procedure ...............................153
WITH CONSULT-II ............................................153
Wiring Diagram — CVT — STM ...........................154
Diagnostic Procedure ...........................................155
Component Inspection ..........................................156
STEP MOTOR ...................................................156
DTC P1778 STEP MOTOR - FUNCTION ...............157
Description ............................................................157
CONSULT-II Reference Value ..............................157
On Board Diagnosis Logic ....................................157
Possible Cause .....................................................157
DTC Confirmation Procedure ...............................157
WITH CONSULT-II ............................................157
Diagnostic Procedure ...........................................158
CVT INDICATOR CIRCUIT .....................................159
Description ............................................................159
CONSULT-II Reference Value ..............................159
Diagnostic Procedure ...........................................159
CVT INDICATOR SYMPTOM CHART ...............159
TROUBLE DIAGNOSIS FOR SYMPTOMS ............160Wiring Diagram — CVT — NONDTC ...................160
CVT Indicator Lamp Does Not Come On ..............164
SYMPTOM: ........................................................164
DIAGNOSTIC PROCEDURE .............................164
Engine Cannot Be Started in “P” or “N” Position ...165
SYMPTOM: ........................................................165
DIAGNOSTIC PROCEDURE .............................165
In “P” Position, Vehicle Moves Forward or Backward
When Pushed .......................................................166
SYMPTOM: ........................................................166
DIAGNOSTIC PROCEDURE .............................166
In “N” Position, Vehicle Moves ..............................166
SYMPTOM: ........................................................166
DIAGNOSTIC PROCEDURE .............................166
Large Shock “N” → “R” Position ...........................167
SYMPTOM: ........................................................167
DIAGNOSTIC PROCEDURE .............................167
Vehicle Does Not Creep Backward in “R” Position .168
SYMPTOM: ........................................................168
DIAGNOSTIC PROCEDURE .............................168
Vehicle Does Not Creep Forward in “D” Position ..169
SYMPTOM: ........................................................169
DIAGNOSTIC PROCEDURE .............................169
CVT Does Not Shift ...............................................170
SYMPTOM: ........................................................170
DIAGNOSTIC PROCEDURE .............................170
Cannot Be Changed to Manual Mode ...................171
SYMPTOM: ........................................................171
DIAGNOSTIC PROCEDURE .............................171
CVT Does Not Shift in Manual Mode ....................171
SYMPTOM: ........................................................171
DIAGNOSTIC PROCEDURE .............................171
Vehicle Does Not Decelerate by Engine Brake .....172
SYMPTOM: ........................................................172
DIAGNOSTIC PROCEDURE .............................172
TRANSMISSION CONTROL MODULE ..................174
Removal and Installation .......................................174
COMPONENTS .................................................174
REMOVAL ..........................................................174
INSTALLATION ..................................................175
SHIFT CONTROL SYSTEM ....................................176
Removal and Installation .......................................176
CONTROL DEVICE COMPONENTS ................176
CONTROL CABLE COMPONENTS ..................177
REMOVAL ..........................................................177
INSTALLATION ..................................................178
Adjustment of CVT Position ..................................178
Checking of CVT Position .....................................179
CVT SHIFT LOCK SYSTEM ...................................180
Description ............................................................180
Shift Lock System Electrical Parts Location ..........180
Wiring Diagram — CVT — SHIFT ........................181
Shift Lock Control Unit Reference Values .............183
SHIFT LOCK HARNESS CONNECTOR TERMI-
NALS LAYOUT ..................................................183
SHIFT LOCK CONTROL UNIT INSPECTION

Page 1011 of 3502

NISSAN TEANA 2003 Service Manual CVT-5
D
E
F
G
H
I
J
K
L
MA
B
CVT
TABLE ............................................................... 183
Component Inspection ......................................... 184
SHIFT LOCK SOLENOID ...

CVT-5
D
E
F
G
H
I
J
K
L
MA
B
CVT
TABLE ............................................................... 183
Component Inspection ......................................... 184
SHIFT LOCK SOLENOID ................................. 184
DETENTION SWITCH (FOR KEY) ................... 184
DETENTION SWITCH (FOR SHIFT) ................ 184
KEY LOCK SOLENOID ..................................... 184
IGNITION KNOB SWITCH ................................ 185
STOP LAMP SWITCH ...................................... 185
AIR BREATHER HOSE .......................................... 186
Removal and Installation ...................................... 186
COMPONENTS ................................................ 186
REMOVAL ......................................................... 186
INSTALLATION ................................................. 186
DIFFERENTIAL SIDE OIL SEAL ........................... 187
Removal and Installation ...................................... 187
COMPONENTS ................................................ 187
REMOVAL ......................................................... 187
INSTALLATION ................................................. 188CVT FLUID COOLER SYSTEM ..............................189
CVT Fluid Cooler Removal and Installation ..........189
COMPONENTS .................................................189
REMOVAL .........................................................190
INSTALLATION .................................................192
COMPONENT INSPECTION ............................192
TRANSAXLE ASSEMBLY ......................................193
Removal and Installation ......................................193
COMPONENTS .................................................193
REMOVAL .........................................................194
INSPECTION ....................................................196
INSTALLATION .................................................196
SERVICE DATA AND SPECIFICATIONS (SDS) ....198
General Specifications ..........................................198
Vehicle Speed at Which Gear Shifting Occurs .....198
Stall Speed ...........................................................198
Line Pressure .......................................................198
Solenoid Valves ....................................................198
CVT Fluid Temperature Sensor ............................199
Primary Speed Sensor .........................................199
Secondary Speed Sensor .....................................199
Removal and Installation ......................................199

Page 1012 of 3502

NISSAN TEANA 2003 Service Manual CVT-6
INDEX FOR DTC

INDEX FOR DTCPFP:00024
Alphabetical Index BCS001FM
NOTE:
If DTC “U1000 CAN COMM CIRCUIT” is displayed with other DTC s, first perform the trouble diagnosis
for “DTC U1000 C

Page 1013 of 3502

NISSAN TEANA 2003 Service Manual INDEX FOR DTC
CVT-7
D
E
F
G
H
I
J
K
L
MA
B
CVT

DTC No. Index BCS001FN
NOTE:
If DTC “U1000 CAN COMM CIRCUIT” is displayed with other DTC s, first perform the trouble diagnosis
for “DTC U1000 CA

Page 1014 of 3502

NISSAN TEANA 2003 Service Manual CVT-8
PRECAUTIONS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BCS001NA
The Supplemental Restraint System such as “AIR

CVT-8
PRECAUTIONS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
BCS001NA
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions Necessary for Steering Wheel Rotation After Battery DisconnectBCS001NB
NOTE:
This Procedure is applied only to models with Intelligent Key system and NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS).
Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK″ position.
Always use CONSULT-II to perform self-diagnosis as a part of each function inspection after finishing
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NVIS/IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-II.

Page 1015 of 3502

NISSAN TEANA 2003 Service Manual PRECAUTIONS
CVT-9
D
E
F
G
H
I
J
K
L
MA
B
CVT

Precautions for TCM and CVT Assembly ReplacementBCS001FR
When replacing CVT assembly or TCM, refer to the pattern table below and erase the EEPROM in the

PRECAUTIONS
CVT-9
D
E
F
G
H
I
J
K
L
MA
B
CVT

Precautions for TCM and CVT Assembly ReplacementBCS001FR
When replacing CVT assembly or TCM, refer to the pattern table below and erase the EEPROM in the TCM if
necessary.
CAUTION:
Check if new data (Unit ID) are entered correctly after replacing CVT assembly and erasing data in
TCM. (Connect CONSULT-II, and then turn ignition switch OFF.)
“TCM POWER SUPPLY [P1701]” may be indicated soon after replacing TCM or transaxle assembly
(after erasing the memory). Restart the self-diagnosis after erasing the self-diagnosis result.
Check that no error is detected.
EEPROM ERASING PATTERNS
METHOD FOR ERASING THE EEPROM IN THE TCM
1. Connect CONSULT-II to data link connector. Refer to CVT-45, "CONSULT-II SETTING PROCEDURE" .
2. Turn ignition switch ON. Confirm that CONSULT-II is turned ON.
3. Move selector lever to “R” position.
4. Touch “START (NISSAN BASED VHCL)” on CONSULT-II.
5. Select “SELF-DIAG RESULTS” mode for “TRANSMISSION” with CONSULT-II.
6. Press the brake pedal and turn the brake switch ON.
7. Press the accelerator pedal (0.5/8 - 4/8 throttle) not to exceed the half, and hold it in the half or less open
position. (This will set the closed throttle position signal to OFF and the wide open throttle position signal
to OFF.)
8. Touch “ERASE” on CONSULT-II, and then touch “YES”.
9. Wait 3 seconds and then release the accelerator pedal.
10. Turn ignition switch OFF.
METHOD FOR WRITING DATA FROM THE ROM ASSEMBLY IN THE TRANSAXLE
In the following procedure, the TCM reads data from the ROM assembly and writes it to the EEPROM in the
TCM.
1. Erase the EEPROM in the TCM.
2. Move selector lever to “P” position.
3. Turn ignition switch ON.
CHECK METHOD
Standard: About 2 seconds after the ignition switch ON, the CVT indicator lamp lights up for 2 seconds.
Non-standard: Even after the ignition switch ON, the CVT indicator lamp does not light up after 2 seconds
or illuminates immediately.
CAUTION:
Perform in the “P” or “N” position.
Action for Non-standard
Replace the CVT assembly.
Replace the TCM.
CVT assembly TCM Erasing EEPROM in TCM Remarks
Replaced Replaced Not requiredNot required because the EEPROM in the TCM is in
the default state. (CVT assembly must be replaced
first.)
Not replaced Replaced Not requiredNot required because the EEPROM in the TCM is in
the default state.
Replaced Not replaced RequiredRequired because data has been written in the
EEPROM in the TCM and because the TCM cannot
write data from the ROM assembly in the transmis-
sion.

Page 1016 of 3502

NISSAN TEANA 2003 Service Manual CVT-10
PRECAUTIONS

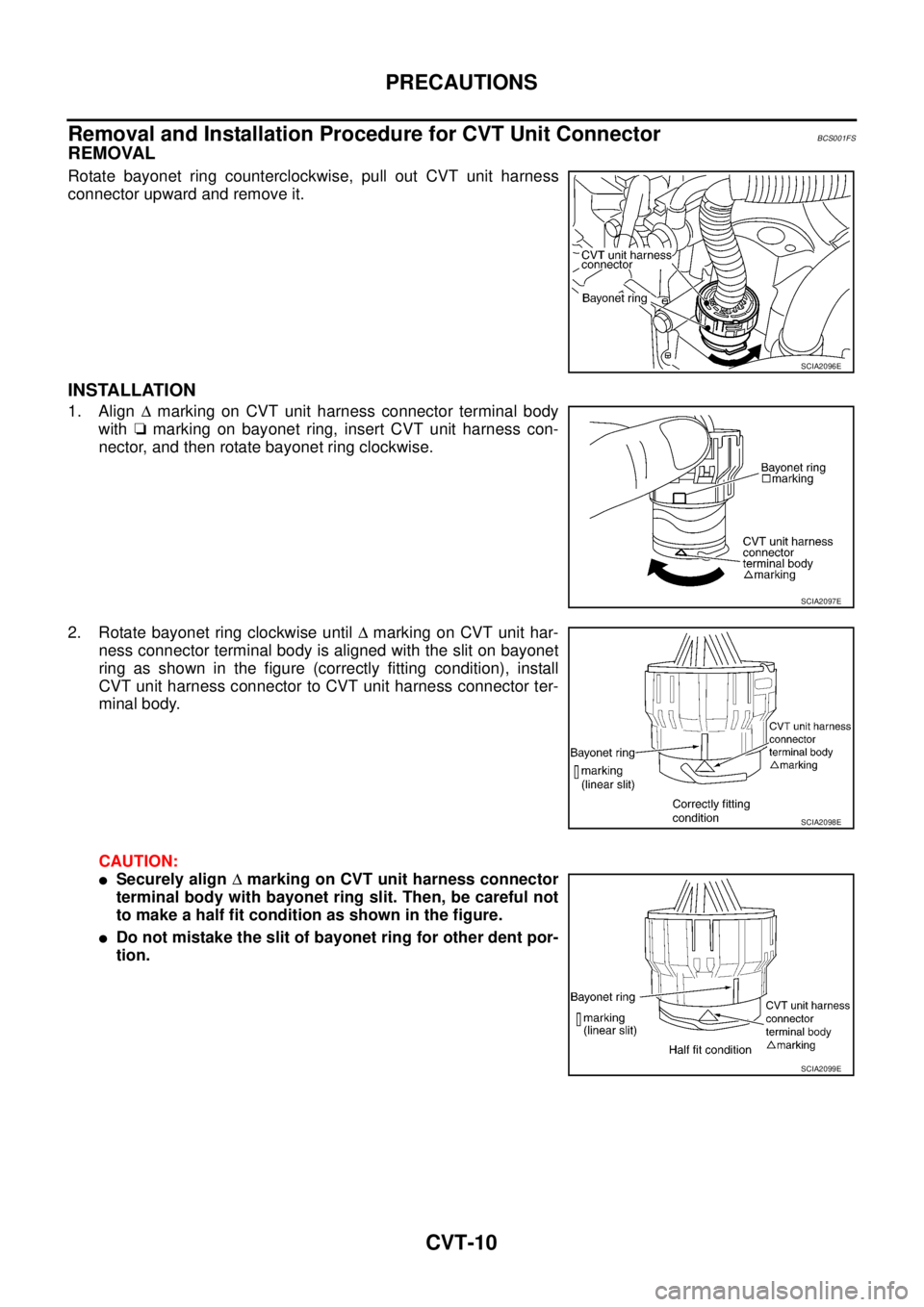

Removal and Installation Procedure for CVT Unit ConnectorBCS001FS
REMOVAL
Rotate bayonet ring counterclockwise, pull out CVT unit harness
connector upward and remove it.
INSTALLAT
