NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE)
WW-45
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
S/L UNLK-IPDMSteering is unlocked Off
Steering is locked On
S/L RELAY-REQIgnition switch in OFF or ACC position Off
Ig

BCM (BODY CONTROL MODULE)
WW-45
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
S/L UNLK-IPDMSteering is unlocked Off
Steering is locked On
S/L RELAY-REQIgnition switch in OFF or ACC position Off
Ignition switch in ON position On
VEH SPEED 1 While driving Equivalent to speedometer reading
VEH SPEED 2 While driving Equivalent to speedometer reading
DOOR STAT-DRDriver door is locked LOCK
Wait with selective UNLOCK operation (5 seconds) READY
Driver door is unlocked UNLOCK
DOOR STAT-ASPassenger door is locked LOCK
Wait with selective UNLOCK operation (5 seconds) READY
Passenger door is unlocked UNLOCK
ID OK FLAGIgnition switch in ACC or ON position Reset
Ignition switch in OFF position Set
PRMT ENG STRTThe engine start is prohibited Reset
The engine start is permitted Set
PRMT RKE STRTNOTE:
The item is indicated, but not monitored. Reset
KEY SW -SLOTThe key is not inserted into key slot Off
The key is inserted into key slot On
RKE OPE COUN1 During the operation of the key Operation frequency of the key
RKE OPE COUN2NOTE:
The item is indicated, but not monitored. —
CONFRM ID ALLThe key ID that the key slot receives does not accord with any key
ID registered to BCM.Ye t
The key ID that the key slot receives accords with any key ID regis-
tered to BCM.Done
CONFIRM ID4The key ID that the key slot receives does not accord with the fourth
key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the fourth key ID
registered to BCM.Done
CONFIRM ID3The key ID that the key slot receives does not accord with the third
key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the third key ID
registered to BCM.Done
CONFIRM ID2The key ID that the key slot receives does not accord with the sec-
ond key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the second key
ID registered to BCM.Done
CONFIRM ID1The key ID that the key slot receives does not accord with the first
key ID registered to BCM.Ye t
The key ID that the key slot receives accords with the first key ID
registered to BCM.Done
TP 4The ID of fourth key is not registered to BCM Yet
The ID of fourth key is registered to BCM Done
TP 3The ID of third key is not registered to BCM Yet
The ID of third key is registered to BCM Done Monitor Item Condition Value/Status

Page 5058 of 5121

NISSAN TEANA 2008 Service Manual WW-46
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
TERMINAL LAYOUT
TP 2The ID of second key is not registered to BCM Yet
The ID of second key is registered to BCM Done
TP 1The ID of first key is not re

Page 5059 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE)
WW-47
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
PHYSICAL VALUES
Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
Signal nameInput/
Output +�

Page 5060 of 5121

NISSAN TEANA 2008 Service Manual WW-48
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)

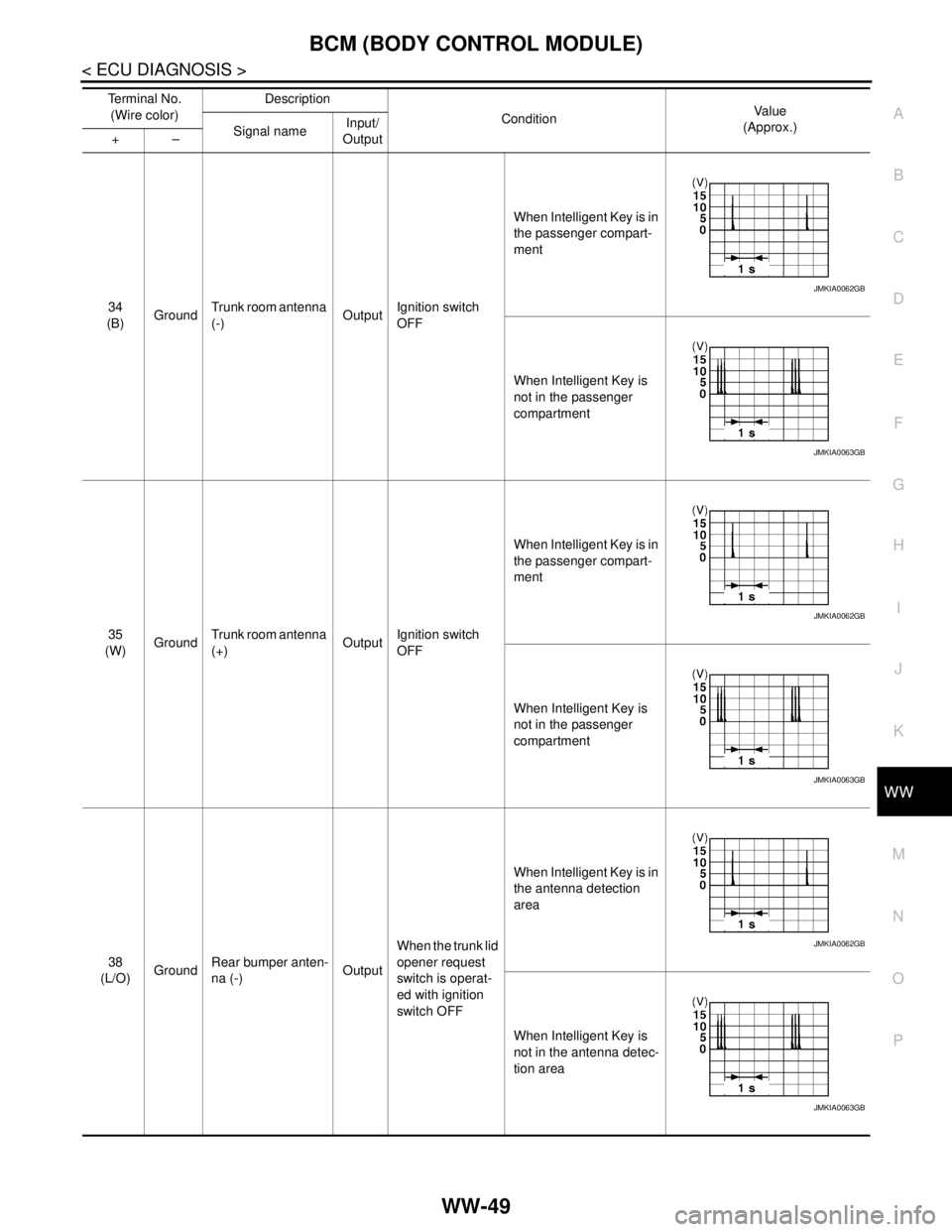

18
(G/Y)GroundTurn signal LH
(Front and door mir-
ror)OutputIgnition switch
ONTurn signal switch OFF 0 V
Turn signal switch LH
6.5 V
19
(Y)GroundRoo

Page 5061 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE)
WW-49
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P

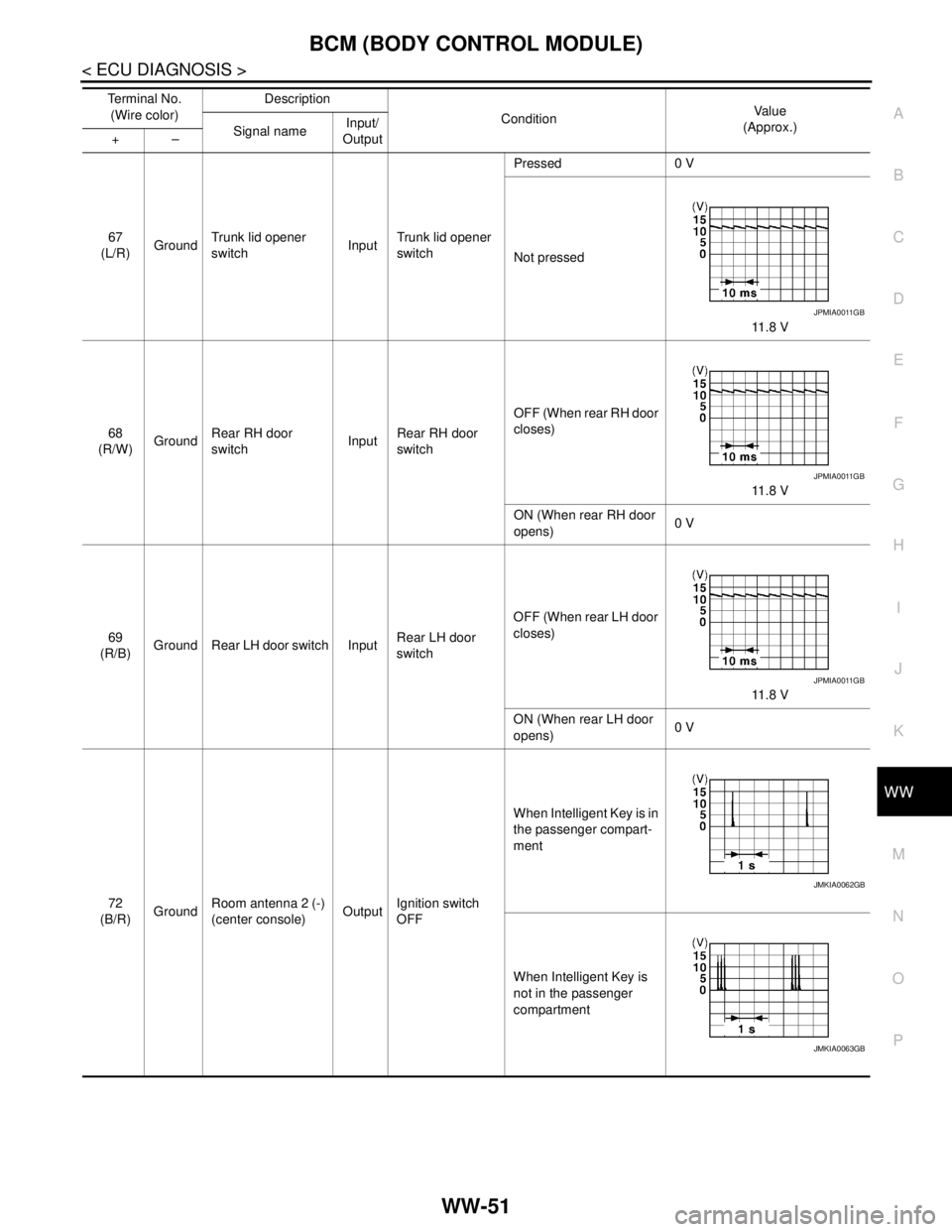

34
(B)GroundTrunk room antenna
(-)OutputIgnition switch
OFFWhen Intelligent Key is in
the passenger compart-
ment
W

Page 5062 of 5121

NISSAN TEANA 2008 Service Manual WW-50
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
39
(BR/W)GroundRear bumper anten-
na (+)OutputWhen the trunk lid
opener request
switch is operat-
ed with ignition
switch OFFWhen Intelligent Key i

Page 5063 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE)
WW-51
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
67
(L/R)GroundTrunk lid opener
switchInputTrunk lid opener
switchPressed 0 V
Not pressed
11.8 V
68
(R/W)GroundRear R

Page 5064 of 5121

NISSAN TEANA 2008 Service Manual WW-52
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
73
(W/R)GroundRoom antenna 2 (+)
(center console)OutputIgnition switch
OFFWhen Intelligent Key is in
the passenger compart-
ment
When Intelligent K
