MIR-8
< SYMPTOM DIAGNOSIS >
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Inspection ProcedureINFOID:0000000003941383
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. Cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Never use silicone spray to isolate a squeak or rattle. If the area is saturated with silicone, the recheck
of repair becomes impossible.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the following:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. The areas can usually be insulated with felt cloth tape or insulator foam blocks to
repair the noise.
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the customer.
In addition look for the following:
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. Trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Page 3242 of 5121

SQUEAK AND RATTLE TROUBLE DIAGNOSES
MIR-9
< SYMPTOM DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
MIR
N
O
P
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it is important to note the position the seat is in and the load placed on the seat
when the noise occurs. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. Rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.
Page 3243 of 5121
MIR-10
< SYMPTOM DIAGNOSIS >
SQUEAK AND RATTLE TROUBLE DIAGNOSES

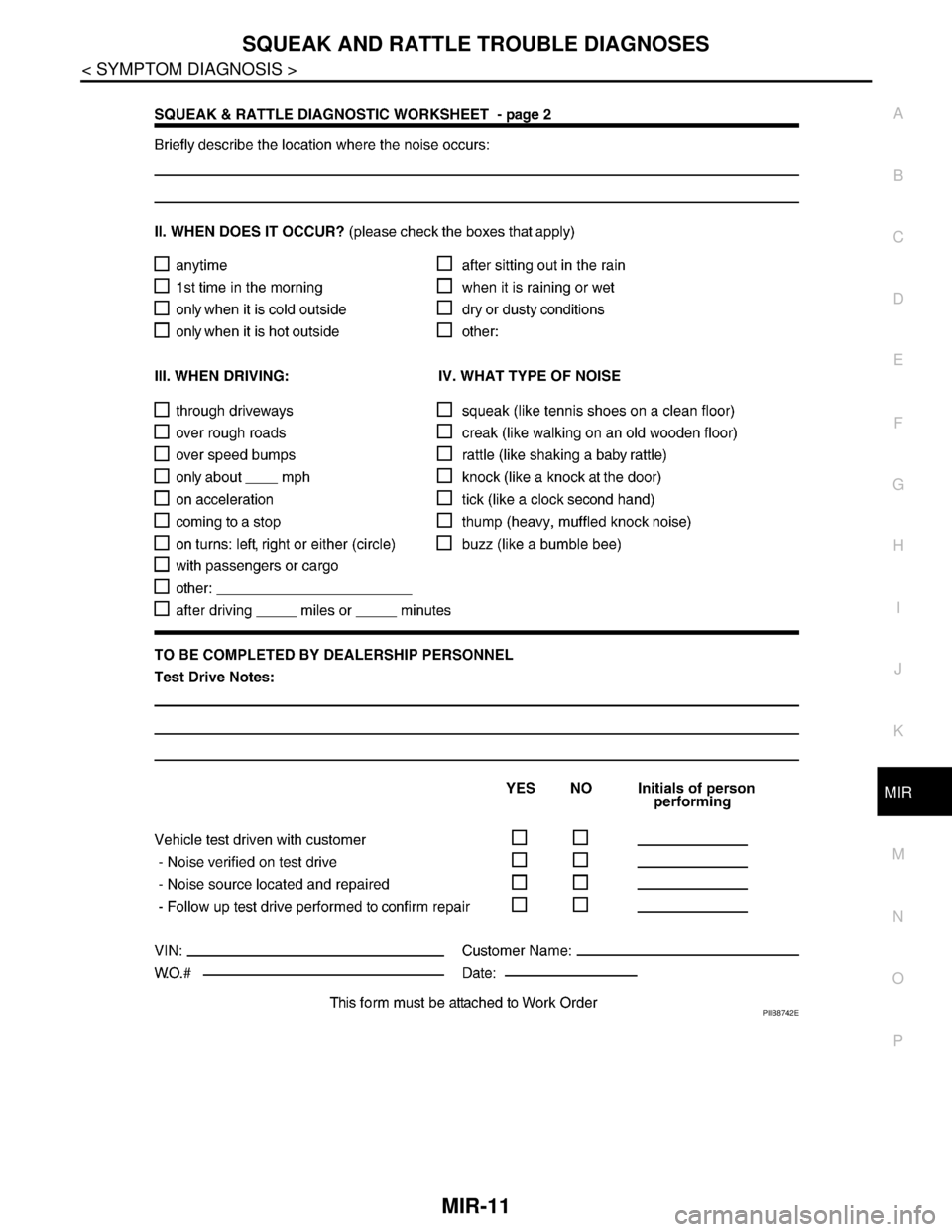

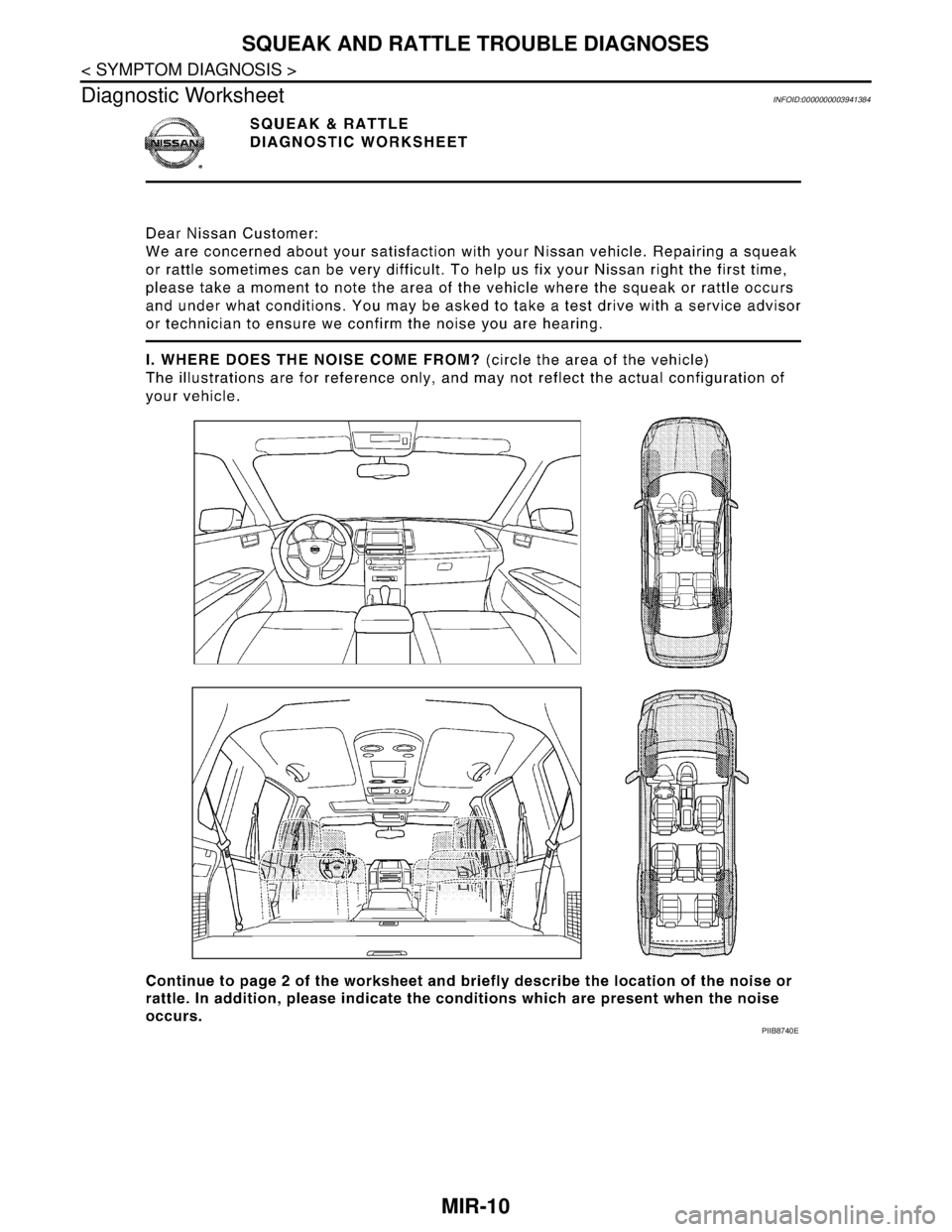

Diagnostic Worksheet
INFOID:0000000003941384
PIIB8740E
Page 3244 of 5121
SQUEAK AND RATTLE TROUBLE DIAGNOSES
MIR-11
< SYMPTOM DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
MIR
N
O
P
PIIB8742E
Page 3245 of 5121

MIR-12
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000003815741
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Page 3246 of 5121
PREPARATION
MIR-13
< PREPARATION >
C
D
E
F
G
H
I
J
K
MA
B
MIR
N
O
P
PREPARATION
PREPARATION
Commercial Service ToolsINFOID:0000000003815742
Tool name Description
Remover tool Removes the clip and pawl and metal clip
PIIB7923J
Page 3247 of 5121
MIR-14
< ON-VEHICLE REPAIR >
INSIDE MIRROR
ON-VEHICLE REPAIR
INSIDE MIRROR
Exploded ViewINFOID:0000000003815743
Removal and InstallationINFOID:0000000003815744
REMOVAL
1. Insert flat-headed screwdriver (A) under the inside mirror (1).
2. Slide the inside mirror to the upper side while pushing the pawl
downward.
CAUTION:
Never use excessive force to remove the inside mirror because
it is inserted tightly into the mirror base.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
When inserting the inside mirror into the mirror base, be careful to push the pawl until it connects to
the mirror base.
1. Inside mirror 2. Mirror base
Refer to GI-4, "
Components" for symbols in the figure.
JMLIA0145ZZ
JMLIA0055ZZ
Page 3248 of 5121

OUTSIDE MIRROR
MIR-15
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
MA
B
MIR
N
O
P
OUTSIDE MIRROR
DOOR MIRROR ASSEMBLY
DOOR MIRROR ASSEMBLY : Exploded ViewINFOID:0000000003815745
DOOR MIRROR ASSEMBLY : Removal and InstallationINFOID:0000000003815746
REMOVAL
1. Remove front door finisher. Refer to INT-30, "DRIVER SIDE : Removal and Installation" (driver side) or
INT-33, "
PASSENGER SIDE : Removal and Installation" (passenger side).
2. Remove clips and remove corner cover.
3. Disconnect door mirror harness connector.
4. Remove door mirror mounting nuts, and remove door mirror assembly.
INSTALLATION
Install in the reverse order of removal.
DOOR MIRROR ASSEMBLY : Disassembly and AssemblyINFOID:0000000003815747
DISASSEMBLY
1. Remove door mirror assembly. Refer to MIR-15, "DOOR MIRROR ASSEMBLY : Removal and Installa-
tion".
2. Remove glass mirror. Refer to MIR-18, "
GLASS MIRROR : Disassembly and Assembly".
3. Remove door mirror cover. Refer to MIR-19, "
DOOR MIRROR COVER : Disassembly and Assembly".
1. Door mirror cover 2. Side turn signal lamp assembly 3. Corner cover
4. Glass mirror 5. Mirror assembly
: Clip
: Pawl
JMLIA0157ZZ
