NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) PWC-51 < ECU DIAGNOSIS > C D E F G H I J L MA B PWC N O P 111 (L/Y)GroundSteering lock unit communicationInput/ OutputSteering lockLOCK status Battery voltage LOCK or UNLOCK

Page 3682 of 5121

NISSAN TEANA 2008 Service Manual PWC-52 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) 124 (R/B)GroundPassenger door switchInputPassenger door switchOFF (When passenger door closes) 11 . 8 V ON (When passenger door opens)0 V 128 (G

Page 3683 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) PWC-53 < ECU DIAGNOSIS > C D E F G H I J L MA B PWC N O P 141 (L/O)Ground Security indicator Output Security indicatorON 0 V Blinking 11.3 V OFF Battery voltage 142 (LG/B)Gro

Page 3684 of 5121

NISSAN TEANA 2008 Service Manual PWC-54 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) NOTE: *: Without BOSE audio system145 (LG/R)GroundCombination switch OUTPUT 3OutputCombination switch (Wiper intermit- tent dial 4)All switch OFF 0

Page 3685 of 5121

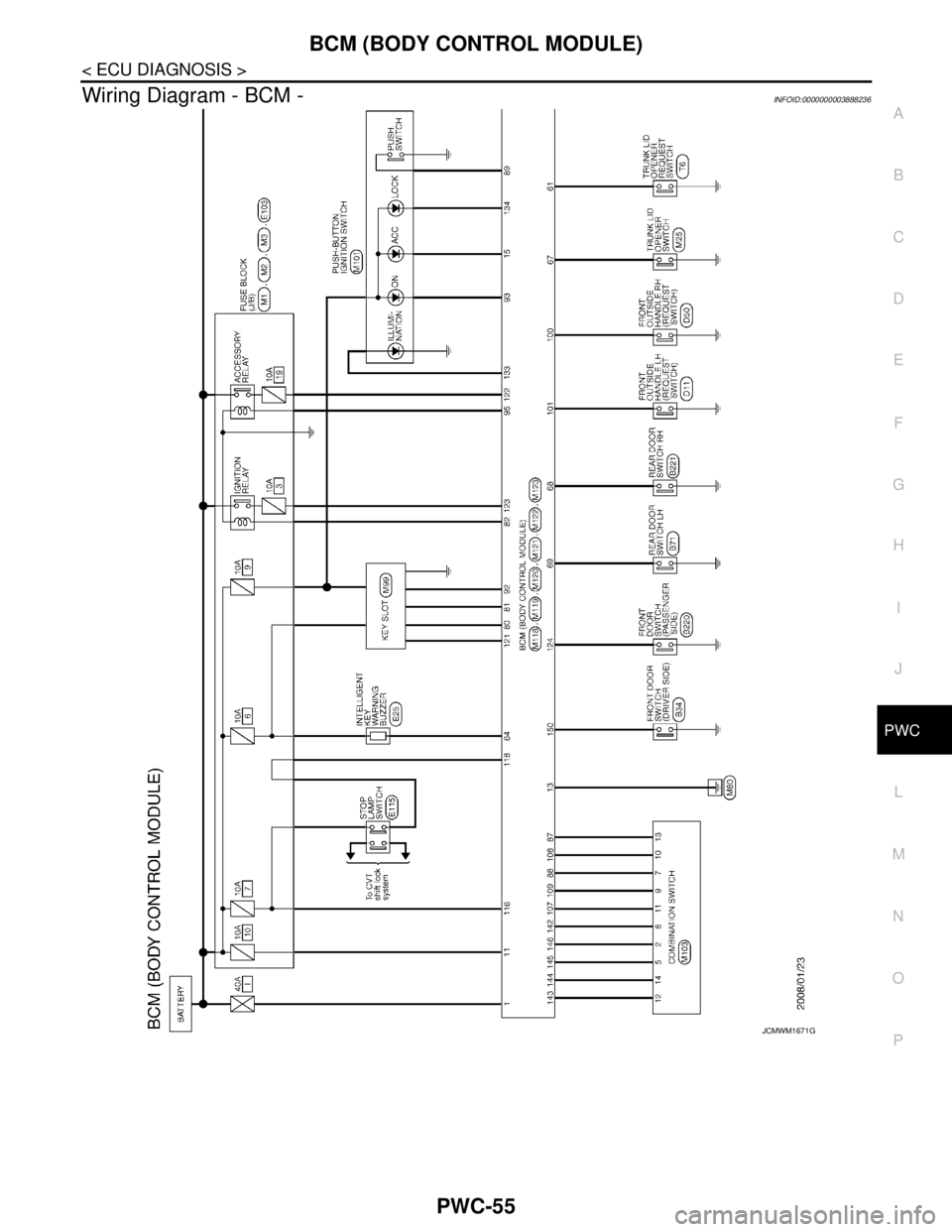

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) PWC-55 < ECU DIAGNOSIS > C D E F G H I J L MA B PWC N O P Wiring Diagram - BCM -INFOID:0000000003888236 JCMWM1671GB

Page 3686 of 5121

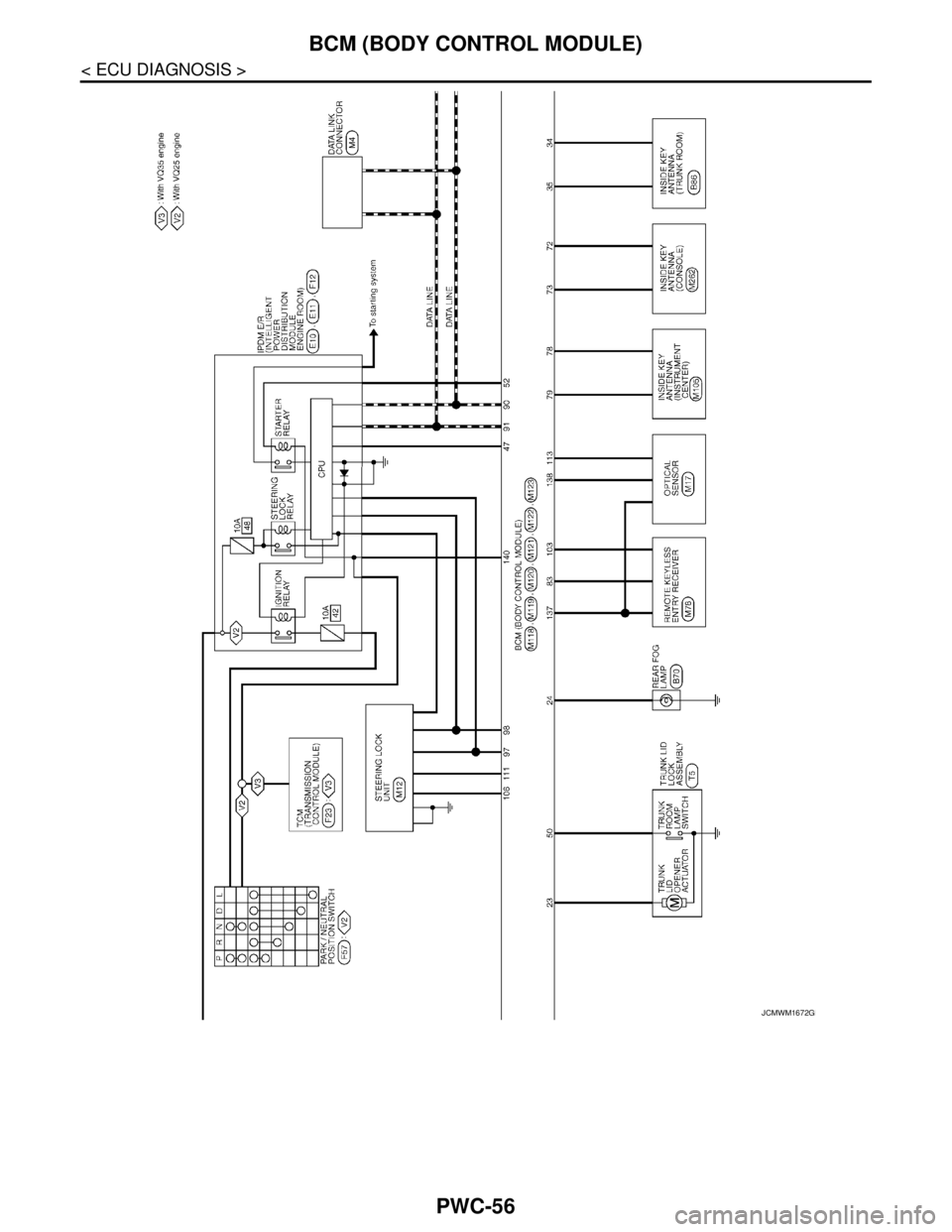

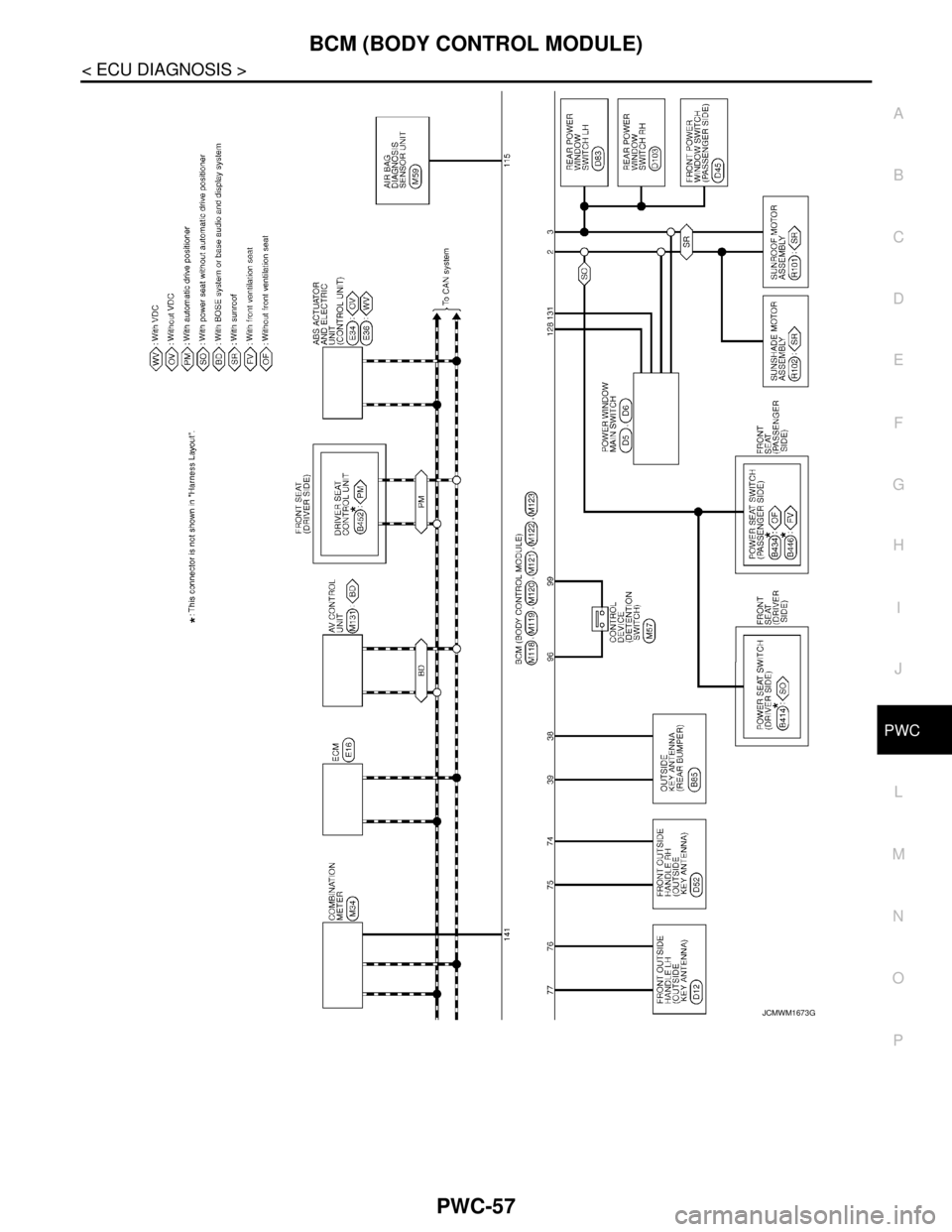

NISSAN TEANA 2008 Service Manual PWC-56 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) JCMWM1672GB

Page 3687 of 5121

NISSAN TEANA 2008 Service Manual BCM (BODY CONTROL MODULE) PWC-57 < ECU DIAGNOSIS > C D E F G H I J L MA B PWC N O P JCMWM1673GB

Page 3688 of 5121

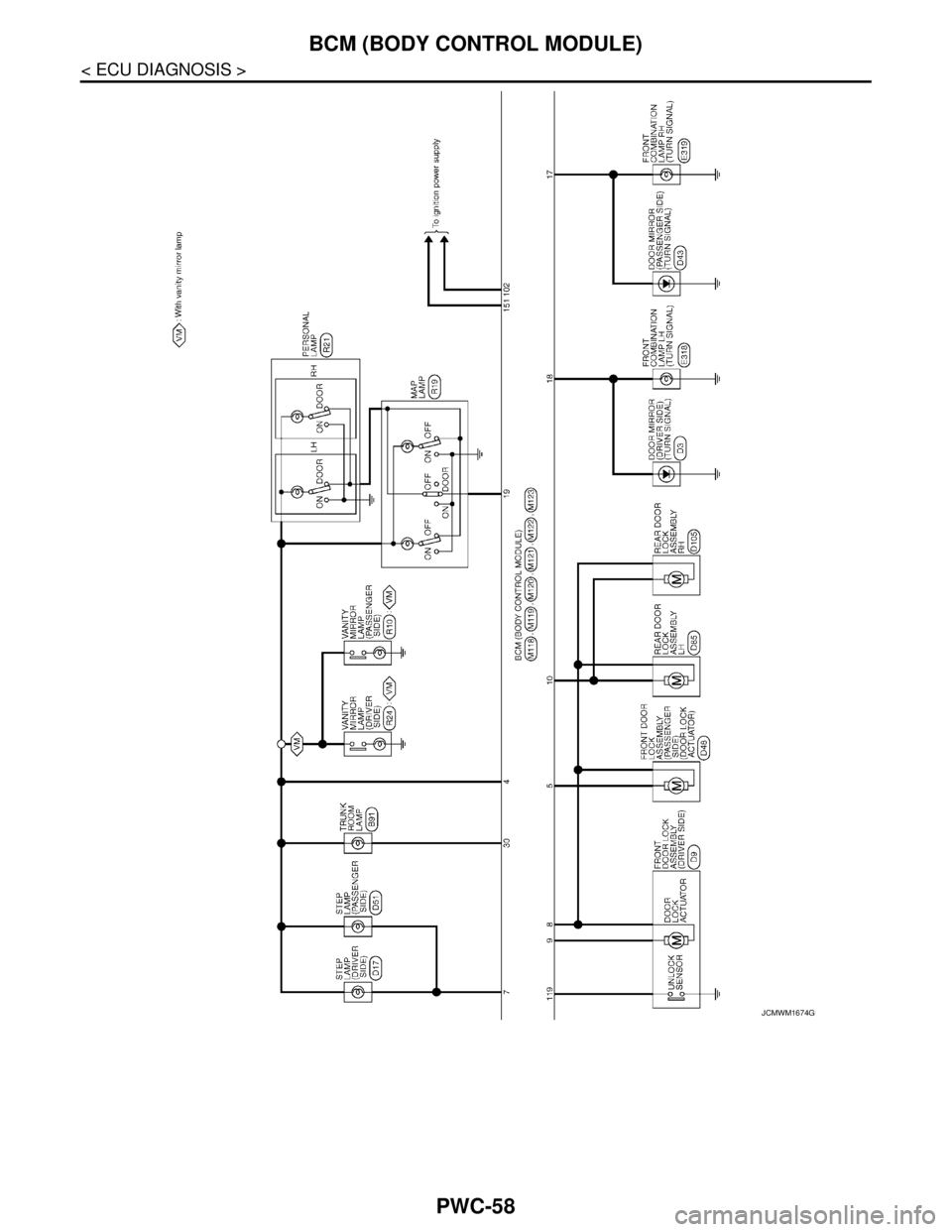

NISSAN TEANA 2008 Service Manual PWC-58 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) JCMWM1674GB
