NISSAN TEANA 2008 Service Manual TM-136
< PRECAUTION >[CVT: RE0F09B]
PRECAUTIONS
Precaution for Procedure without Cowl Top Cover
INFOID:0000000003897196
When performing the procedure after removing cowl top cover, cover
the lower end

TM-136
< PRECAUTION >[CVT: RE0F09B]
PRECAUTIONS
Precaution for Procedure without Cowl Top Cover
INFOID:0000000003897196
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Precaution for On Board Diagnosis (OBD) System of CVT and EngineINFOID:0000000003849068
The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver of
a malfunction causing emission deterioration.
CAUTION:
Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative terminal
before any repair or inspection work. The open/short circuit of related switches, sensors, solenoid
valves, etc. will cause the MI to light up.
Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to an open circuit. (Be sure the connector is free from water, grease, dirt,
bent terminals, etc.)
Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. may cause the MI to light up due to a short circuit.
Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to a malfunction of the EVAP system or fuel injection system, etc.
Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.
Precaution for TCM and CVT Assembly ReplacementINFOID:0000000003849069
CAUTION:
Check if new data (Unit ID) are entered correctly after replacing CVT assembly and erasing data in
TCM. (Connect CONSULT-III, and then turn ignition switch OFF.)
When replacing CVT assembly or TCM, refer to the pattern table below and erase the EEPROM in the
TCM if necessary.
EEPROM ERASING PATTERNS
Removal and Installation Procedure for CVT Unit ConnectorINFOID:0000000003849070
REMOVAL
PIIB3706J
CVT assembly TCM Erasing EEPROM in TCM Remarks
Replaced Replaced Not requiredNot required because the EEPROM in the TCM is in
the default state. (CVT assembly must be replaced
first.)
Not replaced Replaced Not requiredNot required because the EEPROM in the TCM is in
the default state.
Replaced Not replaced RequiredRequired because data has been written in the EE-
PROM in the TCM and because the TCM cannot write
data from the ROM assembly in the transmission.

Page 4610 of 5121

NISSAN TEANA 2008 Service Manual PRECAUTIONS
TM-137
< PRECAUTION >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

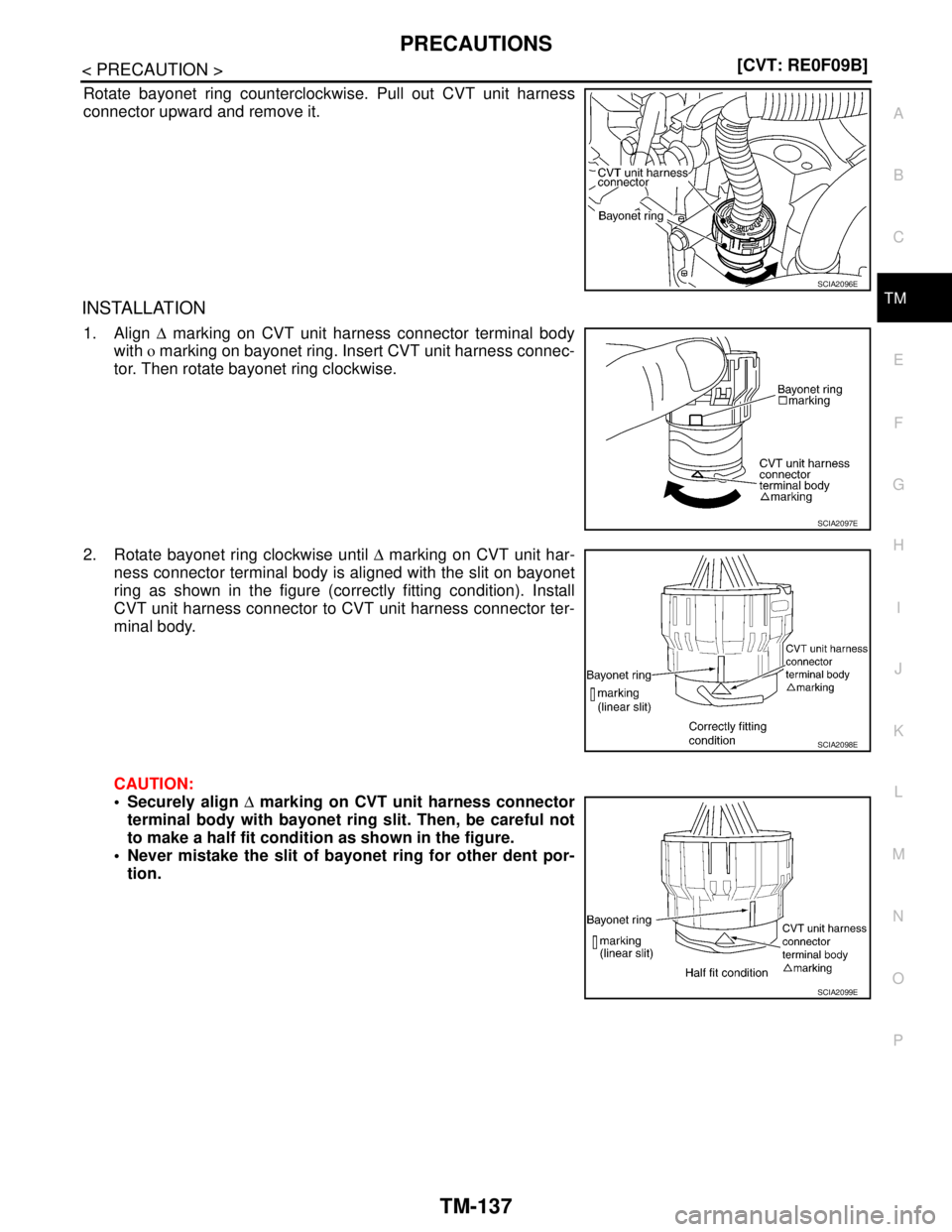

Rotate bayonet ring counterclockwise. Pull out CVT unit harness
connector upward and remove it.
INSTALLATION
1. Align �

Page 4611 of 5121

NISSAN TEANA 2008 Service Manual TM-138
< PRECAUTION >[CVT: RE0F09B]
PRECAUTIONS
Precaution
INFOID:0000000003849071

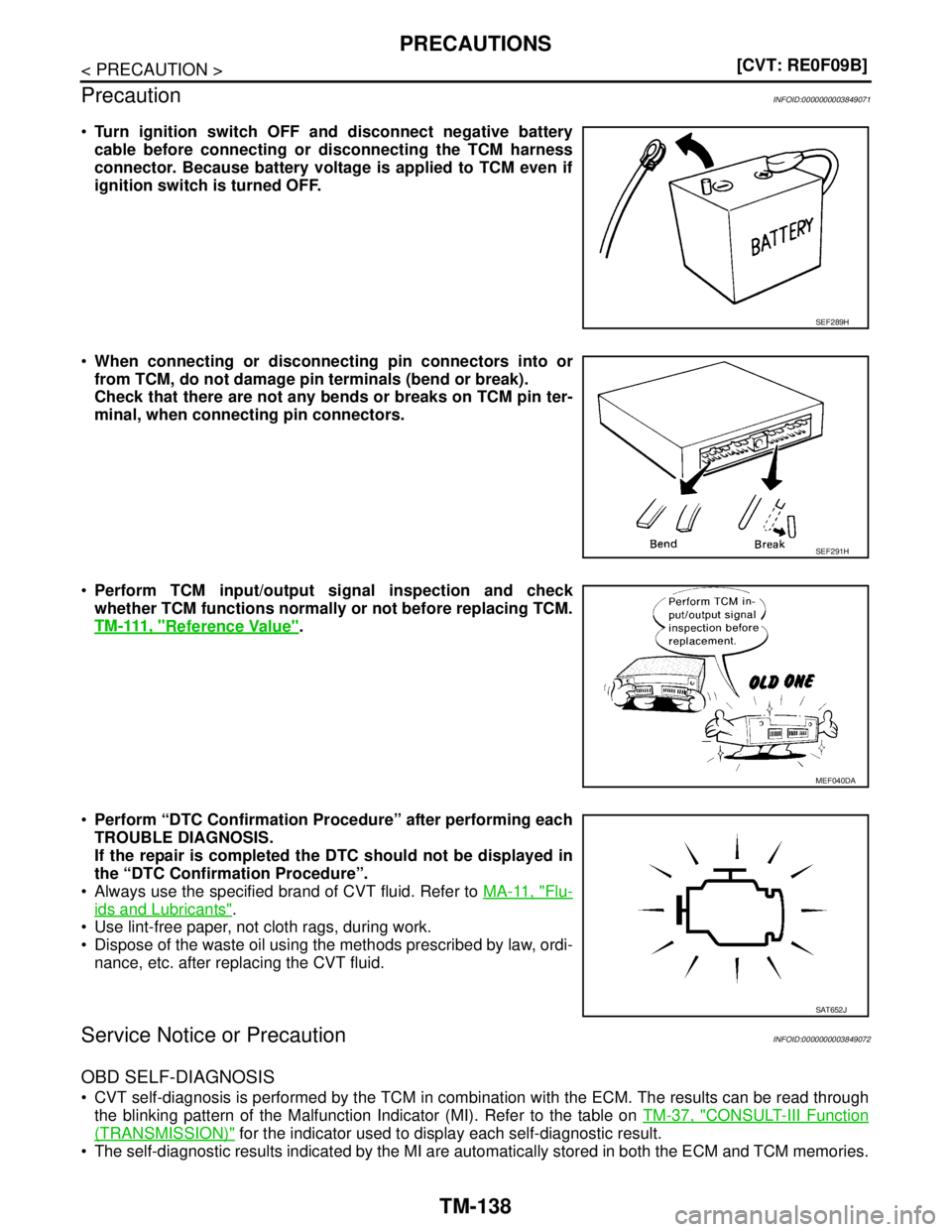

Turn ignition switch OFF and disconnect negative battery
cable before connecting or disconnecting the TCM harness
co

Page 4612 of 5121

NISSAN TEANA 2008 Service Manual PRECAUTIONS
TM-139
< PRECAUTION >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Always perform the procedure on TM-35, "Diagnosis Description" to complete the repair and avoid
unnecessary blinking of

Page 4613 of 5121

NISSAN TEANA 2008 Service Manual TM-140
< PREPARATION >[CVT: RE0F09B]
PREPARATION
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000003849074
The actual shapes of Kent-Moore tools may differ from those of special service too

Page 4614 of 5121

NISSAN TEANA 2008 Service Manual PREPARATION
TM-141
< PREPARATION >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

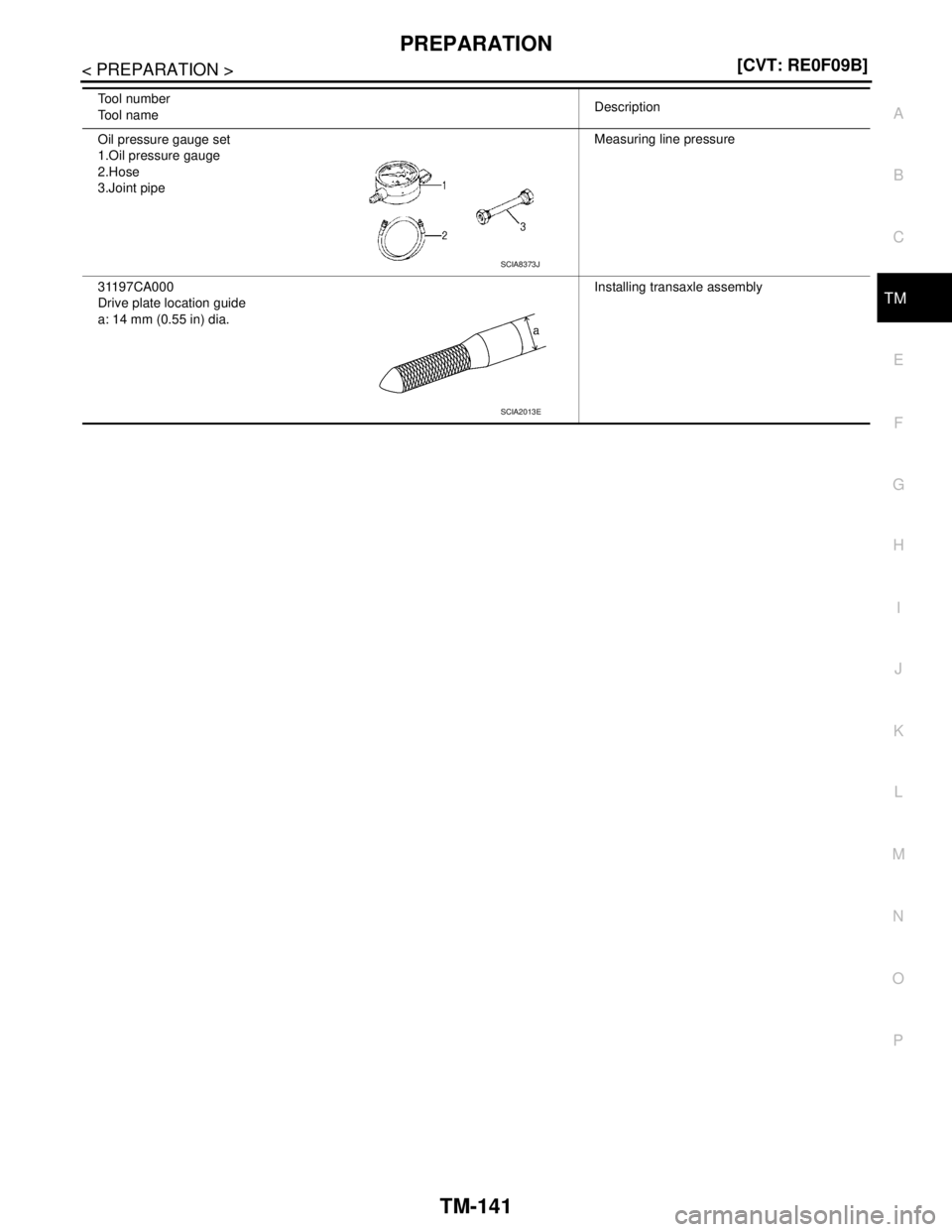

Oil pressure gauge set
1.Oil pressure gauge
2.Hose
3.Joint pipeMeasuring line pressure
31197CA000
Drive plate location

Page 4615 of 5121

NISSAN TEANA 2008 Service Manual TM-142
< ON-VEHICLE MAINTENANCE >[CVT: RE0F09B]
CVT FLUID
ON-VEHICLE MAINTENANCE
CVT FLUID
InspectionINFOID:0000000003849076
CHECKING CVT FLUID

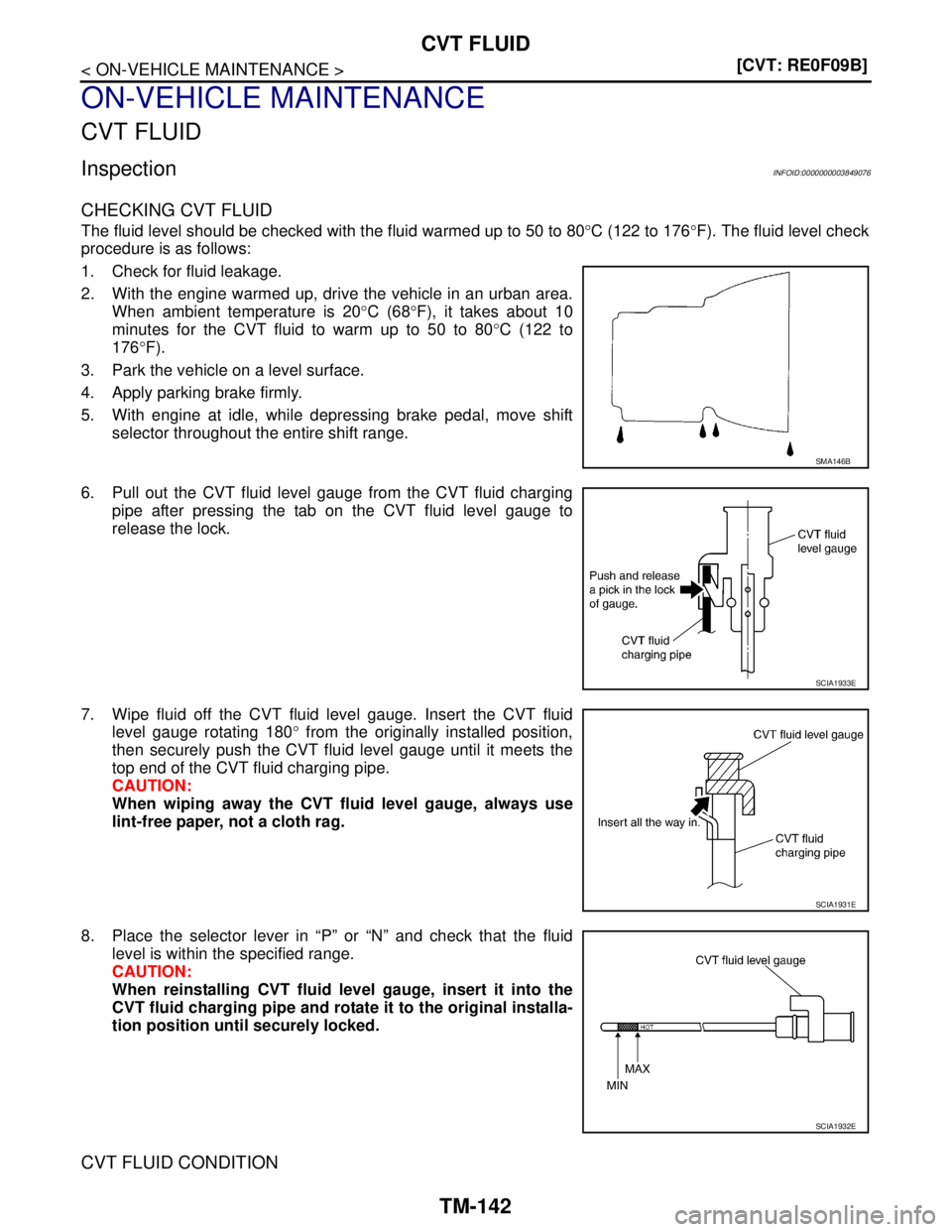

The fluid level should be checked with the fluid warmed

Page 4616 of 5121

NISSAN TEANA 2008 Service Manual CVT FLUID
TM-143
< ON-VEHICLE MAINTENANCE >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

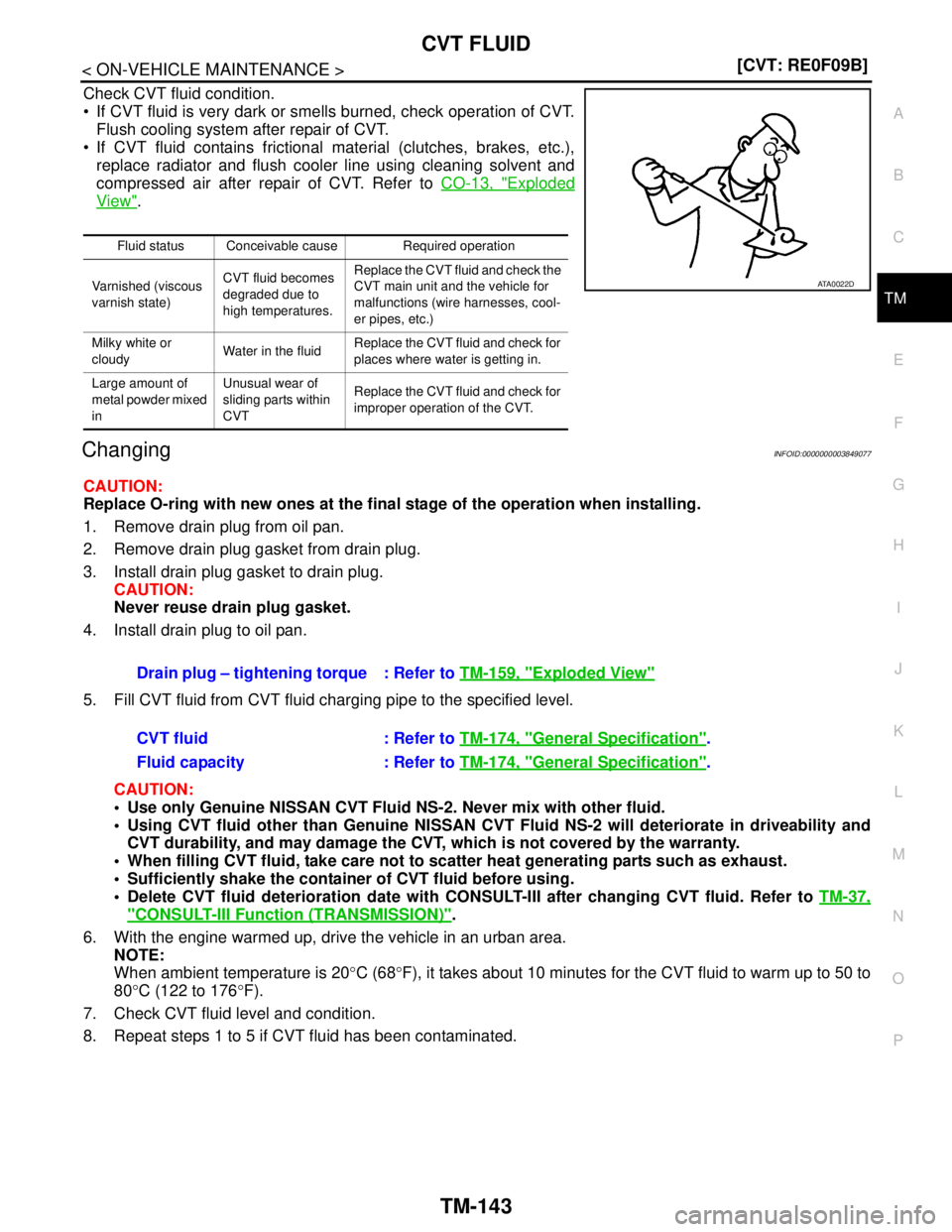

Check CVT fluid condition.
If CVT fluid is very dark or smells burned, check operation of CVT.
Flush cooling

CVT FLUID
TM-143
< ON-VEHICLE MAINTENANCE >[CVT: RE0F09B]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Check CVT fluid condition.
If CVT fluid is very dark or smells burned, check operation of CVT.
Flush cooling system after repair of CVT.
If CVT fluid contains frictional material (clutches, brakes, etc.),
replace radiator and flush cooler line using cleaning solvent and
compressed air after repair of CVT. Refer to CO-13, "
Exploded
View".
ChangingINFOID:0000000003849077
CAUTION:
Replace O-ring with new ones at the final stage of the operation when installing.
1. Remove drain plug from oil pan.
2. Remove drain plug gasket from drain plug.
3. Install drain plug gasket to drain plug.
CAUTION:
Never reuse drain plug gasket.
4. Install drain plug to oil pan.
5. Fill CVT fluid from CVT fluid charging pipe to the specified level.
CAUTION:
Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.
Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and
CVT durability, and may damage the CVT, which is not covered by the warranty.
When filling CVT fluid, take care not to scatter heat generating parts such as exhaust.
Sufficiently shake the container of CVT fluid before using.
Delete CVT fluid deterioration date with CONSULT-III after changing CVT fluid. Refer to TM-37,
"CONSULT-III Function (TRANSMISSION)".
6. With the engine warmed up, drive the vehicle in an urban area.
NOTE:
When ambient temperature is 20°C (68°F), it takes about 10 minutes for the CVT fluid to warm up to 50 to
80°C (122 to 176°F).
7. Check CVT fluid level and condition.
8. Repeat steps 1 to 5 if CVT fluid has been contaminated.
Fluid status Conceivable cause Required operation
Varnished (viscous
varnish state)CVT fluid becomes
degraded due to
high temperatures.Replace the CVT fluid and check the
CVT main unit and the vehicle for
malfunctions (wire harnesses, cool-
er pipes, etc.)
Milky white or
cloudyWater in the fluidReplace the CVT fluid and check for
places where water is getting in.
Large amount of
metal powder mixed
inUnusual wear of
sliding parts within
CVTReplace the CVT fluid and check for
improper operation of the CVT.
ATA0022D
Drain plug – tightening torque : Refer to TM-159, "Exploded View"
CVT fluid : Refer to TM-174, "General Specification".
Fluid capacity : Refer to TM-174, "
General Specification".
