EXL-188
< ON-VEHICLE REPAIR >[XENON TYPE]
SIDE TURN SIGNAL LAMP
SIDE TURN SIGNAL LAMP
Exploded ViewINFOID:0000000003816250
Removal and InstallationINFOID:0000000003816251
CAUTION:
Disconnect battery negative terminal or remove the fuse.
REMOVAL
1. Remove the door mirror glass. Refer to MIR-18, "GLASS MIRROR : Exploded View".
2. Remove the door mirror outer cover. Refer to MIR-19, "
DOOR MIRROR COVER : Exploded View".
3. Remove the door mirror actuator mounting screws (A) and (B).
And then remove the side turn signal lamp mounting screw (C).
4. Remove the door mirror under cover. Refer to MIR-19, "
DOOR MIRROR COVER : Exploded View".
5. Remove the screws (A) and connector (1). And then remove the
side turn signal lamp (2).
INSTALLATION
1. Side turn signal lamp 2. Door mirror under cover
JPLIA1094ZZ
JPLIA1095ZZ
JPLIA1096ZZ
Page 2218 of 5121
SIDE TURN SIGNAL LAMP
EXL-189
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Install in the reverse order of removal.
Page 2219 of 5121
EXL-190
< ON-VEHICLE REPAIR >[XENON TYPE]
AUTO LEVELIZER CONTROL UNIT
AUTO LEVELIZER CONTROL UNIT
Exploded ViewINFOID:0000000003774377
Removal and InstallationINFOID:0000000003774378
Removal
1. Remove the auto levelizer control unit bolt.
2. Remove the sensor lever link bracket bolt.
3. Disconnect the auto levelizer control unit connector.
4. Remove the auto levelizer control unit.
Installation
Install in the reverse order of removal.
CAUTION:
Be sure to perform sensor initialization if auto levelizer control unit is removed. Refer to EXL-10,
"SENSOR INITIALIZE : Special Repair Requirement (HEADLAMP AIMING CONTROL SYSTEM)".
Be sure to perform “WRITE CONFIGURATION” with CONSULT-III when replacing the auto levelizer
control unit. Refer to EXL-9, "
CONFIGURATION (HEADLAMP LEVELIZER) : Special Repair Require-
ment".
1. Auto levelizer control unit
A. Auto levelizer control unit bolt B. Sensor lever link bracket bolt
JPLIA1147ZZ
Page 2220 of 5121
REAR COMBINATION LAMP
EXL-191
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

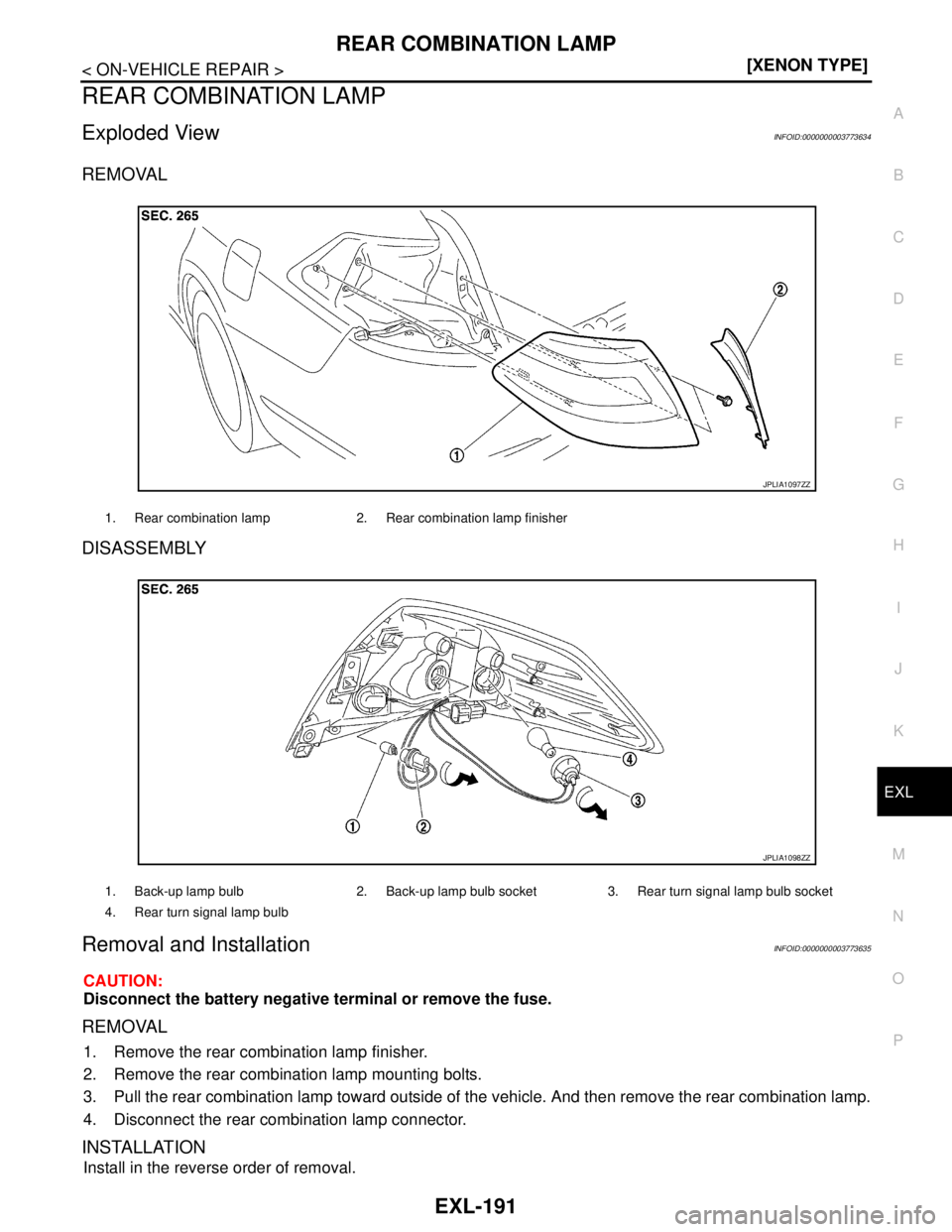

REAR COMBINATION LAMP
Exploded ViewINFOID:0000000003773634
REMOVAL
DISASSEMBLY
Removal and InstallationINFOID:0000000003773635
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
REMOVAL
1. Remove the rear combination lamp finisher.
2. Remove the rear combination lamp mounting bolts.
3. Pull the rear combination lamp toward outside of the vehicle. And then remove the rear combination lamp.
4. Disconnect the rear combination lamp connector.
INSTALLATION
Install in the reverse order of removal.
1. Rear combination lamp 2. Rear combination lamp finisher
JPLIA1097ZZ
1. Back-up lamp bulb 2. Back-up lamp bulb socket 3. Rear turn signal lamp bulb socket
4. Rear turn signal lamp bulb
JPLIA1098ZZ
Page 2221 of 5121
![NISSAN TEANA 2008 Service Manual EXL-192
< ON-VEHICLE REPAIR >[XENON TYPE]
REAR COMBINATION LAMP
Replacement
INFOID:0000000003773636
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
Never touch the glass of b NISSAN TEANA 2008 Service Manual EXL-192
< ON-VEHICLE REPAIR >[XENON TYPE]
REAR COMBINATION LAMP
Replacement
INFOID:0000000003773636
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
Never touch the glass of b](/manual-img/5/57391/w960_57391-2220.png)
EXL-192
< ON-VEHICLE REPAIR >[XENON TYPE]
REAR COMBINATION LAMP
Replacement
INFOID:0000000003773636
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.
Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect
the performance of lamp. When replacing bulb, be sure to replace it with new one.
STOP/TAIL LAMP
Replacement integral with rear combination lamp. Refer to EXL-191, "Exploded View".
REAR TURN SIGNAL LAMP BULB
1. Remove the rear combination lamp. Refer to EXL-191, "Exploded View".
2. Rotate the rear turn signal lamp bulb socket counterclockwise, and unlock it.
3. Remove the bulb from the rear turn signal lamp bulb socket.
BACK-UP LAMP BULB
1. Remove the rear combination lamp. Refer to EXL-191, "Exploded View".
2. Rotate the back-up lamp bulb socket counterclockwise, and unlock it.
3. Remove the bulb from the back-up lamp bulb socket.
Page 2222 of 5121
HIGH-MOUNTED STOP LAMP
EXL-193
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P

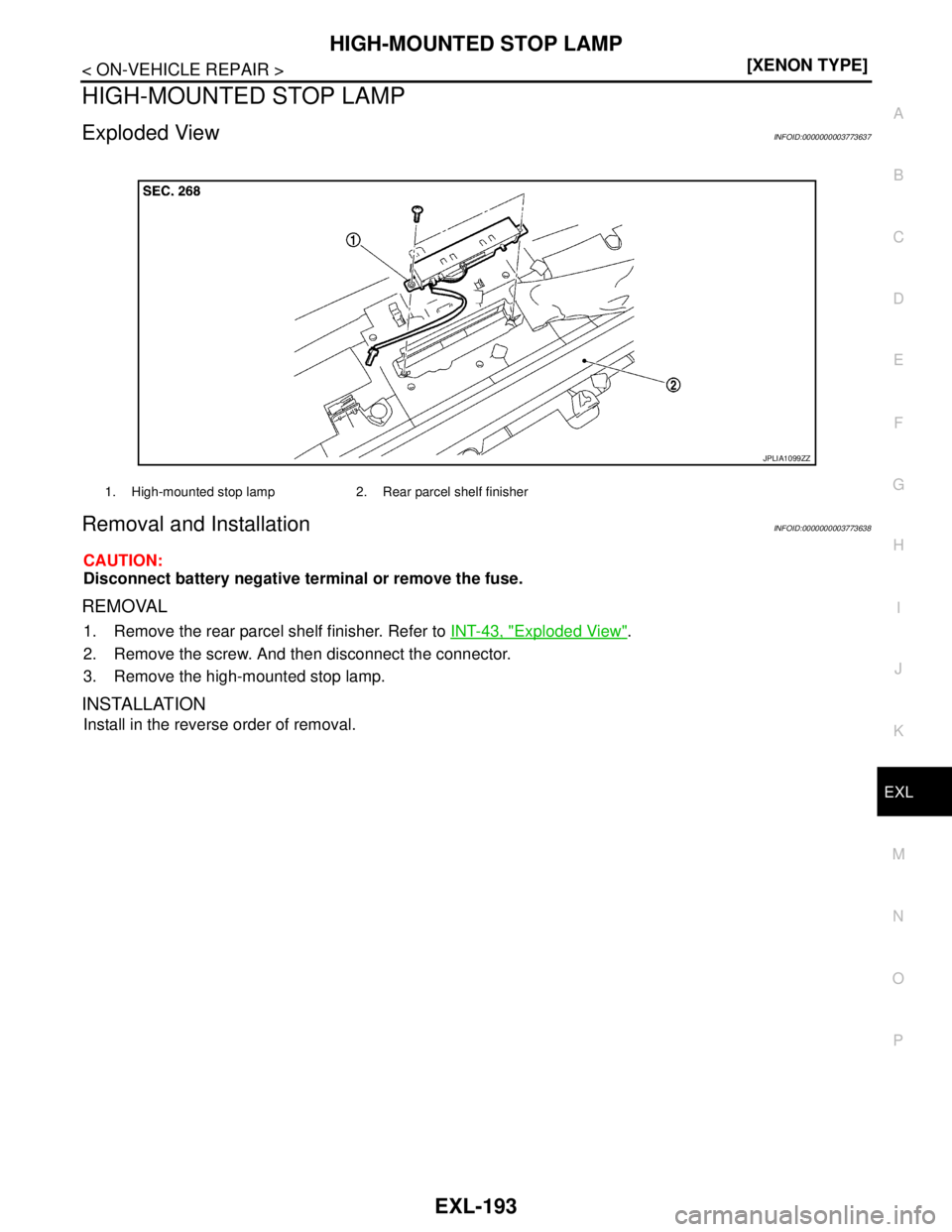

HIGH-MOUNTED STOP LAMP
Exploded ViewINFOID:0000000003773637
Removal and InstallationINFOID:0000000003773638
CAUTION:
Disconnect battery negative terminal or remove the fuse.
REMOVAL
1. Remove the rear parcel shelf finisher. Refer to INT-43, "Exploded View".
2. Remove the screw. And then disconnect the connector.
3. Remove the high-mounted stop lamp.
INSTALLATION
Install in the reverse order of removal.
1. High-mounted stop lamp 2. Rear parcel shelf finisher
JPLIA1099ZZ
Page 2223 of 5121
![NISSAN TEANA 2008 Service Manual EXL-194
< ON-VEHICLE REPAIR >[XENON TYPE]

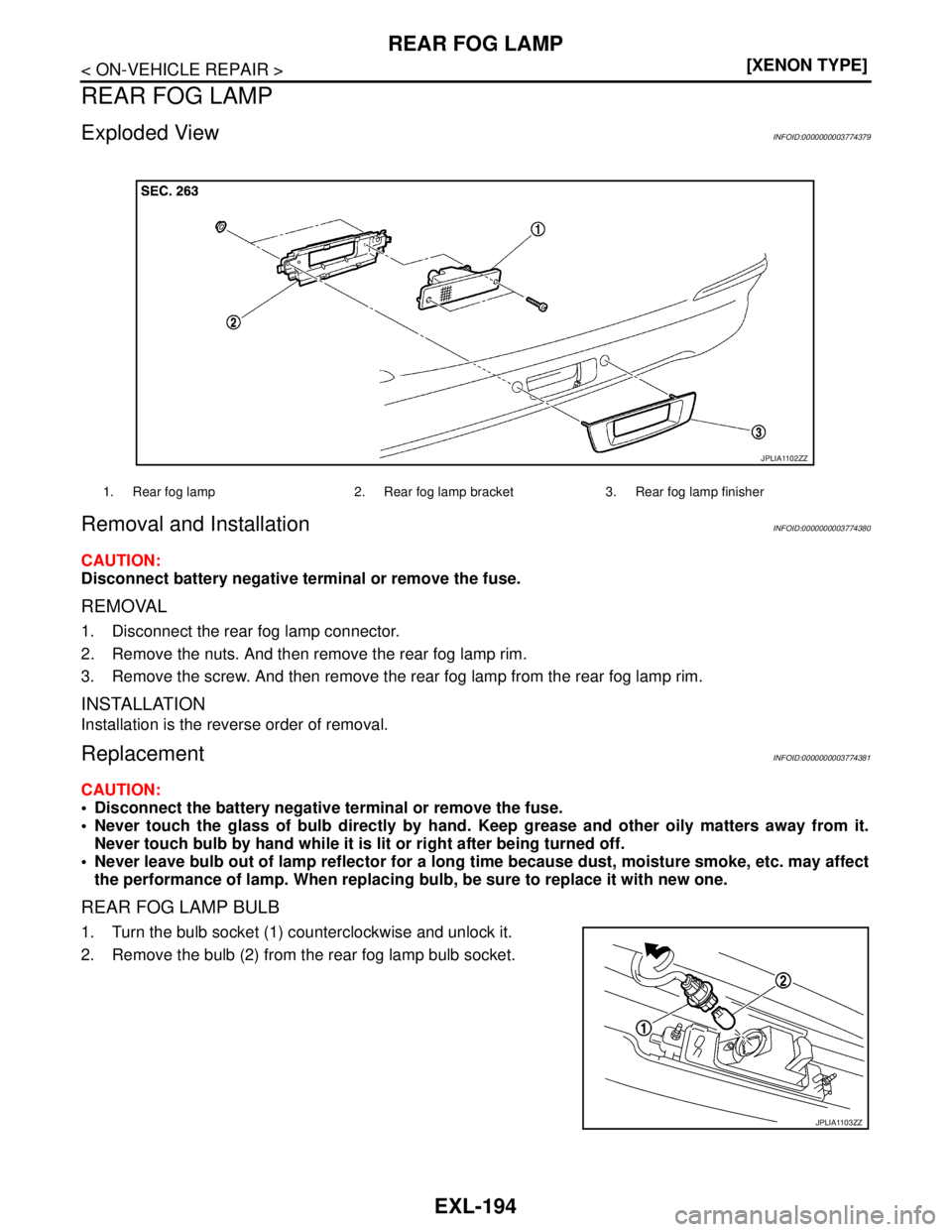

REAR FOG LAMP
REAR FOG LAMP
Exploded ViewINFOID:0000000003774379
Removal and InstallationINFOID:0000000003774380
CAUTION:
Disconnect battery negative terminal NISSAN TEANA 2008 Service Manual EXL-194
< ON-VEHICLE REPAIR >[XENON TYPE]
REAR FOG LAMP
REAR FOG LAMP
Exploded ViewINFOID:0000000003774379
Removal and InstallationINFOID:0000000003774380
CAUTION:
Disconnect battery negative terminal](/manual-img/5/57391/w960_57391-2222.png)
EXL-194
< ON-VEHICLE REPAIR >[XENON TYPE]
REAR FOG LAMP
REAR FOG LAMP
Exploded ViewINFOID:0000000003774379
Removal and InstallationINFOID:0000000003774380
CAUTION:
Disconnect battery negative terminal or remove the fuse.
REMOVAL
1. Disconnect the rear fog lamp connector.
2. Remove the nuts. And then remove the rear fog lamp rim.
3. Remove the screw. And then remove the rear fog lamp from the rear fog lamp rim.
INSTALLATION
Installation is the reverse order of removal.
ReplacementINFOID:0000000003774381
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.
Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect
the performance of lamp. When replacing bulb, be sure to replace it with new one.
REAR FOG LAMP BULB
1. Turn the bulb socket (1) counterclockwise and unlock it.
2. Remove the bulb (2) from the rear fog lamp bulb socket.
1. Rear fog lamp 2. Rear fog lamp bracket 3. Rear fog lamp finisher
JPLIA1102ZZ
JPLIA1103ZZ
Page 2224 of 5121
![NISSAN TEANA 2008 Service Manual LICENSE PLATE LAMP
EXL-195
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
LICENSE PLATE LAMP
Exploded ViewINFOID:0000000003773642
Removal and InstallationINFOID:0000000003773643
CA NISSAN TEANA 2008 Service Manual LICENSE PLATE LAMP
EXL-195
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
LICENSE PLATE LAMP
Exploded ViewINFOID:0000000003773642
Removal and InstallationINFOID:0000000003773643
CA](/manual-img/5/57391/w960_57391-2223.png)

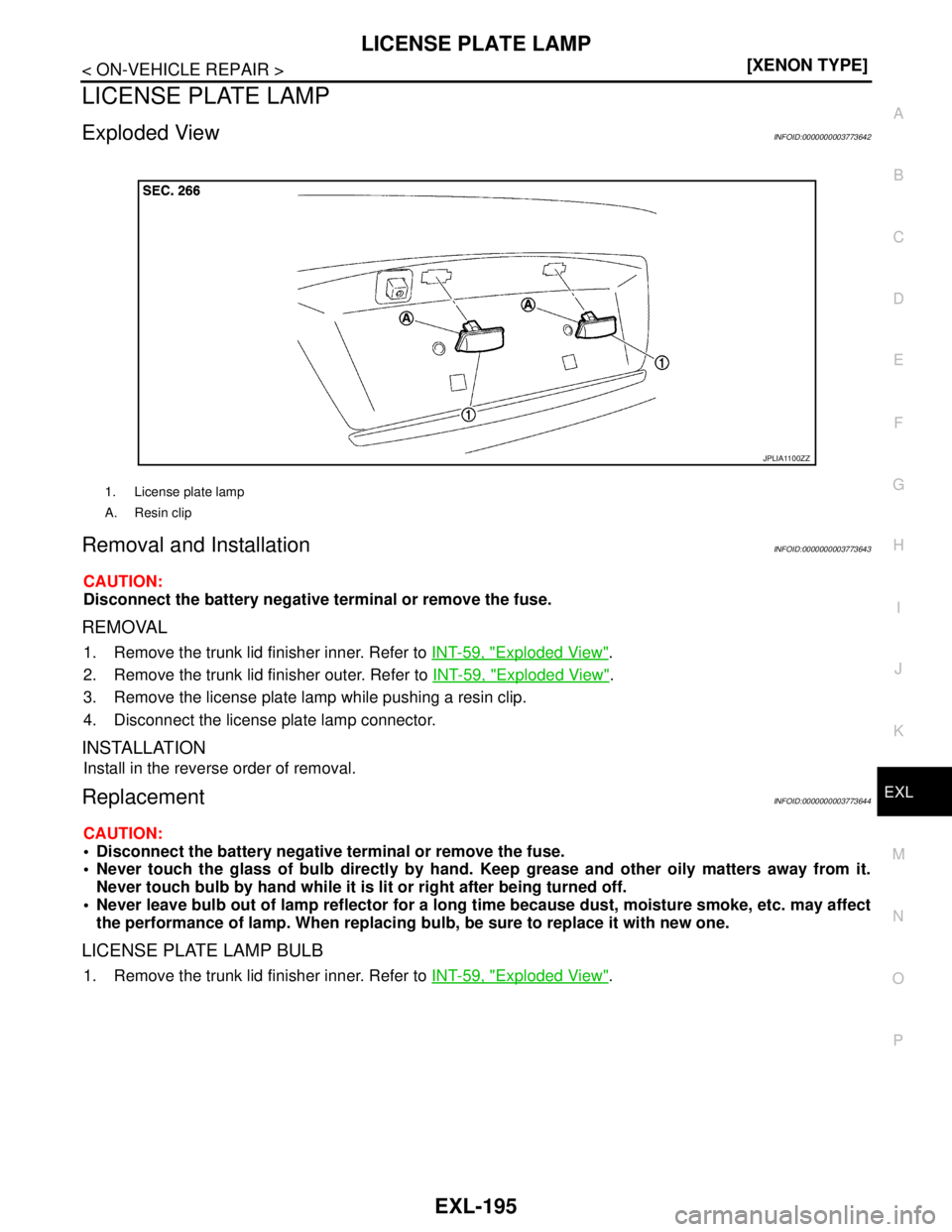

LICENSE PLATE LAMP
EXL-195
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
LICENSE PLATE LAMP
Exploded ViewINFOID:0000000003773642
Removal and InstallationINFOID:0000000003773643
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
REMOVAL
1. Remove the trunk lid finisher inner. Refer to INT-59, "Exploded View".
2. Remove the trunk lid finisher outer. Refer to INT-59, "
Exploded View".
3. Remove the license plate lamp while pushing a resin clip.
4. Disconnect the license plate lamp connector.
INSTALLATION
Install in the reverse order of removal.
ReplacementINFOID:0000000003773644
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.
Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect
the performance of lamp. When replacing bulb, be sure to replace it with new one.
LICENSE PLATE LAMP BULB
1. Remove the trunk lid finisher inner. Refer to INT-59, "Exploded View".
1. License plate lamp
A. Resin clip
JPLIA1100ZZ
