Page 4457 of 5121
STR-10
< COMPONENT DIAGNOSIS >
STARTING SYSTEM
STARTING SYSTEM

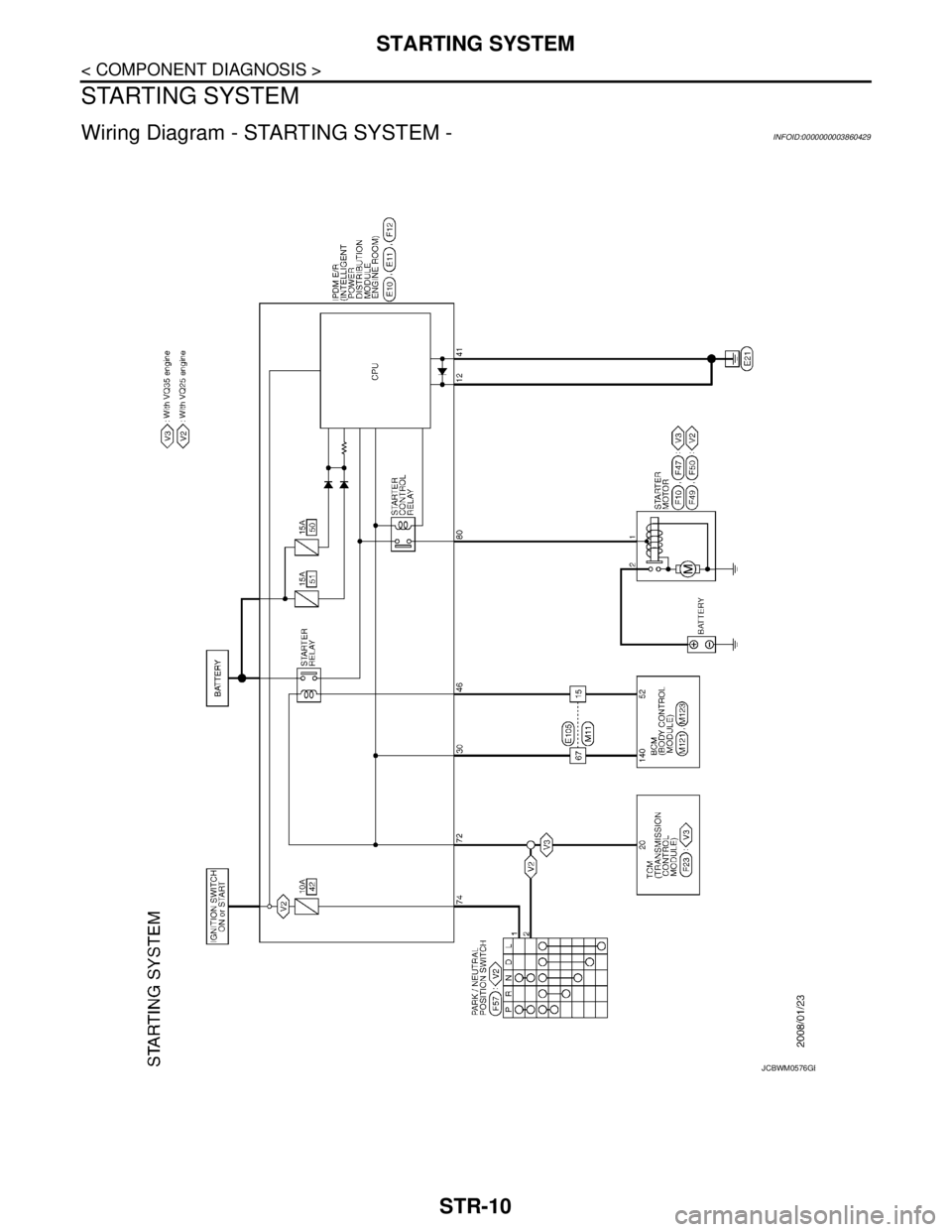

Wiring Diagram - STARTING SYSTEM -INFOID:0000000003860429
JCBWM0576GB
Page 4458 of 5121
STARTING SYSTEM
STR-11
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
JCBWM0577GB
Page 4459 of 5121
STR-12
< COMPONENT DIAGNOSIS >
STARTING SYSTEM
JCBWM0578GB
Page 4460 of 5121
STARTING SYSTEM
STR-13
< SYMPTOM DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
SYMPTOM DIAGNOSIS
STARTING SYSTEM
Symptom TableINFOID:0000000003860431
Symptom Reference
No normal cranking
Refer to STR-2, "
Work Flow".
Starter motor does not rotate
Page 4461 of 5121

STR-14
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000003860432
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIRBAG” and
“SEAT BELT” of this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Page 4462 of 5121
STARTER MOTOR
STR-15
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
ON-VEHICLE REPAIR
STARTER MOTOR
VQ25DE

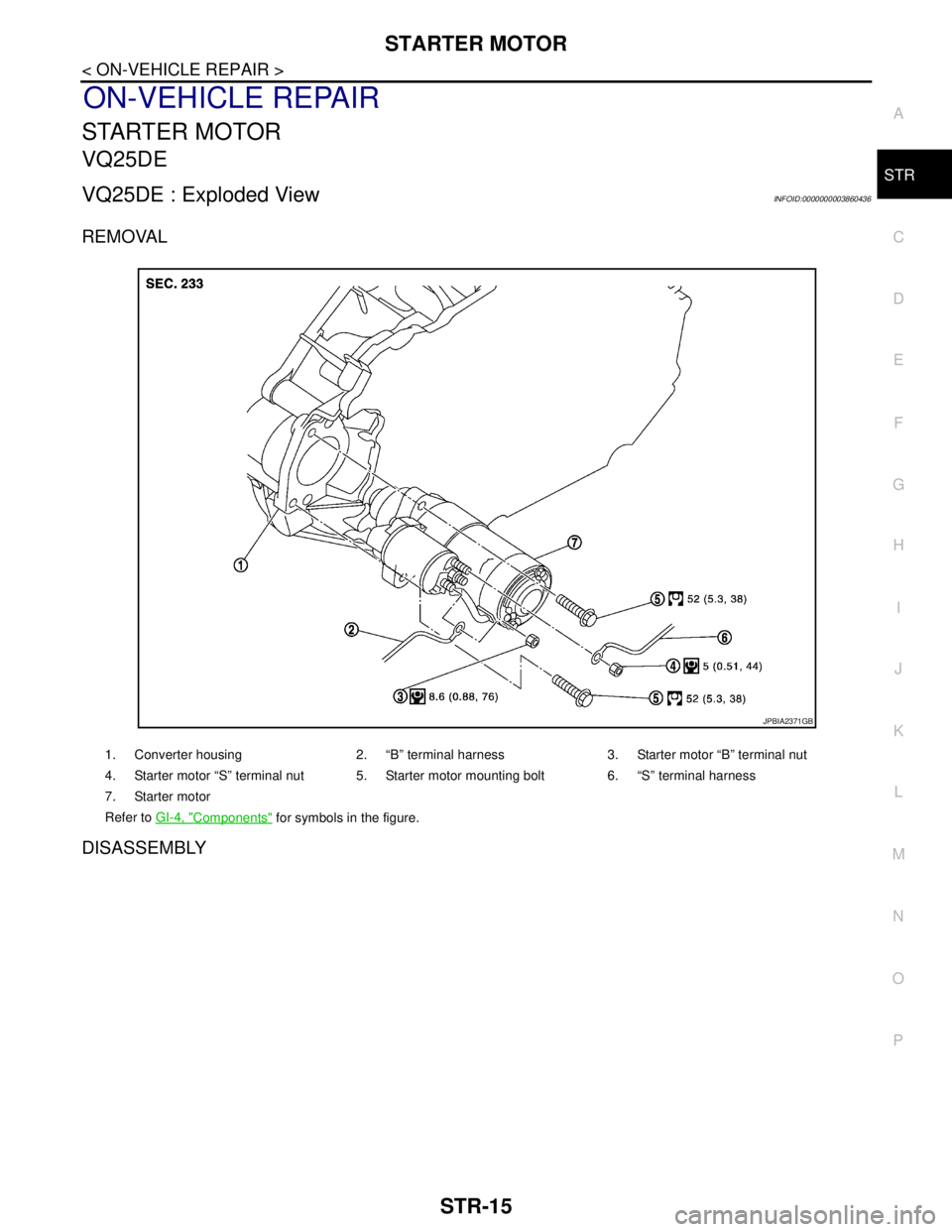

VQ25DE : Exploded ViewINFOID:0000000003860436
REMOVAL
DISASSEMBLY
1. Converter housing 2. “B” terminal harness 3. Starter motor “B” terminal nut
4. Starter motor “S” terminal nut 5. Starter motor mounting bolt 6.“S” terminal harness
7. Starter motor
Refer to GI-4, "
Components" for symbols in the figure.
JPBIA2371GB
Page 4463 of 5121

STR-16
< ON-VEHICLE REPAIR >
STARTER MOTOR
Type: S114-936
VQ25DE : Removal and InstallationINFOID:0000000003860437
REMOVAL
1. Remove the battery. Refer to PG-109, "Removal and Installation".
2. Remove the air cleaner assembly and air ducts.
3. Disconnect the following unit connectors:
ECM
IPDM E/R
4. Remove the battery tray.
5. Remove the “B”terminal nut and “S” terminal nut.
6. Remove the starter motor mounting bolts.
7. Remove the starter motor upward from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
VQ25DE : InspectionINFOID:0000000003860438
MAGNETIC SWITCH
Before starting to check, disconnect the battery cable from the negative terminal.
JSAIA0936GB

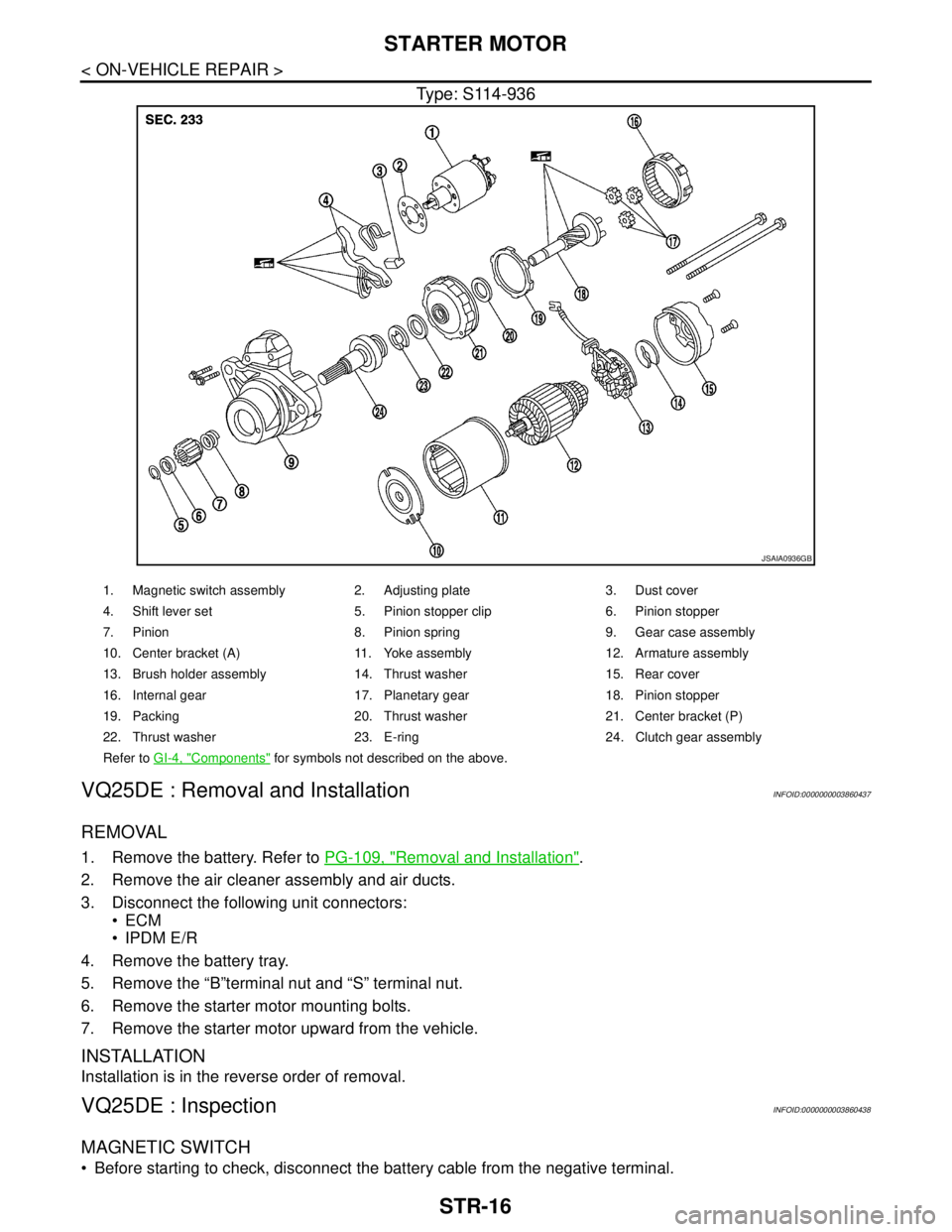

1. Magnetic switch assembly 2. Adjusting plate 3. Dust cover
4. Shift lever set 5. Pinion stopper clip 6. Pinion stopper
7. Pinion 8. Pinion spring 9. Gear case assembly
10. Center bracket (A) 11. Yoke assembly 12. Armature assembly
13. Brush holder assembly 14. Thrust washer 15. Rear cover
16. Internal gear 17. Planetary gear 18. Pinion stopper
19. Packing 20. Thrust washer 21. Center bracket (P)
22. Thrust washer 23. E-ring 24. Clutch gear assembly
Refer to GI-4, "
Components" for symbols not described on the above.
Page 4464 of 5121
STARTER MOTOR
STR-17
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O

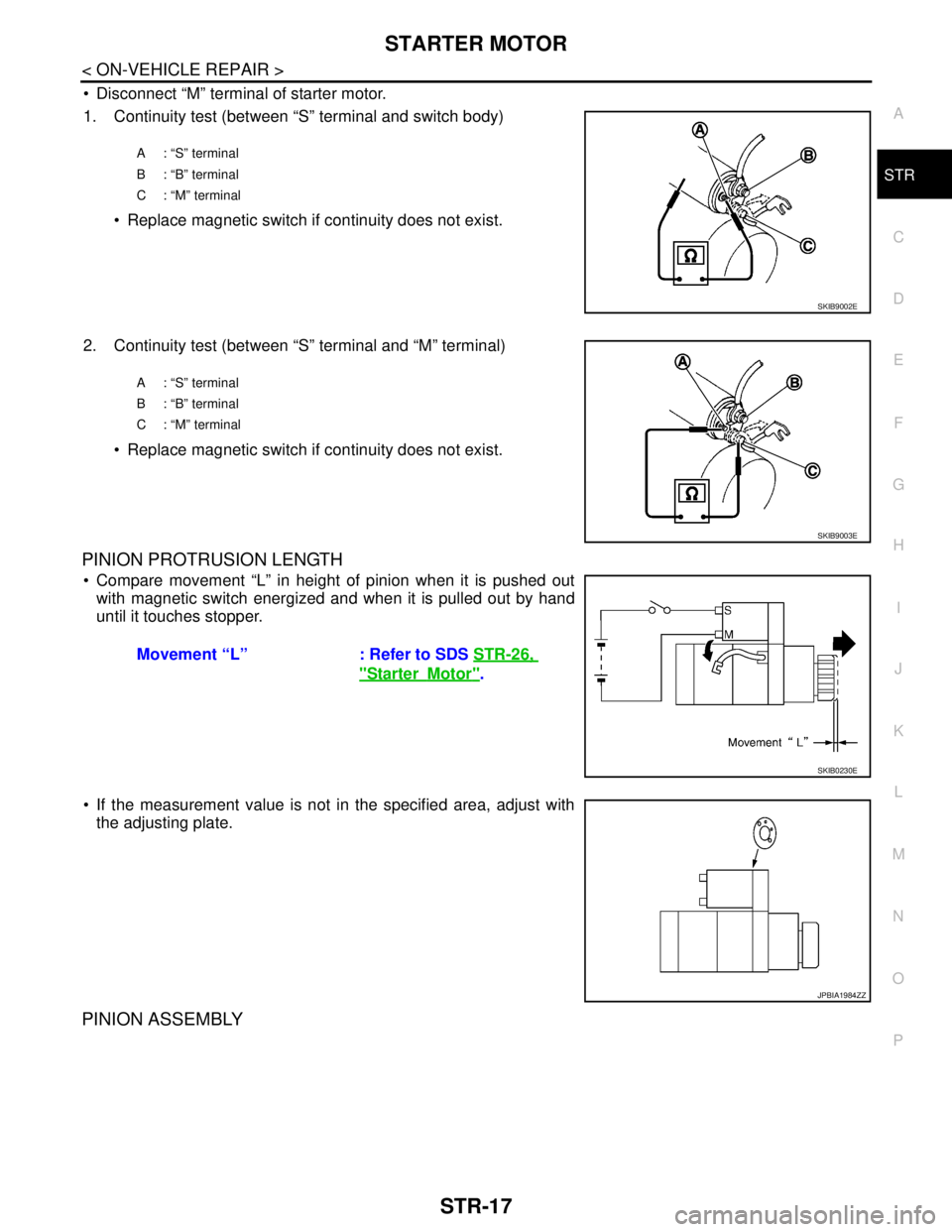

Disconnect “M” terminal of starter motor.
1. Continuity test (between “S” terminal and switch body)
Replace magnetic switch if continuity does not exist.
2. Continuity test (between “S” terminal and “M” terminal)
Replace magnetic switch if continuity does not exist.
PINION PROTRUSION LENGTH
Compare movement “L” in height of pinion when it is pushed out
with magnetic switch energized and when it is pulled out by hand
until it touches stopper.
If the measurement value is not in the specified area, adjust with
the adjusting plate.
PINION ASSEMBLY
A : “S” terminal
B : “B” terminal
C : “M” terminal
SKIB9002E
A : “S” terminal
B : “B” terminal
C : “M” terminal
SKIB9003E
Movement “L” : Refer to SDS STR-26,
"StarterMotor".
SKIB0230E
JPBIA1984ZZ
