Page 3841 of 5121

REAR LOWER LINK & COIL SPRING
RSU-9
< ON-VEHICLE REPAIR >
C
D
F
G
H
I
J
K
L
MA
B
RSU
N
O
P
Install coil spring by aligning lower end of the coil spring to step (A)
between rubber seat (1) and rear lower link (2).
CAUTION:
Set coil spring so that its paint marks are aligned with the
positions of 3.0 turns (2 places) and 4.0 turns (1 place) or 4.0
turns (2 places) and 5.0 turns (1 place) from the bottom end of
the coil spring.
Perform the final tightening of rear suspension member and axle
installation position (rubber bushing) under unladen condition with
tires on level ground.
InspectionINFOID:0000000003811144
INSPECTION AFTER REMOVAL
Check lower link, bushing and coil spring for deformation, crack, and damage. Replace if necessary.
INSPECTION AFTER INSTALLATION
1. Check wheel alignment. Refer to RSU-6, "Inspection".
2. Adjust neutral position of steering angle sensor (with VDC). Refer to BRC-66, "
ADJUSTMENT OF
STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement".
JPEIB0122ZZ
Page 3842 of 5121

RSU-10
< ON-VEHICLE REPAIR >
REAR SHOCK ABSORBER
REAR SHOCK ABSORBER
Exploded ViewINFOID:0000000003811145
Removal and InstallationINFOID:0000000003811146
REMOVAL
1. Remove tires.
2. Remove wheel sensor and sensor harness. Refer to BRC-58, "
REAR WHEEL SENSOR : Exploded View"
(without VDC), BRC-152, "REAR WHEEL SENSOR : Exploded View" (with VDC).
3. Separate stabilizer connecting rod (lower side). Refer to RSU-15, "
Exploded View".
4. Set suitable jack under axle housing to relieve the coil spring tension.
5. Remove shock absorber mounting bolt (lower side).
6. Gradually lower the jack to remove it from rear axle.
7. Remove shock absorber mounting nuts (upper side) ( ), and
remove shock absorber assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.
Perform final tightening of bolts and nuts at the shock absorber lower side (rubber bushing), under unladen
conditions with tires on level ground.
InspectionINFOID:0000000003811147
INSPECTION AFTER REMOVAL
1. Shock absorber 2. Bound bumper 3. Shock absorber mounting bracket
4. Mounting seal 5. Cap
Refer to GI-4, "
Components" for symbols in the figure.
JPEIB0123GB
JPEIB0111ZZ
Page 3843 of 5121
REAR SHOCK ABSORBER
RSU-11
< ON-VEHICLE REPAIR >
C
D
F
G
H
I
J
K
L
MA
B
RSU
N
O
P
Check the following items, and replace the if necessary.
Shock absorber for deformation, cracks, damage.
Welded and sealed areas for oil leakage.
Piston rod for damage, uneven wear or distortion.
Seal of shock absorber mounting bracket for cracks, damage and come off.
INSPECTION AFTER INSTALLATION
Check wheel sensor harness for proper connection. Refer to BRC-58, "REAR WHEEL SENSOR : Exploded
View" (without VDC), BRC-152, "REAR WHEEL SENSOR : Exploded View" (with VDC).
Page 3844 of 5121

RSU-12
< ON-VEHICLE REPAIR >
RADIUS ROD
RADIUS ROD
Exploded ViewINFOID:0000000003811148
Removal and InstallationINFOID:0000000003811149
REMOVAL
1. Remove tire.
2. Remove wheel sensor and sensor harness. Refer to BRC-58, "
REAR WHEEL SENSOR : Exploded View"
(without VDC), BRC-152, "REAR WHEEL SENSOR : Exploded View" (with VDC).
3. Remove rear lower link and coil spring. Refer to RSU-8, "
Exploded View".
4. Remove shock absorber mounting bolt (lower side). Refer to RSU-10, "
Exploded View".
5. Remove front lower link mounting bolt and nut (axle housing side). Refer to RSU-14, "
Exploded View".
6. Loosen front lower link mounting bolt and nut (suspension member side). Refer to RSU-14, "
Exploded
View".
7. Remove radius rod mounting bolts and nuts (axle housing side).
8. Remove radius rod mounting bolt (rear suspension member side), and then remove radius rod.
INSTALLATION
Note the following, and install in the reverse order of removal.
Perform final tightening of rear suspension member and axle installation position (rubber bushing), under
unladen conditions with tires on level ground.
InspectionINFOID:0000000003811150
INSPECTION AFTER REMOVAL
Check radius rod and bushing for any deformation, cracks, or damage. Replace if necessary.
INSPECTION AFTER INSTALLATION
1. Check wheel sensor harness for proper connection. Refer to BRC-58, "REAR WHEEL SENSOR :
Exploded View" (without VDC), BRC-152, "REAR WHEEL SENSOR : Exploded View" (with VDC).
2. Check wheel alignment. Refer to RSU-6, "
Inspection".
1. Upper seat 2. Coil spring 3. Rubber seat
4. Rear lower link 5. Rear suspension member 6. Radius rod
7. Front lower link
Refer to GI-4, "
Components" for symbols in the figure.
JPEIB0108GB
Page 3845 of 5121
RADIUS ROD
RSU-13
< ON-VEHICLE REPAIR >
C
D
F
G
H
I
J
K
L
MA
B
RSU
N
O
P
3. Adjust neutral position of steering angle sensor. Refer to BRC-66, "ADJUSTMENT OF STEERING
ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement".
Page 3846 of 5121

RSU-14
< ON-VEHICLE REPAIR >
FRONT LOWER LINK
FRONT LOWER LINK
Exploded ViewINFOID:0000000003811151
Removal and InstallationINFOID:0000000003811152
REMOVAL
1. Remove tire.
2. Remove wheel sensor and sensor harness. Refer to BRC-58, "
REAR WHEEL SENSOR : Exploded View"
(without VDC), BRC-58, "REAR WHEEL SENSOR : Exploded View" (with VDC).
3. Remove rear lower link and coil spring. Refer to RSU-8, "
Exploded View".
4. Remove shock absorber mounting bolt (lower side). Refer to RSU-10, "
Exploded View".
5. Remove front lower link mounting bolts and nuts (axle housing side).
6. Remove front lower link mounting bolts and nuts (rear suspension member side), and then remove front
lower link.
INSTALLATION
Note the following, and install in the reverse order of removal.
Perform final tightening of rear suspension member and axle installation position (rubber bushing), under
unladen conditions with tires on level ground.
InspectionINFOID:0000000003811153
INSPECTION AFTER REMOVAL
Check front lower link and bushing for any deformation, cracks, or damage. Replace if necessary.
INSPECTION AFTER INSTALLATION
1. Check wheel sensor harness for proper connection. Refer to BRC-58, "REAR WHEEL SENSOR :
Exploded View" (without VDC), BRC-152, "REAR WHEEL SENSOR : Exploded View" (with VDC).
2. Check wheel alignment. Refer to RSU-6, "
Inspection".
3. Adjust neutral position of steering angle sensor (with VDC). Refer to BRC-66, "
ADJUSTMENT OF
STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement".
1. Upper seat 2. Coil spring 3. Rubber seat
4. Rear lower link 5. Rear suspension member 6. Radius rod
7. Front lower link
Refer to GI-4, "
Components" for symbols in the figure.
JPEIB0108GB
Page 3847 of 5121

REAR STABILIZER
RSU-15
< ON-VEHICLE REPAIR >
C
D
F
G
H
I
J
K
L
MA
B
RSU
N
O
P
REAR STABILIZER
Exploded ViewINFOID:0000000003811154
Removal and InstallationINFOID:0000000003811155
REMOVAL
1. Remove stabilizer connecting rod mount bracket.
2. Remove stabilizer connecting rod.
CAUTION:
Apply a matching mark to identify the installation position.
3. Remove mounting bolts on stabilizer clamp and remove stabilizer bar.
INSTALLATION
Note the following, and install in the reverse order of removal.
Check the matching mark when installing.
InspectionINFOID:0000000003811156
INSPECTION AFTER REMOVAL
Check stabilizer bar, stabilizer bushing, stabilizer clamp, stabilizer connecting rod, stabilizer connecting rod
mounting bracket for any deformation, crack or damage. Replace if necessary.

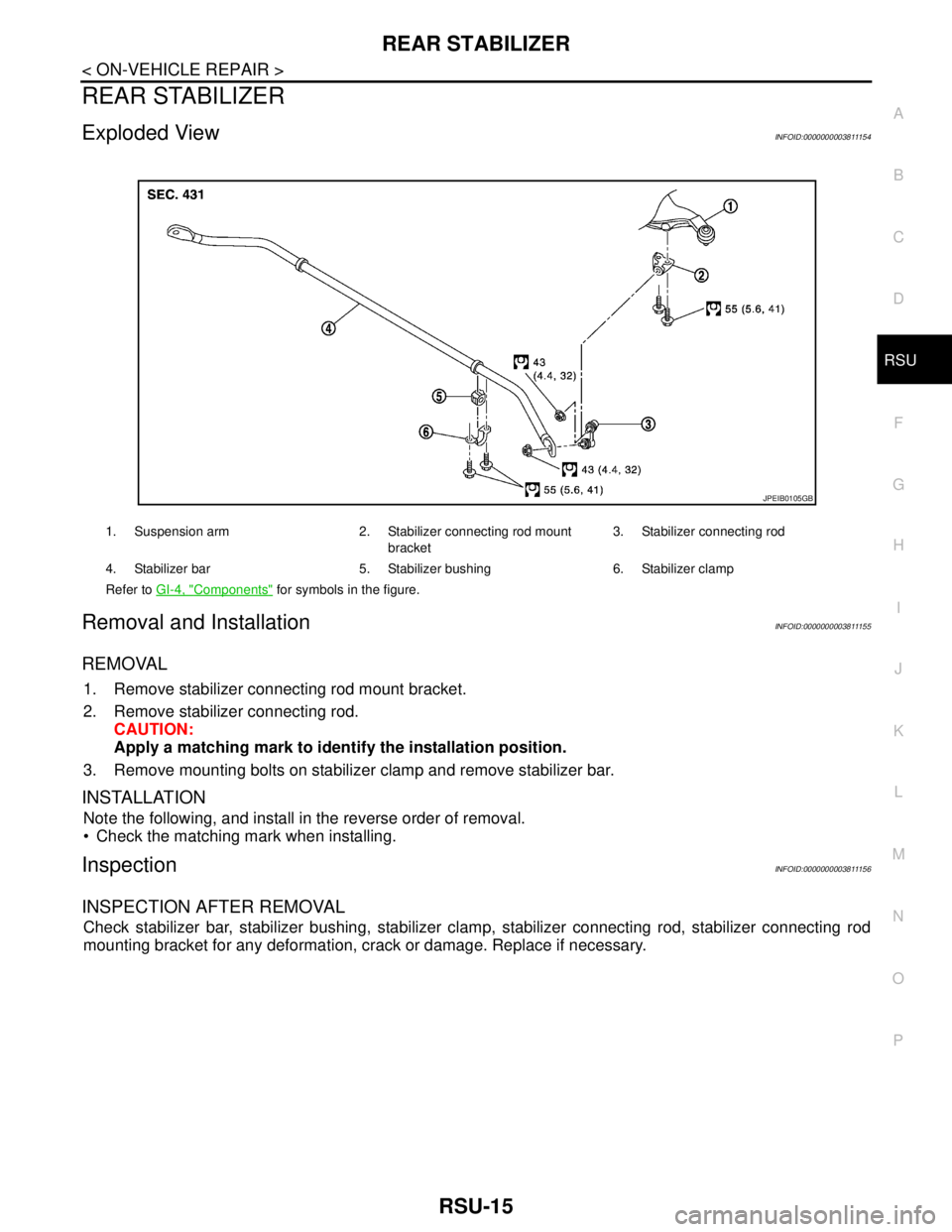

1. Suspension arm 2. Stabilizer connecting rod mount
bracket3. Stabilizer connecting rod
4. Stabilizer bar 5. Stabilizer bushing 6. Stabilizer clamp
Refer to GI-4, "
Components" for symbols in the figure.
JPEIB0105GB
Page 3848 of 5121

RSU-16
< REMOVAL AND INSTALLATION >
REAR SUSPENSION ARM
REMOVAL AND INSTALLATION
REAR SUSPENSION ARM
Exploded ViewINFOID:0000000003811157
Removal and InstallationINFOID:0000000003811158
REMOVAL
1. Remove suspension arm with rear suspension member. Refer to RSU-18, "Exploded View".
2. Remove auto levelizer control unit (with xenon combination lamp type). Refer to EXL-190, "
Exploded
View".
3. Remove suspension arm.
INSTALLATION
Note the following, and install in the reverse order of removal.
Perform final tightening of rear suspension member installation position (rubber bussing), under unladen
conditions with tires on level ground.
Install stopper rubber (suspension arm rear side) and suspension arm as a set to rear suspension member.
After final tightening, and install auto levelizer control unit (with xenon combination lamp type). Refer to EXL-
190, "Exploded View".
InspectionINFOID:0000000003811159
INSPECTION AFTER REMOVAL
Appearance
Check the following items, and replace if necessary.
Suspension arm and bushing for deformation, cracks or damage.
Boot of ball joint for cracks or damage, and also for grease leakage.
Ball Joint Inspection
Manually move ball stud at least ten times by hand to check for smooth movement.
Swing Torque Inspection
NOTE:
Before measurement, move ball stud at least ten times by hand to check for smooth movement.
1. Suspension arm 2. Stopper rubber 3. Rear suspension member
Refer to GI-4, "
Components" for symbols in the figure.
JPEIB0106GB
