Page 5009 of 5121

WT-2
< ON-VEHICLE MAINTENANCE >
ROAD WHEEL
ON-VEHICLE MAINTENANCE
ROAD WHEEL
InspectionINFOID:0000000003812916
ALUMINUM WHEEL
1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel
runout.
a. Remove tire from aluminum wheel and mount on a tire balance machine.
b. Set dial indicator as shown in the figure.
c. If the lateral deflection (A) or vertical deflection (B) for radial
runout value exceeds the limit, replace aluminum wheel.
STEEL WHEEL
1. Check tires for were and improper inflation.
2. Check wheels for deformation, clacks and other damage. If deformed, remove wheel and check wheel
runout.
a. Remove tire from steel wheel and mount wheel on a tire balance machine.
b. Set two dial indicators as shown in the illustration.
c. Set each dial indicator to “0”.
d. Rotate wheel and check dial indicators at several points around
the circumference of the wheel.
e. Calculate runout at each point as shown below.
f. Select maximum positive runout value and the maximum nega-
tive value. Add the two values to determine total runout.
CAUTION:
In case a positive or negative value is not available, use the
maximum value (negative or positive) for total runout.
g. If the total runout value exceeds limit, replace steel wheel.Limit
A: Refer to WT-5, "
Road Wheel".
B: Refer to WT-5, "
Road Wheel".
SEIA0737E
Lateral runout limit (A):
(+)/2
Radial runout limit (B):
(+)/2
Limit
A: Refer to WT-5, "
Road Wheel".
B: Refer to WT-5, "
Road Wheel".
SEIA0738E
Page 5010 of 5121

ROAD WHEEL TIRE ASSEMBLY
WT-3
< ON-VEHICLE REPAIR >
C
D
F
G
H
I
J
K
L
MA
B
WT
N
O
P
ON-VEHICLE REPAIR
ROAD WHEEL TIRE ASSEMBLY
AdjustmentINFOID:0000000003812917
BALANCING WHEELS (BONDING WEIGHT TYPE)
Preparation Before Adjustment
Using releasing agent, remove double-faced adhesive tape from the road wheel.
CAUTION:
• Be careful not to scratch the road wheel during removal.
After removing double-faced adhesive tape, wipe clean traces of releasing agent from the road
wheel.
Wheel Balance Adjustment
If a tire balance machine has adhesion balance weight mode settings and drive-in weight mode setting, select
and adjust a drive-in weight mode suitable for road wheels.
1. Set road wheel on tire balance machine using the center hole as a guide. Start the tire balance machine.
2. When inner and outer unbalance values are shown on the tire balance machine indicator, multiply outer
unbalance value by 5/3 to determine balance weight that should be used. Select the outer balance weight
with a value closest to the calculated value above and install to the designated outer position of, or at the
designated angle in relation to the road wheel.
CAUTION:
Do not install the inner balance weight before installing the outer balance weight.
Before installing the balance weight, be sure to clean the mating surface of the road wheel.
a. Indicated unbalance value × 5/3 = balance weight to be installed
Calculation example:
23 g (0.81 oz) × 5/3 = 38.33 g (1.35 oz) ⇒ 37.5 g (1.32 oz) bal-
ance weight (closer to calculated balance weight value)
NOTE:
Note that balance weight value must be closer to the calculated
balance weight value.
Example:
36.2 ⇒ 35 g (1.23 oz)
36.3 ⇒ 37.5 g (1.32 oz)
b. Installed balance weight in the position.
SMA054D
Page 5011 of 5121

WT-4
< ON-VEHICLE REPAIR >
ROAD WHEEL TIRE ASSEMBLY
When installing balance weight (1) to road wheels, set it into
the grooved area (A) on the inner wall of the road wheel as
shown in the figure so that the balance weight center (B) is
aligned with the tire balance machine indication position
(angle) (C).
CAUTION:
Always use genuine NISSAN adhesion balance weights.
Balance weights are non-reusable; always replace with
new ones.
Do not install more than three sheets of balance weight.
c. If calculated balance weight value exceeds 50 g (1.76 oz), install
two balance weight sheets in line with each other as shown in
the figure.
CAUTION:
Do not install one balance weight sheet on top of another.
3. Start the tire balance machine again.
4. Install drive-in balance weight on inner side of road wheel in the
tire balance machine indication position (angle).
CAUTION:
Do not install more than two balance weight.
5. Start the tire balance machine. Make sure that inner and outer
residual unbalance values are 5 g (0.17 oz) each or below.
6. If either residual unbalance value exceeds 5 g (0.17 oz), repeat installation procedures.
TIRE ROTATION
Follow the maintenance schedule for tire rotation service intervals.
Refer to MA-5, "
General Maintenance".
When installing the wheel, tighten wheel nuts to the specified
torque.
CAUTION:
When installing wheels, tighten them diagonally by dividing
the work two to three times in order to prevent the wheels
from developing any distortion.
Be careful not to tighten wheel nut at torque exceeding the
criteria for preventing strain of disc rotor.
Use NISSAN genuine wheel nuts for aluminum wheels.
JPEIC0040ZZ
Limit
Dynamic (At rim flange): Refer to WT-5, "
Road Wheel".
Static (At rim flange): Refer to WT-5, "
Road Wheel".
PEIA0033E
Wheel nuts tighting torque : Refer to WT-5, "Wheel Nut".
SMA829C
Page 5012 of 5121

SERVICE DATA AND SPECIFICATIONS (SDS)
WT-5
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
D
F
G
H
I
J
K
L
MA
B
WT
N
O
P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Road WheelINFOID:0000000003812918
ALUMINUM WHEEL (CONVENTIONAL)
STEEL WHEEL
Wheel NutINFOID:0000000003812919
Tire Air PressureINFOID:0000000003812920
Unit: kPa (bar, kg/cm2, psi)
Item Limit
Radial runoutLateral deflection
Less than 0.3 mm (0.012 in)
Radial deflection
Allowable unbalanceDynamic (At flange) Less than 5 g (0.17 oz) (one side)
Static (At flange) Less than 10 g (0.35 oz)
Item Limit
Radial runoutLateral deflection Less than 0.8 mm (0.031 in)
Radial deflection Less than 0.5 mm (0.020 in)
Allowable unbalanceDynamic (At flange) Less than 5 g (0.17 oz) (one side)
Static (At flange) Less than 10 g (0.35 oz)
Item Standard
Wheel nut tighting torque 108 N·m (11 kg-m, 80 ft-lb)
ItemStandard
Front Rear
205/65R16 95H 220 (2.2, 2.2, 32) 200 (2.0, 2.0, 29)
215/55R17 94V 240 (2.4, 2.4, 35) 220 (2.2, 2.2, 32)
Page 5013 of 5121

WW-1
DRIVER CONTROLS
C
D
E
F
G
H
I
J
K
M
SECTION WW
A
B
WW
N
O
P
CONTENTS
WIPER & WASHER
BASIC INSPECTION ....................................3

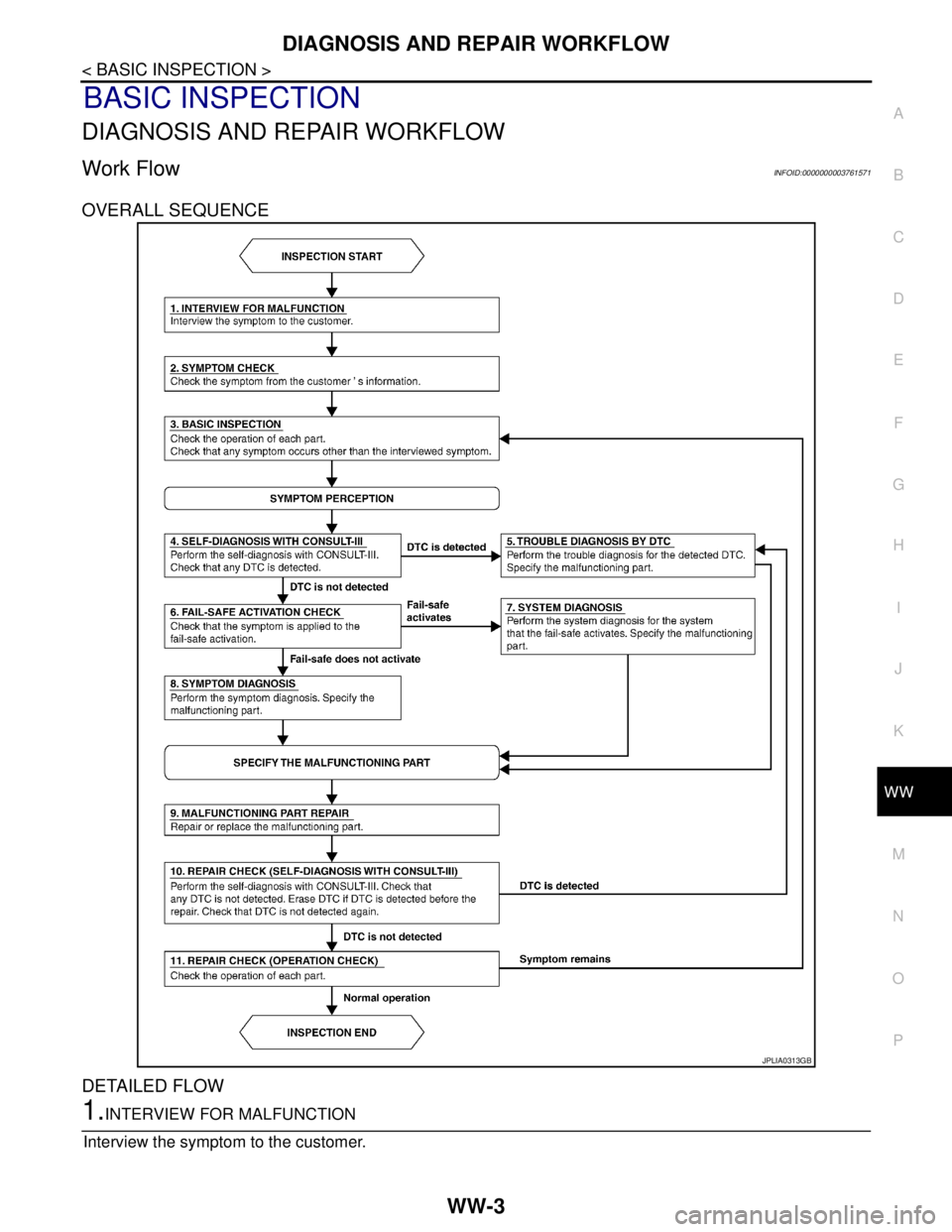

DIAGNOSIS AND REPAIR WORKFLOW ..........3
Work Flow .................................................................3
FUNCTION DIAGNOSIS ...............................5
FRONT WIPER AND WASHER SYSTEM ..........5
System Diagram ........................................................5
System Description ...................................................5
Component Parts Location ........................................8
Component Description ............................................8
HEADLAMP WASHER SYSTEM .......................10
System Diagram ......................................................10
System Description .................................................10
Component Parts Location ......................................11
Component Description ..........................................11
DIAGNOSIS SYSTEM (BCM) ............................12
COMMON ITEM .........................................................12
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
12
WIPER .......................................................................13
WIPER : CONSULT-III Function (BCM - WIPER) ....13
DIAGNOSIS SYSTEM (IPDM E/R) .....................15
Diagnosis Description .............................................15
CONSULT-III Function (IPDM E/R) .........................17
COMPONENT DIAGNOSIS .........................20
WIPER AND WASHER FUSE, FUSIBLE LINK
....
20
Description ..............................................................20
Diagnosis Procedure ...............................................20
POWER SUPPLY AND GROUND CIRCUIT ......21
BCM (BODY CONTROL MODULE) ..........................21
BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ................................................................
21
IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) ..............................
21
IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure ......................................................................
21
FRONT WIPER MOTOR LO CIRCUIT ..............23
Component Function Check ....................................23
Diagnosis Procedure ...............................................23
FRONT WIPER MOTOR HI CIRCUIT ...............25
Component Function Check ....................................25
Diagnosis Procedure ...............................................25
FRONT WIPER AUTO STOP SIGNAL CIR-
CUIT ..................................................................
27
Component Function Check ....................................27
Diagnosis Procedure ...............................................27
FRONT WIPER MOTOR GROUND CIRCUIT ...29
Diagnosis Procedure ...............................................29
WASHER SWITCH ............................................30
Description ...............................................................30
Component Inspection .............................................30
HEADLAMP WASHER RELAY ........................31
Component Inspection .............................................31
HEADLAMP WASHER CIRCUIT ......................32
Component Function Check ....................................32
Diagnosis Procedure ...............................................32
FRONT WIPER AND WASHER SYSTEM ........35
Wiring Diagram - FRONT WIPER AND WASHER
SYSTEM - ................................................................
35
HEADLAMP WASHER SYSTEM ......................39
Wiring Diagram -HEADLAMP WASHER SYS-
TEM- ........................................................................
39
Page 5014 of 5121

WW-2
ECU DIAGNOSIS ........................................42
BCM (BODY CONTROL MODULE) ..................42
Reference Value .....................................................42
Wiring Diagram - BCM - .........................................65
Fail-safe ..................................................................71
DTC Inspection Priority Chart ..............................73
DTC Index ..............................................................74
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................
76
Reference Value .....................................................76
Wiring Diagram - IPDM E/R - ..................................84
Fail-safe ..................................................................87
DTC Index ..............................................................89
SYMPTOM DIAGNOSIS .............................90
FRONT WIPER AND WASHER SYSTEM
SYMPTOMS .......................................................
90
Symptom Table ......................................................90
NORMAL OPERATING CONDITION ................92
Description ..............................................................92
FRONT WIPER DOES NOT OPERATE ............93
Description ..............................................................93
Diagnosis Procedure ..............................................93
HEADLAMP WASHER DOES NOT OPER-
ATE ....................................................................
95
Description ..............................................................95
Diagnosis Procedure ..............................................95
PRECAUTION .............................................96
PRECAUTIONS .................................................96
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
96
Precaution for Procedure without Cowl Top Cover ...96
ON-VEHICLE REPAIR ...............................97
HEADLAMP WASHER NOZZLE AND TUBE ...97
Exploded View ........................................................97
Hydraulic Layout .....................................................97
Removal and Installation .........................................97
Inspection ................................................................98
WASHER TANK ................................................99
Exploded View ........................................................99
Removal and Installation .........................................99
WASHER PUMP ...............................................100
Exploded View ......................................................100
Removal and Installation .......................................100
HEADLAMP WASHER PUMP .........................101
Exploded View ......................................................101
Removal and Installation .......................................101
FRONT WASHER NOZZLE AND TUBE ..........102
Hydraulic Layout ...................................................102
Removal and Installation .......................................102
Inspection and Adjustment ....................................102
FRONT WIPER ARM ........................................105
Exploded View ......................................................105
Removal and Installation .......................................105
Adjustment ............................................................105
FRONT WIPER DRIVE ASSEMBLY ................107
Exploded View ......................................................107
Removal and Installation .......................................107
Disassembly and Assembly ..................................108
FRONT WIPER AND WASHER SWITCH ........109
Exploded View ......................................................109
Page 5015 of 5121
DIAGNOSIS AND REPAIR WORKFLOW
WW-3
< BASIC INSPECTION >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000003761571
OVERALL SEQUENCE
DETAILED FLOW
1.INTERVIEW FOR MALFUNCTION
Interview the symptom to the customer.
JPLIA0313GB
Page 5016 of 5121

WW-4
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
>> GO TO 2.
2.SYMPTOM CHECK
Check the symptom from the customer's information.
>> GO TO 3.
3.BASIC INSPECTION
Check the operation of each part. Check that any symptom occurs other than the interviewed symptom.
>> GO TO 4.
4.SELF-DIAGNOSIS WITH CONSULT-III
Perform the self-diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?
YES >> GO TO 5.
NO >> GO TO 6.
5.TROUBLE DIAGNOSIS BY DTC
Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.
>> GO TO 9.
6.FAIL-SAFE ACTIVATION CHECK
Check that the symptom is applied to the fail-safe activation.
Does the fail-safe activate?
YES >> GO TO 7.
NO >> GO TO 8.
7.SYSTEM DIAGNOSIS
Perform the system diagnosis for the system that the fail-safe activates. Specify the malfunctioning part.
>> GO TO 9.
8.SYMPTOM DIAGNOSIS
Perform the symptom diagnosis. Specify the malfunctioning part.
>> GO TO 9.
9.MALFUNCTION PART REPAIR
Repair or replace the malfunctioning part.
>> GO TO 10.
10.REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)
Perform the self-diagnosis with CONSULT-III. Check that any DTC is not detected. Erase DTC if DTC is
detected before the repair. Check that DTC is not detected again.
Is any DTC detected?
YES >> GO TO 5.
NO >> GO TO 11.
11 .REPAIR CHECK (OPERATION CHECK)
Check the operation of each part.
Does it operate normally?
YES >> INSPECTION END
NO >> GO TO 3.
