NISSAN TEANA 2008 Service Manual BRC-76
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
ABS
Component Description
INFOID:0000000003767317
A. Back of spiral cable assembly B. Combination meter C. Under center console
D. Engine room right side E.

Page 1018 of 5121

NISSAN TEANA 2008 Service Manual EBD
BRC-77
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
EBD

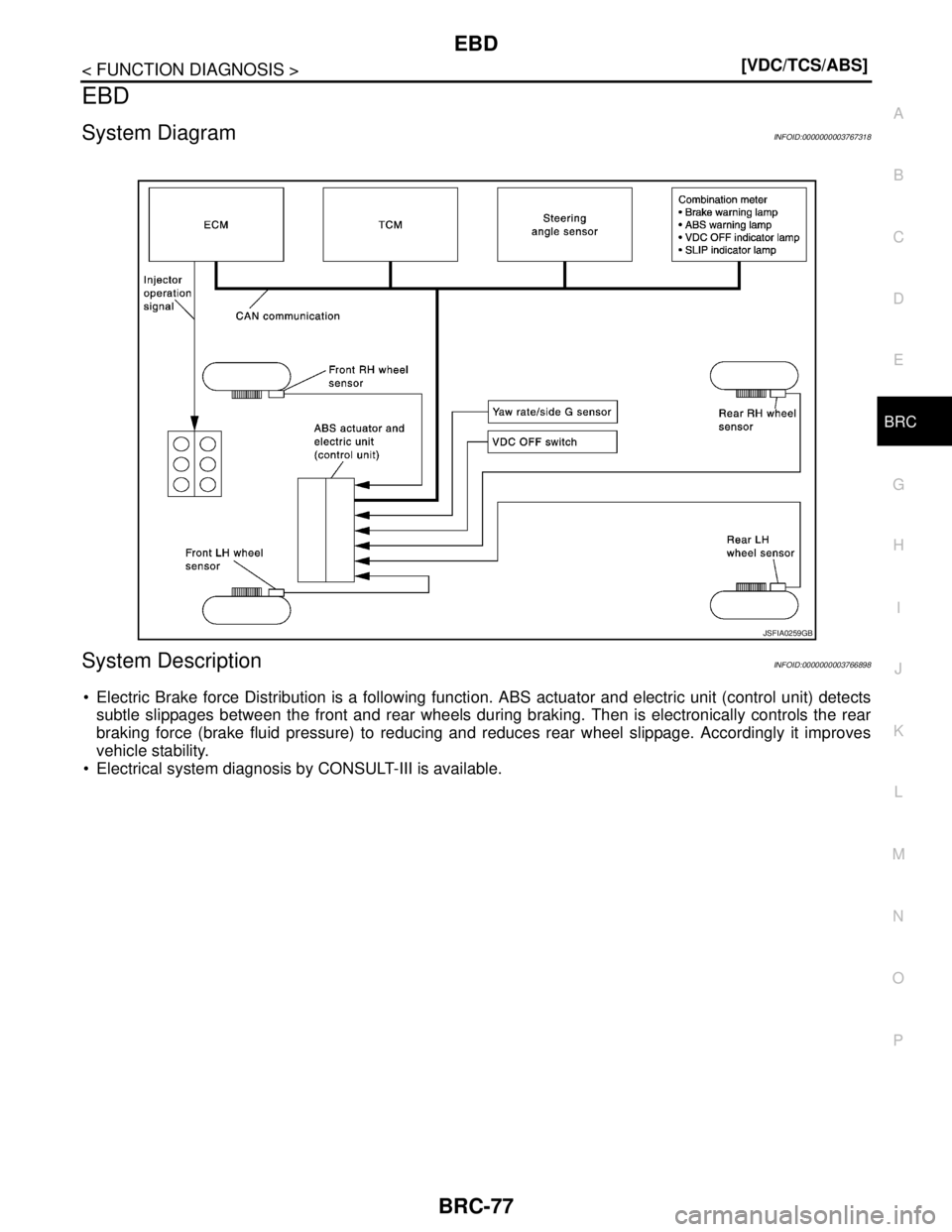

System DiagramINFOID:0000000003767318
System DescriptionINFOID:0000000003766898
Electric Brake force Distribution

Page 1019 of 5121

NISSAN TEANA 2008 Service Manual BRC-78
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
EBD
Component Parts Location
INFOID:0000000003767319
1. Steering angle sensor 2. ABS warning lamp 3. Brake warning lamp
4. VDC OFF indicator lamp 5. SLIP ind

Page 1020 of 5121

NISSAN TEANA 2008 Service Manual EBD
BRC-79
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
Component DescriptionINFOID:0000000003767320
A. Back of spiral cable assembly B. Combination meter C. Under center conso

Page 1021 of 5121

NISSAN TEANA 2008 Service Manual BRC-80
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
CONSULT-III FunctionINFOID

BRC-80
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
CONSULT-III FunctionINFOID:0000000003766901
FUNCTION
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
WORK SUPPORT
SELF DIAGNOSTIC RESULT
Operation Procedure
Before performing the self-diagnosis, start engine and drive vehicle at 30 km/h (19 MPH) or more for approxi-
mately 1 minute.
Display Item List
Refer to BRC-140, "DTC No. Index".
How to Erase Self-diagnosis Results
After erasing DTC memory, start the engine and drive the vehicle at 30 km/h (19 MPH) or more for approxi-
mately 1 minute as the final inspection, and make sure that the ABS warning lamp, VDC OFF indicator lamp,
SLIP indicator lamp and brake warning lamp turn OFF.
CAUTION:
If memory cannot be erased, perform applicable diagnosis.
NOTE:
When the wheel sensor malfunctions, after inspecting the wheel sensor system, ABS warning lamp, VDC
OFF indicator lamp, SLIP indicator lamp and brake warning lamp will not turn OFF even when the system is
normal unless the vehicle is driven at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
Brake warning lamp will turn ON in case of parking brake operation (when switch is ON) or in case of brake
fluid level switch operation (when brake fluid is insufficient).
VDC OFF switch should not stay in “ON” position.
DATA MONITOR
Display Item List
×: Applicable : Optional item
Diagnostic test mode Function
Work supportThis mode enables a technician to adjust some devices faster and more accurately by following
the indications on CONSULT-III.
Self diagnostic result Self-diagnostic results can be read and erased quickly.
Data monitor Input/Output data in the ABS actuator and electric unit (control unit) can be read.
Active testCONSULT-III drives some actuators apart from ABS actuator and electric unit (control unit) and
also shifts some parameters in a specified range.
ECU identification ABS actuator and electric unit (control unit) part number can be read.
Item Description
ST ANG SEN ADJUSTMENT Adjusts the neutral position of the steering angle sensor.
Monitor item (Unit)SELECT MONITOR ITEM
Remarks
ECU INPUT
SIGNALSMAIN SIGNALS
FR LH SENSOR
[km/h (MPH)]××Wheel speed calculated by front LH wheel sensor signal
FR RH SENSOR
[km/h (MPH)]××Wheel speed calculated by front RH wheel sensor signal
RR LH SENSOR
[km/h (MPH)]××Wheel speed calculated by rear LH wheel sensor signal

Page 1022 of 5121

NISSAN TEANA 2008 Service Manual DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
BRC-81
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
RR RH SENSOR
[km/h (MPH)]××Wheel speed calculated by rea

Page 1023 of 5121

NISSAN TEANA 2008 Service Manual BRC-82
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
NOTE:
1: A brief moment of On/Off condition occurs every 20 seconds after ignition switch t

Page 1024 of 5121

NISSAN TEANA 2008 Service Manual DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]
BRC-83
< FUNCTION DIAGNOSIS >[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
N
O
P
Touch “Up”, “Keep” and “Down”. Then use scre
