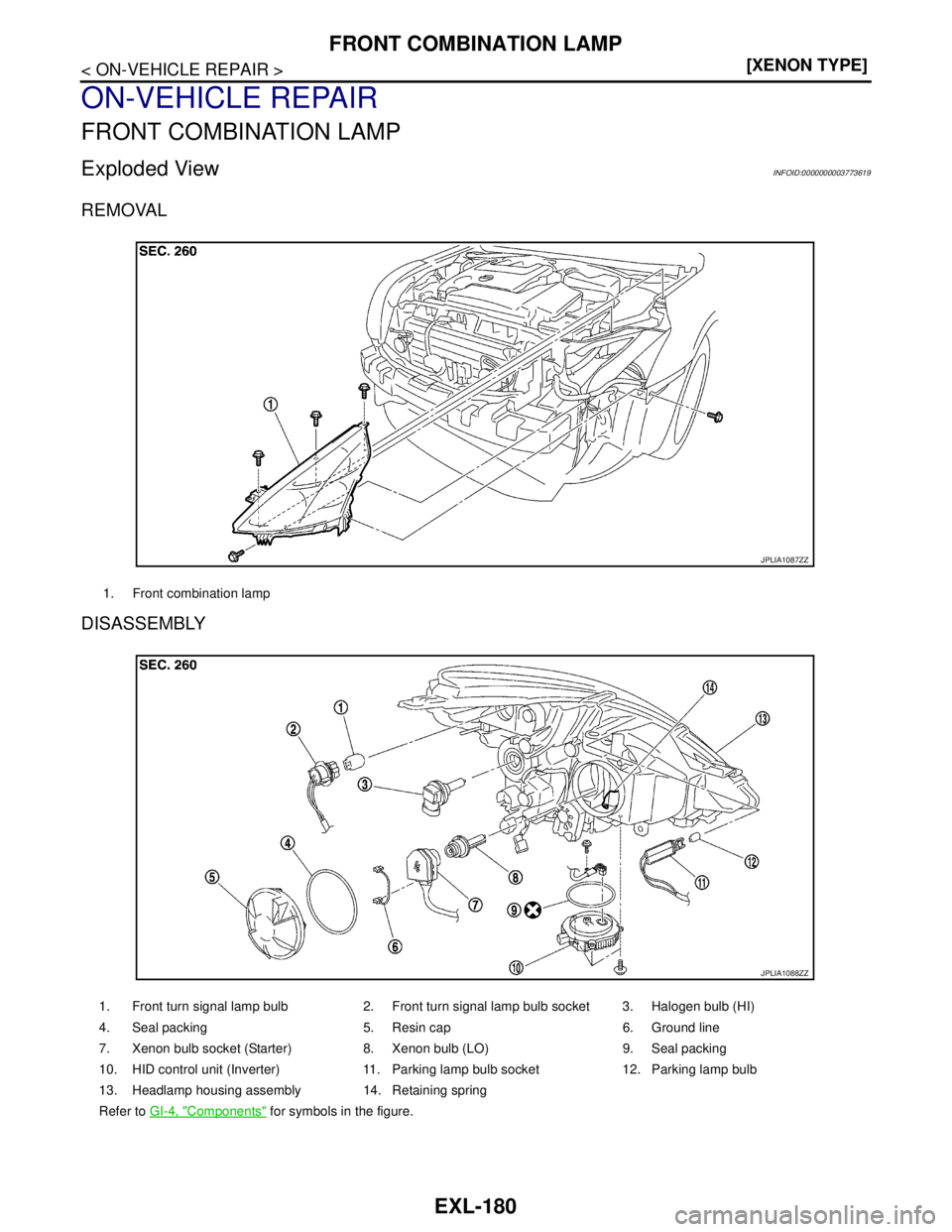

Page 2209 of 5121

NISSAN TEANA 2008 Service Manual EXL-180
< ON-VEHICLE REPAIR >[XENON TYPE]
FRONT COMBINATION LAMP
ON-VEHICLE REPAIR
FRONT COMBINATION LAMP
Exploded ViewINFOID:0000000003773619
REMOVAL
DISASSEMBLY
1. Front combination lamp
JPLIA1087ZZ

Page 2210 of 5121

NISSAN TEANA 2008 Service Manual FRONT COMBINATION LAMP
EXL-181
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Removal and InstallationINFOID:0000000003773620
REMOVAL
CAUTION:
Disconnect the battery negative termi

FRONT COMBINATION LAMP
EXL-181
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Removal and InstallationINFOID:0000000003773620
REMOVAL
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
1. Remove the front bumper fascia. Refer to EXT-11, "
Exploded View".
2. Remove the headlamp mounting bolts.
3. Remove the harness clips from the headlamp housing.
4. Pull out the headlamp assembly forward the vehicle.
5. Disconnect the connector before removing the headlamp assembly.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to EXL-173, "
Description".
ReplacementINFOID:0000000003773621
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.
Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect
the performance of lamp. When replacing bulb, be sure to replace it with new one.
HEADLAMP BULB (LO)
1. Remove the fender protector. Keep a service area. Refer to EXT-22, "FENDER PROTECTOR : Exploded
View".
2. Rotate the resin cap counterclockwise and unlock it.
3. Disconnect the bulb socket ground line.
4. Rotate the bulb socket counterclockwise and unlock it.
5. Unlock the retaining spring. And then remove the bulb from the
headlamp housing.
CAUTION:
Never break the xenon bulb ceramic tube when replacing
the bulb.
HEADLAMP BULB (HI)
1. Remove the fender protector. Keep a service area. Refer to EXT-22, "FENDER PROTECTOR : Exploded
View".
2. Disconnect the headlamp (HI) connector.
3. Rotate the bulb counterclockwise and unlock it.
4. Remove the bulb from the headlamp housing.
PARKING LAMP BULB
1. Remove the fender protector. Keep a service area. Refer to EXT-22, "FENDER PROTECTOR : Exploded
View".
2. Rotate the bulb socket counterclockwise and unlock it.
3. Remove the bulb from the parking lamp bulb socket.
FRONT TURN SIGNAL LAMP BULB
JPLIA1089ZZ

Page 2211 of 5121

NISSAN TEANA 2008 Service Manual EXL-182
< ON-VEHICLE REPAIR >[XENON TYPE]
FRONT COMBINATION LAMP
1. Remove the relay box cover*. Refer to PCS-34, "Exploded View".
*: When replace a left
2. Rotate the bulb socket counterclockwise and

Page 2212 of 5121

NISSAN TEANA 2008 Service Manual FRONT FOG LAMP
EXL-183
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
FRONT FOG LAMP
Exploded ViewINFOID:0000000003773623
Removal and InstallationINFOID:0000000003773624
CAUTION:
D

Page 2213 of 5121

NISSAN TEANA 2008 Service Manual EXL-184
< ON-VEHICLE REPAIR >[XENON TYPE]
FRONT FOG LAMP
2. Remove the front fog lamp bulb connector (1).
3. Rotate the bulb (2) counterclockwise and unlock it.
JPLIA1091ZZ

Page 2214 of 5121

NISSAN TEANA 2008 Service Manual OPTICAL SENSOR
EXL-185
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
OPTICAL SENSOR
Exploded ViewINFOID:0000000003773626
Removal and InstallationINFOID:0000000003773627
REMOVAL
1.

Page 2215 of 5121

NISSAN TEANA 2008 Service Manual EXL-186
< ON-VEHICLE REPAIR >[XENON TYPE]
LIGHTING & TURN SIGNAL SWITCH
LIGHTING & TURN SIGNAL SWITCH
Exploded ViewINFOID:0000000003773628
Removal and InstallationINFOID:0000000003773629
Lighting & tu

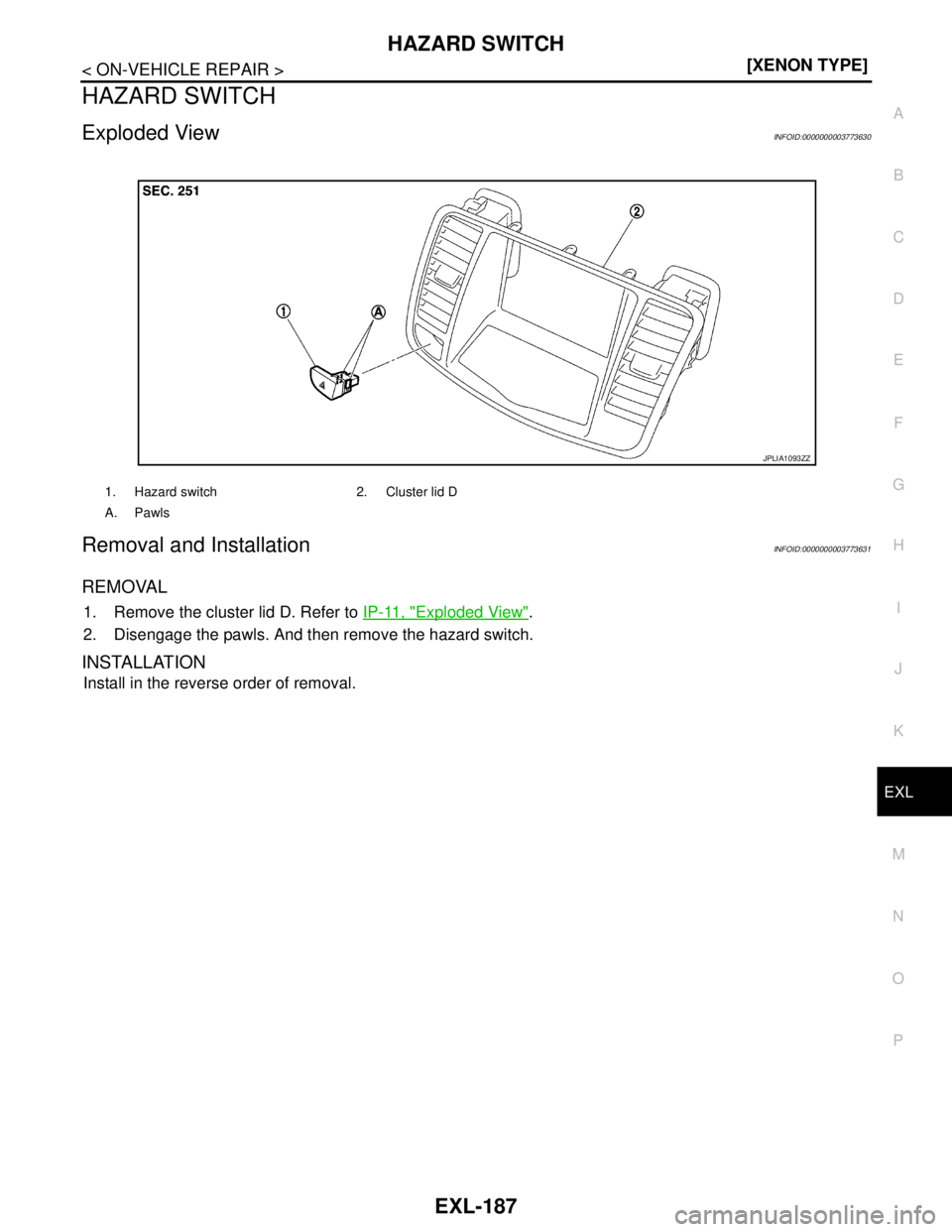

Page 2216 of 5121

NISSAN TEANA 2008 Service Manual HAZARD SWITCH
EXL-187
< ON-VEHICLE REPAIR >[XENON TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
HAZARD SWITCH
Exploded ViewINFOID:0000000003773630
Removal and InstallationINFOID:0000000003773631
REMOVAL
1. R
