LAN-102
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 9)]
TCM BRANCH LINE CIRCUIT
TCM BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000003841818
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the following terminals and connectors for damage, bend and loose connection (unit side and con-
nector side).
-TCM
- Harness connector F123
- Harness connector E6
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of TCM.
2. Check the resistance between the TCM harness connector terminals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the TCM branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the TCM. Refer to the following.
VQ25DE: TM-249, "
Diagnosis Procedure"
VQ35DE: TM-85, "Diagnosis Procedure"
Is the inspection result normal?
YES (Present error)>>Replace the TCM. Refer to the following.
VQ25DE: TM-315, "
Exploded View"
VQ35DE: TM-153, "Exploded View"
YES (Past error)>>Error was detected in the TCM branch line.
NO >> Repair the power supply and the ground circuit.
TCM harness connector
Resistance (Ω)
Connector No. Terminal No.
F23 32 31 Approx. 54 – 66
Page 3170 of 5121
![NISSAN TEANA 2008 Service Manual LAN
IPDM-E BRANCH LINE CIRCUIT
LAN-103
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 9)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
IPDM-E BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000003841819
1.CHECK CONNECTO NISSAN TEANA 2008 Service Manual LAN
IPDM-E BRANCH LINE CIRCUIT
LAN-103
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 9)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
IPDM-E BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000003841819
1.CHECK CONNECTO](/manual-img/5/57391/w960_57391-3169.png)
LAN
IPDM-E BRANCH LINE CIRCUIT
LAN-103
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 9)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
IPDM-E BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000003841819
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the IPDM E/R for damage, bend and loose connection (unit side
and connector side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of IPDM E/R.
2. Check the resistance between the IPDM E/R harness connector terminals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the IPDM E/R branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the IPDM E/R. Refer to PCS-19, "
Diagnosis Procedure".
Is the inspection result normal?
YES (Present error)>>Replace the IPDM E/R. Refer to PCS-34, "Exploded View".
YES (Past error)>>Error was detected in the IPDM E/R branch line.
NO >> Repair the power supply and the ground circuit.
IPDM E/R harness connector
Resistance (Ω)
Connector No. Terminal No.
E11 40 39 Approx. 108 – 132
Page 3171 of 5121
![NISSAN TEANA 2008 Service Manual LAN-104
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 9)]
CAN COMMUNICATION CIRCUIT
CAN COMMUNICATION CIRCUIT
Diagnosis ProcedureINFOID:0000000003841820
1.CONNECTOR INSPECTION
1. Turn the ignition switch O NISSAN TEANA 2008 Service Manual LAN-104
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 9)]
CAN COMMUNICATION CIRCUIT
CAN COMMUNICATION CIRCUIT
Diagnosis ProcedureINFOID:0000000003841820
1.CONNECTOR INSPECTION
1. Turn the ignition switch O](/manual-img/5/57391/w960_57391-3170.png)
LAN-104
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 9)]
CAN COMMUNICATION CIRCUIT
CAN COMMUNICATION CIRCUIT
Diagnosis ProcedureINFOID:0000000003841820
1.CONNECTOR INSPECTION
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect all the unit connectors on CAN communication system.
4. Check terminals and connectors for damage, bend and loose connection.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS CONTINUITY (SHORT CIRCUIT)
Check the continuity between the data link connector terminals.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Check the harness and repair the root cause.
3.CHECK HARNESS CONTINUITY (SHORT CIRCUIT)
Check the continuity between the data link connector and the ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Check the harness and repair the root cause.
4.CHECK ECM AND IPDM E/R TERMINATION CIRCUIT
1. Remove the ECM and the IPDM E/R.
2. Check the resistance between the ECM terminals.
3. Check the resistance between the IPDM E/R terminals.
Is the measurement value within the specification?
YES >> GO TO 5.
NO >> Replace the ECM and/or the IPDM E/R.
5.CHECK SYMPTOM
Connect all the connectors. Check if the symptoms described in the “Symptom (Results from interview with
customer)” are reproduced.
Data link connector
Continuity
Connector No. Terminal No.
M4 6 14 Not existed
Data link connector
GroundContinuity
Connector No. Terminal No.
M46 Not existed
14 Not existed
ECM
Resistance (Ω)
Te r m i n a l N o .
98 97 Approx. 108 – 132
IPDM E/R
Resistance (Ω)
Te r m i n a l N o .
40 39 Approx. 108 – 132
LKIA0037E
Page 3172 of 5121
![NISSAN TEANA 2008 Service Manual LAN
CAN COMMUNICATION CIRCUIT
LAN-105
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 9)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
Inspection result
Reproduced>>GO TO 6.
Non-reproduced>>Start the diagnosis again. Follo NISSAN TEANA 2008 Service Manual LAN
CAN COMMUNICATION CIRCUIT
LAN-105
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 9)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
Inspection result
Reproduced>>GO TO 6.
Non-reproduced>>Start the diagnosis again. Follo](/manual-img/5/57391/w960_57391-3171.png)
LAN
CAN COMMUNICATION CIRCUIT
LAN-105
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 9)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
Inspection result
Reproduced>>GO TO 6.
Non-reproduced>>Start the diagnosis again. Follow the trouble diagnosis procedure when past error is
detected.
6.CHECK UNIT REPRODUCTION
Perform the reproduction test as per the following procedure for each unit.
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect one of the unit connectors of CAN communication system.
NOTE:
ECM and IPDM E/R have a termination circuit. Check other units first.
4. Connect the battery cable to the negative terminal. Check if the symptoms described in the “Symptom
(Results from interview with customer)” are reproduced.
NOTE:
Although unit-related error symptoms occur, do not confuse them with other symptoms.
Inspection result
Reproduced>>Connect the connector. Check other units as per the above procedure.
Non-reproduced>>Replace the unit whose connector was disconnected.
Page 3173 of 5121

LU-1
ENGINE
C
DE
F
G H
I
J
K L
M
SECTION LU
A
LU
N
O P
CONTENTS
ENGINE LUBRICATION SYSTEM
FUNCTION DIAGNOSIS .. .............................2
DESCRIPTION ............................................... .....2
Engine Lubrication System ................................ ......2
Engine Lubrication System Schematic ......................3
PRECAUTION ...............................................4
PRECAUTIONS .............................................. .....4
Precaution for Liquid Gasket ............................... ......4
PREPARATION ............................................5
PREPARATION .............................................. .....5
Special Service Tool ........................................... ......5
Commercial Service Tool ..........................................5
ON-VEHICLE MAINTENANCE .....................7
ENGINE OIL ................................................... .....7
Inspection ............................................................ ......7
Draining .....................................................................8
Refilling .....................................................................9
OIL FILTER ........................................................10
Removal and Installation ..................................... ....10
Inspection ................................................................10
ON-VEHICLE REPAIR .................................11
OIL COOLER ....................................................11
Exploded View ..................................................... ....11
Removal and Installation .........................................11
Inspection ................................................................12
DISASSEMBLY AND ASSEMBLY ..............13
OIL PUMP .........................................................13
Exploded View ..................................................... ....13
Removal and Installation .........................................13
Disassembly and Assembly .....................................13
Inspection ................................................................14
SERVICE DATA AND SPECIFICATIONS
(SDS) ............... .............................................
16
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................
16
Periodical Maintenance Specification ................ ....16
Engine Oil Pressure ...............................................16
Oil Pump .................................................................16
Regulator Valve ......................................................16
Page 3174 of 5121
LU-2
< FUNCTION DIAGNOSIS >
DESCRIPTION
FUNCTION DIAGNOSIS
DESCRIPTION

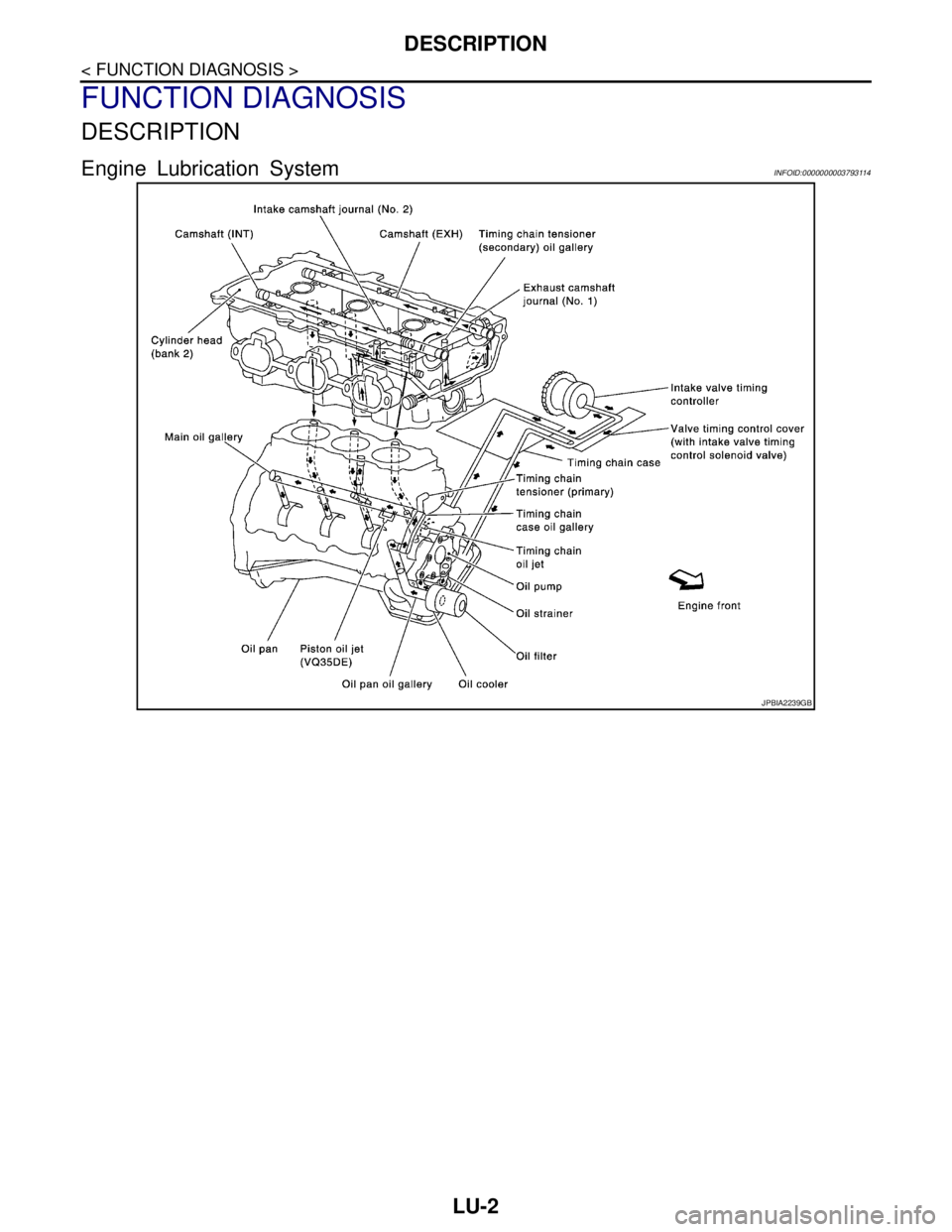

Engine Lubrication SystemINFOID:0000000003793114
JPBIA2239GB
Page 3175 of 5121
DESCRIPTION
LU-3
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O

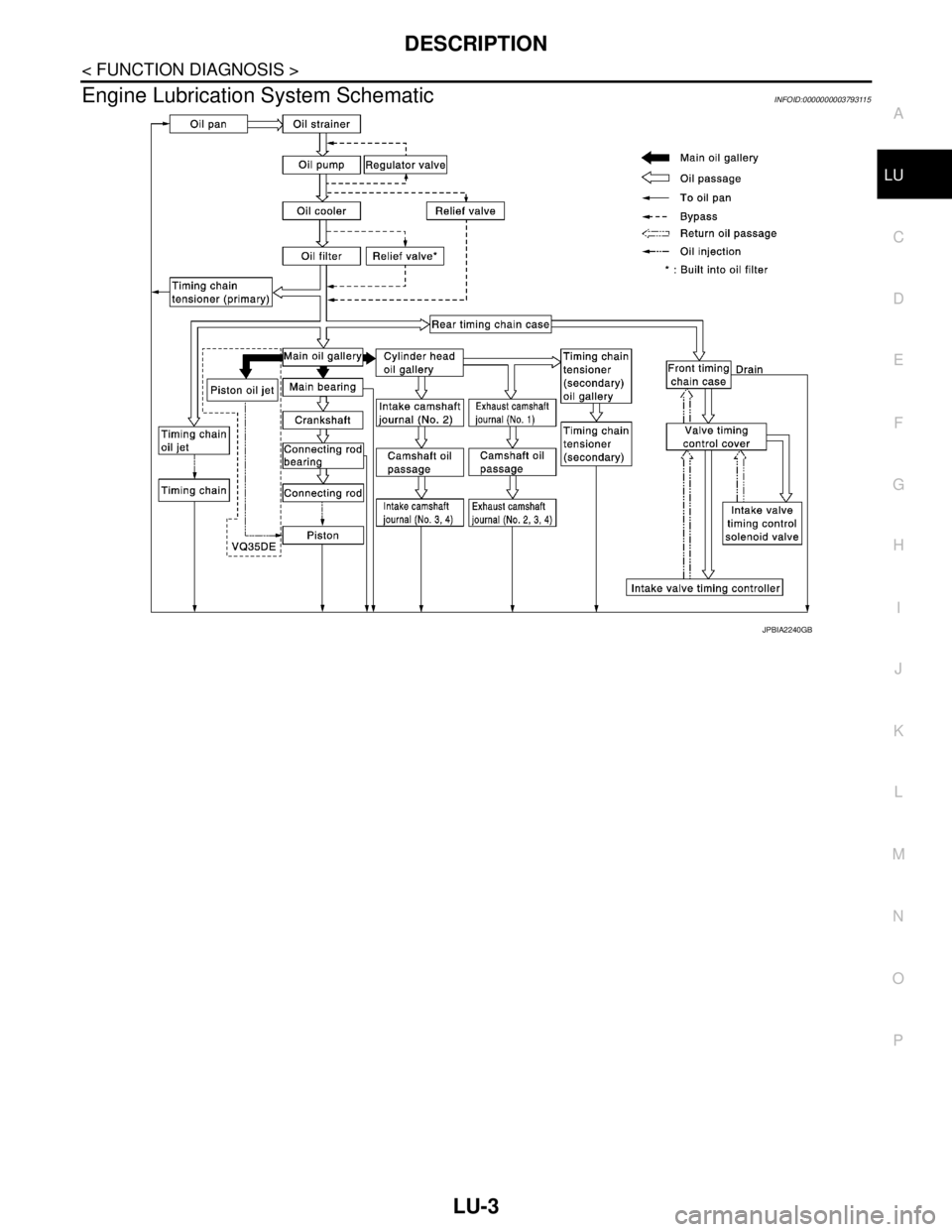

Engine Lubrication System SchematicINFOID:0000000003793115
JPBIA2240GB
Page 3176 of 5121
LU-4
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Liquid GasketINFOID:0000000003793117
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
• Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt
holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.
3. Apply liquid gasket to the liquid gasket application surface.
Use Genuine Liquid Gasket or equivalent.
Within 5 minutes of liquid gasket application, install the mating component.
If liquid gasket protrudes, wipe it off immediately.
Never retighten mounting bolts or nuts after the installation.
After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.
