NISSAN TEANA 2008 Service Manual MWI
BCM (BODY CONTROL MODULE)
MWI-91
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

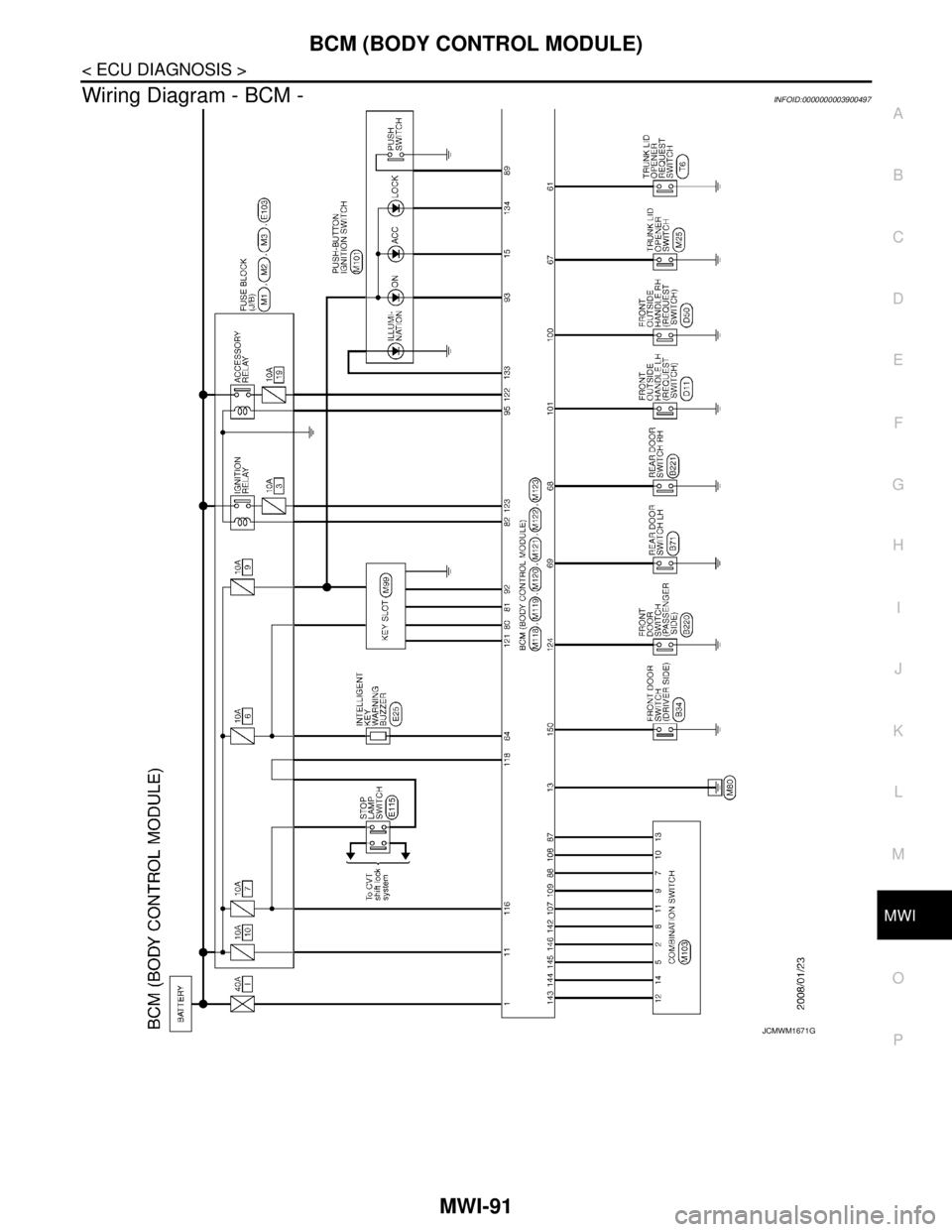

Wiring Diagram - BCM -INFOID:0000000003900497
JCMWM1671GB

Page 3346 of 5121

NISSAN TEANA 2008 Service Manual MWI-92
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)

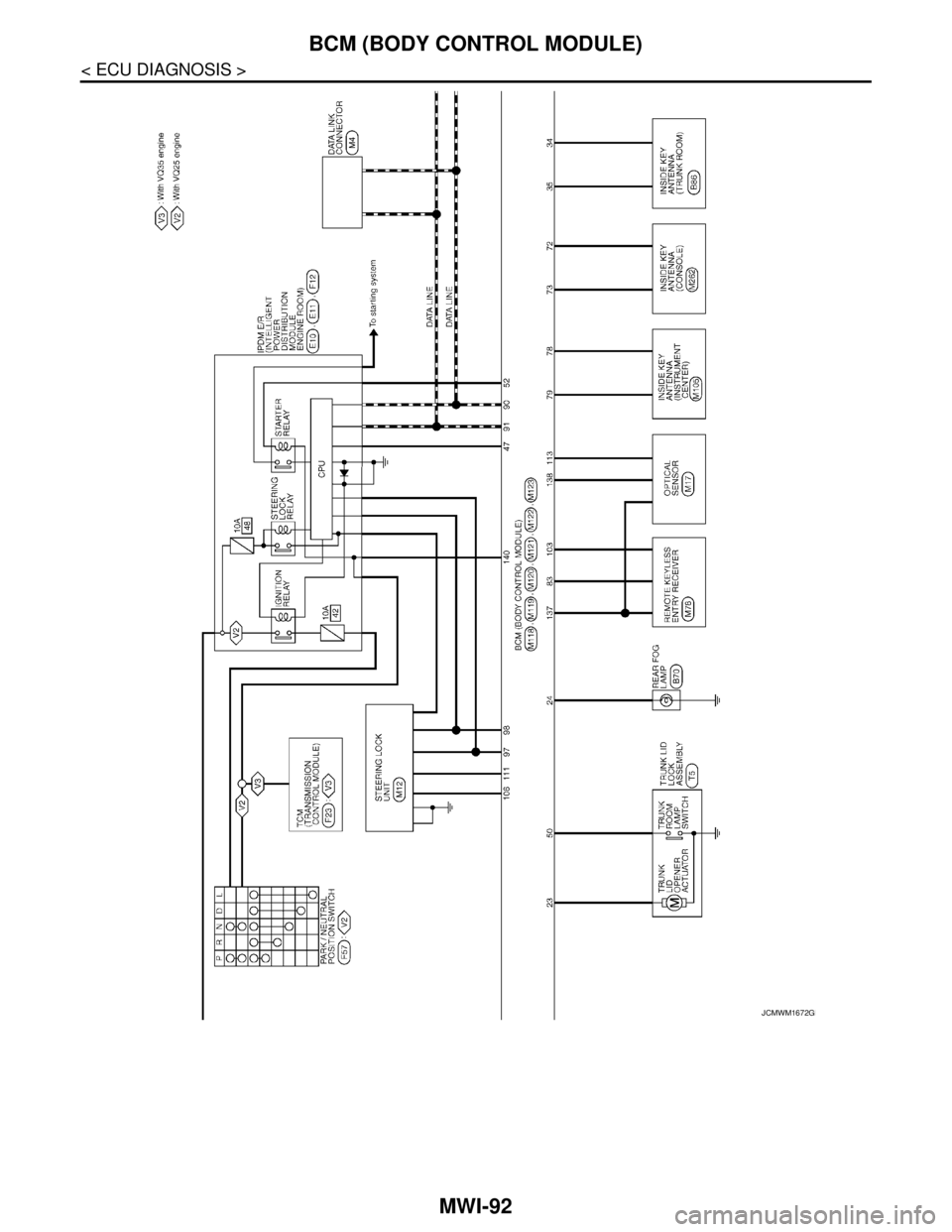

JCMWM1672GB

Page 3347 of 5121

NISSAN TEANA 2008 Service Manual MWI
BCM (BODY CONTROL MODULE)
MWI-93
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

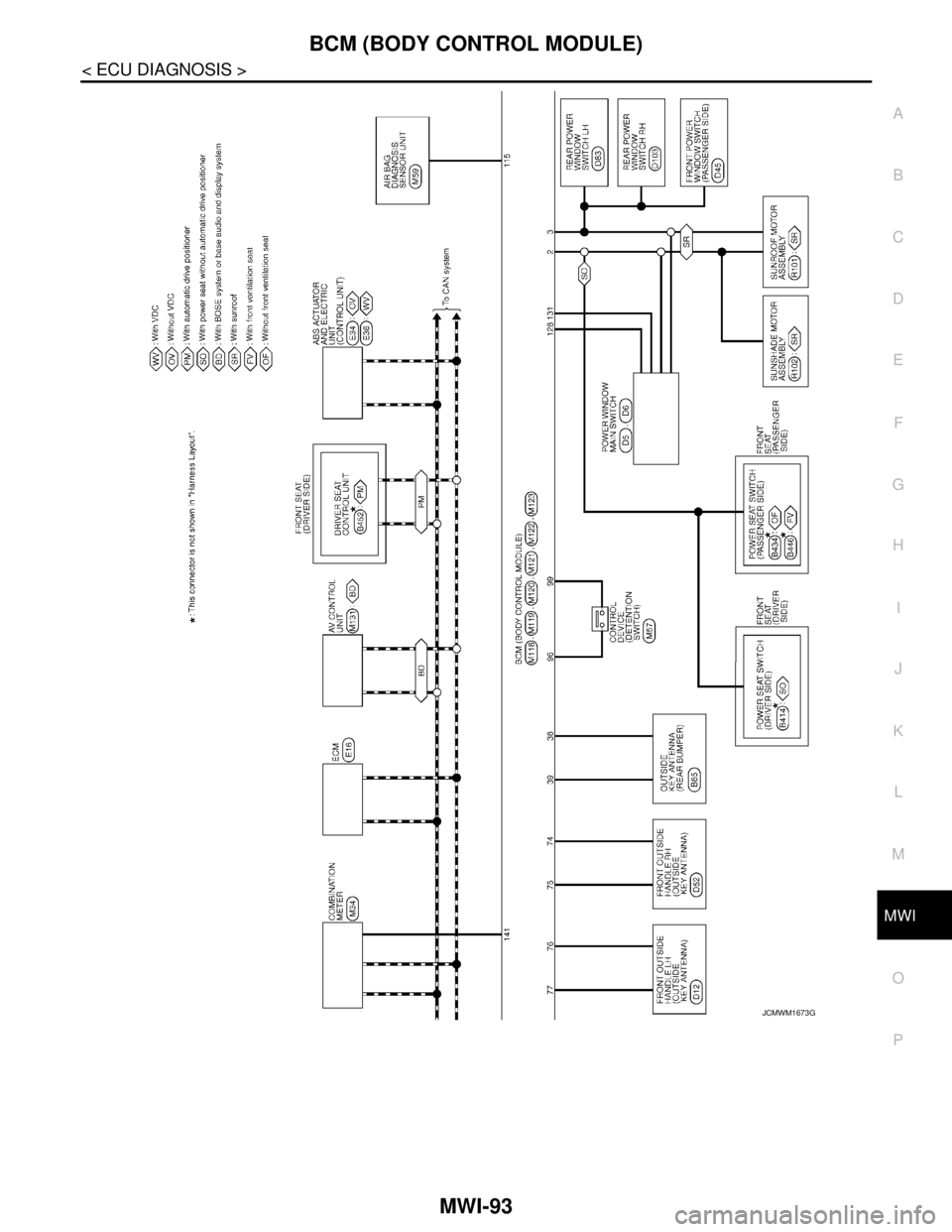

JCMWM1673GB

Page 3348 of 5121

NISSAN TEANA 2008 Service Manual MWI-94
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)

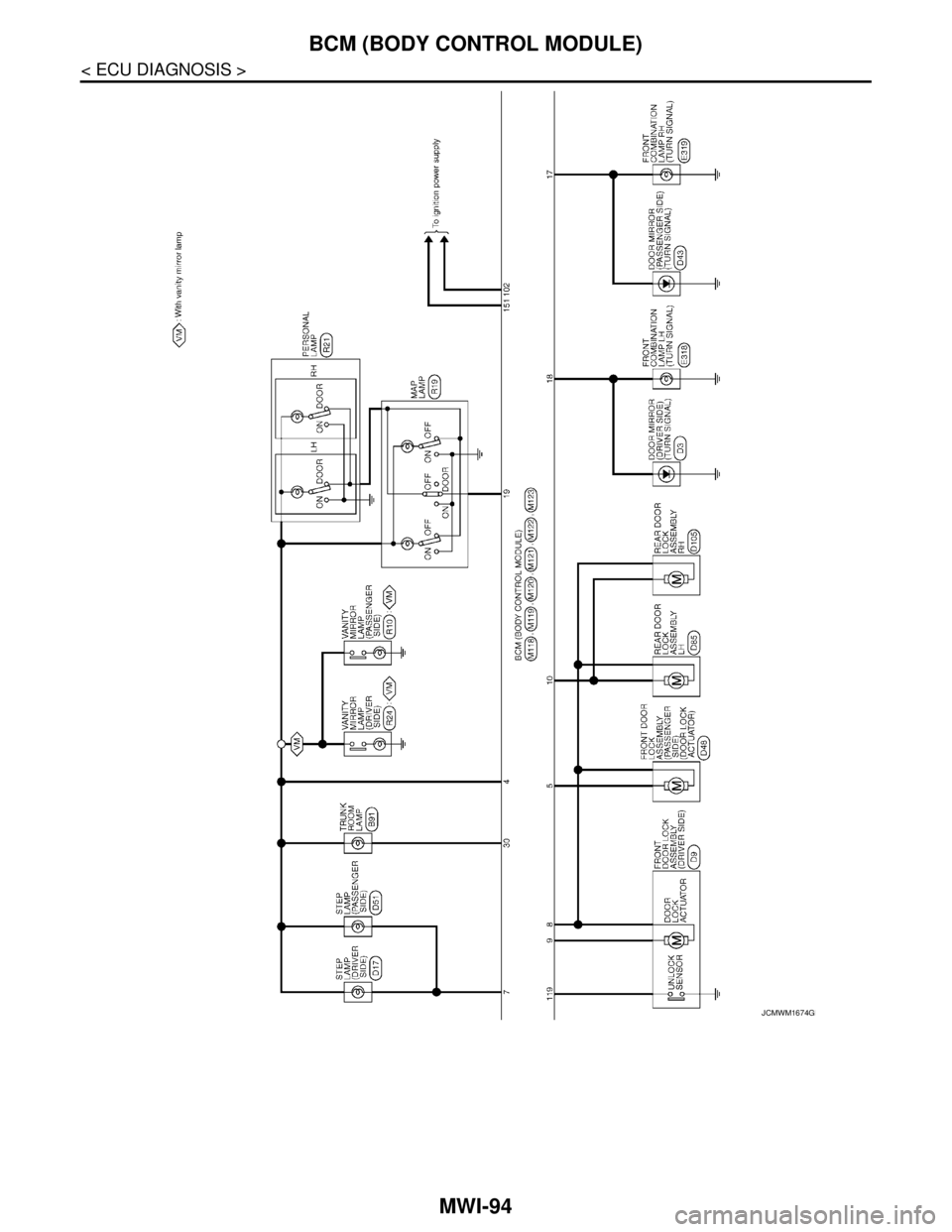

JCMWM1674GB

Page 3349 of 5121

NISSAN TEANA 2008 Service Manual MWI
BCM (BODY CONTROL MODULE)
MWI-95
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

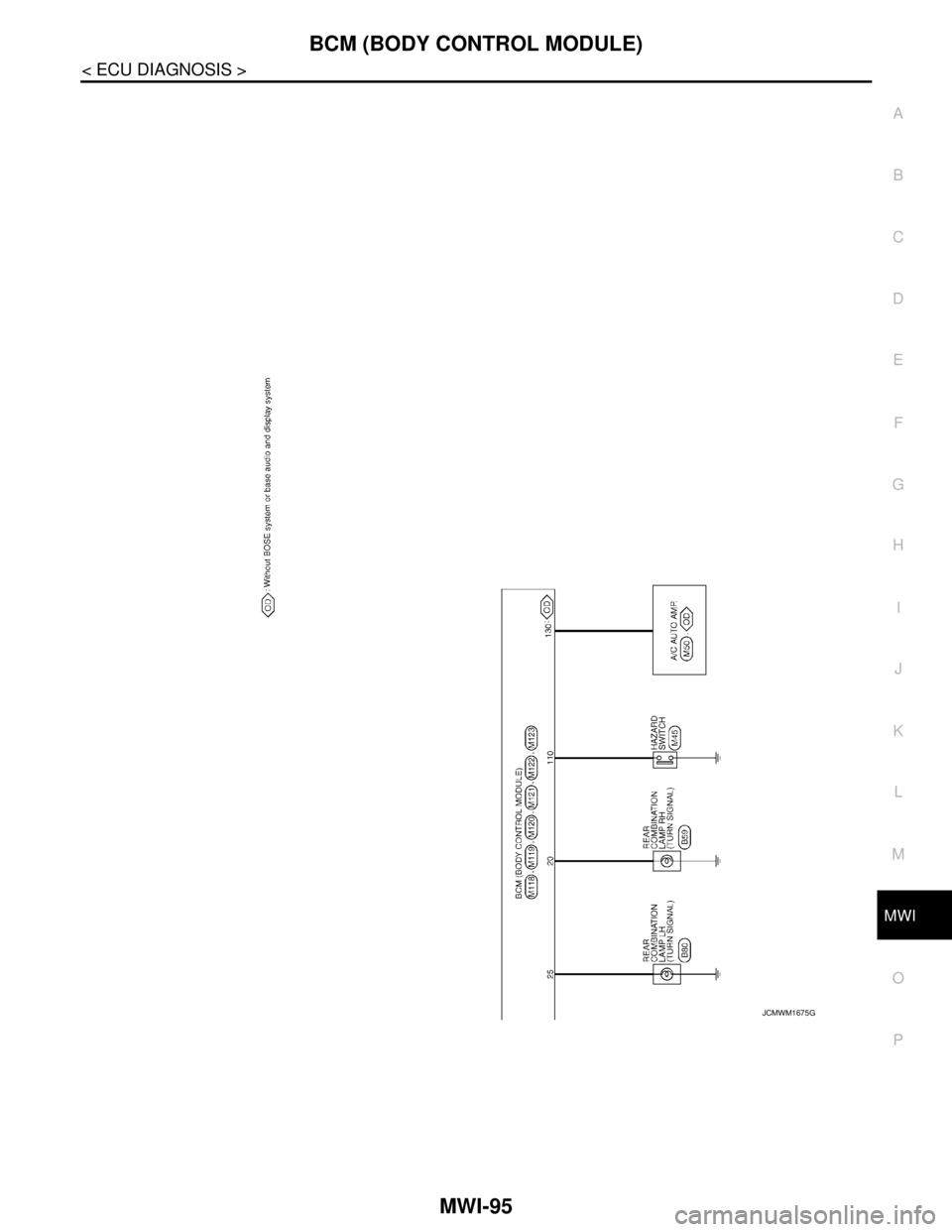

JCMWM1675GB

Page 3350 of 5121

NISSAN TEANA 2008 Service Manual MWI-96
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)

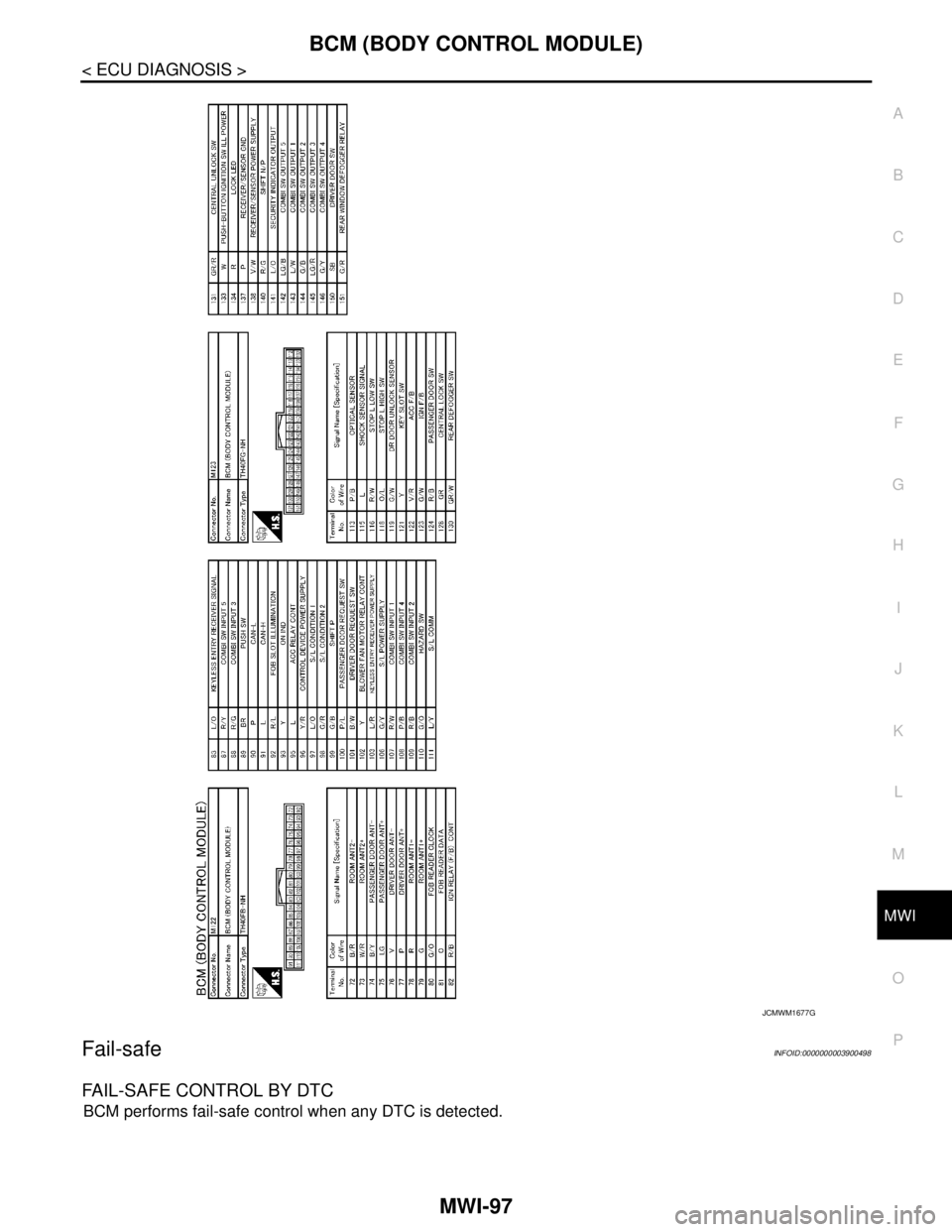

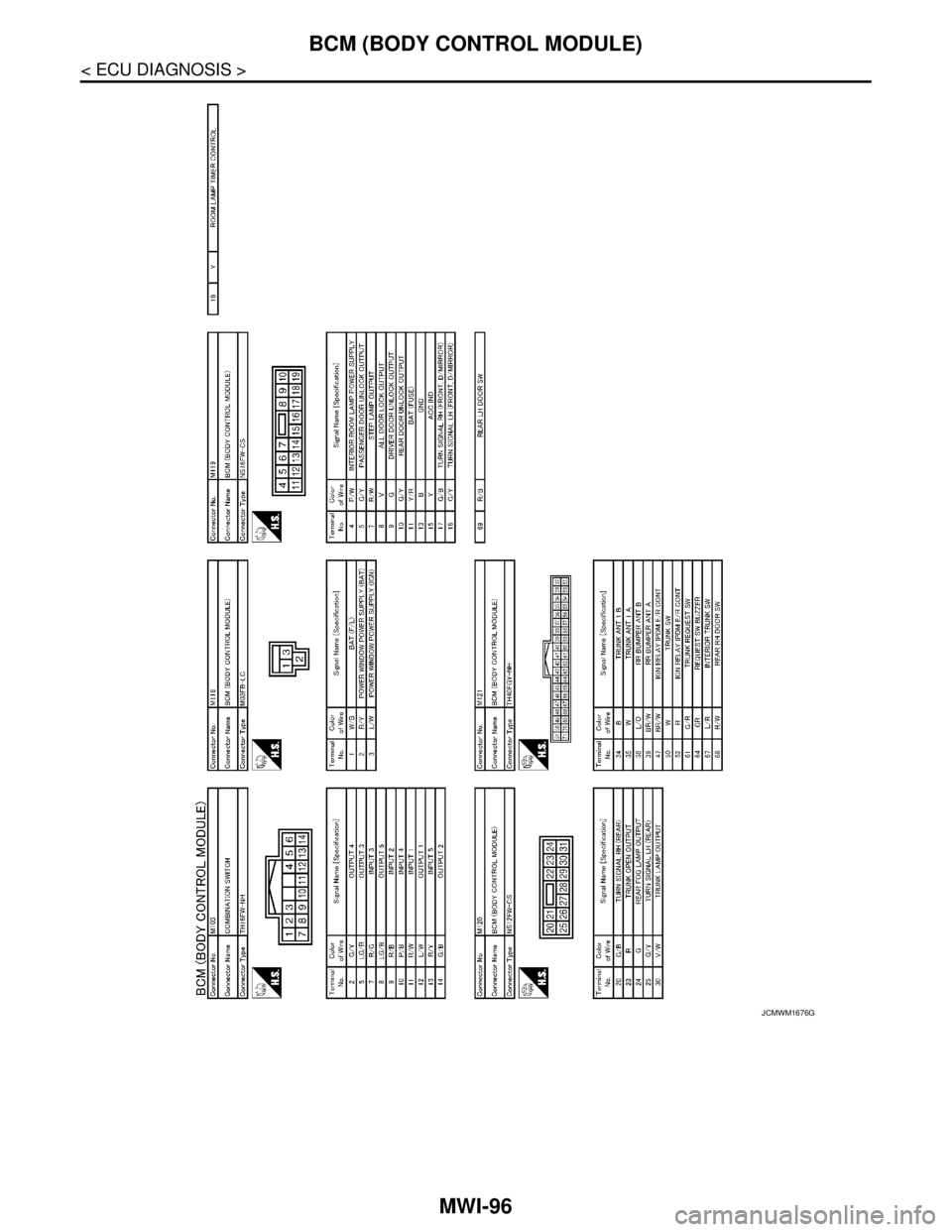

JCMWM1676GB

Page 3351 of 5121

NISSAN TEANA 2008 Service Manual MWI
BCM (BODY CONTROL MODULE)
MWI-97
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
Fail-safeINFOID:0000000003900498
FAIL-SAFE CONTROL BY DTC
BCM performs fail-safe control when any DTC is detected.
J

Page 3352 of 5121

NISSAN TEANA 2008 Service Manual MWI-98
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
Display contents of CONSULT Fail-safe Cancellation
B2013: ID DISCORD BCM-S/L Inhibit engine cranking Erase DTC
B2014: CHAIN OF S/L-BCM Inhibit engine

MWI-98
< ECU DIAGNOSIS >
BCM (BODY CONTROL MODULE)
Display contents of CONSULT Fail-safe Cancellation
B2013: ID DISCORD BCM-S/L Inhibit engine cranking Erase DTC
B2014: CHAIN OF S/L-BCM Inhibit engine cranking Erase DTC
B2190: NATS ANTENNA AMP Inhibit engine cranking Erase DTC
B2191: DIFFERENCE OF KEY Inhibit engine cranking Erase DTC
B2192: ID DISCORD BCM-ECM Inhibit engine cranking Erase DTC
B2193: CHAIN OF BCM-ECM Inhibit engine cranking Erase DTC
B2557: VEHICLE SPEED Inhibit steering lockWhen normal vehicle speed signals have been received from ABS
actuator and electric unit (control unit) for 500 ms
B2560: STARTER CONT RELAY Inhibit engine cranking500 ms after the following CAN signal communication status has
become consistent
Starter control relay signal
Starter relay status signal
B2601: SHIFT POSITION Inhibit steering lock500 ms after the following signal reception status becomes consis-
tent
Selector lever P position switch signal
P range signal (CAN)
B2602: SHIFT POSITION Inhibit steering lock5 seconds after the following BCM recognition conditions are ful-
filled
Ignition switch is in the ON position
Selector lever P position switch signal: Except P position (battery
voltage)
Vehicle speed: 4 km/h (2.5 MPH) or more
B2603: SHIFT POSI STATUS Inhibit steering lock500 ms after the following BCM recognition conditions are fulfilled
Ignition switch is in the ON position
Selector lever P position switch signal: Except P position (battery
voltage)
Selector lever P/N position signal: Except P and N positions (0 V)
B2604: PNP SW Inhibit steering lock500 ms after any of the following BCM recognition conditions is ful-
filled
Status 1
- Ignition switch is in the ON position
- Selector lever P/N position signal: P and N position (battery volt-
age)
- P range signal or N range signal (CAN): ON
Status 2
- Ignition switch is in the ON position
- Selector lever P/N position signal: Except P and N positions (0 V)
- P range signal and N range signal (CAN): OFF
B2605: PNP SW Inhibit steering lock500 ms after any of the following BCM recognition conditions is ful-
filled
Ignition switch is in the ON position
- Power position: IGN
- Selector lever P/N position signal: Except P and N positions (0 V)
- Interlock/PNP switch signal (CAN): OFF
Status 2
- Ignition switch is in the ON position
- Selector lever P/N position signal: P or N position (battery volt-
age)
- PNP switch signal (CAN): ON
B2606: S/L RELAY Inhibit engine cranking500 ms after the following CAN signal communication status has
become consistent
Steering lock relay signal (Request signal)
Steering lock relay signal (Condition signal)
B2607: S/L RELAY Inhibit engine cranking500 ms after the following CAN signal communication status has
become consistent
Steering lock relay signal (Request signal)
Steering lock relay signal (Condition signal)
