NISSAN TEANA 2008 Service Manual EXL-324
< ECU DIAGNOSIS >[HALOGEN TYPE]

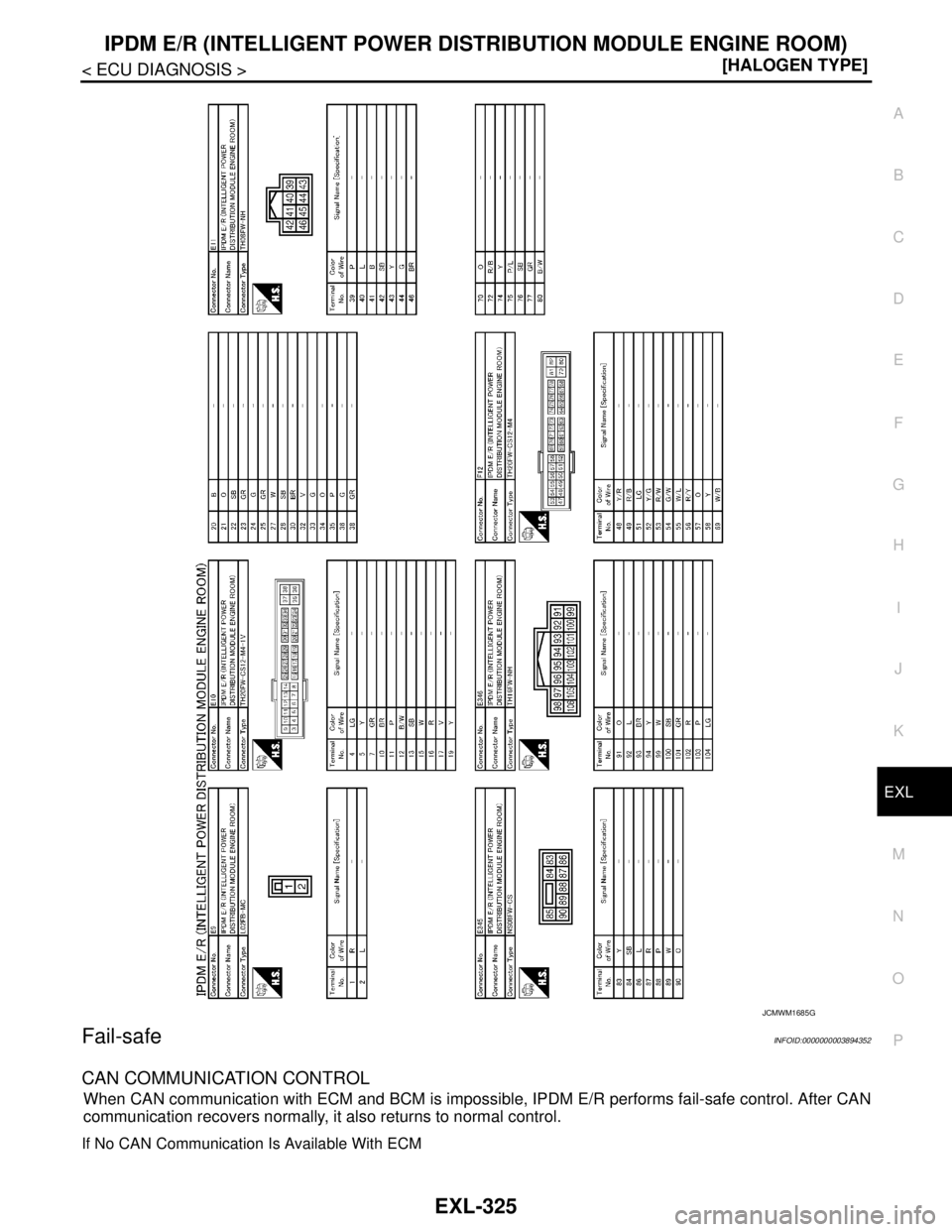

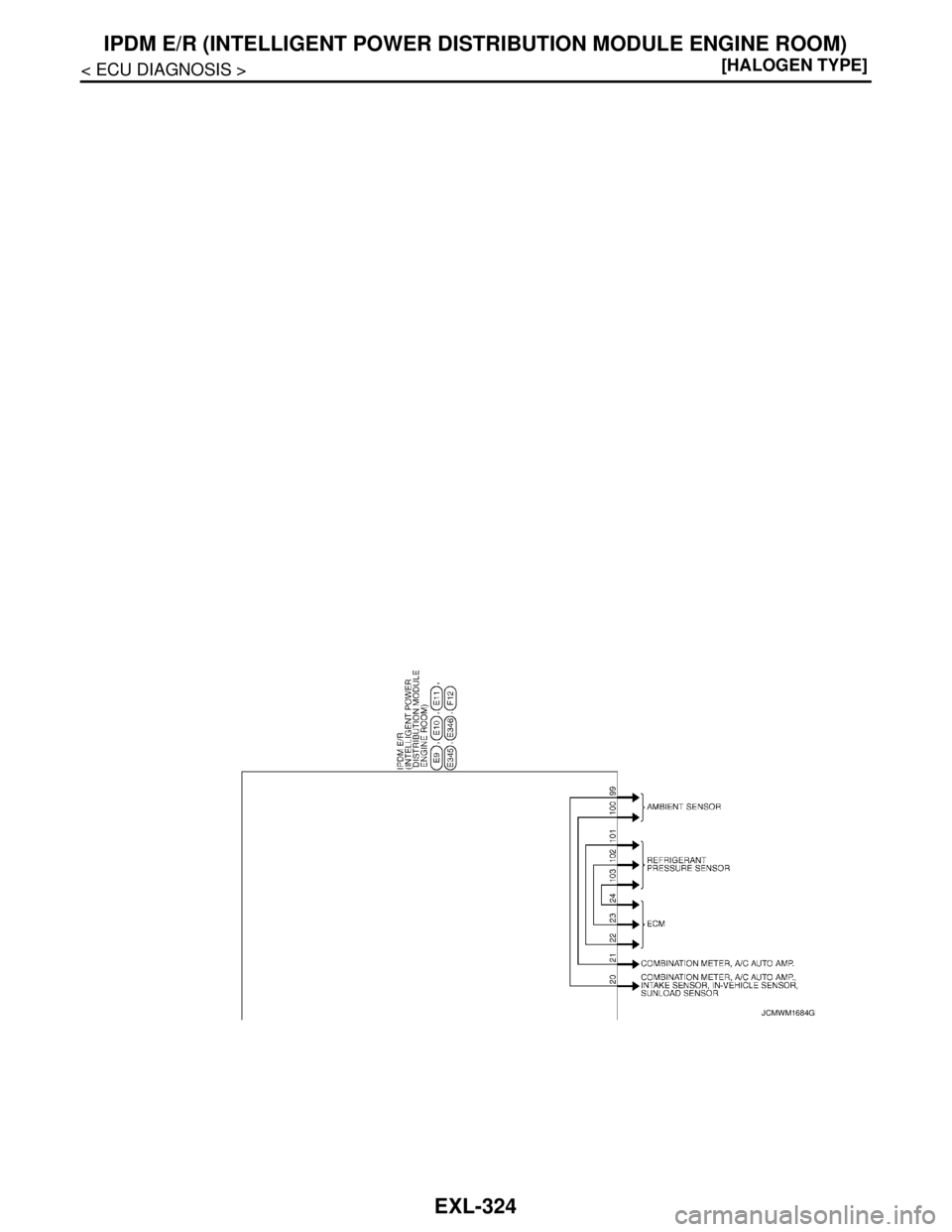

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
JCMWM1684GB

Page 2354 of 5121

NISSAN TEANA 2008 Service Manual IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
EXL-325
< ECU DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Fail-safeINFOID:0000000003894352
CAN COMMUNICATION CONTROL
When CA

Page 2355 of 5121

NISSAN TEANA 2008 Service Manual EXL-326
< ECU DIAGNOSIS >[HALOGEN TYPE]
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
If No CAN Communication Is Available With BCM
IGNITION RELAY MALFUNCTION DETECTION FUNCTION
IPDM

EXL-326
< ECU DIAGNOSIS >[HALOGEN TYPE]
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
If No CAN Communication Is Available With BCM
IGNITION RELAY MALFUNCTION DETECTION FUNCTION
IPDM E/R monitors the voltage at the contact circuit and excitation coil circuit of the ignition relay inside it.
IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the excitation
coil circuit.
If the ignition relay cannot turn OFF due to contact seizure, it activates the tail lamp relay for 10 minutes to
alert the user to the ignition relay malfunction when the ignition switch is turned OFF.
FRONT WIPER CONTROL
IPDM E/R detects front wiper stop position by a front wiper auto stop signal.
When a front wiper auto stop signal is in the conditions listed below, IPDM E/R stops power supply to wiper
after repeating a front wiper 10 seconds activation and 20 seconds stop five times.
Control part Fail-safe operation
Cooling fan Turns ON the cooling fan relay-2 and the cooling fan relay-3 when ignition switch is
turned ON (Cooling fan operates at HI)
Turns OFF the cooling fan relay-1, the cooling fan relay-2 and the cooling fan relay-3
when the ignition switch is turned OFF (Cooling fan does not operate)
A/C compressor A/C relay OFF
Alternator Outputs the power generation command signal (PWM signal) 0%
Control part Fail-safe operation
Headlamp Turns ON the headlamp low relay when the ignition switch is turned ON
Turns OFF the headlamp low relay when the ignition switch is turned OFF
Headlamp high relay OFF
Parking lamps
License plate lamps
Illuminations
Tail lamps Turns ON the tail lamp relay when the ignition switch is turned ON
Turns OFF the tail lamp relay when the ignition switch is turned OFF
Front wiper The status just before activation of fail-safe control is maintained until the ignition
switch is turned OFF while the front wiper is operating at LO or HI speed.
The wiper is operated at LO speed until the ignition switch is turned OFF if the fail-
safe control is activated while the front wiper is set in the INT mode and the front wiper
motor is operating.
Front fog lamps Front fog lamp relay OFF
Horn Horn OFF
Ignition relay The status just before activation of fail-safe is maintained.
Starter motor Starter control relay OFF
Steering lock unit Steering lock relay OFF
Headlamp washer relay Headlamp washer relay OFF
Voltage judgment
IPDM E/R judgment Operation
Ignition relay contact sideIgnition relay excitation coil
side
ON ON Ignition relay ON normal —
OFF OFF Ignition relay OFF normal —
ON OFF Ignition relay ON stuck Detects DTC “B2098: IGN RELAY ON”
Turns ON the tail lamp relay for 10 min-
utes
OFF ON Ignition relay OFF stuck Detects DTC “B2099: IGN RELAY OFF”

Page 2356 of 5121

NISSAN TEANA 2008 Service Manual IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
EXL-327
< ECU DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
NOTE:
This operation status can be confirmed on the IPDM E/R “Da

Page 2357 of 5121

NISSAN TEANA 2008 Service Manual EXL-328
< SYMPTOM DIAGNOSIS >[HALOGEN TYPE]
EXTERIOR LIGHTING SYSTEM SYMPTOMS
SYMPTOM DIAGNOSIS
EXTERIOR LIGHTING SYSTEM SYMPTOMS
Symptom TableINFOID:0000000003811996
CAUTION:
Perform the self-diagnos

EXL-328
< SYMPTOM DIAGNOSIS >[HALOGEN TYPE]
EXTERIOR LIGHTING SYSTEM SYMPTOMS
SYMPTOM DIAGNOSIS
EXTERIOR LIGHTING SYSTEM SYMPTOMS
Symptom TableINFOID:0000000003811996
CAUTION:
Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diag-
nosis if any DTC is detected.
Symptom Possible cause Inspection item
Headlamp (HI) is not
turned ON.One sideFuse
Halogen bulb (HI)
Harness between IPDM E/R
and the headlamp high
IPDM E/RHeadlamp (HI) circuit
Refer to EXL-227
.
Both sides
Symptom diagnosis
“BOTH SIDE HEADLAMPS (HI) ARE NOT TURNED ON”
Refer to EXL-331
.
Headlamp (HI) is not
turned OFF.When ignition switch is
turned ON.
When ignition switch is
turned OFF.IPDM E/R —
High beam indicator lamp is not turned ON.
[Headlamp (HI) is turned ON.]Combination meter Combination meter
Data monitor “HI-BEAM IND”
BCM (HEAD LAMP)
Active test “HEADLAMP”
Headlamp (LO) is not
turned ON.One sideFuse
Halogen bulb (LO)
Harness between IPDM E/R
and the front combination lamp
IPDM E/RHeadlamp (LO) circuit
Refer to EXL-229
.
Both sides
Symptom diagnosis
“BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON”
Refer to EXL-332
.
Headlamp (LO) is not
turned OFF.When ignition switch is
turned ON.
When ignition switch is
turned OFF.IPDM E/R —
Each lamps are not turned ON/OFF with lighting
switch AUTO. Combination switch
Harness between the combina-
tion switch and BCM
BCMCombination switch
Refer to BCS-76
.
Optical sensor
Harness between the optical
sensor and BCM
BCMOptical sensor circuit
Refer to EXL-238
.
Front fog lamp is not
turned ON.One side Front fog lamp bulb
Harness between IPDM E/R
and the front fog lamp
Front fog lamp
IPDM E/RFront fog lamp circuit
Refer to EXL-231
.
Both sidesSymptom diagnosis
“BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON”
Refer to EXL-334
. Front fog lamp is not turned ON.
Front fog lamp indicator is not turned ON.
(Front fog lamp is turned ON.)Combination meter Combination meter
Data monitor “FR FOG IND”
BCM (HEAD LAMP)
Active test “FR FOG LAMP”

Page 2358 of 5121

NISSAN TEANA 2008 Service Manual EXTERIOR LIGHTING SYSTEM SYMPTOMS
EXL-329
< SYMPTOM DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Parking lamp is not turned ON. Parking lamp bulb
Harness between IPDM E/R
and the fro

EXTERIOR LIGHTING SYSTEM SYMPTOMS
EXL-329
< SYMPTOM DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
Parking lamp is not turned ON. Parking lamp bulb
Harness between IPDM E/R
and the front combination lamp
Front combination lamp
IPDM E/RParking lamp circuit
Refer to EXL-233.
Tail lamp is not turned ON. Harness between IPDM E/R
and the rear combination lamp
Rear combination lampTail lamp circuit
Refer to EXL-243
.
License plate lamp is not turned ON. License plate lamp bulb
Harness between IPDM E/R
and the license plate lamp
License plate lampLicense plate lamp circuit
Refer to EXL-245
.
Tail lamp and the license plate lamp are not turned
ON.Fuse
Harness between IPDM E/R
and the rear combination lamp
IPDM E/RLicense plate lamp circuit
Refer to EXL-245
.
Parking lamp, the tail lamp and the license plate
lamp are not turned ON.
Parking lamp, the tail lamp and the license plate
lamp are not turned OFF.
(Each illumination is turned ON/OFF.)Symptom diagnosis
“PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED
ON”
Refer to EXL-333
.
Tail lamp indicator is not turned ON.
(Parking, tail lamps are turned ON.)Combination meter Combination meter
Data monitor “LIGHT IND”
BCM (HEAD LAMP)
Active test “TAIL LAMP”
Turn signal lamp does not
blink.Indicator lamp is nor-
mal.
(Applicable side per-
forms the high flasher
activation.) Harness between BCM and
each turn signal lamp
Turn signal lamp bulbTurn signal circuit
Refer to EXL-235
.
Indicator lamp is includ-
ed. Combination switch
Harness between the combina-
tion switch and BCM
BCMCombination switch
Refer to BCS-38
.
Turn signal indicator lamp
does not blink.
(Turn signal indicator
lamp is normal.)One side Combination meter —
Both sides
(Always) Turn signal indicator lamp sig-
nal
-BCM
Combination meter Combination meter
Data monitor “TURN IND”
BCM (FLASHER)
Active test “FLASHER”
Both sides
(Only when activating
hazard warning lamp
with the ignition switch
OFF) Combination meter power sup-
ply and the ground circuit
Combination meterCombination meter
Power supply and the ground circuit
Refer to MWI-42
.
Hazard warning lamp does not activate.
Hazard warning lamp continues activating.
(Turn signal is normal.) Hazard switch
Harness between the hazard
switch and BCM
BCMHazard switch
Refer to EXL-241
. Symptom Possible cause Inspection item

Page 2359 of 5121

NISSAN TEANA 2008 Service Manual EXL-330
< SYMPTOM DIAGNOSIS >[HALOGEN TYPE]
EXTERIOR LIGHTING SYSTEM SYMPTOMS
Rear fog lamp is not
turned ON.Rear fog lamp indicator
lamp is normal. Harness between BCM and the
rear fog lamp
Rea

Page 2360 of 5121

NISSAN TEANA 2008 Service Manual BOTH SIDE HEADLAMPS (HI) ARE NOT TURNED ON
EXL-331
< SYMPTOM DIAGNOSIS >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
BOTH SIDE HEADLAMPS (HI) ARE NOT TURNED ON
DescriptionINFOID:0000000003773716
Bo
