MAGNET CLUTCH
HAC-197
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
MAGNET CLUTCH
DescriptionINFOID:0000000003884776
The magnet clutch drives the compressor, by an IPDM E/R signal.
Component Function CheckINFOID:0000000003884777
1.FUNCTION INSPECTION
1. Press AUTO switch.
2. “AUTO” is indicated on the display.
3. Check that the indicator of the A/C switch turns on. Check visually and by sound that the compressor is
operating (the discharge air temperature or fan speed varies depending on the ambient temperature, in-
vehicle temperature, and temperature setting).
4. Press the A/C switch.
5. Check that the indicator of the A/C switch turns OFF. Check visually and by sound that the compressor
stops.
Does it operate normally?
YES >> INSPECTION END
NO >> Perform trouble diagnosis for the compressor. Refer to HAC-197, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003884778
1.INSPECTION IN AUTO ACTIVE TEST MODE
Perform “AUTO ACTIVE TEST”. Refer to PCS-11, "
Diagnosis Description".
Does it operate normally?
YES >> GO TO 5.
NO >> GO TO 2.
2.CHECK MAGNET CLUTCH
1. Turn the ignition switch OFF.
2. Disconnect the magnet clutch connector.
3. Directly apply the battery voltage to the magnet clutch. Check for operation visually and by sound.
Does it operate normally?
YES >> GO TO 3.
NO >> Replace the compressor.
3.CHECK MAGNET CLUTCH CIRCUIT CONTINUITY
1. Turn the ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between magnet clutch harness connector and IPDM E/R harness connector.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair harness or connector.
4.CHECK FUSE
Check 10A fuse (No. 49).
NOTE:
Refer to PG-101, "
Fuse, Connector and Terminal Arrangement" for fuse location.
Is the inspection result normal?
YES >> Replace IPDM E/R.
NO >> Replace the fuse after repairing the applicable circuit.
IPDM E/R Compressor
Continuity
Connector Terminal Connector Terminal
F12 48 F18 1 Existed
Page 2826 of 5121
![NISSAN TEANA 2008 Service Manual HAC-198
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
MAGNET CLUTCH
5.CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT-III
1. Using CONSULT-III, perform “SELF-DIAGNOSIS RESULTS” of HVAC.
2. Check if NISSAN TEANA 2008 Service Manual HAC-198
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
MAGNET CLUTCH
5.CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT-III
1. Using CONSULT-III, perform “SELF-DIAGNOSIS RESULTS” of HVAC.
2. Check if](/manual-img/5/57391/w960_57391-2825.png)
HAC-198
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
MAGNET CLUTCH
5.CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT-III
1. Using CONSULT-III, perform “SELF-DIAGNOSIS RESULTS” of HVAC.
2. Check if any DTC is displayed in the self-diagnosis results.
NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to HAC-
164, "DTC Logic" or HAC-165, "DTC Logic".
Is any DTC displayed?
YES >> Perform the diagnosis that is applicable to the sensor and actuator. Refer to HAC-212, "WITH-
OUT INTELLIGENT AIR CONDITIONER SYSTEM : DTC Index" (WITHOUT INTELLIGENT AIR
CONDITIONER SYSTEM) or HAC-224, "
WITH INTELLIGENT AIR CONDITIONER SYSTEM :
DTC Index" (WITH INTELLIGENT AIR CONDITIONER SYSTEM).
NO >> GO TO 6.
6.CHECK A/C AUTO AMP. INPUT SIGNAL
Using CONSULT-III, check “On/Off” of “AIR COND SIG” and “HEATER FAN SW” in “DATA MONITOR” of
HVAC. Refer to HAC-156, "
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : CONSULT-III Function"
(WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM) or HAC-159, "WITH INTELLIGENT AIR CONDI-
TIONER SYSTEM : CONSULT-III Function" (WITH INTELLIGENT AIR CONDITIONER SYSTEM).
Is the inspection result normal?
YES >> GO TO 7.
NO >> Replace A/C auto amp.
7.CHECK REFRIGERANT PRESSURE SENSOR
Check refrigerant pressure sensor. Refer to EC-348, "
Diagnosis Procedure".
Is the inspection result normal?
YES >> INSPECTION END
NO >> Repair or replace malfunctioning parts.A/C SWITCH ON : AIR COND SIG On
A/C SWITCH OFF : AIR COND SIG Off
FAN CONTROL DIAL ON : HEATER FAN SW On
FAN CONTROL DIAL OFF : HEATER FAN SW Off
Page 2827 of 5121
![NISSAN TEANA 2008 Service Manual IONIZER
HAC-199
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
IONIZER
WITH INTELLIGENT AIR CONDITIONER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : DescriptionINFOI NISSAN TEANA 2008 Service Manual IONIZER
HAC-199
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
IONIZER
WITH INTELLIGENT AIR CONDITIONER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : DescriptionINFOI](/manual-img/5/57391/w960_57391-2826.png)
IONIZER
HAC-199
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
IONIZER
WITH INTELLIGENT AIR CONDITIONER SYSTEM
WITH INTELLIGENT AIR CONDITIONER SYSTEM : DescriptionINFOID:0000000003884785

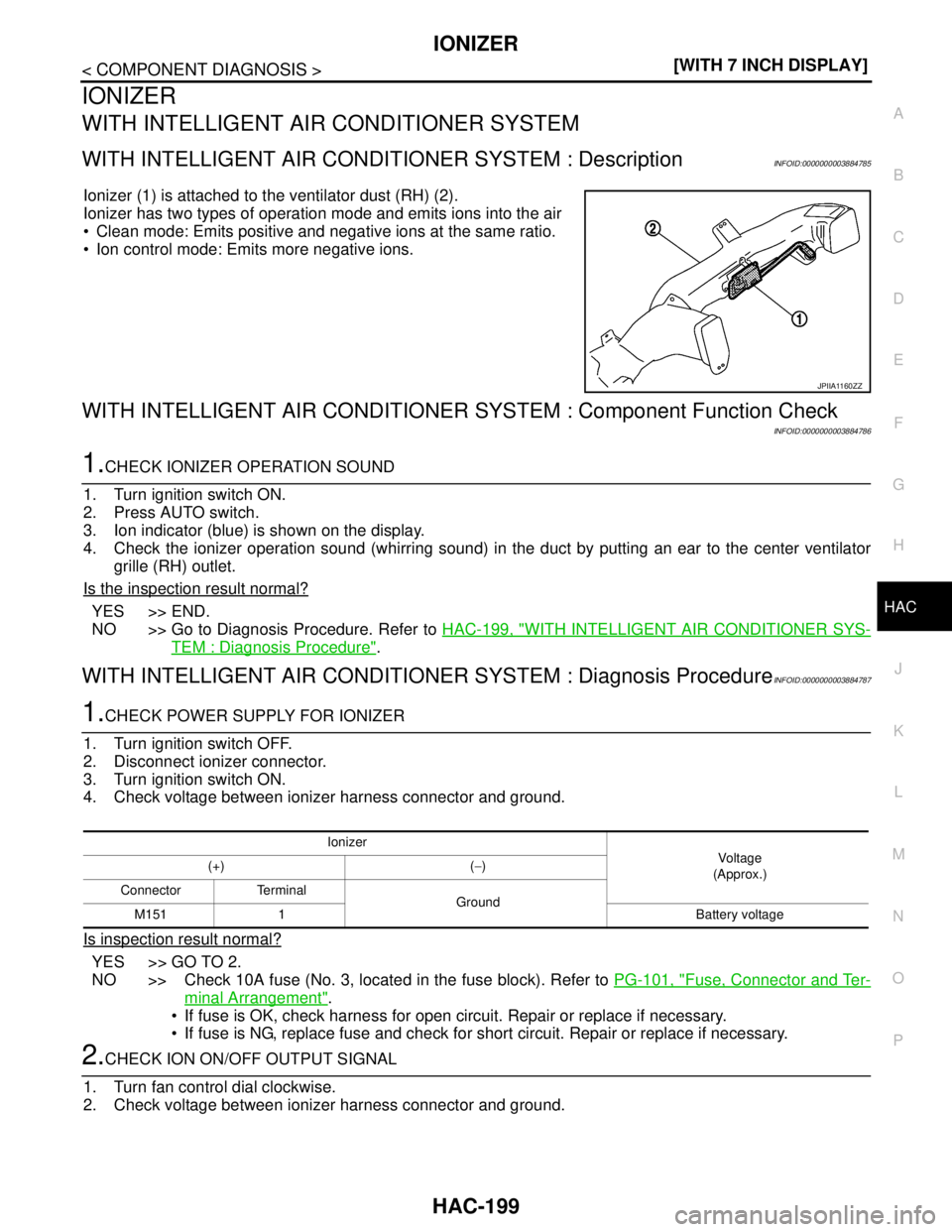

Ionizer (1) is attached to the ventilator dust (RH) (2).
Ionizer has two types of operation mode and emits ions into the air
Clean mode: Emits positive and negative ions at the same ratio.
Ion control mode: Emits more negative ions.
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Component Function Check
INFOID:0000000003884786
1.CHECK IONIZER OPERATION SOUND
1. Turn ignition switch ON.
2. Press AUTO switch.
3. Ion indicator (blue) is shown on the display.
4. Check the ionizer operation sound (whirring sound) in the duct by putting an ear to the center ventilator
grille (RH) outlet.
Is the inspection result normal?
YES >> END.
NO >> Go to Diagnosis Procedure. Refer to HAC-199, "
WITH INTELLIGENT AIR CONDITIONER SYS-
TEM : Diagnosis Procedure".
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Diagnosis ProcedureINFOID:0000000003884787
1.CHECK POWER SUPPLY FOR IONIZER
1. Turn ignition switch OFF.
2. Disconnect ionizer connector.
3. Turn ignition switch ON.
4. Check voltage between ionizer harness connector and ground.
Is inspection result normal?
YES >> GO TO 2.
NO >> Check 10A fuse (No. 3, located in the fuse block). Refer to PG-101, "
Fuse, Connector and Ter-
minal Arrangement".
If fuse is OK, check harness for open circuit. Repair or replace if necessary.
If fuse is NG, replace fuse and check for short circuit. Repair or replace if necessary.
2.CHECK ION ON/OFF OUTPUT SIGNAL
1. Turn fan control dial clockwise.
2. Check voltage between ionizer harness connector and ground.
JPIIA1160ZZ
Ionizer
Voltag e
(Approx.) (+) (−)
Connector Terminal
Ground
M151 1 Battery voltage
Page 2828 of 5121
![NISSAN TEANA 2008 Service Manual HAC-200
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
IONIZER
Is inspection result normal?
YES >> GO TO 3.
NO >> GO TO 4.
3.CHECK MODE CHANGE OUTPUT SIGNAL
Check voltage between ionizer harness connect NISSAN TEANA 2008 Service Manual HAC-200
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
IONIZER
Is inspection result normal?
YES >> GO TO 3.
NO >> GO TO 4.
3.CHECK MODE CHANGE OUTPUT SIGNAL
Check voltage between ionizer harness connect](/manual-img/5/57391/w960_57391-2827.png)
HAC-200
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
IONIZER
Is inspection result normal?
YES >> GO TO 3.
NO >> GO TO 4.
3.CHECK MODE CHANGE OUTPUT SIGNAL
Check voltage between ionizer harness connector and ground.
Is inspection result normal?
YES >> GO TO 5.
NO >> GO TO 6.
4.CHECK CIRCUIT CONTINUITY BETWEEN AUTO. AMP AND IONIZER
1. Turn ignition switch OFF.
2. Disconnect A/C auto amp. connector.
3. Check continuity between A/C auto amp. harness connector and ionizer harness connector.
Is the inspection result normal?
YES >> Replace A/C auto amp.
NO >> Repair harnesses or connectors.
5.CHECK CIRCUIT CONTINUITY BETWEEN IONIZER AND GROUND
1. Turn ignition switch OFF.
2. Check continuity between ionizer harness connector and ground.
Is inspection result normal?
YES >> Replace ionizer.
NO >> Repair harnesses or connectors.
6.CHECK CIRCUIT CONTINUITY BETWEEN AUTO AMP. AND IONIZER
1. Turn ignition switch OFF.
2. Disconnect auto amp. connector.
3. Check continuity between A/C auto amp. harness connector and ionizer harness connector.
Ionizer
Vo l ta g e
(Approx.) (+) (−)
Connector Terminal
Ground
M151 4 0 V
Ionizer
ConditionVo l ta g e
(Approx.) (+) (−)
Connector Terminal
Ground
M151 2“CLEAN” ON 12 V
“ION” ON 0 V
A/C auto amp. Ionizer
Continuity
Connector Terminal Connector Terminal
M50 12 M151 4 Existed
Ionizer
—Continuity
Connector Terminal
M151 3 Ground Existed
A/C auto amp. Ionizer
Continuity
Connector Terminal Connector Terminal
M50 28 M151 2 Existed
Page 2829 of 5121
IONIZER
HAC-201
< COMPONENT DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
Is inspection result normal?
YES >> Replace A/C auto amp.
NO >> Repair harnesses or connectors.
Page 2830 of 5121
![NISSAN TEANA 2008 Service Manual HAC-202
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
A/C AUTO AMP.
ECU DIAGNOSIS
A/C AUTO AMP.
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : Reference Value
INFOID: NISSAN TEANA 2008 Service Manual HAC-202
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
A/C AUTO AMP.
ECU DIAGNOSIS
A/C AUTO AMP.
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : Reference Value
INFOID:](/manual-img/5/57391/w960_57391-2829.png)
HAC-202
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
A/C AUTO AMP.
ECU DIAGNOSIS
A/C AUTO AMP.
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : Reference Value
INFOID:0000000003884790
VALUES ON THE DIAGNOSIS TOOL
CONSULT-III MONITOR ITEM
TERMINAL LAYOUT
PHYSICAL VALUES
Monitor item Condition Value/Status
COMP REQ SIGEngine: Run at idle after
warming up A/C switch: ON
(Compressor operation sta-
tus) On
A/C switch: OFF Off
FAN REQ SIGEngine: Run at idle after
warming up Blower fan: ON On
Blower fan: OFF Off
AMB TEMP SEN Ignition switch ON — −30 - 55°C (−22 - 131°F)
IN-VEH TEMP Ignition switch ON — −30 - 55°C (−22 - 131°F)
INT TEMP SEN Ignition switch ON — −30 - 55°C (−22 - 131°F)
SUNLOAD SEN Ignition switch ON —0 - 1045 W/m
2
(0 - 900 kcal/m2·h)
AMB SEN CAL Ignition switch ON —−30 - 55°C (−22 - 131°F)
IN-VEH CAL Ignition switch ON —−30 - 55°C (−22 - 131°F)
INT TEMP CAL Ignition switch ON —−30 - 55°C (−22 - 131°F)
SUNL SEN CAL Ignition switch ON —0 - 1045 W/m
2
(0 - 900 kcal/m2·h)
FAN DUTYEngine: Run at idle after
warming up Blower fan: ON 21 - 91%
Blower fan: OFF 0%
XM Ignition switch ON —−100 - 150
ENG COOL TEMP Ignition switch ON —Values according to coolant
temperature
VEHICLE SPEED Driving —Equivalent to speedometer
reading
JSIIA1205ZZ
Page 2831 of 5121
![NISSAN TEANA 2008 Service Manual A/C AUTO AMP.
HAC-203
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P

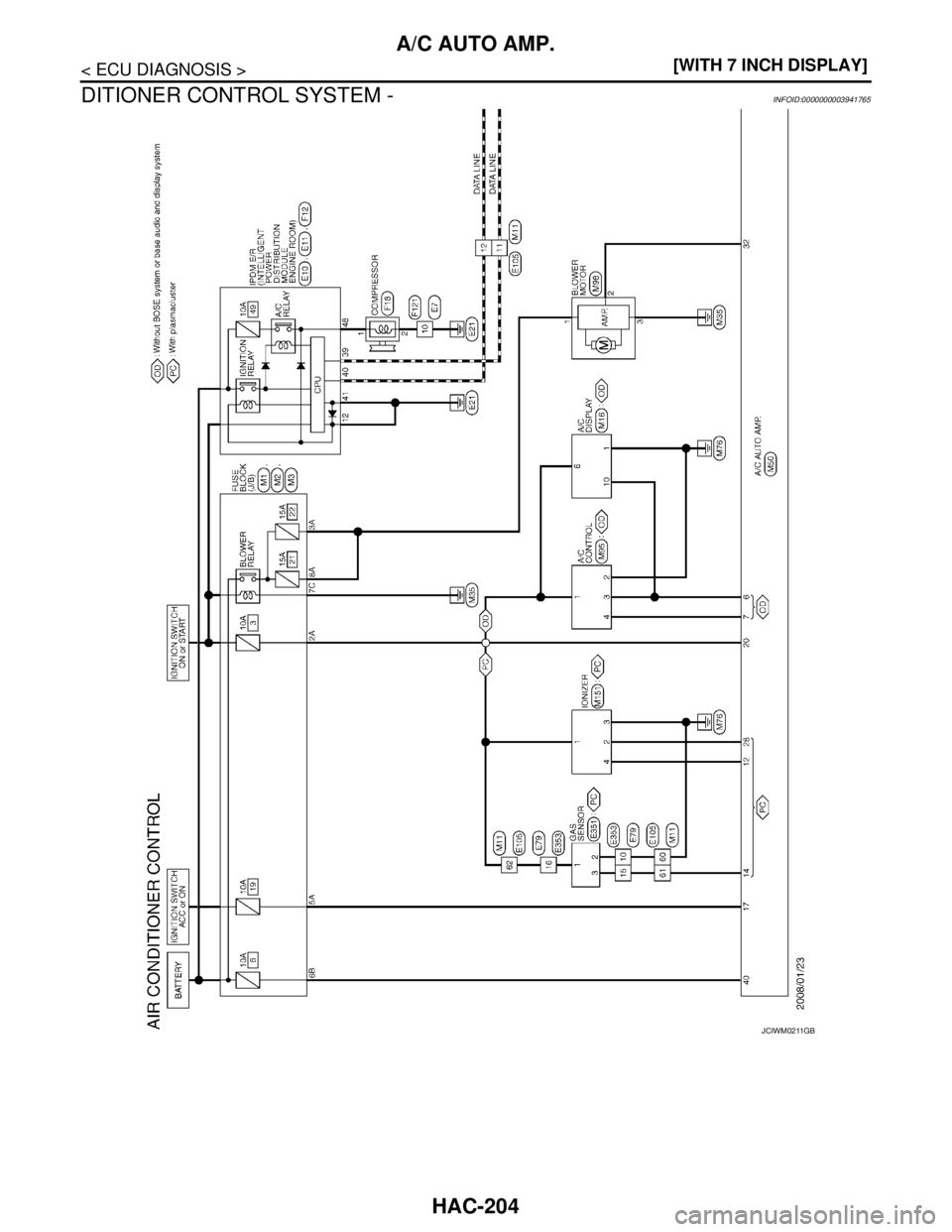

WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : Wiring Diagram - AIR CON-
Te r m i n a l N o .
(Wire color)D NISSAN TEANA 2008 Service Manual A/C AUTO AMP.
HAC-203
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : Wiring Diagram - AIR CON-
Te r m i n a l N o .
(Wire color)D](/manual-img/5/57391/w960_57391-2830.png)
A/C AUTO AMP.
HAC-203
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : Wiring Diagram - AIR CON-
Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
+−Signal nameInput/
Output
10
(L/R)Ground LAN signalInput/
Output—
11
(L/W)GroundPower supply for each door
motorInput Ignition switch ON Battery voltage
15
(O)Ground Sunload sensor signal Input — —
16
(R/G)Ground Intake sensor signal Input — —
17
(V/W)Ground ACC Power supply — Ignition switch ACC Battery voltage
19
(B)Ground Ground — Ignition switch ON 0 V
20
(G/W)Ground IGN Power supply — Ignition switch ON Battery voltage
32
(L/Y)Ground Blower motor control signal Output Ignition switch ON
Blower speed: 1st speed
(manual)
34
(P)GroundA/C auto amp. connection
recognition signalOutput Ignition switch ON 5V
35
(O/B)Ground Ambient sensor signal Input — —
36
(LG)Ground In-vehicle sensor signal Input — —
37
(B/Y)Ground Sensor ground — Ignition switch ON 0 V
39
(B)Ground Ground — Ignition switch ON 0 V
40
(Y/R)Ground BATT Power supply — Ignition switch OFF Battery voltage
SJIA1453J
JSIIA0096ZZ
Page 2832 of 5121
HAC-204
< ECU DIAGNOSIS >[WITH 7 INCH DISPLAY]
A/C AUTO AMP.
DITIONER CONTROL SYSTEM -
INFOID:0000000003941765
JCIWM0211GB
