Page 3249 of 5121

NISSAN TEANA 2008 Service Manual MIR-16
< ON-VEHICLE REPAIR >
OUTSIDE MIRROR

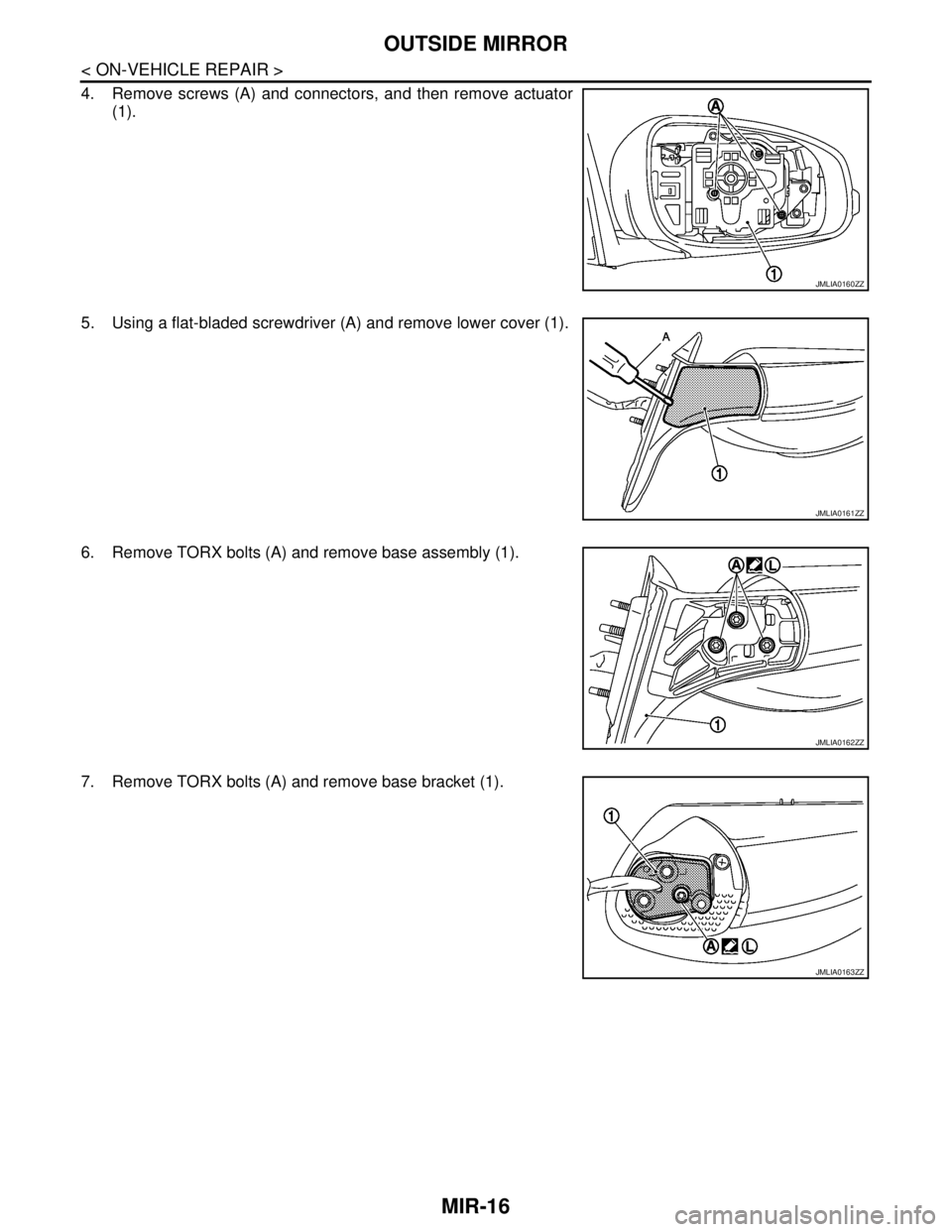

4. Remove screws (A) and connectors, and then remove actuator
(1).
5. Using a flat-bladed screwdriver (A) and remove lower cover (1).
6. Remove TORX bolts (

Page 3250 of 5121

NISSAN TEANA 2008 Service Manual OUTSIDE MIRROR
MIR-17
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
MA
B
MIR
N
O
P

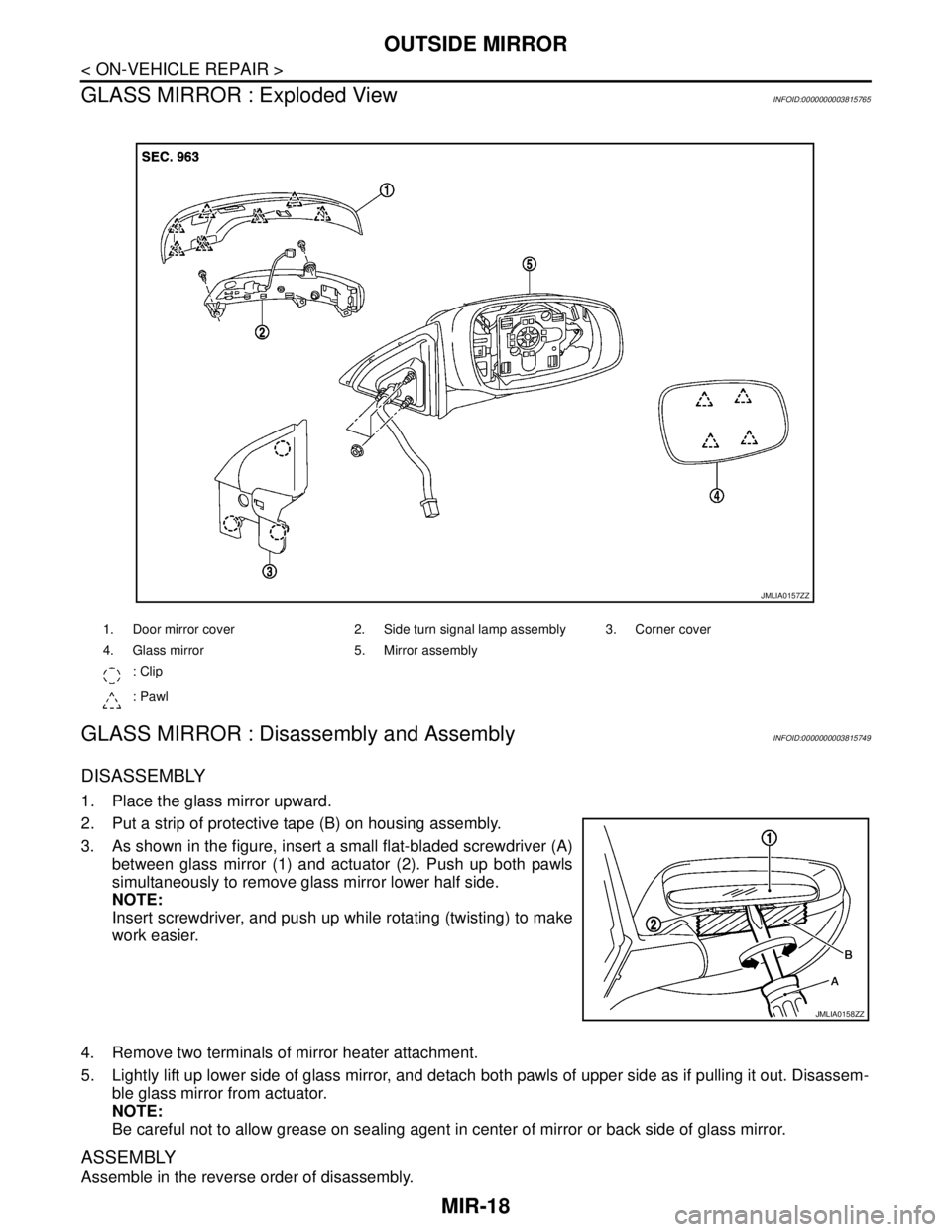

8. Using a flat-bladed screwdriver (A) and remove bracket cover
(1).
9. Disconnect connector of side turn signal lamp asse

Page 3251 of 5121

NISSAN TEANA 2008 Service Manual MIR-18
< ON-VEHICLE REPAIR >
OUTSIDE MIRROR

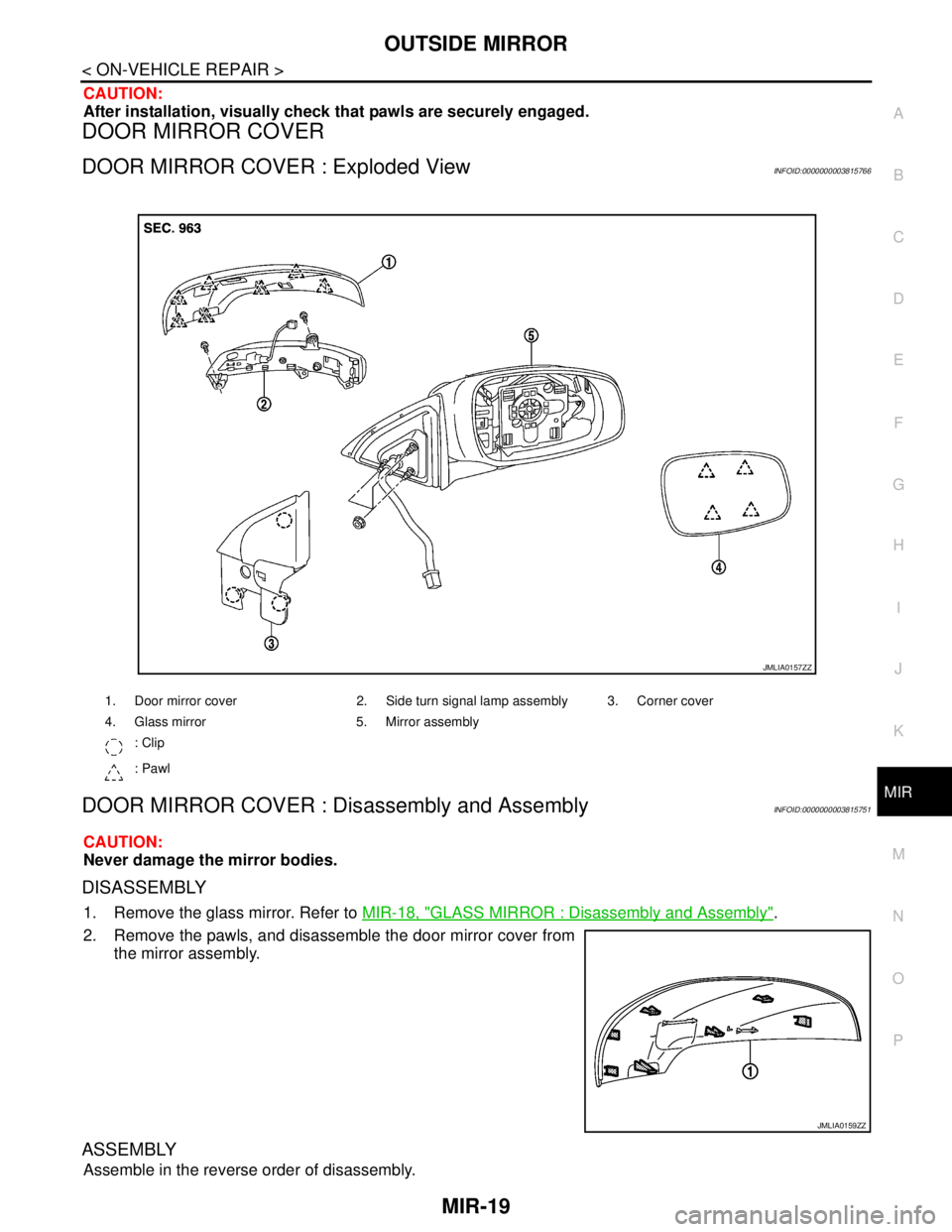

GLASS MIRROR : Exploded View
INFOID:0000000003815765
GLASS MIRROR : Disassembly and AssemblyINFOID:0000000003815749
DISASSEMBLY
1. Place the glass mirror up

Page 3252 of 5121

NISSAN TEANA 2008 Service Manual OUTSIDE MIRROR
MIR-19
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
MA
B
MIR
N
O
P
CAUTION:
After installation, visually check that pawls are securely engaged.
DOOR MIRROR COVER
DOOR MIRROR COVER : Exploded

Page 3253 of 5121

NISSAN TEANA 2008 Service Manual MIR-20
< ON-VEHICLE REPAIR >
OUTSIDE MIRROR
CAUTION:
After installation, visually check that pawls are securely engaged.

Page 3254 of 5121

NISSAN TEANA 2008 Service Manual DOOR MIRROR REMOTE CONTROL SWITCH
MIR-21
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
MA
B
MIR
N
O
P
DOOR MIRROR REMOTE CONTROL SWITCH
Exploded ViewINFOID:0000000003815752

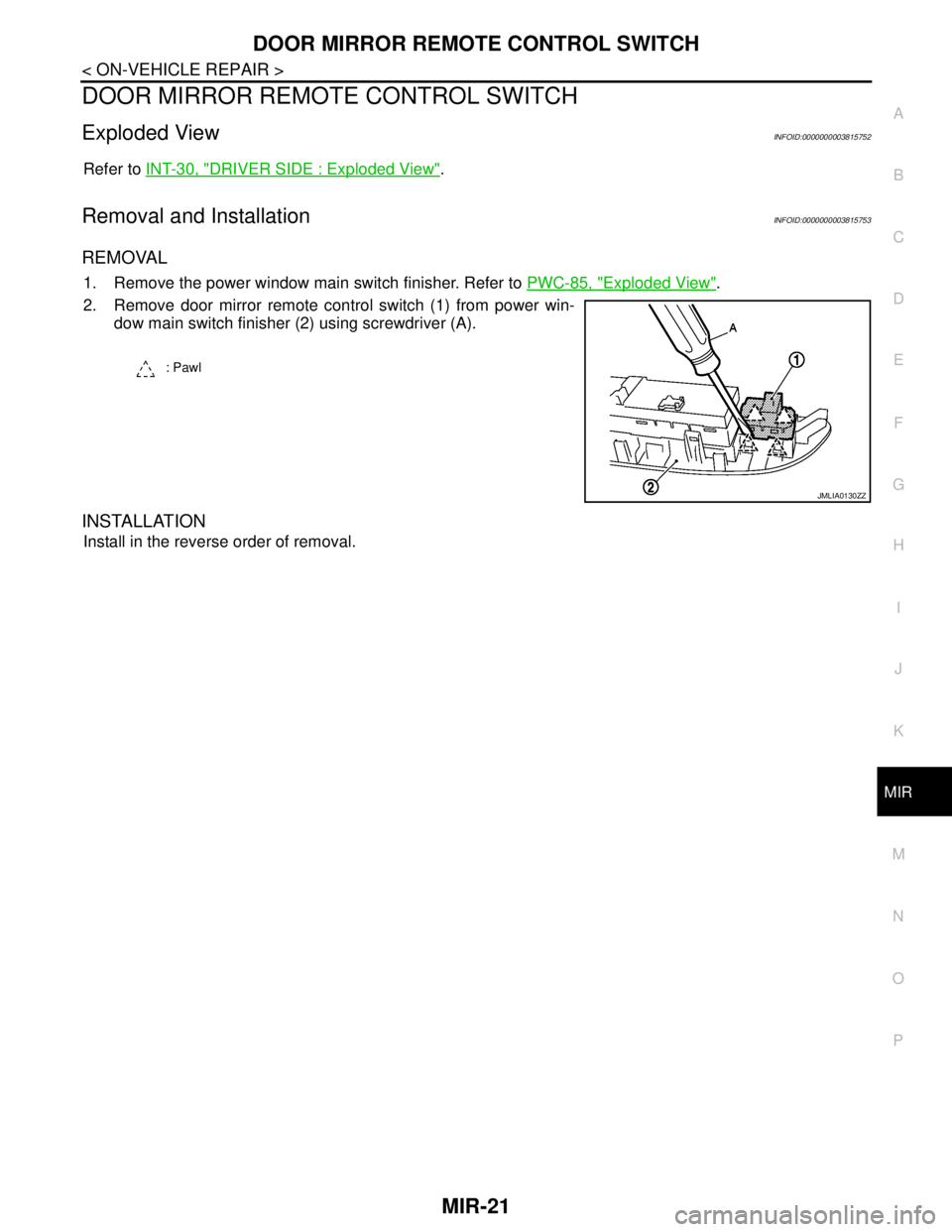

Refer to INT-30, "DRIVER SIDE : E

Page 3255 of 5121

NISSAN TEANA 2008 Service Manual MWI
MWI-1
DRIVER INFORMATION & MULTIMEDIA
C
D
E
F
G
H
I
J
K
L
MB
SECTION MWI
A
O
P
CONTENTS
METER, WARNING LAMP & INDICATOR
BASIC INSPECTION ....................................4
DIAGNOSIS AND REPAIR

MWI
MWI-1
DRIVER INFORMATION & MULTIMEDIA
C
D
E
F
G
H
I
J
K
L
MB
SECTION MWI
A
O
P
CONTENTS
METER, WARNING LAMP & INDICATOR
BASIC INSPECTION ....................................4
DIAGNOSIS AND REPAIR WORKFLOW ..........4
Work flow ..................................................................4
FUNCTION DIAGNOSIS ...............................6
METER SYSTEM .................................................6
METER SYSTEM .........................................................6
METER SYSTEM : System Diagram ........................6
METER SYSTEM : System Description ....................6
METER SYSTEM : Component Parts Location ........9
METER SYSTEM : Component Description ...........10
SPEEDOMETER ........................................................10
SPEEDOMETER : System Diagram .......................10
SPEEDOMETER : System Description ...................10
SPEEDOMETER : Component Parts Location .......11
SPEEDOMETER : Component Description ............12
TACHOMETER ..........................................................12
TACHOMETER : System Diagram .........................12
TACHOMETER : System Description .....................12
TACHOMETER : Component Parts Location .........13
TACHOMETER : Component Description ..............14
ENGINE COOLANT TEMPERATURE GAUGE ........14
ENGINE COOLANT TEMPERATURE GAUGE :
System Diagram ......................................................
14
ENGINE COOLANT TEMPERATURE GAUGE :
System Description .................................................
14
ENGINE COOLANT TEMPERATURE GAUGE :
Component Parts Location ......................................
15
ENGINE COOLANT TEMPERATURE GAUGE :
Component Description ...........................................
16
FUEL GAUGE ............................................................16
FUEL GAUGE : System Diagram ...........................16
FUEL GAUGE : System Description .......................16
FUEL GAUGE : Component Parts Location ...........17
FUEL GAUGE : Component Description ................18
ODO/TRIP METER .....................................................18
ODO/TRIP METER : System Diagram ....................18
ODO/TRIP METER : System Description ................18
ODO/TRIP METER : Component Parts Location ....19
ODO/TRIP METER : Component Description .........20
SHIFT POSITION INDICATOR ..................................20
SHIFT POSITION INDICATOR : System Diagram ....20
SHIFT POSITION INDICATOR : System Descrip-
tion ...........................................................................
20
SHIFT POSITION INDICATOR : Component
Parts Location ..........................................................
21
SHIFT POSITION INDICATOR : Component De-
scription ...................................................................
22
WARNING LAMPS/INDICATOR LAMPS ..................22
WARNING LAMPS/INDICATOR LAMPS : System
Diagram ...................................................................
22
WARNING LAMPS/INDICATOR LAMPS : System
Description ...............................................................
22
WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Parts Location ..............................................
23
WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Description ...................................................
24
METER ILLUMINATION CONTROL .........................24
METER ILLUMINATION CONTROL : System Di-
agram ......................................................................
24
METER ILLUMINATION CONTROL : System De-
scription ...................................................................
24
METER ILLUMINATION CONTROL : Component
Parts Location ..........................................................
26
METER ILLUMINATION CONTROL : Component
Description ...............................................................
27
INFORMATION DISPLAY ..........................................27
INFORMATION DISPLAY : System Diagram ..........27
INFORMATION DISPLAY : System Description .....27
INFORMATION DISPLAY : Component Parts Lo-
cation .......................................................................
30
INFORMATION DISPLAY : Component Descrip-
tion ...........................................................................
31

Page 3256 of 5121

NISSAN TEANA 2008 Service Manual MWI-2
DIAGNOSIS SYSTEM (METER) .......................32
Diagnosis Description .............................................32
CONSULT-III Function (METER/M&A) ...................33
COMPONENT DIAGN

MWI-2
DIAGNOSIS SYSTEM (METER) .......................32
Diagnosis Description .............................................32
CONSULT-III Function (METER/M&A) ...................33
COMPONENT DIAGNOSIS ........................37
U1000 CAN COMM CIRCUIT ............................37
Description ..............................................................37
DTC Logic ...............................................................37
Diagnosis Procedure .............................................37
U1010 CONTROL UNIT (CAN) .........................38
Description ..............................................................38
DTC Logic ...............................................................38
Diagnosis Procedure ..............................................38
B2205 VEHICLE SPEED ...................................39
Description ..............................................................39
DTC Logic ...............................................................39
Diagnosis Procedure .............................................39
B2267 ENGINE SPEED .....................................40
Description ..............................................................40
DTC Logic ...............................................................40
Diagnosis Procedure ..............................................40
B2268 WATER TEMP ........................................41
Description ..............................................................41
DTC Logic ...............................................................41
Diagnosis Procedure ..............................................41
POWER SUPPLY AND GROUND CIRCUIT .....42
COMBINATION METER ...........................................42
COMBINATION METER : Diagnosis Procedure ....42
BCM (BODY CONTROL MODULE) .........................42
BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ...............................................................
42
IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) .............................
43
IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................
43
FUEL LEVEL SENSOR SIGNAL CIRCUIT .......45
Description ..............................................................45
Component Function Check ...................................45
Diagnosis Procedure .............................................45
Component Inspection ............................................46
METER CONTROL SWITCH SIGNAL CIR-
CUIT ...................................................................
48
Description ..............................................................48
Diagnosis Procedure ..............................................48
Component Inspection ............................................49
OIL PRESSURE SWITCH SIGNAL CIRCUIT ...50
Description ..............................................................50
Component Function Check ...................................50
Diagnosis Procedure ..............................................50
Component Inspection ............................................50
PARKING BRAKE SWITCH SIGNAL CIR-
CUIT ...................................................................
52
Description ..............................................................52
Diagnosis Procedure ...............................................52
Component Inspection ............................................52
ECU DIAGNOSIS .......................................53
COMBINATION METER ....................................53
Reference Value .....................................................53
Wiring Diagram - METER - .....................................59
Fail-Safe ..................................................................66
DTC Index ...............................................................67
BCM (BODY CONTROL MODULE) ..................68
Reference Value .....................................................68
Wiring Diagram - BCM - ..........................................91
Fail-safe ..................................................................97
DTC Inspection Priority Chart ...............................99
DTC Index ............................................................100
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) ................
102
Reference Value ...................................................102
Wiring Diagram - IPDM E/R - ................................110
Fail-safe ................................................................113
DTC Index ............................................................115
SYMPTOM DIAGNOSIS ...........................116
THE FUEL GAUGE POINTER DOES NOT
MOVE ................................................................
116
Description ............................................................116
Diagnosis Procedure .............................................116
THE METER CONTROL SWITCH IS INOPER-
ATIVE ................................................................
117
Description ............................................................117
Diagnosis Procedure .............................................117
THE OIL PRESSURE WARNING LAMP
DOES NOT TURN ON ......................................
118
Description ............................................................118
Diagnosis Procedure .............................................118
THE OIL PRESSURE WARNING LAMP
DOES NOT TURN OFF ....................................
119
Description ............................................................119
Diagnosis Procedure .............................................119
THE PARKING BRAKE RELEASE WARNING
CONTINUES DISPLAYING, OR DOES NOT
DISPLAY ...........................................................
120
Description ............................................................120
Diagnosis Procedure .............................................120
THE DOOR OPEN WARNING CONTINUES
DISPLAYING, OR DOES NOT DISPLAY ........
121
Description ............................................................121

Load next 8 pages

Page: < prev 1-10 ... 3217-3224 3225-3232 3233-3240 3241-3248 3249-3256 3257-3264 3265-3272 3273-3280 3281-3288 ... 5128 next >

wiper blades child restraint coolant reservoir CD player wheel bolt torque engine overheat
