DUCT AND GRILLE
SIDE VENTILATOR GRILLE : Exploded View
INFOID:0000000003774689
SIDE VENTILATOR GRILLE : Removal and InstallationINFOID:0000000003774690
REMOVAL
1. Remove ventilator duct. Refer to VTL-48, "VENTILATOR DUCT : Exploded View".
2. Disengage the pawls, and then remove side ventilator grilles
(left and right) (1).
INSTALLATION
Installation is basically the reverse order of removal.
SIDE DEFROSTER GRILLE

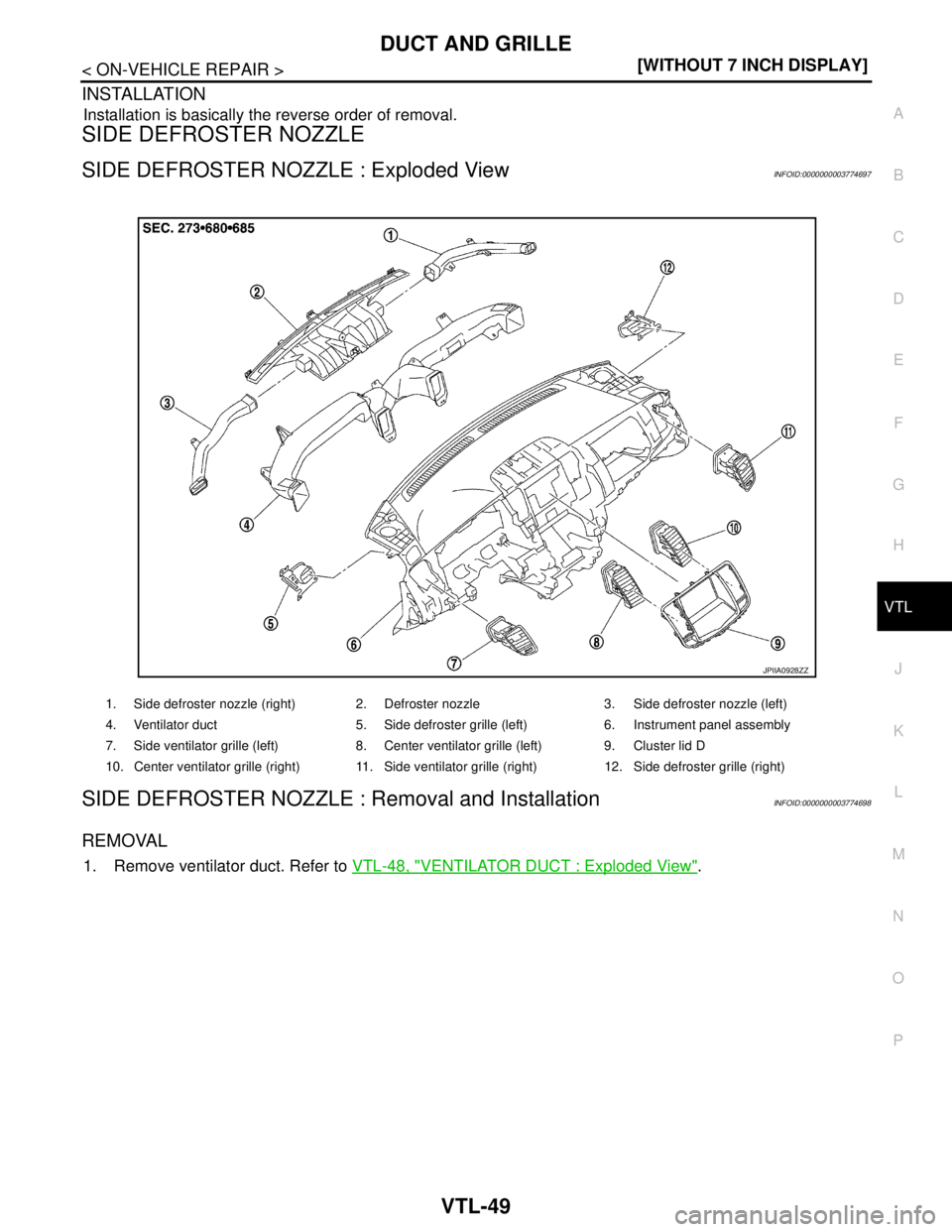

1. Side defroster nozzle (right) 2. Defroster nozzle 3. Side defroster nozzle (left)
4. Ventilator duct 5. Side defroster grille (left) 6. Instrument panel assembly
7. Side ventilator grille (left) 8. Center ventilator grille (left) 9. Cluster lid D
10. Center ventilator grille (right) 11. Side ventilator grille (right) 12. Side defroster grille (right)
JPIIA0928ZZ
: Pawl
JPIIA0930ZZ
Page 4858 of 5121
DUCT AND GRILLE
VTL-47
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
SIDE DEFROSTER GRILLE : Exploded ViewINFOID:0000000003774691
SIDE DEFROSTER GRILLE : Removal and InstallationINFOID:0000000003774692
REMOVAL
1. Remove side defroster nozzles (left and right). Refer to VTL-49, "SIDE DEFROSTER NOZZLE : Exploded
View".
2. Remove mounting screws (A), and then remove side defroster
grilles (left and right) (1).
INSTALLATION
Installation is basically the reverse order of removal.
VENTILATOR DUCT
1. Side defroster nozzle (right) 2. Defroster nozzle 3. Side defroster nozzle (left)
4. Ventilator duct 5. Side defroster grille (left) 6. Instrument panel assembly
7. Side ventilator grille (left) 8. Center ventilator grille (left) 9. Cluster lid D
10. Center ventilator grille (right) 11. Side ventilator grille (right) 12. Side defroster grille (right)
JPIIA0928ZZ
JPIIA0931ZZ
Page 4859 of 5121
VTL-48
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
DUCT AND GRILLE
VENTILATOR DUCT : Exploded View
INFOID:0000000003774693
VENTILATOR DUCT : Removal and InstallationINFOID:0000000003774694
REMOVAL
1. Remove instrument panel assembly. Refer to IP-11, "Exploded View".
2. Remove mounting screws (A).
3. Remove ventilator duct (1).
1. Side defroster nozzle (right) 2. Defroster nozzle 3. Side defroster nozzle (left)
4. Ventilator duct 5. Side defroster grille (left) 6. Instrument panel assembly
7. Side ventilator grille (left) 8. Center ventilator grille (left) 9. Cluster lid D
10. Center ventilator grille (right) 11. Side ventilator grille (right) 12. Side defroster grille (right)
JPIIA0928ZZ
JSIIA1172ZZ
Page 4860 of 5121
DUCT AND GRILLE
VTL-49
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
INSTALLATION
Installation is basically the reverse order of removal.
SIDE DEFROSTER NOZZLE
SIDE DEFROSTER NOZZLE : Exploded ViewINFOID:0000000003774697
SIDE DEFROSTER NOZZLE : Removal and InstallationINFOID:0000000003774698
REMOVAL
1. Remove ventilator duct. Refer to VTL-48, "VENTILATOR DUCT : Exploded View".
1. Side defroster nozzle (right) 2. Defroster nozzle 3. Side defroster nozzle (left)
4. Ventilator duct 5. Side defroster grille (left) 6. Instrument panel assembly
7. Side ventilator grille (left) 8. Center ventilator grille (left) 9. Cluster lid D
10. Center ventilator grille (right) 11. Side ventilator grille (right) 12. Side defroster grille (right)
JPIIA0928ZZ
Page 4861 of 5121
VTL-50
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
DUCT AND GRILLE

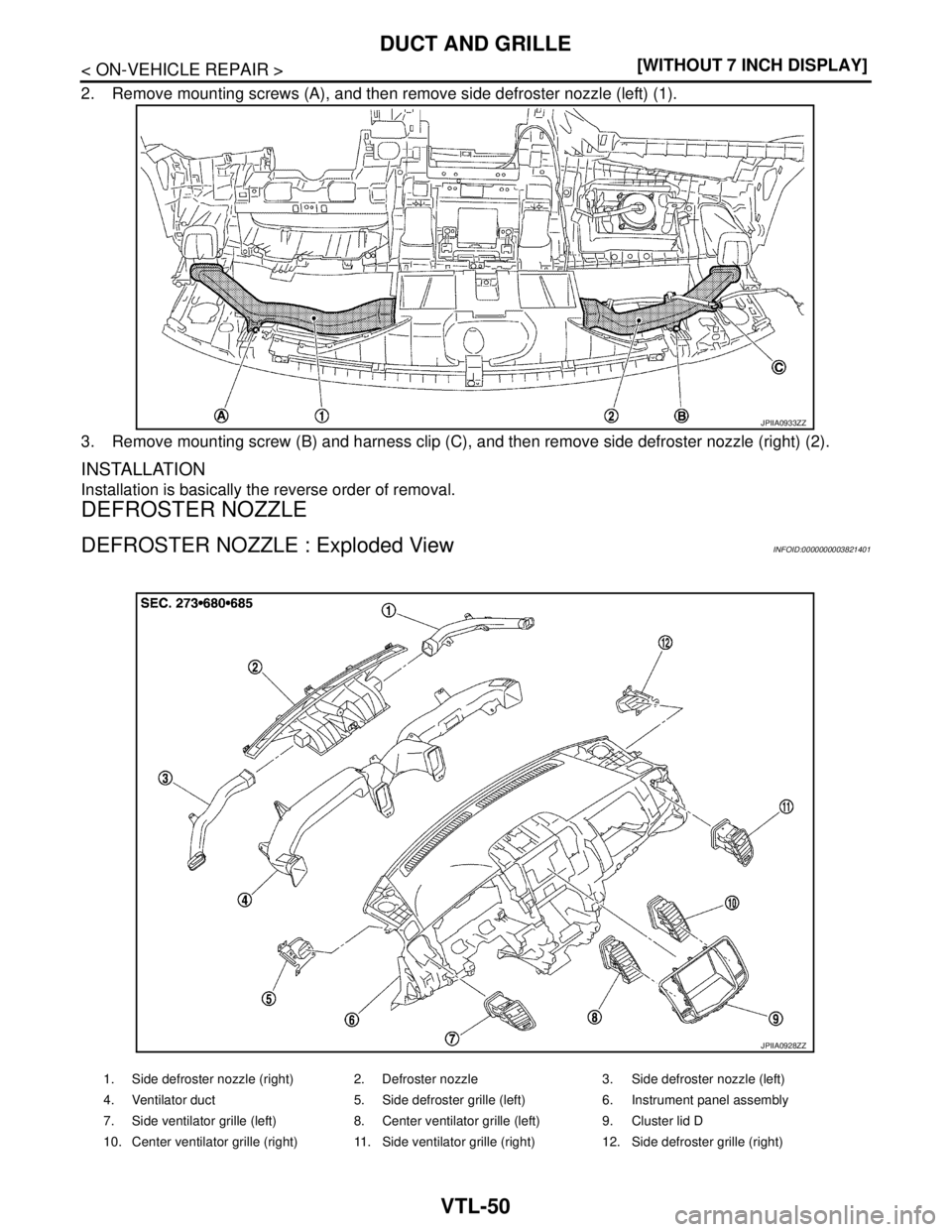

2. Remove mounting screws (A), and then remove side defroster nozzle (left) (1).
3. Remove mounting screw (B) and harness clip (C), and then remove side defroster nozzle (right) (2).
INSTALLATION
Installation is basically the reverse order of removal.
DEFROSTER NOZZLE
DEFROSTER NOZZLE : Exploded ViewINFOID:0000000003821401
JPIIA0933ZZ
1. Side defroster nozzle (right) 2. Defroster nozzle 3. Side defroster nozzle (left)
4. Ventilator duct 5. Side defroster grille (left) 6. Instrument panel assembly
7. Side ventilator grille (left) 8. Center ventilator grille (left) 9. Cluster lid D
10. Center ventilator grille (right) 11. Side ventilator grille (right) 12. Side defroster grille (right)
JPIIA0928ZZ
Page 4862 of 5121
DUCT AND GRILLE
VTL-51
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
DEFROSTER NOZZLE : Removal and InstallationINFOID:0000000003821398
REMOVAL
1. Remove side defroster nozzles (left and right). Refer to VTL-49, "SIDE DEFROSTER NOZZLE : Exploded
View".

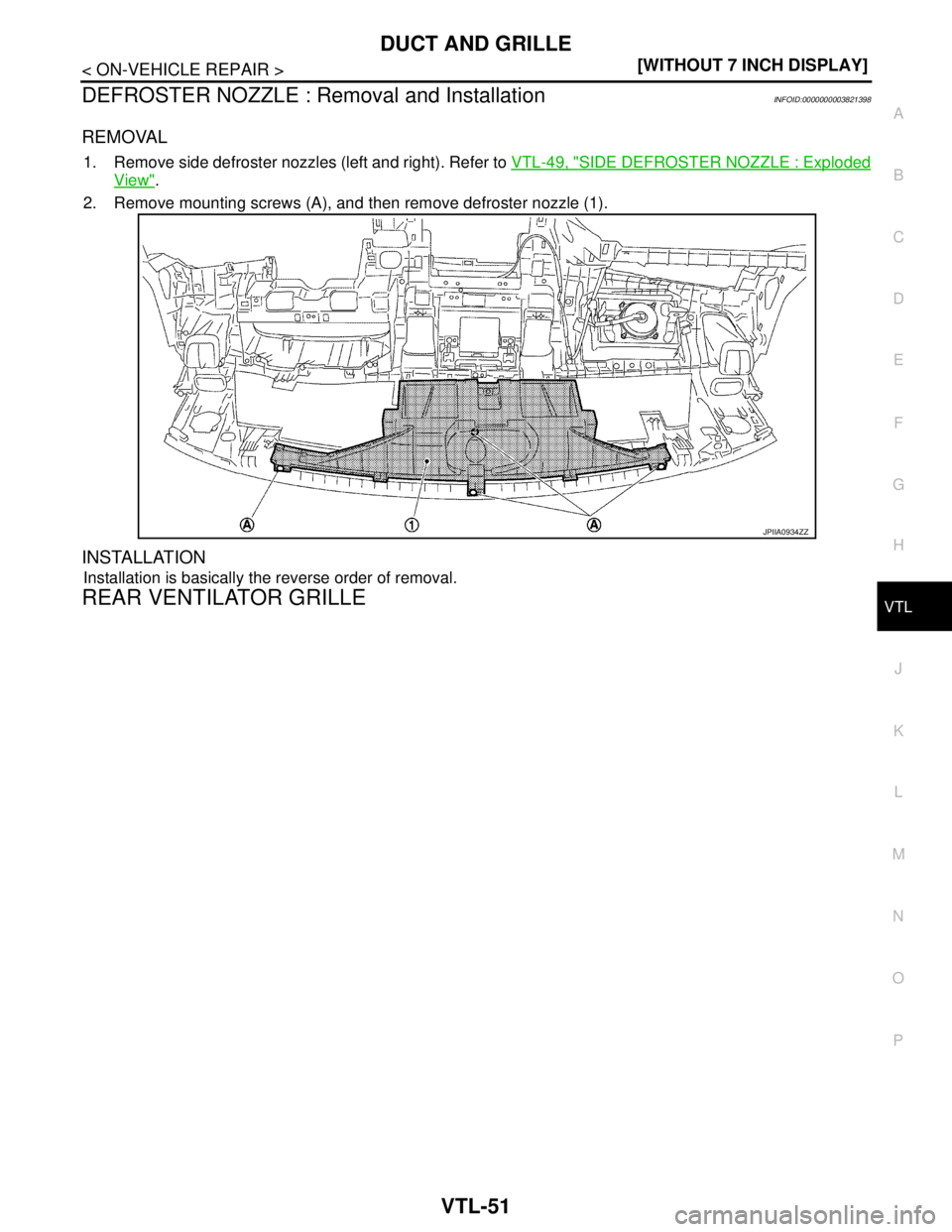

2. Remove mounting screws (A), and then remove defroster nozzle (1).
INSTALLATION
Installation is basically the reverse order of removal.
REAR VENTILATOR GRILLE
JPIIA0934ZZ
Page 4863 of 5121
VTL-52
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
DUCT AND GRILLE

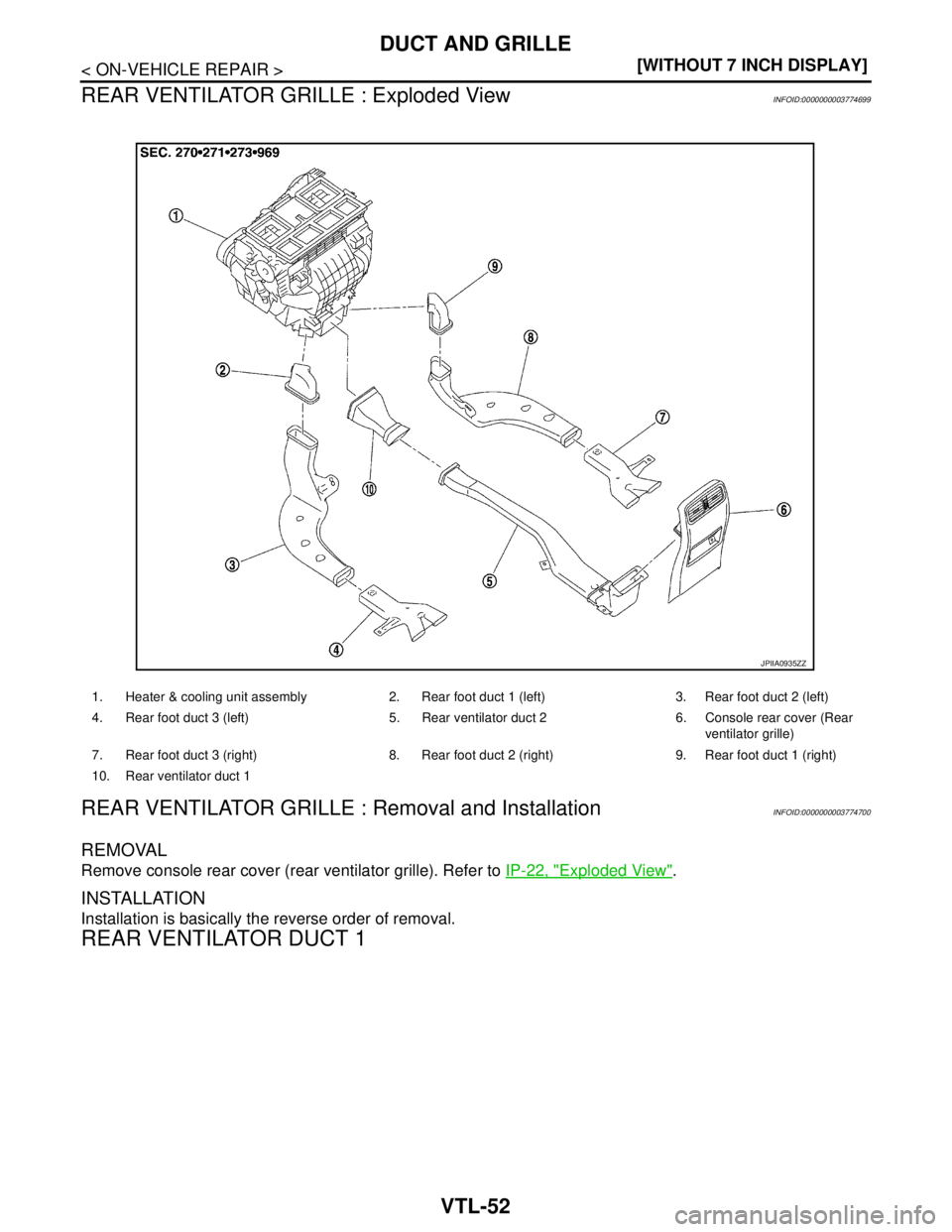

REAR VENTILATOR GRILLE : Exploded View
INFOID:0000000003774699
REAR VENTILATOR GRILLE : Removal and InstallationINFOID:0000000003774700
REMOVAL
Remove console rear cover (rear ventilator grille). Refer to IP-22, "Exploded View".
INSTALLATION
Installation is basically the reverse order of removal.

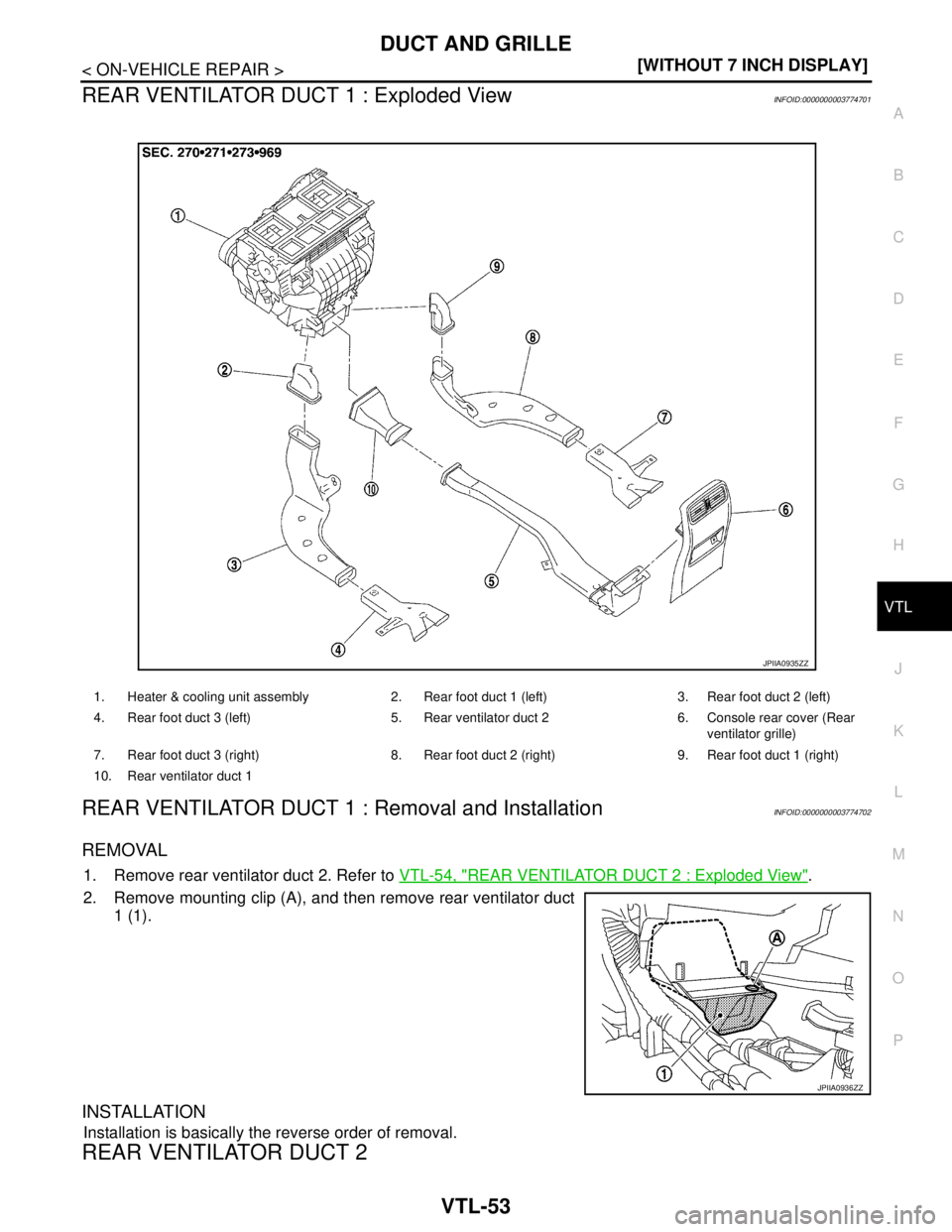

REAR VENTILATOR DUCT 1
1. Heater & cooling unit assembly 2. Rear foot duct 1 (left) 3. Rear foot duct 2 (left)
4. Rear foot duct 3 (left) 5. Rear ventilator duct 2 6. Console rear cover (Rear
ventilator grille)
7. Rear foot duct 3 (right) 8. Rear foot duct 2 (right) 9. Rear foot duct 1 (right)
10. Rear ventilator duct 1
JPIIA0935ZZ
Page 4864 of 5121
DUCT AND GRILLE
VTL-53
< ON-VEHICLE REPAIR >[WITHOUT 7 INCH DISPLAY]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
REAR VENTILATOR DUCT 1 : Exploded ViewINFOID:0000000003774701
REAR VENTILATOR DUCT 1 : Removal and InstallationINFOID:0000000003774702
REMOVAL
1. Remove rear ventilator duct 2. Refer to VTL-54, "REAR VENTILATOR DUCT 2 : Exploded View".
2. Remove mounting clip (A), and then remove rear ventilator duct
1 (1).
INSTALLATION
Installation is basically the reverse order of removal.
REAR VENTILATOR DUCT 2
1. Heater & cooling unit assembly 2. Rear foot duct 1 (left) 3. Rear foot duct 2 (left)
4. Rear foot duct 3 (left) 5. Rear ventilator duct 2 6. Console rear cover (Rear
ventilator grille)
7. Rear foot duct 3 (right) 8. Rear foot duct 2 (right) 9. Rear foot duct 1 (right)
10. Rear ventilator duct 1
JPIIA0935ZZ
