FRONT SQUAWKER
Exploded ViewINFOID:0000000003765619
Removal and InstallationINFOID:0000000003765620
REMOVAL
1. Remove speaker grille. Refer to IP-12, "Removal and Installation".
2. Remove front squawker screws, lift up the front squawker and disconnect front squawker connector. Then
remove the front squawker.
INSTALLATION
Install in the reverse order of removal.
JPNIA1038ZZ
1. Front squawker
Page 186 of 5121
AV-42
< ON-VEHICLE REPAIR >[AUDIO SYSTEM]
STEERING SWITCH
STEERING SWITCH
Exploded ViewINFOID:0000000003765621
Refer to ST-12, "Exploded View".
Removal and InstallationINFOID:0000000003765622
REMOVAL
Refer to ST-12, "Removal and Installation".
INSTALLATION
Install in the reverse order of removal.
Page 187 of 5121
AV
ANTENNA AMP.
AV-43
< ON-VEHICLE REPAIR >[AUDIO SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
ANTENNA AMP.
Exploded ViewINFOID:0000000003765623
Removal and InstallationINFOID:0000000003765624
REMOVAL
1. Remove rear side pillar finisher. Refer to INT-39, "Removal and Installation".
2. Disconnect antenna feeder connector and clip.
3. Remove antenna amp. mounting nut, disconnect the antenna amp. connector.
4. Remove antenna amp.
INSTALLATION
Installation is the reverse order of removal.
JPNIA1032ZZ
1. AM-FM main connector
2. Antenna amp.
Page 188 of 5121
AV-44
< ON-VEHICLE REPAIR >[AUDIO SYSTEM]
ANTENNA FEEDER (RADIO)
ANTENNA FEEDER (RADIO)

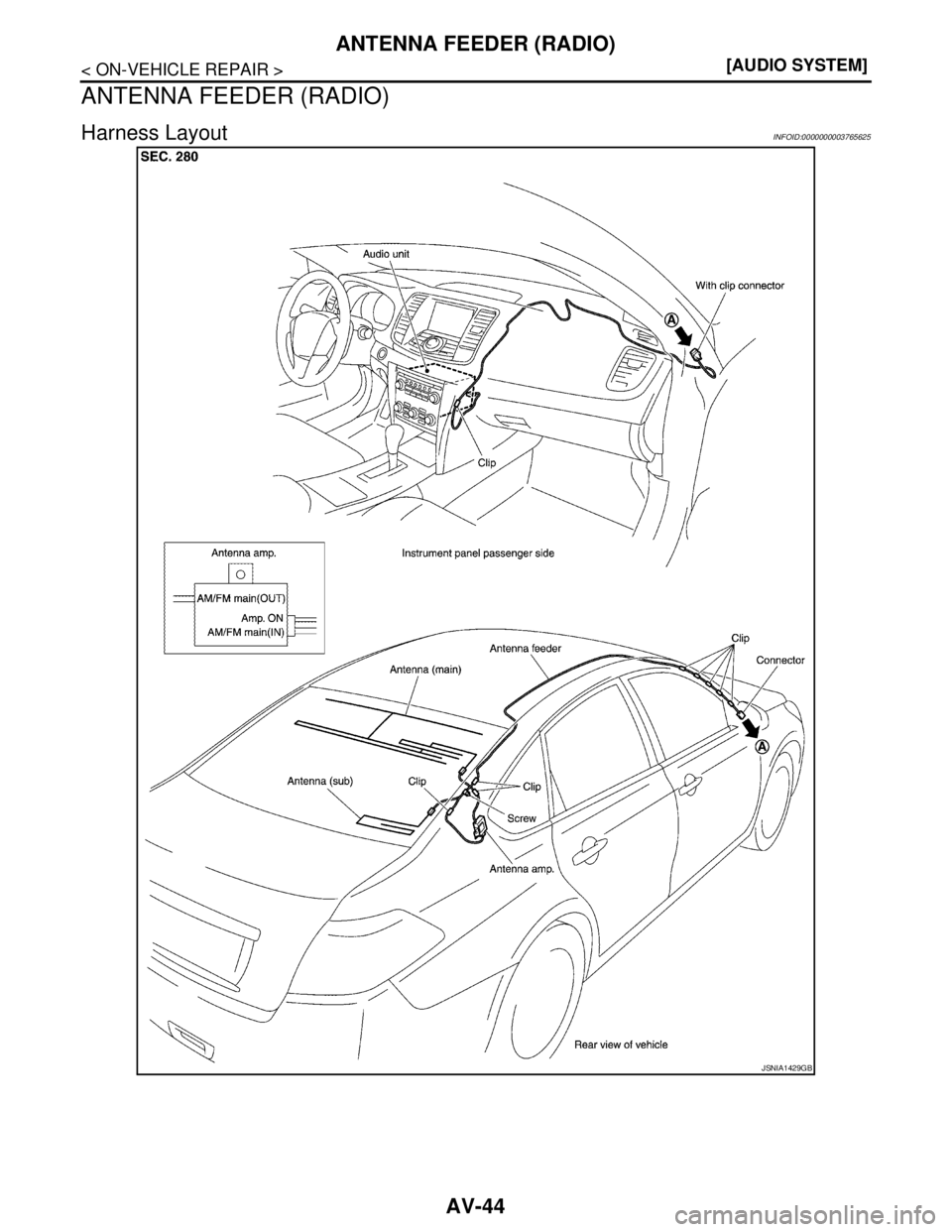

Harness LayoutINFOID:0000000003765625
JSNIA1429GB
Page 189 of 5121
AV
DIAGNOSIS AND REPAIR WORKFLOW
AV-45
< BASIC INSPECTION >[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000003882692

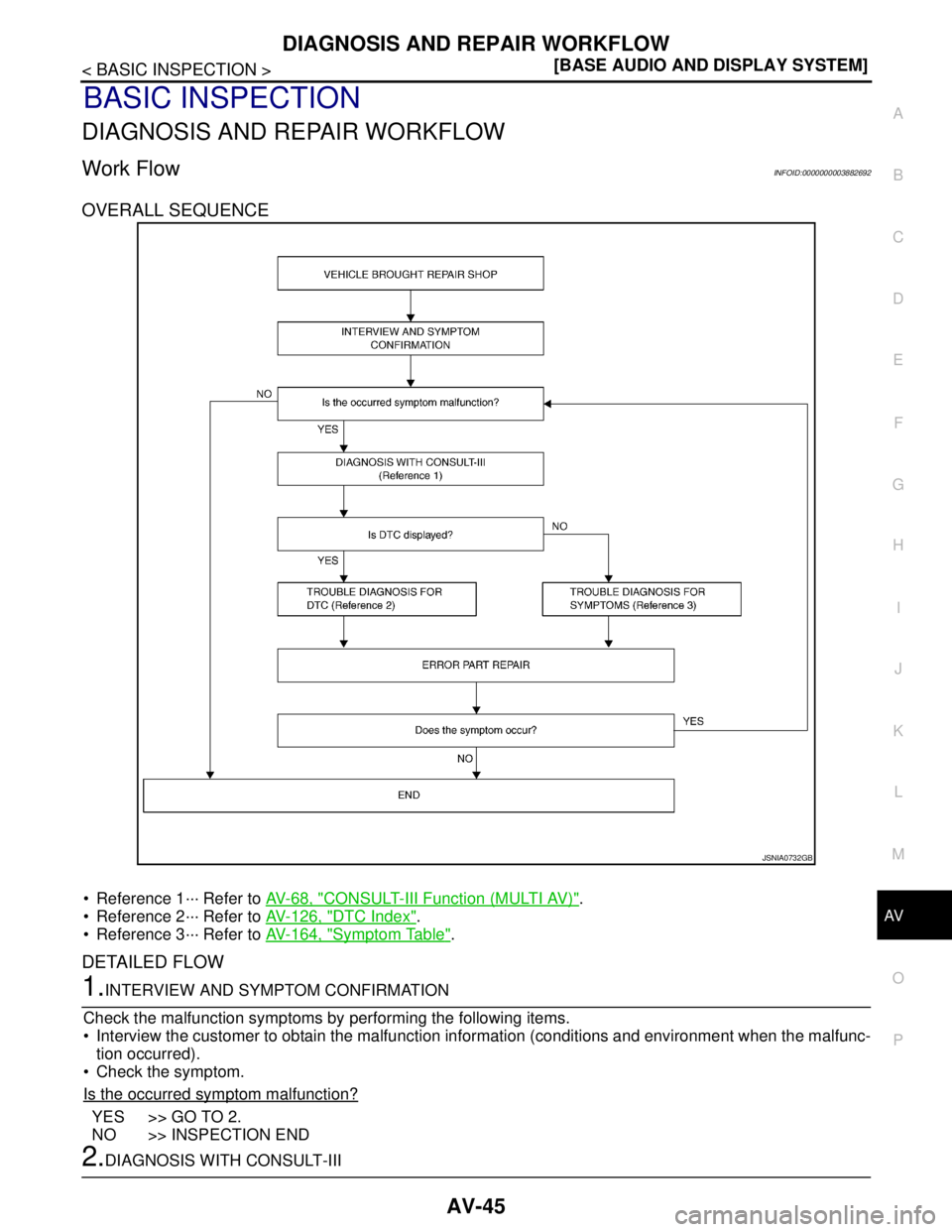

OVERALL SEQUENCE
Reference 1··· Refer to AV-68, "CONSULT-III Function (MULTI AV)".
Reference 2··· Refer to AV-126, "
DTC Index".
Reference 3··· Refer to AV-164, "
Symptom Table".
DETAILED FLOW
1.INTERVIEW AND SYMPTOM CONFIRMATION
Check the malfunction symptoms by performing the following items.
Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-
tion occurred).
Check the symptom.
Is the occurred symptom malfunction?
YES >> GO TO 2.
NO >> INSPECTION END
2.DIAGNOSIS WITH CONSULT-III
JSNIA0732GB
Page 190 of 5121
![NISSAN TEANA 2008 Service Manual AV-46
< BASIC INSPECTION >[BASE AUDIO AND DISPLAY SYSTEM]
DIAGNOSIS AND REPAIR WORKFLOW
1. Connect CONSULT-III and perform a self-diagnosis for “MULTI AV”. Refer to AV-68, "CONSULT-III Func-
tion NISSAN TEANA 2008 Service Manual AV-46
< BASIC INSPECTION >[BASE AUDIO AND DISPLAY SYSTEM]
DIAGNOSIS AND REPAIR WORKFLOW
1. Connect CONSULT-III and perform a self-diagnosis for “MULTI AV”. Refer to AV-68, "CONSULT-III Func-
tion](/manual-img/5/57391/w960_57391-189.png)
AV-46
< BASIC INSPECTION >[BASE AUDIO AND DISPLAY SYSTEM]
DIAGNOSIS AND REPAIR WORKFLOW
1. Connect CONSULT-III and perform a self-diagnosis for “MULTI AV”. Refer to AV-68, "CONSULT-III Func-
tion (MULTI AV)".
NOTE:
Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.
2. Check if any DTC is displayed in the self-diagnosis results.
Is DTC displayed?
YES >> GO TO 3.
NO >> GO TO 4.
3.TROUBLE DIAGNOSIS FOR DTC
1. Check the DTC indicated in the self-diagnosis results.
2. Perform the relevant diagnosis referring to the DTC Index. Refer to AV-126, "
DTC Index".
>> GO TO 5.
4.TROUBLE DIAGNOSIS FOR SYMPTOMS
Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to AV-164, "
Symptom
Table".
>> GO TO 5.
5.ERROR PART REPAIR
1. Repair or replace the identified malfunctioning parts.
2. Perform a self-diagnosis for “MULTI AV” with CONSULT-III.
NOTE:
Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC
has been indicated in the self-diagnosis results.
3. Check that the symptom does not occur.
Does the symptom occur?
YES >> GO TO 1.
NO >> INSPECTION END
