Page 2905 of 5121

INL-26
< COMPONENT DIAGNOSIS >
TRUNK ROOM LAMP CIRCUIT
TRUNK ROOM LAMP CIRCUIT
DescriptionINFOID:0000000003812232
Controls the trunk room lamp (ground side) to turn the trunk room lamp ON and OFF.
Component Function CheckINFOID:0000000003812233
CAUTION:
Before performing the diagnosis, check that the following is normal.
Interior room lamp power supply
Trunk room lamp bulb
1.CHECK TRUNK ROOM LAMP OPERATION
CONSULT-III ACTIVE TEST
1. Turn ignition switch ON.
2. Select “LUGGAGE LAMP TEST” of BCM (INT LAMP) active test item.
3. With operating the test items, check that trunk room lamp turns ON/OFF.
Does the trunk room lamp turn ON/OFF?
YES >> Trunk room lamp circuit is normal.
NO >> Refer to INL-26, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003812234
1.CHECK TRUNK ROOM LAMP OUTPUT
CONSULT-III ACTIVE TEST
1. Turn ignition switch OFF.
2. Remove trunk room lamp bulb.
3. Turn ignition switch ON.
4. Select “LUGGAGE LAMP TEST” of BCM (INT LAMP) active test item.
5. With operating the test item, check continuity between BCM harness connector and ground.
Is the measurement value normal?
YES >> GO TO 2.
Fixed ON>>GO TO 3.
Fixed OFF>>Replace BCM.
2.CHECK TRUNK ROOM LAMP OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and trunk room lamp connector.
3. Check continuity between BCM harness connector and trunk room lamp harness connector.
Does continuity exist?
YES >> Replace trunk room lamp.On : Trunk room lamp ON
Off : Trunk room lamp OFF
BCM
GroundTe s t i t e m
Continuity
Connector TerminalLUGGAGE
LAMP TEST
M120 30On Existed
Off Not existed
BCM Trunk room lamp
Continuity
Connector Terminal Connector Terminal
M120 30 B91 2 Existed
Page 2906 of 5121
TRUNK ROOM LAMP CIRCUIT
INL-27
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P
NO >> Repair harnesses or connectors.
3.CHECK TRUNK ROOM LAMP SHORT CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and trunk room lamp connector.
3. Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> Repair harnesses or connectors.
NO >> Replace BCM.
BCM
GroundContinuity
Connector Terminal
M120 30 Not existed
Page 2907 of 5121

INL-28
< COMPONENT DIAGNOSIS >
PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT
PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT
DescriptionINFOID:0000000003774564
Provides the power supply and the ground to control the push-button ignition switch illumination.
Component Function CheckINFOID:0000000003774565
1.CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION OPERATION
CONSULT-III ACTIVE TEST
1. Turn the ignition switch ON.
2. Select “ENGINE SW ILLUMI” of BCM (INTELLIGENT KEY) active test item.
3. With operating the test items, check that the push-button ignition switch illumination turns ON/OFF.
Does the push-button ignition switch illumination turn ON/OFF?
YES >> Push-button ignition switch illumination circuit is normal.
NO >> Refer to INL-28, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003774566
1.CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY OUTPUT
CONSULT-III ACTIVE TEST
1. Turn the ignition switch ON.
2. Select “ENGINE SW ILLUMI” of BCM (INTELLIGENT KEY) active test item.
3. With operating the test item, check voltage between BCM harness connector and ground.
Is the measurement value normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY OPEN CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect BCM connector and the push-button ignition switch connector.
3. Check continuity between BCM harness connector and the push-button ignition switch harness connector.
Does the continuity exist?
YES >> GO TO 4.
NO >> Repair the harness or the connector.
3.CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION POWER SUPPLY SHORT CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect BCM connector and the push-button ignition switch connector.
3. Check continuity between BCM harness connector and the push-button ignition switch harness connector.On : Push-button ignition switch illumination ON
Off : Push-button ignition switch illumination OFF
Te r m i n a l s
Te s t i t e m
Voltag e
(Approx.) (+) (-)
BCM
GroundENGINE SW
ILLUMI
Connector Terminal
M123 133ON 9.5 V
OFF 0 V
BCM Push-button ignition switch
Continuity
Connector Terminal Connector Terminal
M123 133 M101 3 Existed
Page 2908 of 5121
PUSH-BUTTON IGNITION SWITCH ILLUMINATION CIRCUIT
INL-29
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P
Does the continuity exist?
YES >> Repair the harness or the connector.
NO >> Replace BCM.
4.CHECK PUSH-BUTTON IGNITION SWITCH ILLUMINATION GROUND CIRCUIT
Check continuity between the push-button ignition switch harness connector and ground.
Does the continuity exist?
YES >> Replace push-button ignition switch.
NO >> Repair the harness or the connector.
BCM
GroundContinuity
Connector Terminal
M123 133 Not existed
Push-button ignition switch
GroundContinuity
Connector Terminal
M101 2 Existed
Page 2909 of 5121
INL-30
< COMPONENT DIAGNOSIS >
INTERIOR ROOM LAMP CONTROL SYSTEM
INTERIOR ROOM LAMP CONTROL SYSTEM

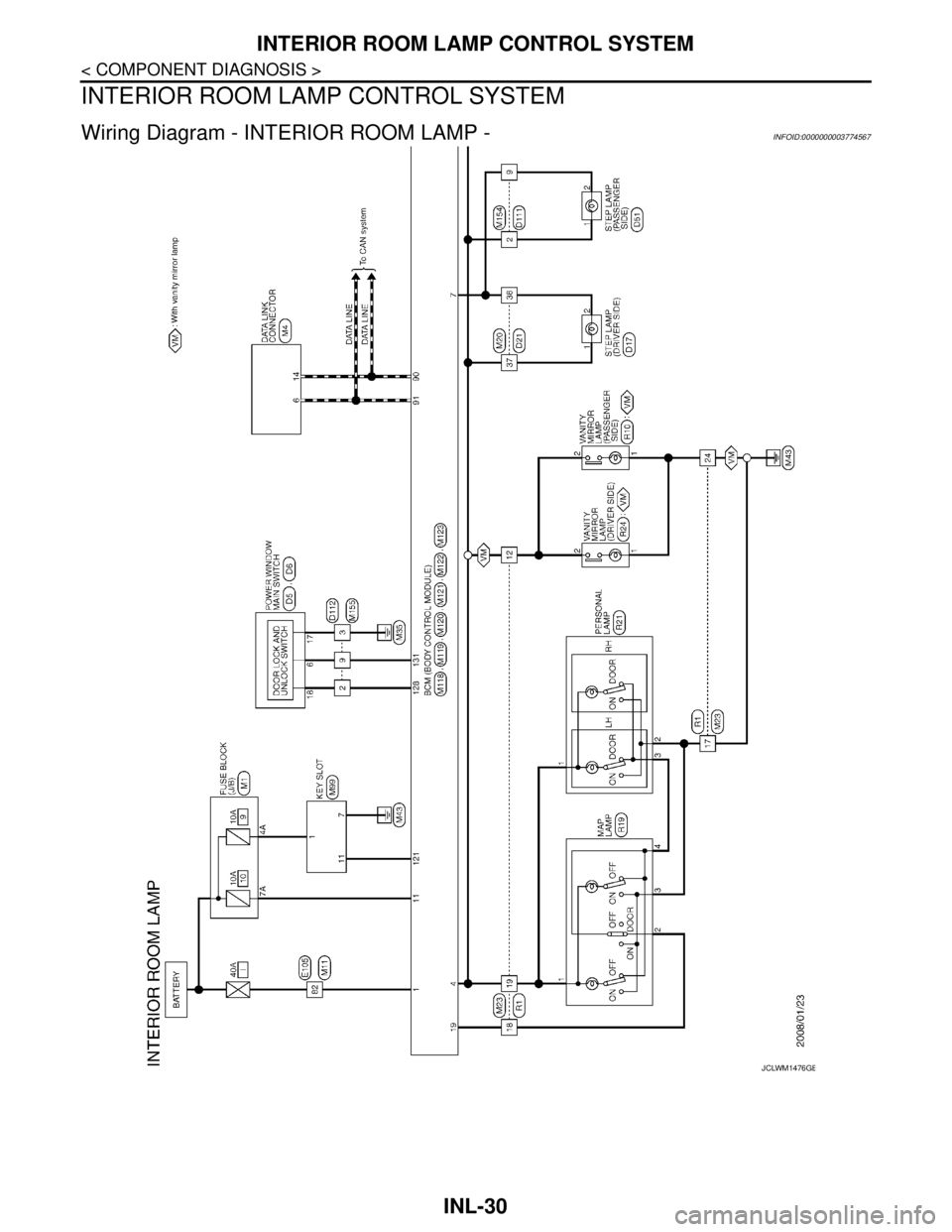

Wiring Diagram - INTERIOR ROOM LAMP -INFOID:0000000003774567
JCLWM1476GB
Page 2910 of 5121
INTERIOR ROOM LAMP CONTROL SYSTEM
INL-31
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P

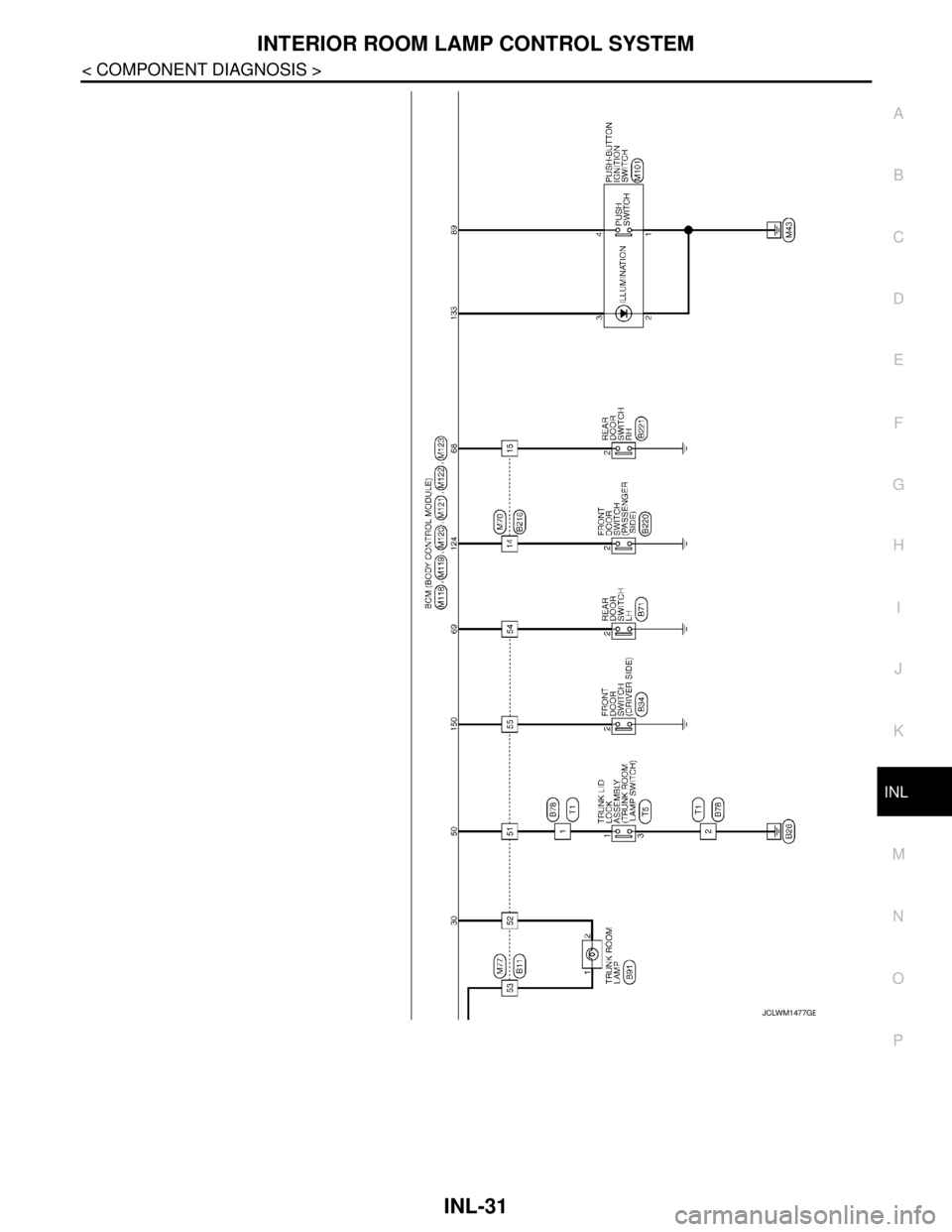

JCLWM1477GB
Page 2911 of 5121
INL-32
< COMPONENT DIAGNOSIS >
INTERIOR ROOM LAMP CONTROL SYSTEM
JCLWM1478GB
Page 2912 of 5121
INTERIOR ROOM LAMP CONTROL SYSTEM
INL-33
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
INL
N
O
P

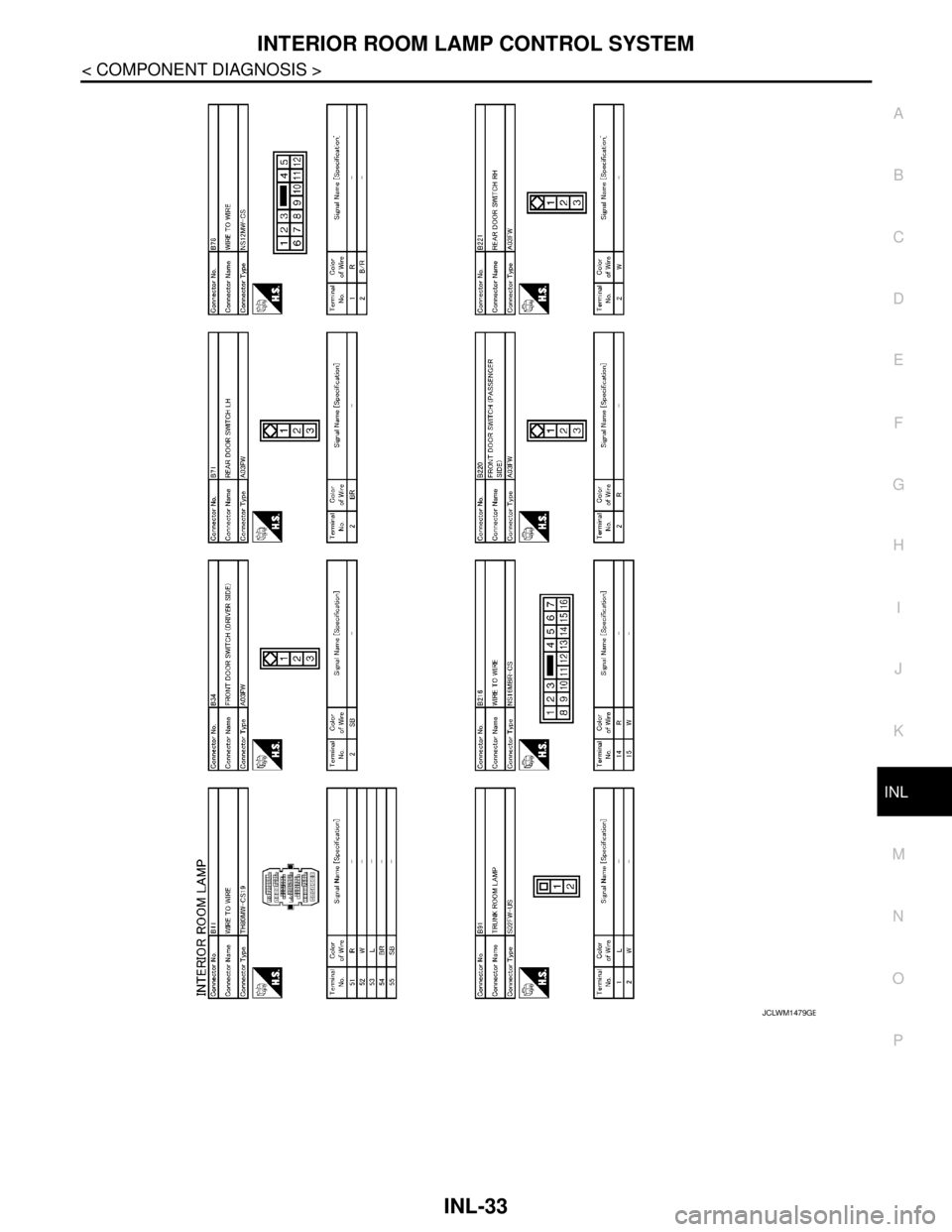

JCLWM1479GB
