WCS
WARNING CHIME SYSTEM
WCS-7
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
LIGHT REMINDER WARNING CHIME : System DiagramINFOID:0000000003838695
LIGHT REMINDER WARNING CHIME : System DescriptionINFOID:0000000003838696
DESCRIPTION
With ignition switch in the OFF or ACC position, when the driver door is open or the lighting switch is the 1st or
2nd position, the light warning chime will sound.
BCM detects ignition switch in the OFF or ACC position, front door switch (driver side) ON, and lighting
switch in 1st or 2nd position. Then the BCM transmits the buzzer output signal (light reminder warning
chime) to combination meter with CAN communication line.
When combination meter receives buzzer output signal (light reminder warning chime), it sounds the buzzer.
WARNING OPERATION CONDITIONS
If all of the following conditions are fulfilled.
Ignition switch is in the OFF or ACC
Lighting switch is in the 1st or 2nd position
Front door switch (driver side) is ON
WARNING CANCEL CONDITIONS
Warning is canceled if any of the following conditions is fulfilled.
Lighting switch OFF
Ignition switch ON
Front door switch (driver side) is OFF
JPNIA0749GB
Page 4938 of 5121
WCS-8
< FUNCTION DIAGNOSIS >
WARNING CHIME SYSTEM

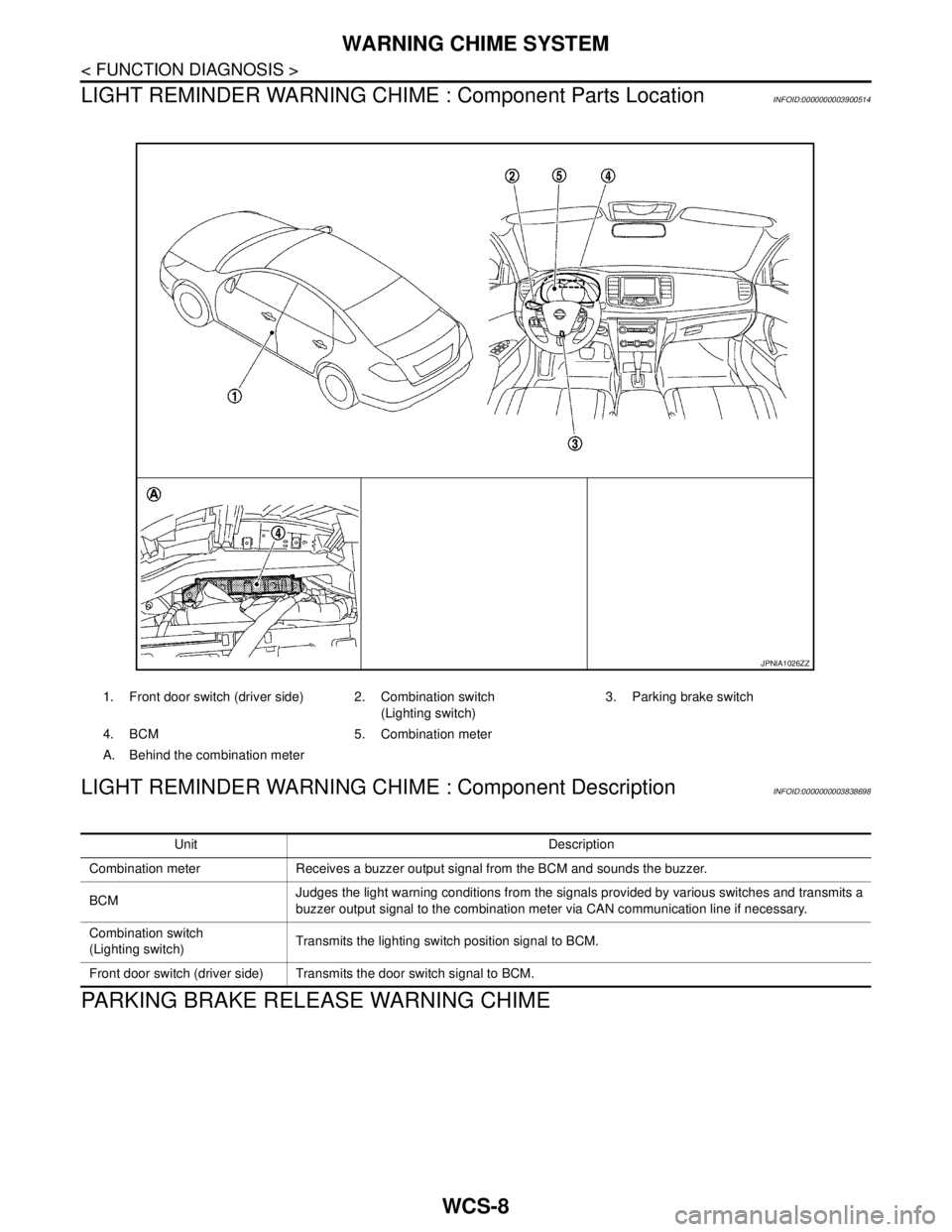

LIGHT REMINDER WARNING CHIME : Component Parts Location
INFOID:0000000003900514
LIGHT REMINDER WARNING CHIME : Component DescriptionINFOID:0000000003838698
PARKING BRAKE RELEASE WARNING CHIME
1. Front door switch (driver side) 2. Combination switch
(Lighting switch)3. Parking brake switch
4. BCM 5. Combination meter
A. Behind the combination meter
JPNIA1026ZZ
Unit Description
Combination meter Receives a buzzer output signal from the BCM and sounds the buzzer.
BCMJudges the light warning conditions from the signals provided by various switches and transmits a
buzzer output signal to the combination meter via CAN communication line if necessary.
Combination switch
(Lighting switch)Transmits the lighting switch position signal to BCM.
Front door switch (driver side) Transmits the door switch signal to BCM.
Page 4939 of 5121
WCS
WARNING CHIME SYSTEM
WCS-9
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
PARKING BRAKE RELEASE WARNING CHIME : System DiagramINFOID:0000000003838699
PARKING BRAKE RELEASE WARNING CHIME : System DescriptionINFOID:0000000003838700
DESCRIPTION
Parking brake release warning chime judges the remaining parking brake according to the vehicle speed sig-
nal received from the ABS actuator and electric unit (control unit) via CAN communication and the parking
brake switch signal from parking brake switch to sound the warning buzzer.
WARNING OPERATION CONDITIONS
If all of the following conditions are fulfilled. Vehicle speed is 7 km/h (4.3 MPH) or higher
Parking brake switch ON
WARNING CANCEL CONDITIONS
Warning is canceled if any of the following conditions are fulfilled.
Vehicle speed is approximately 3 km/h (1.9 MPH) or less
Parking brake switch OFF
JPNIA0751GB
Page 4940 of 5121
WCS-10
< FUNCTION DIAGNOSIS >
WARNING CHIME SYSTEM

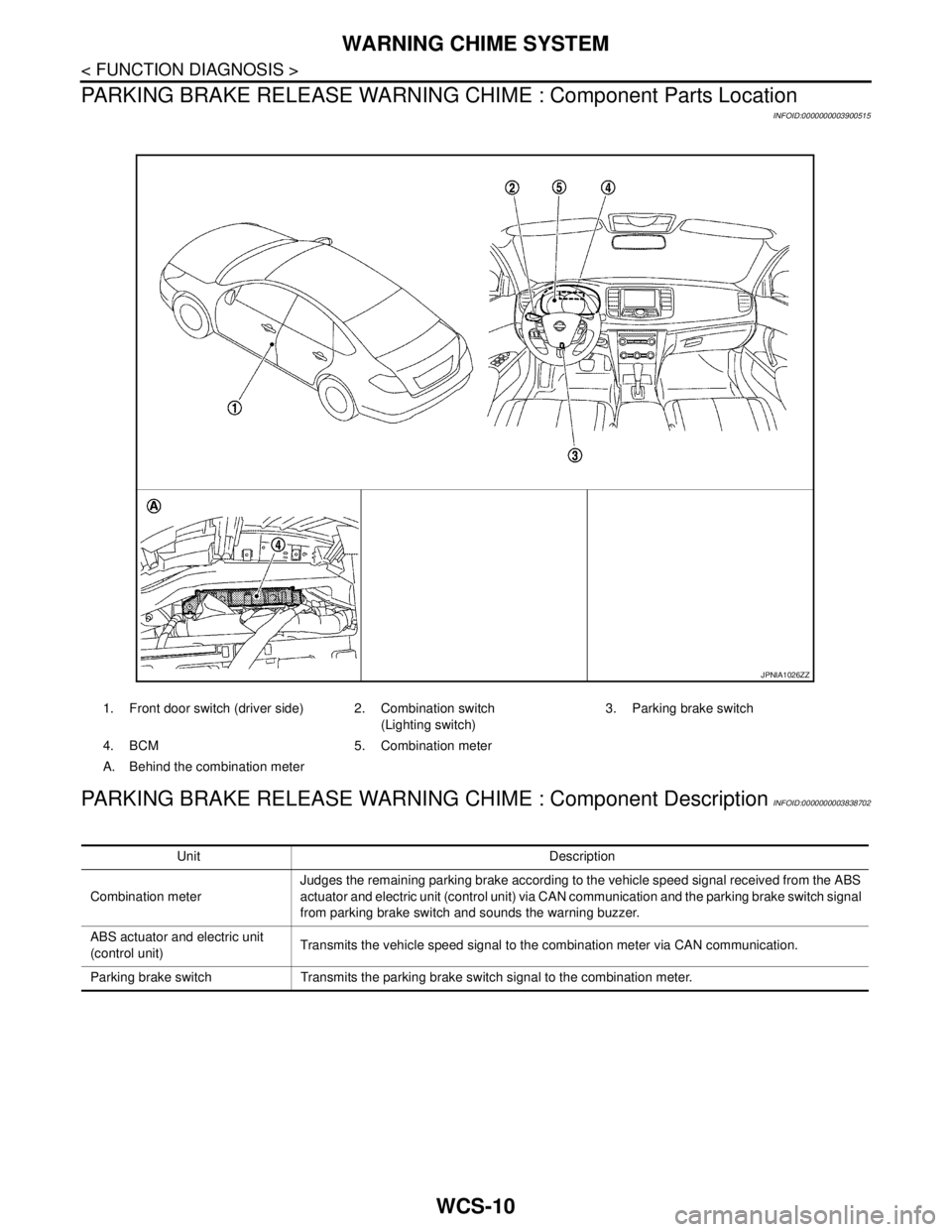

PARKING BRAKE RELEASE WARNING CHIME : Component Parts Location
INFOID:0000000003900515
PARKING BRAKE RELEASE WARNING CHIME : Component DescriptionINFOID:0000000003838702
1. Front door switch (driver side) 2. Combination switch
(Lighting switch)3. Parking brake switch
4. BCM 5. Combination meter
A. Behind the combination meter
JPNIA1026ZZ
Unit Description
Combination meterJudges the remaining parking brake according to the vehicle speed signal received from the ABS
actuator and electric unit (control unit) via CAN communication and the parking brake switch signal
from parking brake switch and sounds the warning buzzer.
ABS actuator and electric unit
(control unit)Transmits the vehicle speed signal to the combination meter via CAN communication.
Parking brake switch Transmits the parking brake switch signal to the combination meter.
Page 4941 of 5121

WCS
DIAGNOSIS SYSTEM (METER)
WCS-11
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
DIAGNOSIS SYSTEM (METER)
Diagnosis DescriptionINFOID:0000000003838726
SELF-DIAGNOSIS MODE
Information display LCD segment operation can be checked in self-diagnosis mode.
Meters/gauges can be checked in self-diagnosis mode.
OPERATION PROCEDURE
1. Turn ignition switch ON, and switch the trip meter to “trip A” or “trip B”.
NOTE:
If the diagnosis function is activated with “trip A” displayed, the mileage on “trip A” is reset to “0000.0”.
(The same way for “trip B”.)
2. Turn ignition switch OFF.

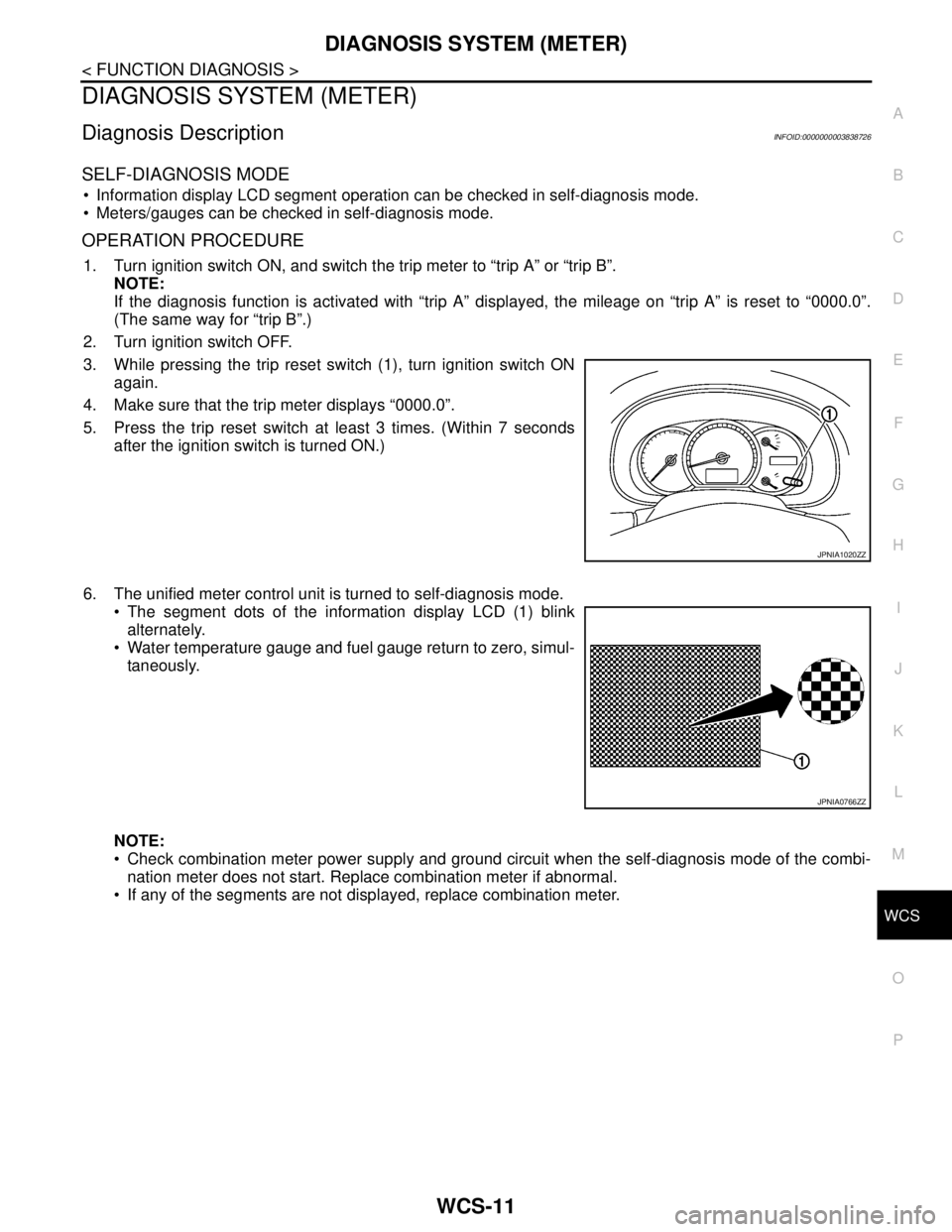

3. While pressing the trip reset switch (1), turn ignition switch ON
again.
4. Make sure that the trip meter displays “0000.0”.
5. Press the trip reset switch at least 3 times. (Within 7 seconds
after the ignition switch is turned ON.)
6. The unified meter control unit is turned to self-diagnosis mode.
The segment dots of the information display LCD (1) blink
alternately.
Water temperature gauge and fuel gauge return to zero, simul-
taneously.
NOTE:
Check combination meter power supply and ground circuit when the self-diagnosis mode of the combi-
nation meter does not start. Replace combination meter if abnormal.
If any of the segments are not displayed, replace combination meter.
JPNIA1020ZZ
JPNIA0766ZZ
Page 4942 of 5121

WCS-12
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (METER)
7. Each meter activates by pressing the trip reset switch.
NOTE:
If any of the meters or gauges are not activated, replace combination meter.
CONSULT-III Function (METER/M&A)INFOID:0000000003838727
CONSULT-III APPLICATION ITEMS
CONSULT-III can perform the following diagnosis modes via CAN communication and the combination meter.
SELF DIAG RESULT
Refer to WCS-40, "DTC Index".
DATA MONITOR
Display Item List
X: Applicable
JPNIA1019ZZ
System Diagnosis mode Description
METER/M&ASelf Diagnostic Result The combination meter checks the conditions and displays memorized errors.
Data Monitor Displays the combination meter input/output data in real time.
Special function Lighting history of the warning lamp and indicator lamp can be checked.
Display item [Unit]MAIN
SIGNALSDescription
SPEED METER
[km/h]XValue of vehicle speed signal received from ABS actuator and electric unit (control
unit) via CAN communication.
NOTE:
655.35 is displayed when the malfunction signal is received.
SPEED OUTPUT
[km/h]XVehicle speed signal value transmitted to other units via CAN communication.
NOTE:
655.35 is displayed when the malfunction signal is received.
ODO OUTPUT
[km/h or mph]Odometer signal value transmitted to other units via CAN communication.
TACHO METER
[rpm]XValue of the engine speed signal received from ECM via CAN communication.
NOTE:
8191.875 is displayed when the malfunction signal is received.
FUEL METER
[lit.]X Fuel level indicated on combination meter.
Page 4943 of 5121
![NISSAN TEANA 2008 Service Manual WCS
DIAGNOSIS SYSTEM (METER)
WCS-13
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
W TEMP METER
[°C] XValue of engine coolant temperature signal is received from ECM via CAN com-
munication.
NO NISSAN TEANA 2008 Service Manual WCS
DIAGNOSIS SYSTEM (METER)
WCS-13
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
W TEMP METER
[°C] XValue of engine coolant temperature signal is received from ECM via CAN com-
munication.
NO](/manual-img/5/57391/w960_57391-4942.png)
WCS
DIAGNOSIS SYSTEM (METER)
WCS-13
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
W TEMP METER
[°C] XValue of engine coolant temperature signal is received from ECM via CAN com-
munication.
NOTE:
215 is displayed when the malfunction signal is input.
ABS W/L
[On/Off]Status of ABS warning lamp detected from ABS warning lamp signal is received
from ABS actuator and electric unit (control unit) via CAN communication.
VDC/TCS IND
[On/Off]Status of VDC OFF indicator lamp detected from VDC OFF indicator lamp signal
is received from ABS actuator and electric unit (control unit) via CAN communica-
tion.
SLIP IND
[On/Off]Status of SLIP indicator lamp detected from slip indicator lamp signal received
from ABS actuator and electric unit (control unit) via CAN communication.
BRAKE W/L
[On/Off]Status of brake warning lamp detected from brake warning lamp signal is received
from ABS actuator and electric unit (control unit) via CAN communication.
NOTE:
Displays “Off” if the brake warning lamp is illuminated when the valve check starts,
the parking brake switch is turned ON or the brake fluid level switch is turned ON.
DOOR W/L
[On/Off]Status of door warning detected from door switch signal received from BCM via
CAN communication.
TRUNK/GLAS-H
[On/Off]Status of trunk warning detected from trunk switch signal received from BCM via
CAN communication.
HI-BEAM IND
[On/Off]Status of high beam indicator lamp detected from high beam request signal is re-
ceived from BCM via CAN communication.
TURN IND
[On/Off]Status of turn indicator lamp detected from turn indicator signal is received from
BCM via CAN communication.
FR FOG IND
[On/Off]Status of front fog light indicator lamp detected from front fog light request signal
is received from BCM via CAN communication.
RR FOG IND
[On/Off]Status of rear fog light indicator lamp detected from rear fog light request signal is
received from BCM via CAN communication.
LIGHT IND
[On/Off]Status of light indicator lamp detected from position light request signal is received
from BCM via CAN communication.
OIL W/L
[On/Off]Status of oil pressure warning lamp detected from oil pressure switch signal is re-
ceived from BCM via CAN communication.
MIL
[On/Off] Status of malfunction indicator lamp detected from malfunctioning indicator lamp
signal is received from ECM via CAN communication.
CRUISE IND
[On/Off]Status of CRUISE indicator detected from ASCD status signal is received from
ECM via CAN communication.
SPORT IND
[On/Off]Status of SPORT indicator detected from sport mode switch signal is received
from control device.
4WD W/L
[On/Off]This item is displayed, but cannot be monitored.
4WD LOCK IND
[On/Off]This item is displayed, but cannot be monitored.
FUEL W/L
[On/Off]Low-fuel warning lamp status detected by the identified fuel level.
WASHER W/L
[On/Off]This item is displayed, but cannot be monitored.
KEY G/Y W/L
[On/Off]Status of key warning lamp (G/Y) detected from key warning signal is received
from BCM via CAN communication.
AFS OFF IND
[On/Off]This item is displayed, but cannot be monitored.
LCD
[B&P N, B&P I, ID NG, ROTAT, SFT
P, INSRT, BATT, NO KY,OUTKY, LK
WN]Displays status of Intelligent Key system warning detected from meter display sig-
nal is received from BCM via CAN communication.
Display item [Unit]MAIN
SIGNALSDescription
Page 4944 of 5121

WCS-14
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (METER)
NOTE:
Some items are not available according to vehicle specification.
SPECIAL FUNCTION
Special menu
W/L ON HISTORY
Stores histories when warning/indicator lamp is turned on.
“W/L ON HISTORY” indicates the “TIME” when the warning/ indicator lamp is turned on.
The “TIME” above is :
SHIFT IND
[P, R, N, D, L]Status of shift position indicator detected from shift position signal and manual
mode indicator signal is received from TCM via CAN communication.
O/D OFF SW
[On/Off] Status of sport mode switch.
M RANGE SW
[On/Off]This item is displayed, but cannot be monitored.
NM RANGE SW
[On/Off]This item is displayed, but cannot be monitored.
AT SFT UP SW
[On/Off]This item is displayed, but cannot be monitored.
AT SFT DWN SW
[On/Off]This item is displayed, but cannot be monitored.
ST SFT UP SW
[On/Off]This item is displayed, but cannot be monitored.
ST SFT DWN SW
[On/Off]This item is displayed, but cannot be monitored.
PKB SW
[On/Off]Status of parking brake switch.
BUCKLE SW
[On/Off]Status of seat belt buckle switch.
BRAKE OIL SW
[On/Off]Status of brake fluid level switch.
DISTANCE
[km]Value of possible driving distance calculated by combination meter.
A/C AMP CONN
[On/Off]Input status of A/C auto amp. connection recognition signal.
ENTER SW
[On/Off]Status of (ENTER) switch.
SELECT SW
[On/Off]Status of (SELECT) switch.
OUTSIDE TEMP
[°C or °F]Ambient air temperature value converted from ambient sensor signal received
from ambient sensor.
NOTE:
This may not match with the temperature value indicated on the information dis-
play. (Because the information display value is a corrected value from the ambient
sensor input value.)
FUEL LOW SIG
[On/Off]Status of fuel level low warning signal to output to AV control unit via CAN com-
munication.
BUZZER
[On/Off]XBuzzer status (in the combination meter) is detected from the buzzer output signal
received from each unit via CAN communication and the warning output condition
of the combination meter. Display item [Unit]MAIN
SIGNALSDescription
Display item Description
W/L ON HISTORY Lighting history of warning lamp and indicator lamp can be checked.
